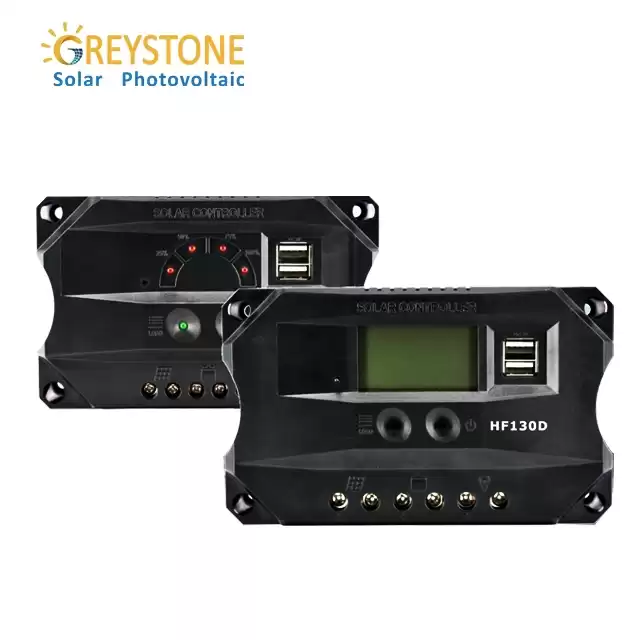

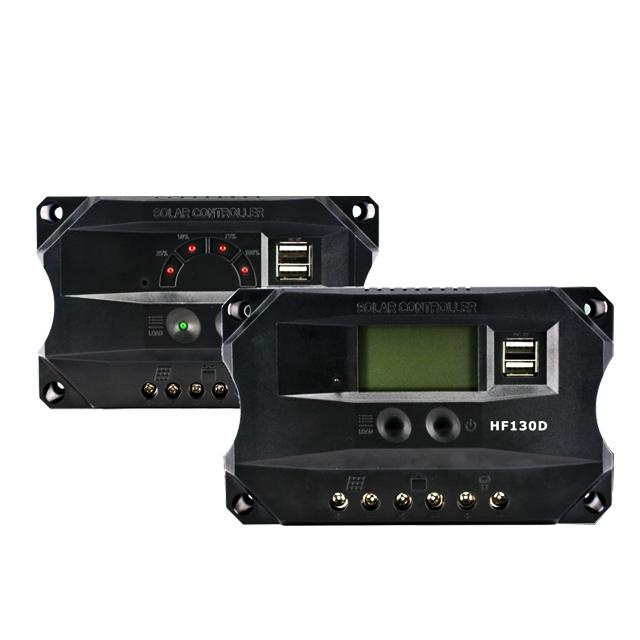

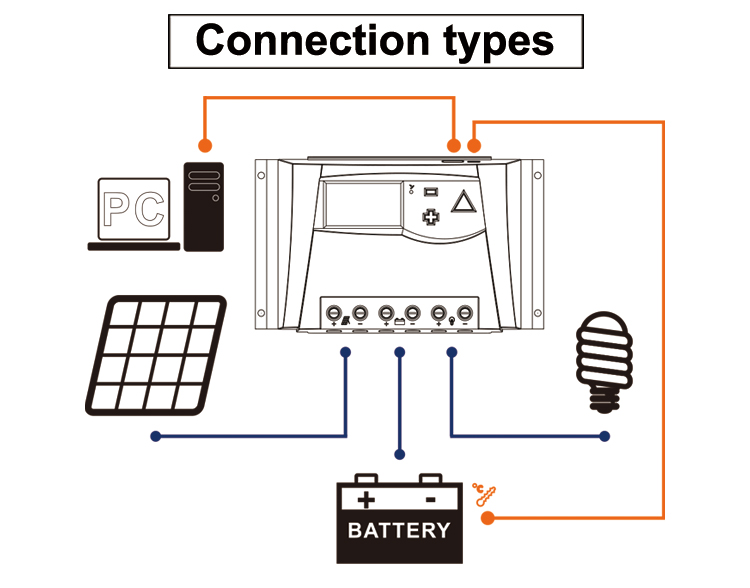

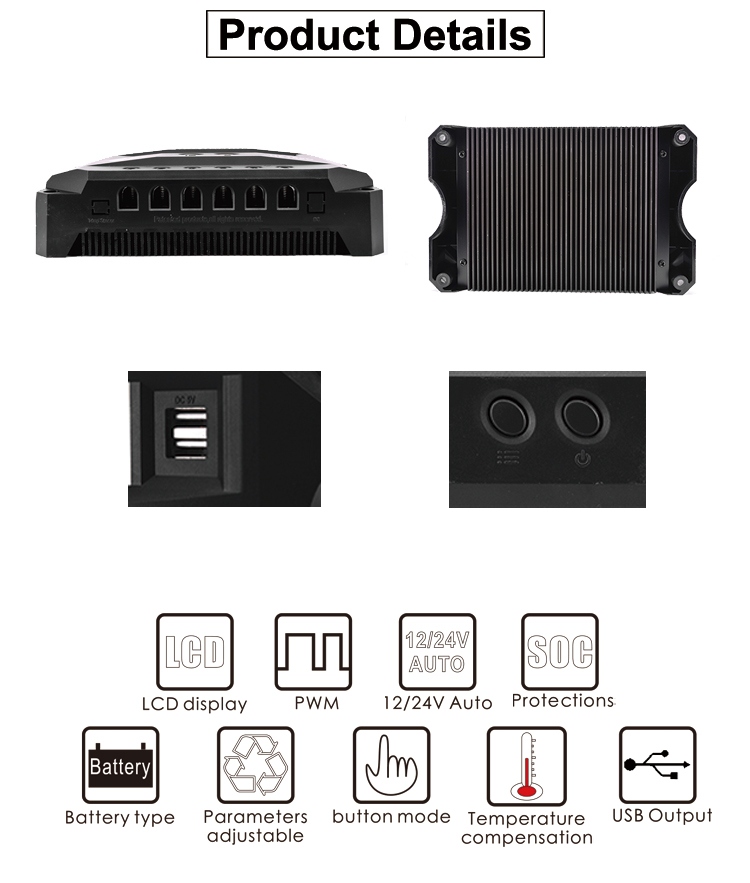

FOTOVO Compact PWM Solar Charge Controller
Product Description
Advantages
1. High efficient PWM charging.
2. Use MOSFET as electronic switch.
3. LED indicators indicate battery voltage state.
4. Automatic detection of voltage.
5. Temperature compensation.
6. Widely used,simple operation.
7. USB 5V/1A out put,charge the electronic devices.
8. DC12V output.
9. High voltage disconnection,high voltage recovery.
10. Low voltage disconnection,low voltage recovery.
11. Overload protection,short circuit protection.
12. Solar panel,battery reverse polarity protection.
13. Reverse current protection at night.
14. Overheat protection and short circuit protection of USB output.
Equipment Parameters
Product Name
|
GS-HF1
|
Style
|
PWM Charge Controller
|
Brand
|
FOTOVO
|
Colour
|
Black
|
Material
|
Plastic
|

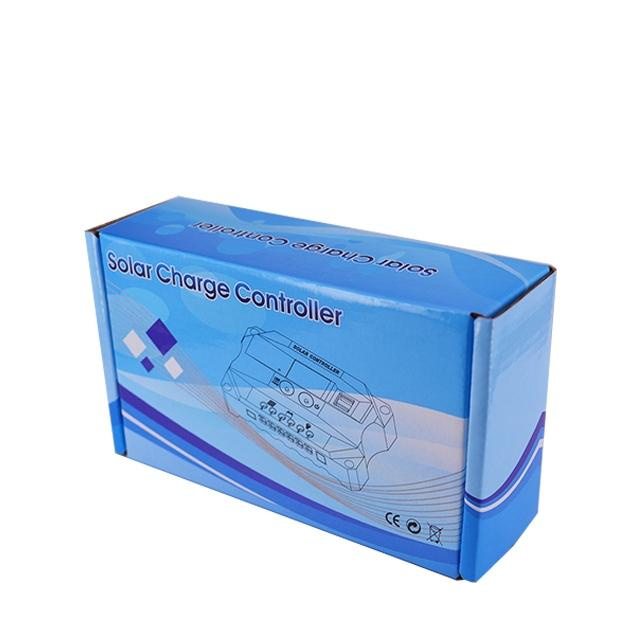

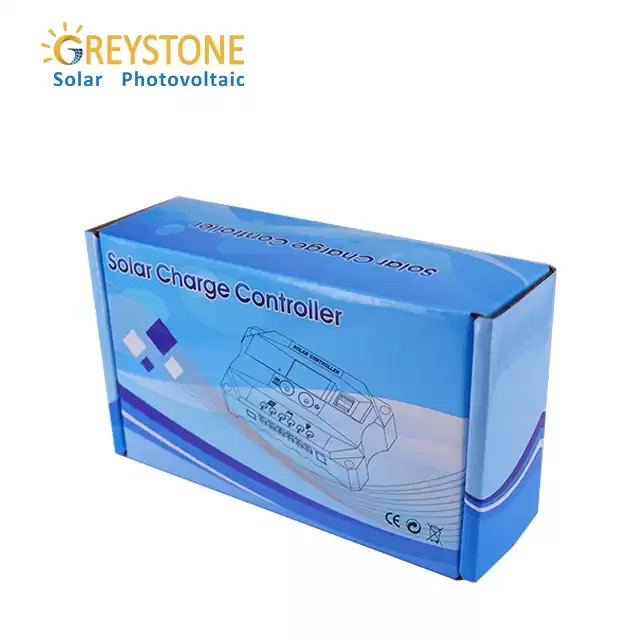

Packing
|
Packed in carton and Shockproof
|
|
Gross Weight
|
175/230/327/627/696g
|
Mode Name
|
HF1 Series
|
Model
|

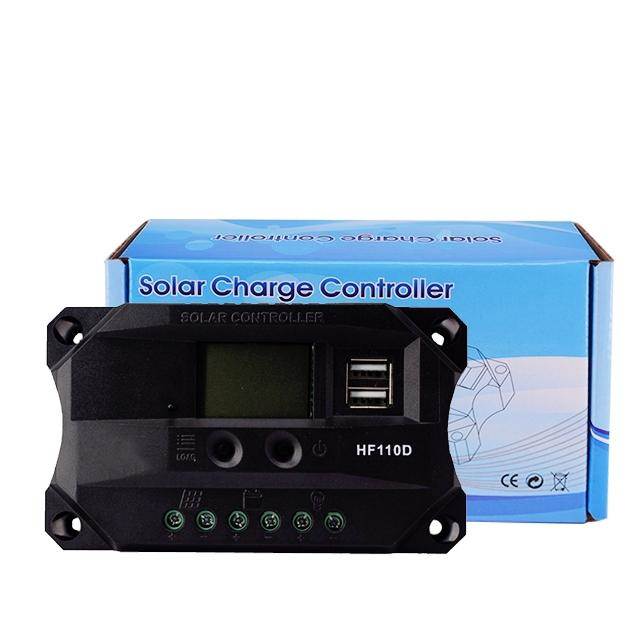

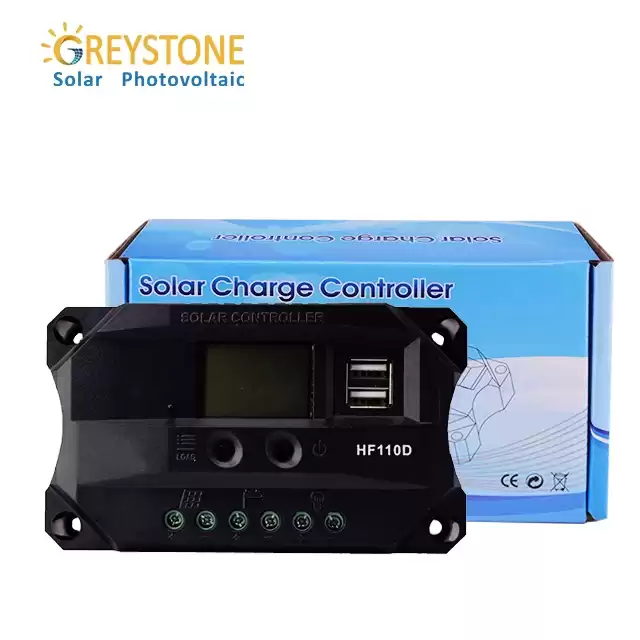

HF110D
|

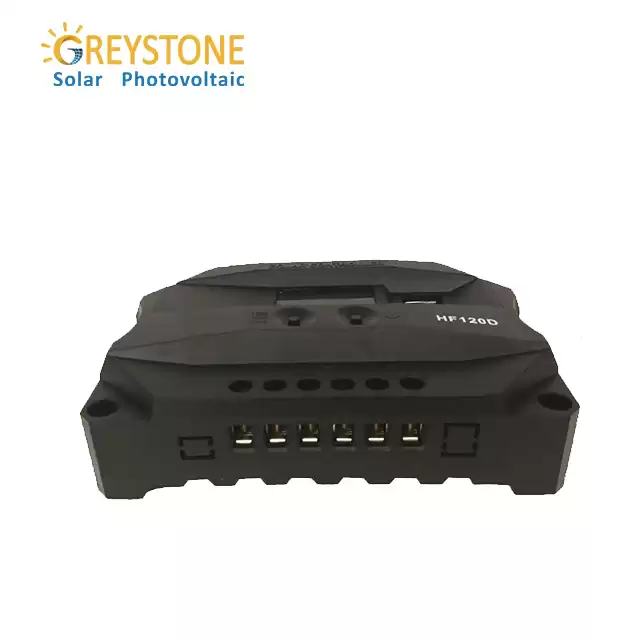

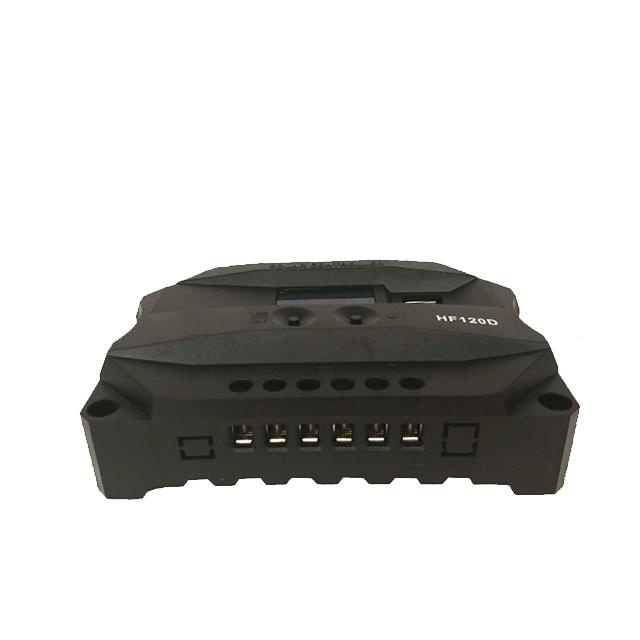

HF120D
|
HF130D
|
HF150D
|

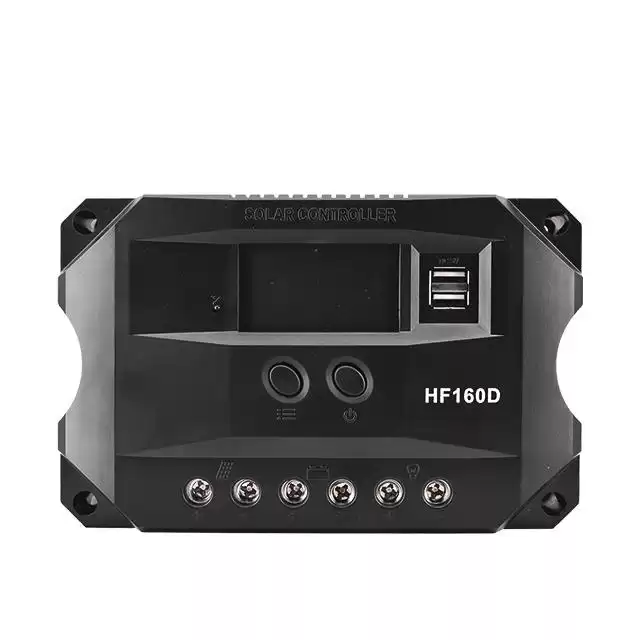

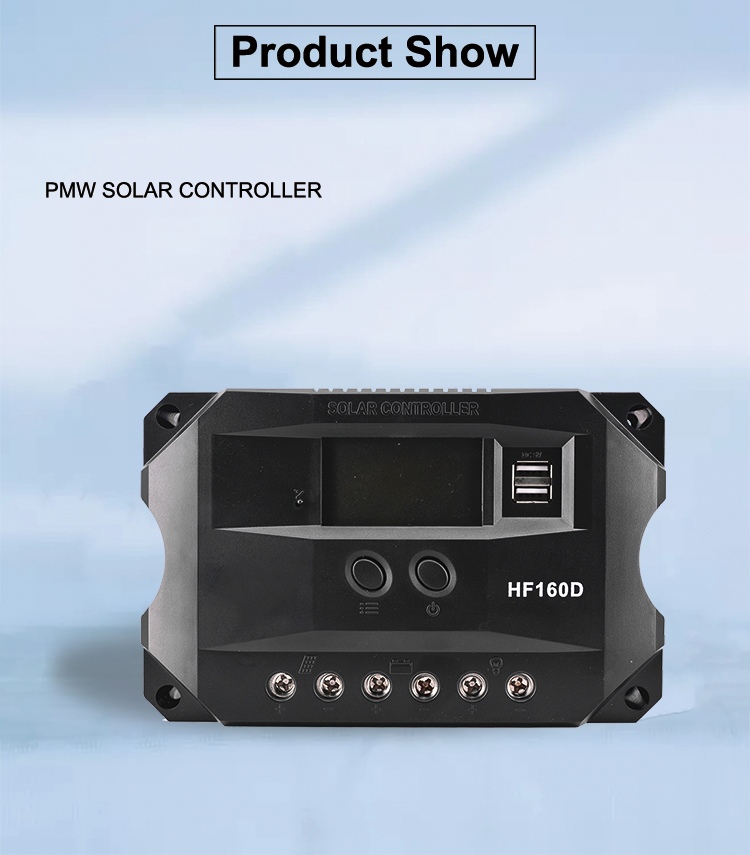

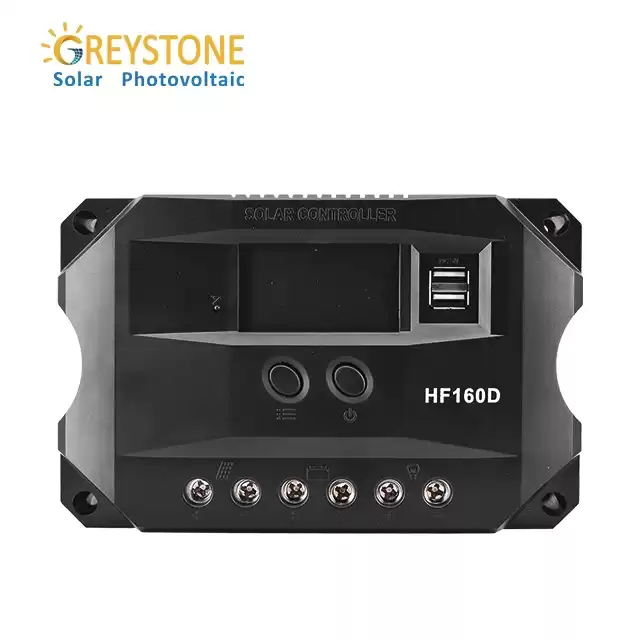

HF160D
|
PV voltage
|
≤50V
|
Rated Charge current
|
10A
|
20A
|
30A
|
50A
|
60A
|
Rated system voltage
|
12V/24V Auto
|
Rated Discharge current
|
10A
|
20A
|
30A
|
50A
|
60A
|
Charge mode
|
PWM Multi-stage(bulk, absorption, float)
|
Float charge voltage
|
13.8V(13V~15V)×1/×2
|
Absorption voltage
|
14.4V(13V~15V)×1/×2, (lasting:2hrs)
|
LVD voltage
|
10.7V(10V~14V)×1/×2
|
LVR voltage
|
12.6V(10V~14V)×1/×2
|
|
HVD voltage
|
16.0V×1/×2
|
HVR voltage
|
15.5V×1/×2
|
Working mode for load
|
light control, time&light control, normal mode
|
Light control voltage
|
5V(1V~10V)×1/×2
|
Charge circuit voltage drop
|
＜0.3V
|
＜0.3V
|
Discharge circuit voltage drop
|
＜0.18V
|
＜0.2V
|
No load loss
|
≤12mA(12V),≤14mA(24V)
|
≤13mA
|
USB output
|
5V/1A
|
Battery type
|
GEL,SLD,FLD,Usr(自定义/default)
|
Installing cable size
|
≤6mm²
|
≤10mm²
|
≤16mm²
|
≤25mm²
|
Working temperature
|
-10℃~50℃
|
Dimension
|
130×75×38
(mm)
|
140×85×42.5
(mm)
|
160×95×45
(mm)
|
188×120×51
(mm)
|
Weight
|
175g
|
230g
|
327g
|
627g
|
696g
|
Model
|
HF110
|
HF120
|
|
Rated current
|
10A
|
15A
|
20A
|
|
Rated voltage
|
12V/24V
|
|
Charge mode
|
PWM
|
|
Float charge voltage
|
13.8V/27.6V
|
|
Absorption voltage
|
14.4V/28.8V(lasting:2hrs)
|
|
LVD voltage
|
10.8V/21.6V
|
|
LVR voltage
|
12.6V/25.2V
|
|
Overload protection voltage
|
≥1.2×rated current,60s
≥1.5×rated current,10s
≥1.8×rated current,0.2s
|
|
USB output
|
5V/1A
|
|
Circuit voltage drop
|
＜0.3V/＜0.18V
|
|
No load loss
|
≤12mA(12V),≤14mA(24V)
|
|
Installing cable size
|
≤6mm²
|
≤10mm²
|
|
Working temperature
|
-20℃~50℃
|
|
Dimension
|
130×75×38(mm)
|
140×85×42.5(mm)
|
|
Weight
|
175g
|
230g
|

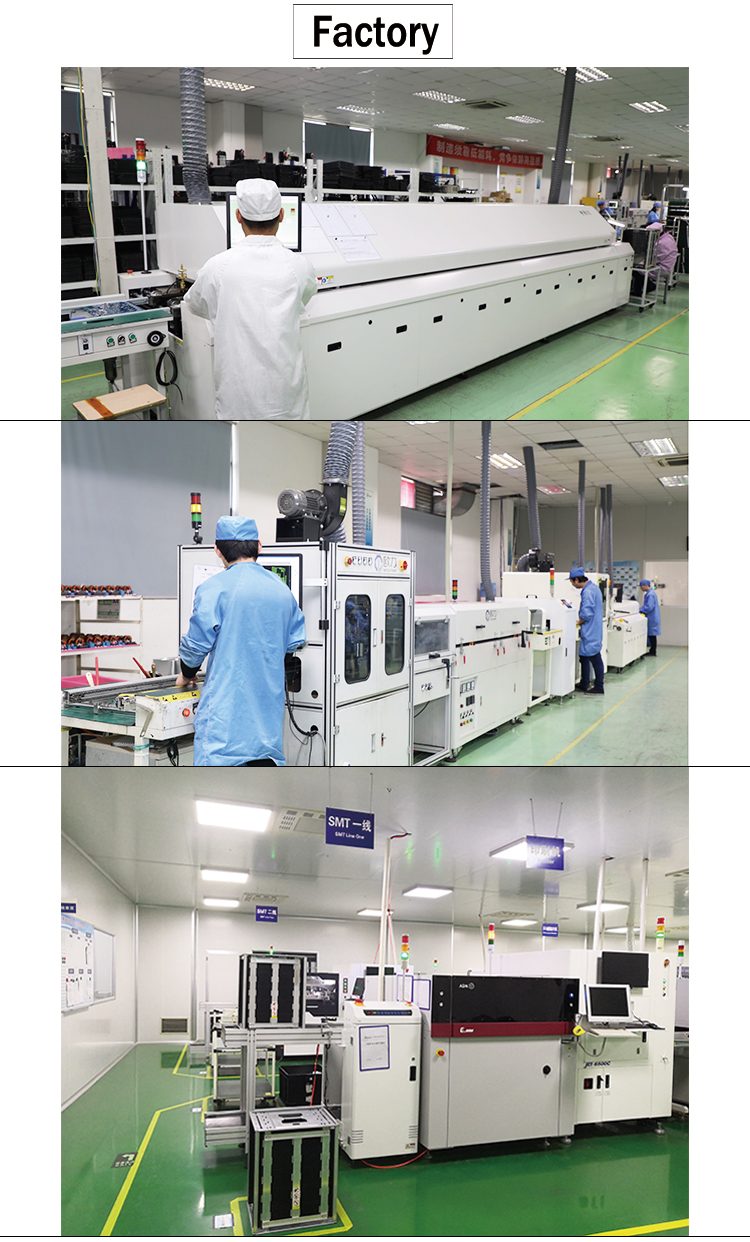

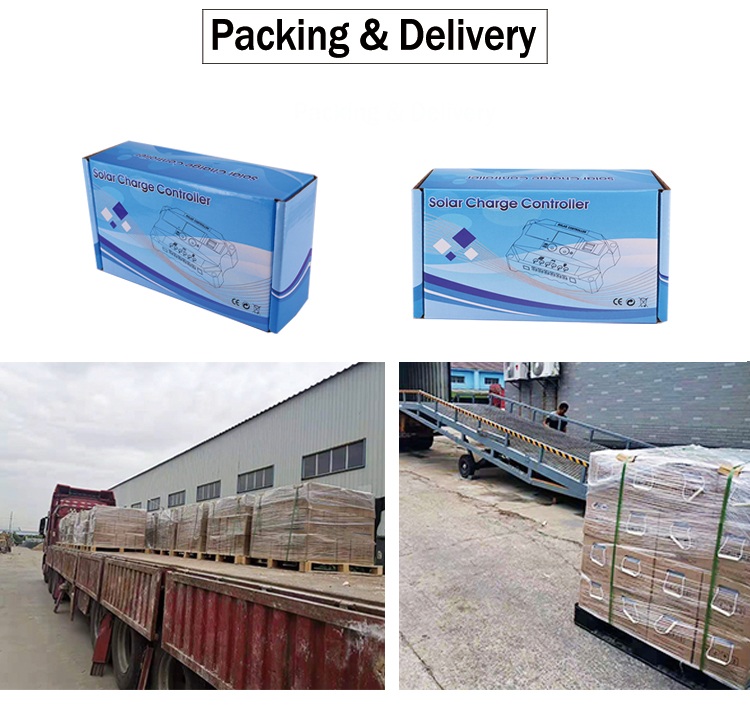

Factory and Delivery
FAQ
1. Q: How can I contact you if I have a problem?
A: There is contact information at the bottom of our website, so feel free to contact us if you have any questions.
2. Q: Do you have the relevant certificates to prove that you have quality assurance?
A: We can show you any relevant qualification certificate, and contact the after-sales service to answer any questions for you.
3. Q: Is the HF1 series different from other series?
A: The industry design of HF1 series solar charge controller makes this series controllers different from traditional controllers,
makes it have more advantage than traditional controllers in mass production.Combine with the revolutionary design of dispassion
plate,this series controllers' structure become more compact, at the same time without lose any function of traditional controllers.
4. Q: What is the role of LCD?
A: The HD vivid LCD allows you to observe the working status and data of the controller more clearly.
