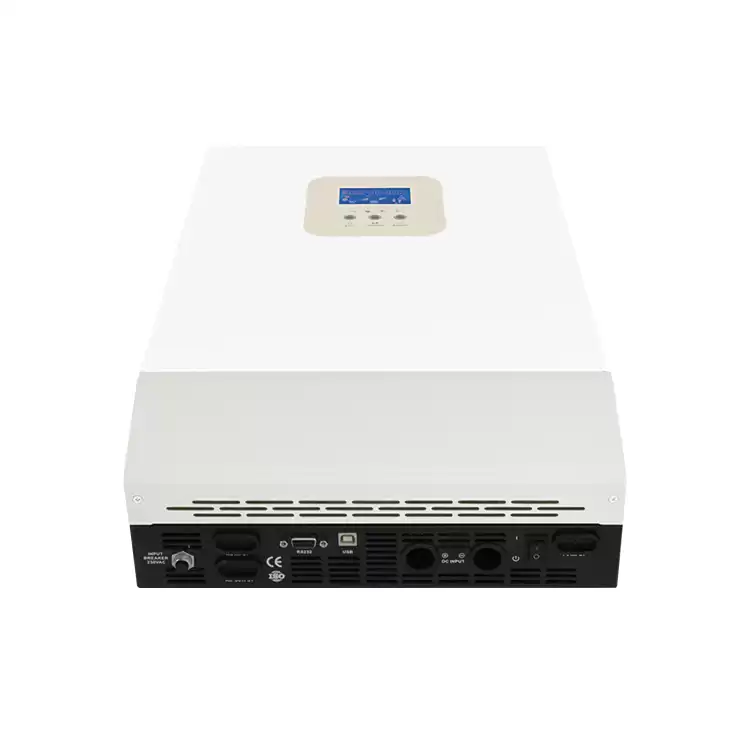

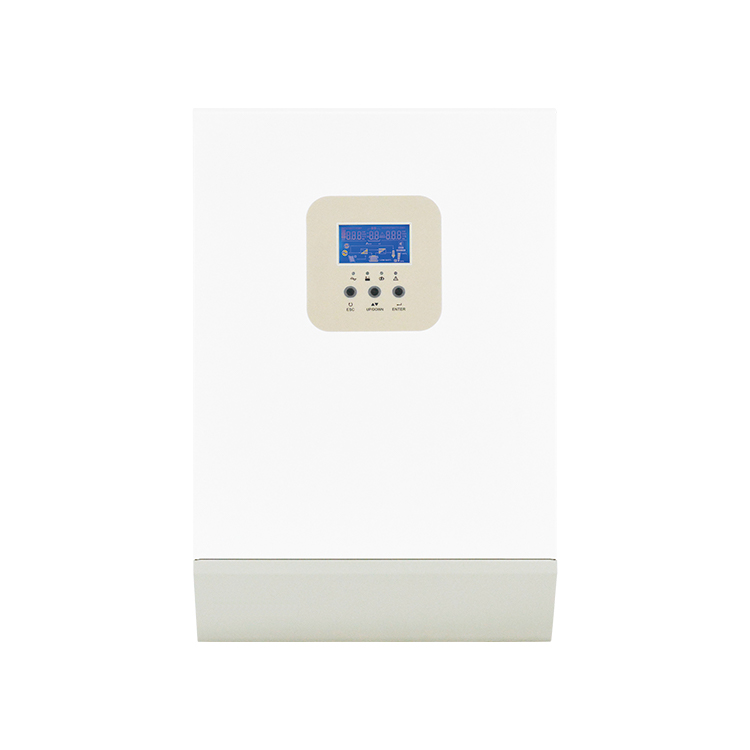

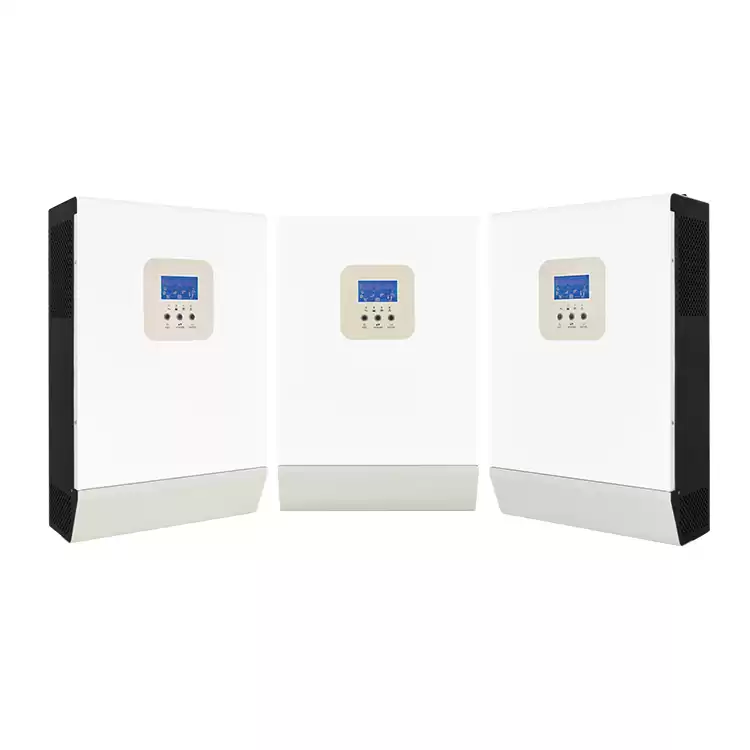

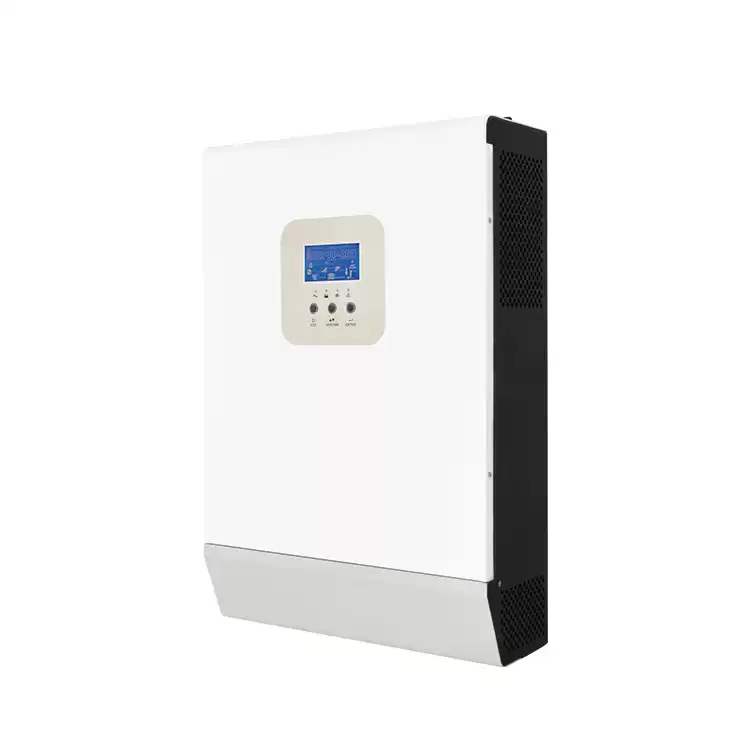

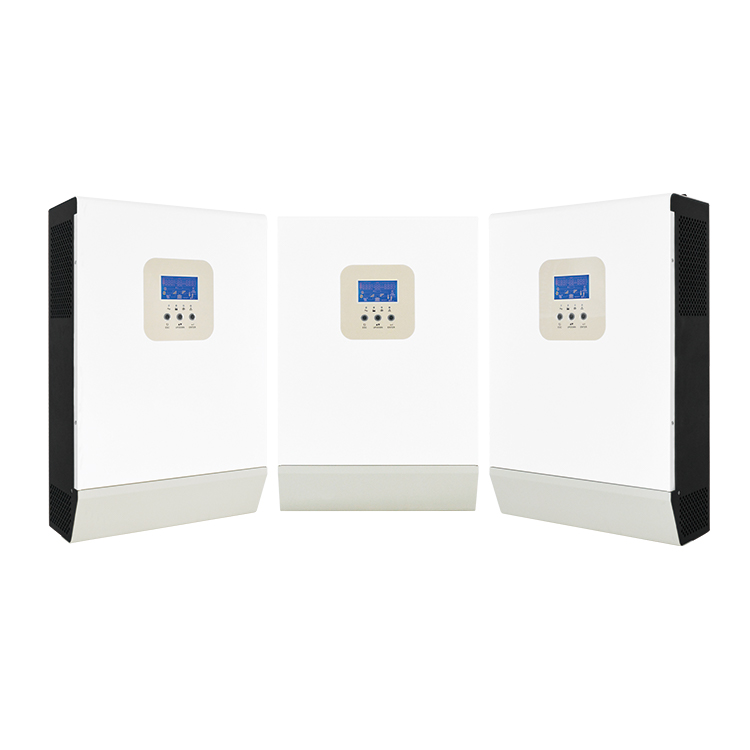

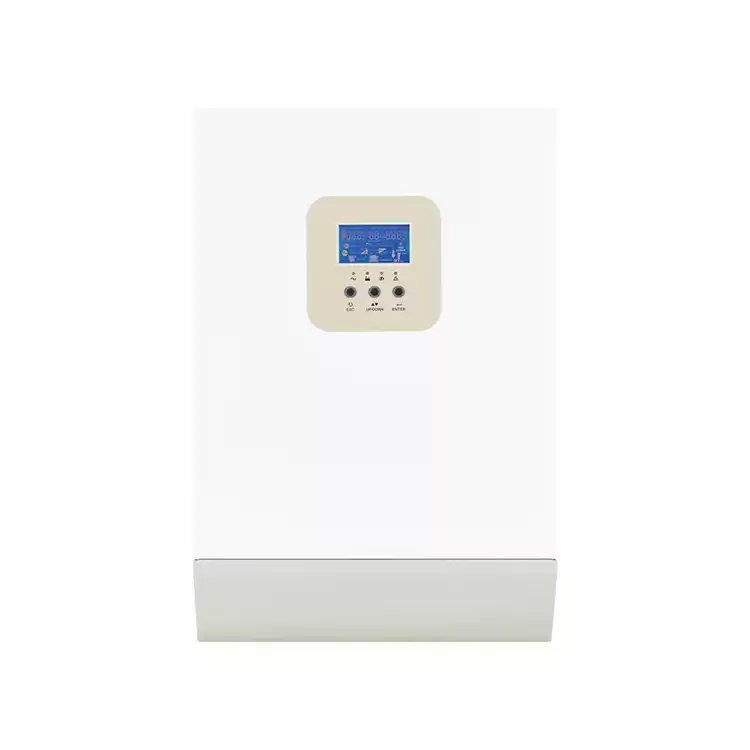

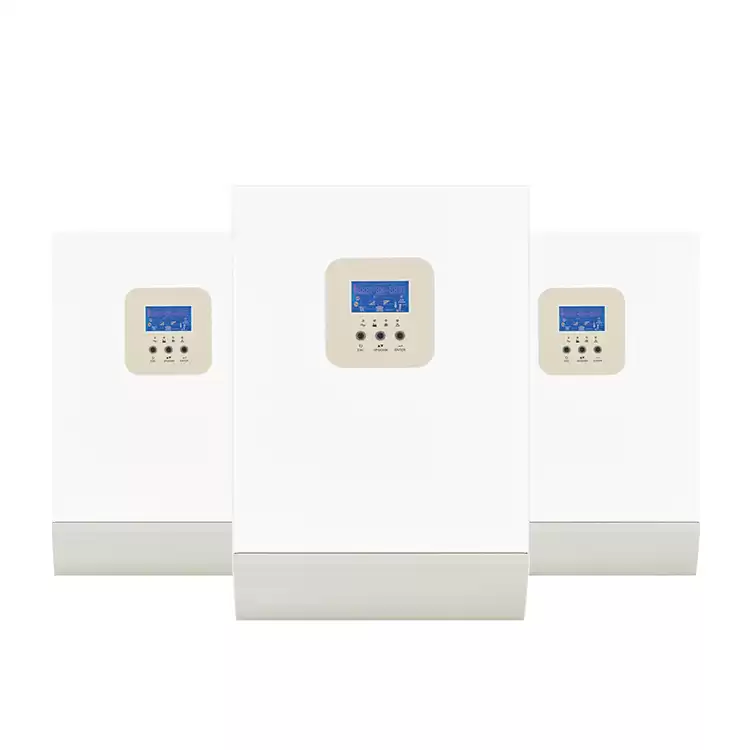

FOTOVO High Frequency Solar Inverter GA serieHigh Efficiency.Lower Consumption. Energy ConservationEnvironmental Protection/Electrcity Saving/Cost Savings

Off-Grid Solar Inverter in Off-Grid Solar system for home energy storage. We have full certificates for Off-Grid Solar  inverter.


  • Warranty10 YEARS
  • Certificate UL,TUV,CE,IEC

FOTOVO High Frequency Solar Inverter GA serieHigh Efficiency.Lower Consumption ,Energy ConservationEnvironmental Protection/Electrcity Saving/Cost Savings

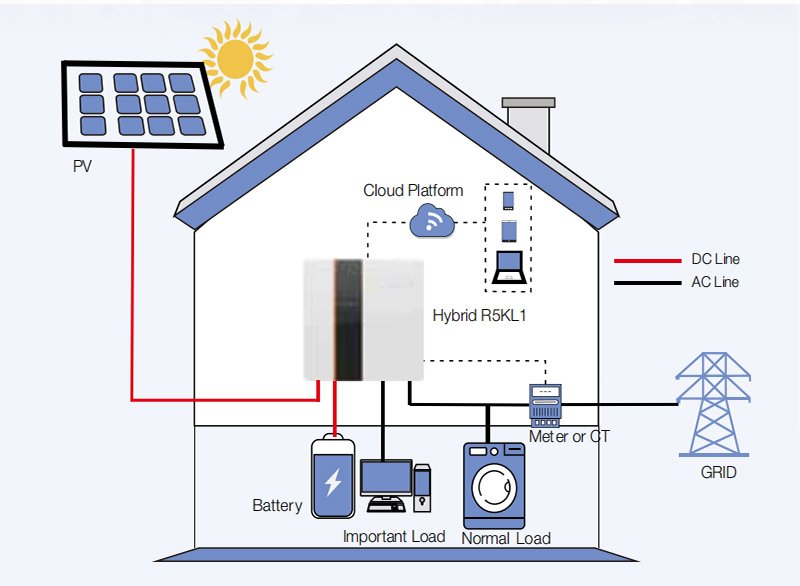

System Wiring Diagram

  • Intelligent energy management system for home.
  • Power dispatching and demand side response management.
  • Distributed virtual power station management.


Technical Details


Model GA1012P GA2024P GA3024M GA5048M
Input AC Input 208/220/230/240VAC
Input Voltage Range 154-264VAC±3V(Normal Mode)185-264VAC±3V(UPS Mode)
Frequency 50/60Hz±5%
output Rated Power 1000W 2000W 3000W 5000W
Output voltage 208/220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output wave pure sine wave
Transfer Time(adjustable) 10ms for computer equipment,20ms for household equipment
peak power 2000va 400Ova 6000va 10000va
Overoad Ability battery mode
1min@102%~110% load
10s@110%~130% load
3s@130%-150% load
200ms@>150% load
peak efficiency 93% 93% 94% 94%
Battery Rated Voltage 12vdc 24vdc 24vdc 48vdc
Constant charging voltage
(adjustable)
14.1VDC 28.2VDC 28.2VDC 56.4VDC
Float charging voltage
(adjustable)
13.5VDC 27VDC 27VDC 54VDC
Charger pv charging method PWM PWM MPPT MPPT
Max PV Input 600W 1200W 1500W 5500W
MPPT tracking range N/A N/A 30~115VDC 120~430VDC
MAX PV Input Voltage 55VDC 80VDC 145VDC 450VDC
MAX PV Charge Current 50A 50A 60A 60A
MAX AC Charge Current 50A 50A 60A 60A
MAX Charge Current 100A 100A 120A 120A
Display LCD Can display operating mode/load/input/output
Communication
Port
RS232 5PIN/Pitch2.54mm,baud rate 2400
Expansion slot
communication interface
5PIN/Pitch2.54mm,Lithium battery BMS communication card,WIFI
Parallel interface Not Support Parallel Support Parallel
Ambient
Temperature
Operating temperature 0℃~40℃
Storage temperature -15℃~60℃
Operating environment
humidity
20%~95% Non condensing
noise <50dB
Standards and Certifications EN-IEC 60335-1,EN-IEC 60335-2-29

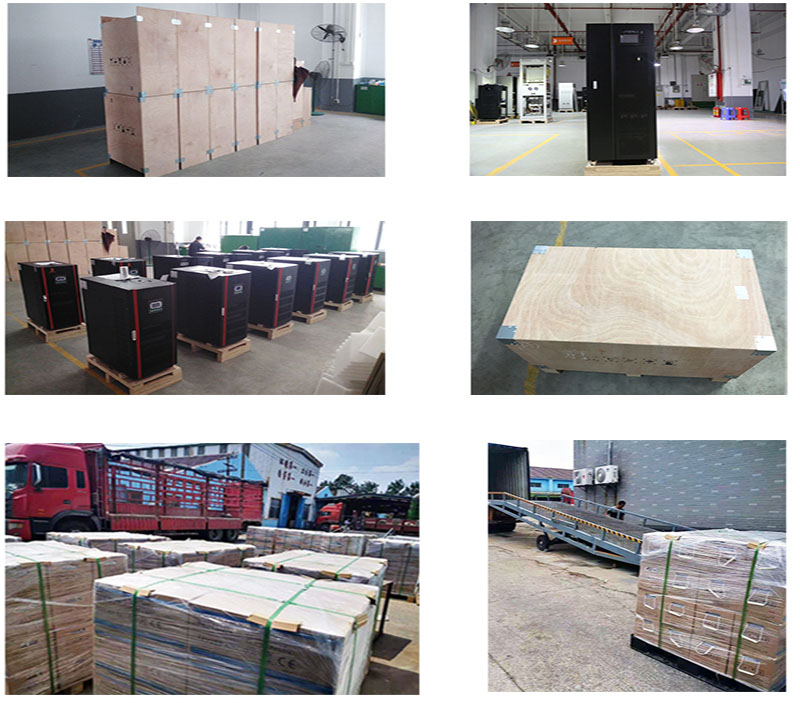

Packing&Delivery

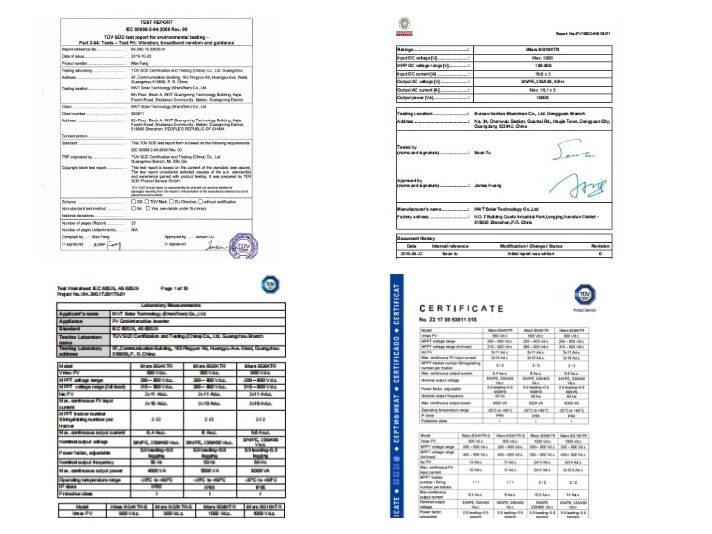

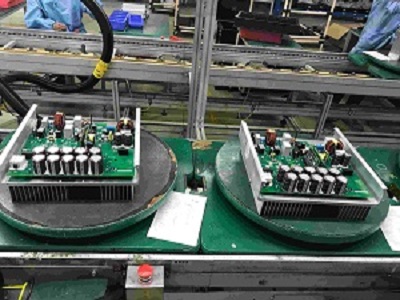

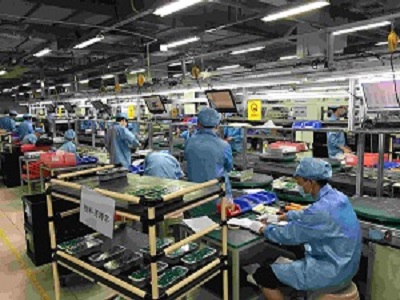

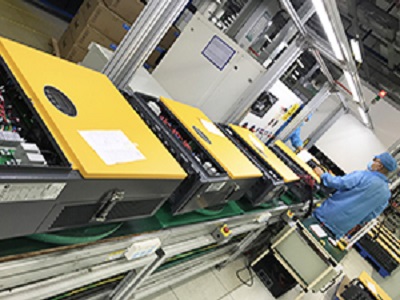

Factory






Certicification


FAQ

1..Are your Hybrid solar inverter certifications complete?

A:Sure,We have exported hybrid systems to more than 30 countries, covering Europe, America, Asia, Africa and Australia.  The certification is very complete .

2. What if the power generation system shows abnormal power output?

A: 1. whether the module is over-matched 2. whether the module is shaded 3. whether the module is abnormal 4. whether the module orientation and inverter working mode 5. whether the grid connection distance is appropriate.

3.The advantages of home photovoltaic system?

A: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small investment, big income; zero pollution; Low maintenance costs.

4.How do your company deal with the problem on quality?

A:Our company has been doing this industry for more than 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
