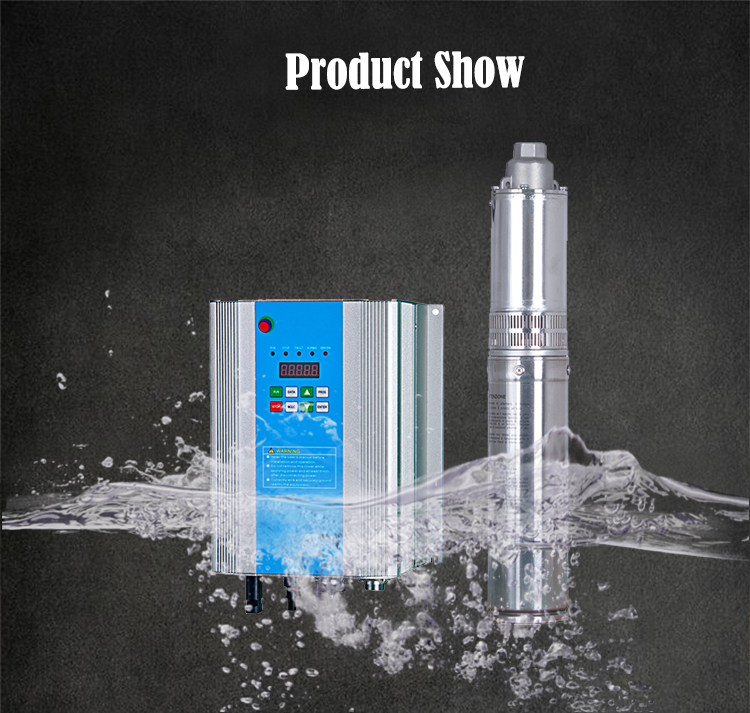

FOTOVO Permanent Magnet Solar Pump
FOTOVO Permanent Magnet Solar Pump consists of a PM solar pumping inverter and a permanent magnet pump.
PM Solar Pumping Inverter adopts patented dynamic VI maximum power tracking (MPPT) algorithm, which has
high reliability and an up to 98% conversion efficiency. The permanent magnet pump adopts permanent magnet
(DC brushless) motor excited by rare earth permanent magnet material without excitation coil or excitation current.
Compared with the same capacity asynchronous motor, its efficiency is significantly improved by 5%-20%, which
achieves a strong competitive advantage of high efficiency with simple structure.
Features
Higher Efficiency
-
Higher operation efficiency and lighter weight due to adoption of high efficient permanent magnet (DC brushless) motor.
-
Less solar panels, high overall efficiency.
-
Optional helical rotor pump for high lift and centrifugal pump for big flow.
-
High reliability due to uses of high-performance semiconductor devices in main circuit, up to 98% conversion efficiency of inverter.
-
Patented dynamic VI maximum power tracking (MPPT) algorithm to achieve fast response, good stability and 99% MPPT efficiency
Cutting-edge Technologies
-
Optimized system configuration technology: provides solution with optimal water supply efficiency and ensures the system’s overall benefit.
-
Remote monitoring and intelligent water management technology: remote fault diagnosis, convenient after- sales service, intelligent operation and maintenance management
Convenient
-
Easy to install and use without manual debugging.
-
Full protections and high reliability.
-
Intake and use water without requirements of grid network or water channel.
Solar Pump Model
|
Pump Spec
|
Pump Dia
|
Water Head
|
Daily Water Supply
|
Outlet Dia
|
Adapting Well Dia
|
Max.DC Input Voltage
|
Recommended MPPT Volatge
|
|
GSPM3300H010
|
24V110HZ
|
3"
|
30-1m
|
5-10m³
|
1”
|
100mm
|
80V
|
≥ 20V DC
|
|
GSPM400H
|
36V110HZ
|
4"
|
40-1m
|
6-22m³
|
1”
|
125mm
|
80V
|
≥ 20V DC
|
|
GSPM3500H025
|
48V110HZ
|
3"
|
30-1m
|
10-25m³
|
1”
|
100mm
|
150V
|
60-120VDC
|
|
GSPM3500C022
|
48V110HZ
|
3"
|
30-1m
|
8.5-22.5m³
|
1”
|
100mm
|
150V
|
60-120VDC
|
|
GSPM600H
|
48V110HZ
|
4"
|
80-18m
|
5-10m³
|
1”
|
125mm
|
150V
|
60-120VDC
|
|
GSPM1200H
|
48V110HZ
|
4"
|
18-4m
|
5-10m³
|
1”1/4
|
125mm
|
150V
|
60-120VDC
|
1. A: Can I have sample order for solar water pump?
Q: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. A: Do we need to pay attention to the connection between the controller and the pump of this product?
Q: Yes, of course. The controller must match with the recommended solar pumps. Please do not use the controller for
other pumps. If the pump problem is caused by this reason, we do not bare any responsibility. For the perfect
performance and long-life working, the controller should be kept away from strike, shake, sunshine, salt mist, oil mist and etc.
3. A: What's the warranty?
Q: 2 years.
4. A: Any contact details?
Q: Please contact us by trade manager, Email, Whatsapp or Wechat. Surely call me when you need.
5. A: What are the uses of this solar water pump?
Q: It usually used in Solar Powered Water Pump for House using, and it is solar water pump with battery backup.
