FOTOVO Solar Panel Power Plant 400W Micro Balcony Rail Flexible Monocrystalline Silicon Solar Module

What is a balcony power plant?

A balcony power plant enables the simple use of solar energy without time-consuming installation. The plug-in solar power plants are available as a complete package with solar panel and inverter. We explain how a balcony power plant works, how everyone can contribute to the ecological energy revolution and what must be taken into account when operating it according to standards.

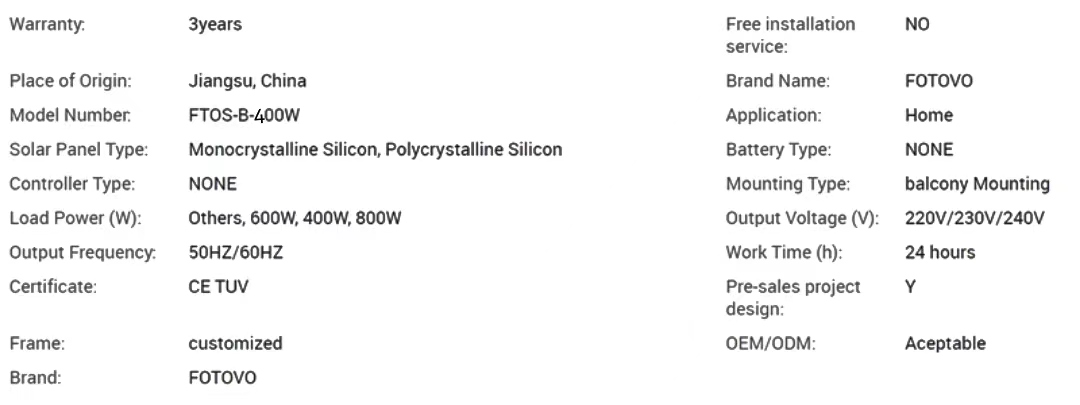

  • Warranty3
  • CertificateCE TUV

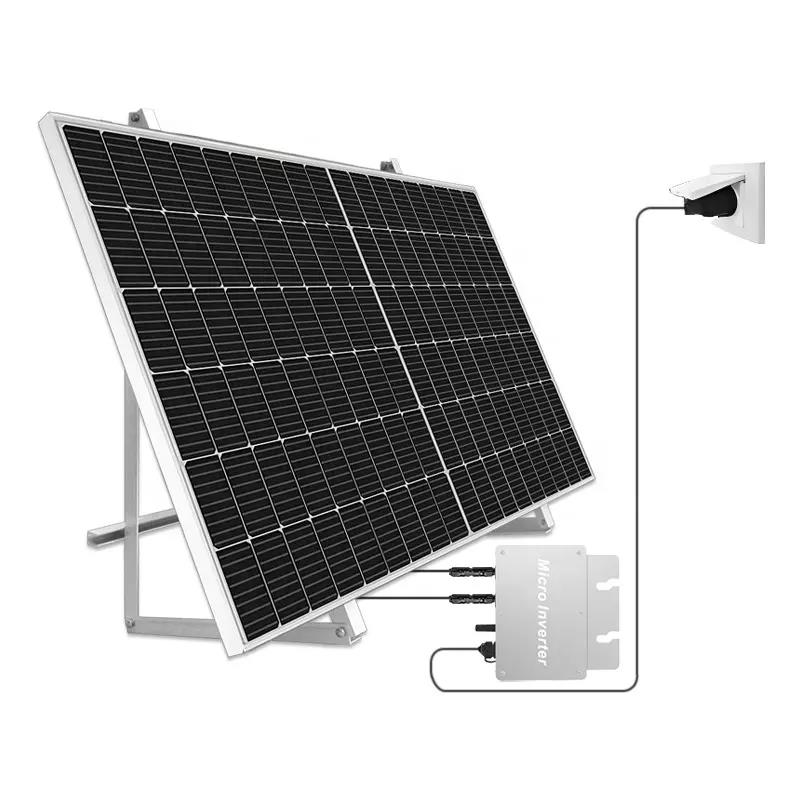

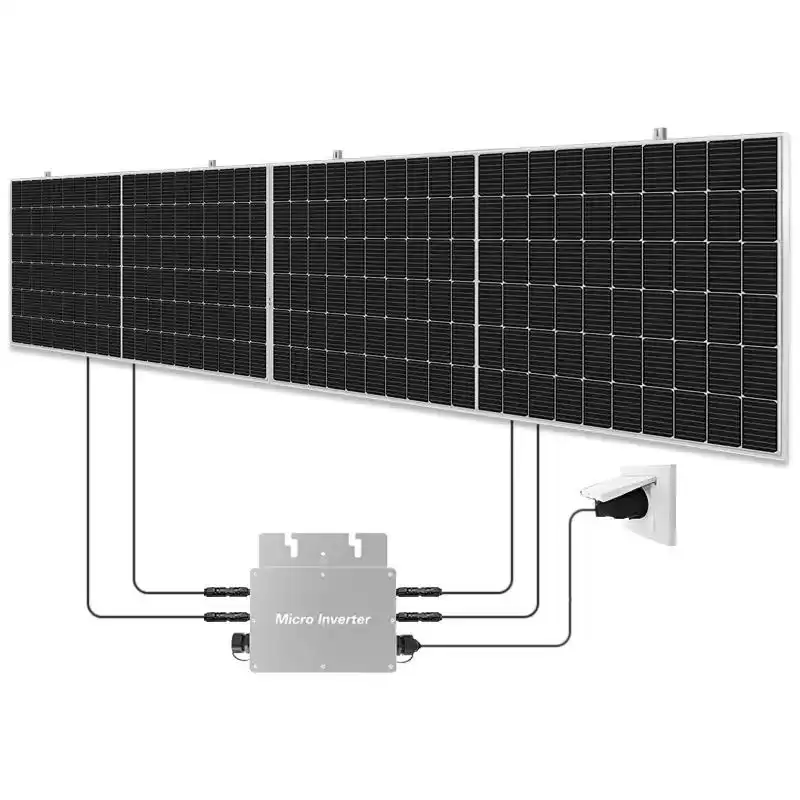

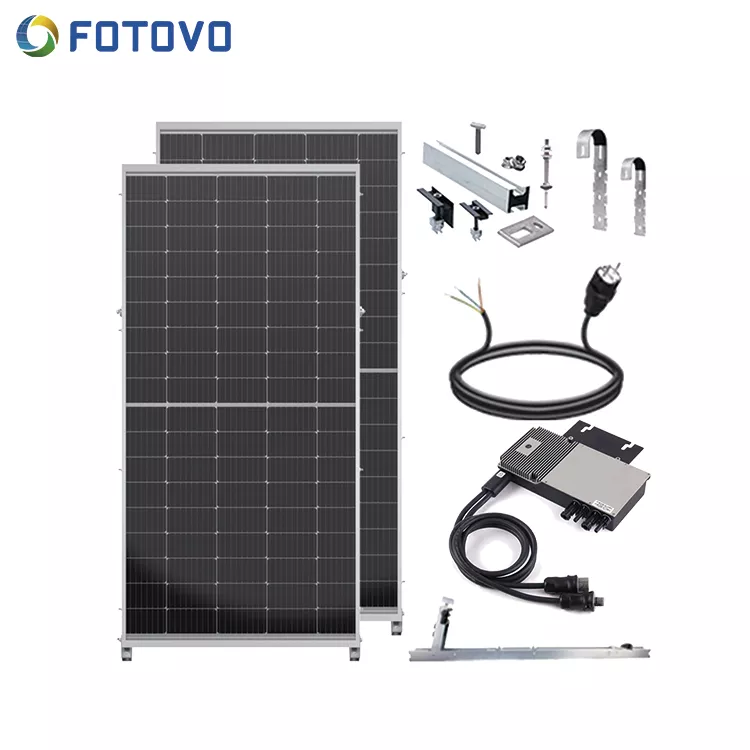

FOTOVO 400W Solar Balcony Power Plant High-power On-grid Solar Energy System


Product Description


Advantages of on-grid solar system

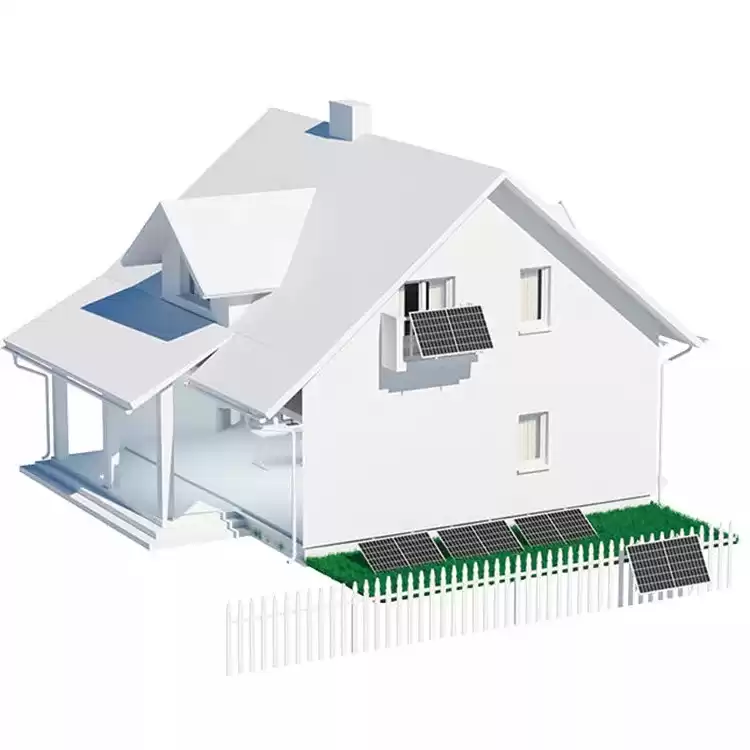

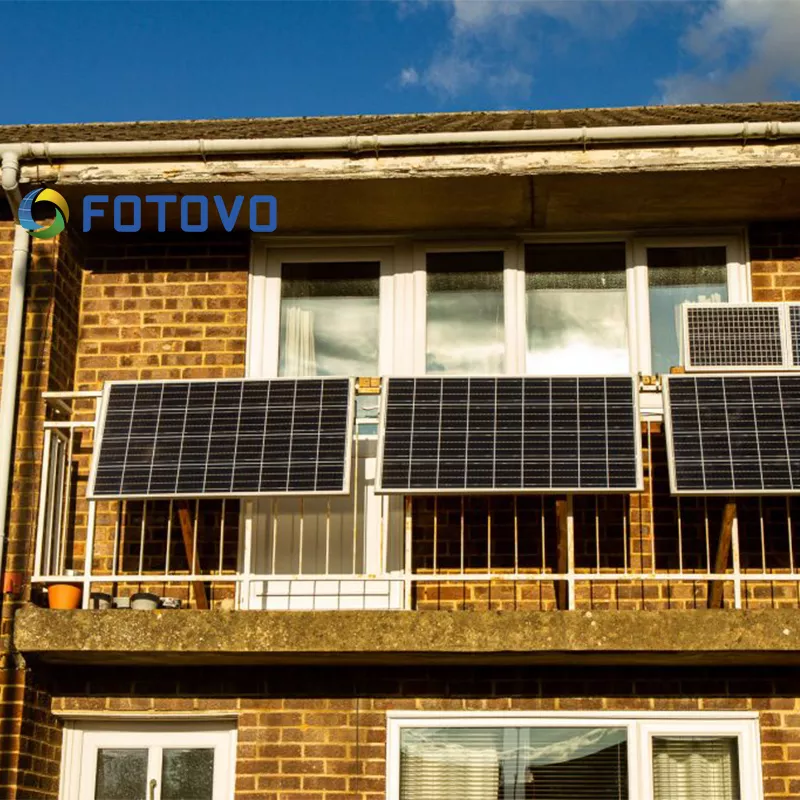

  • 1.Protect the climate and produce your own green electricity – with a balcony power plant, this is possible for anyone with a balcony or terrace.
  • 2.Balcony power plants are also popularly called plug-in mini-PV systems, plug-in solar systems, plug & play solar systems or mini solar systems. These are small solar systems that usually consist of only one or two solar panels and supply the generated electricity to the household grid through a wall outlet. The generated electricity is usually used for personal consumption and not for sale, given the amount of electricity generated.

  • 3.Another benefit of a solar power plant is the reduction in electricity costs, as own consumption lowers electricity costs.


Technical Details

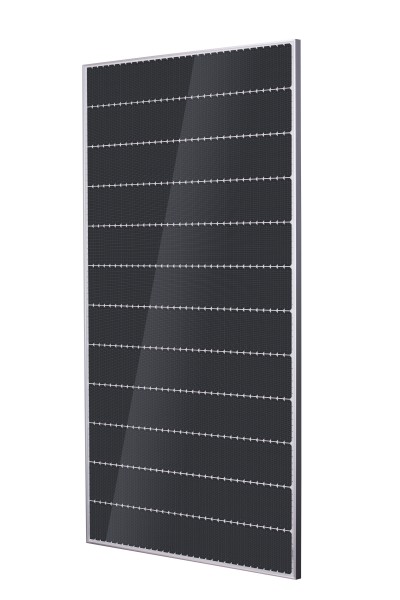

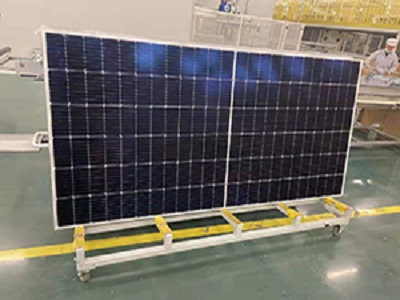

Shingled Solar Panels

 Solar Panel(customizable)
Solar Panel Type: Monocrystalline Silicon
Cells: mono--crystalline silicon
Mounting Type: Balcony
Output Frequency: 50HZ, 60HZ
Maximum Power (Pmax): 340WP
Current at Pmax (Imp): 20.0A
Short Circuit Current (Isc): 9.86A
Output Voltage (V): 220V
Voltage at Pmax (Vmp): 40.2V
Open-Circuit Voltage (Voc): 48.6V
power Tolerance: 0/+5W
Size: 1719*1140*35mm
Weight: 22Kg

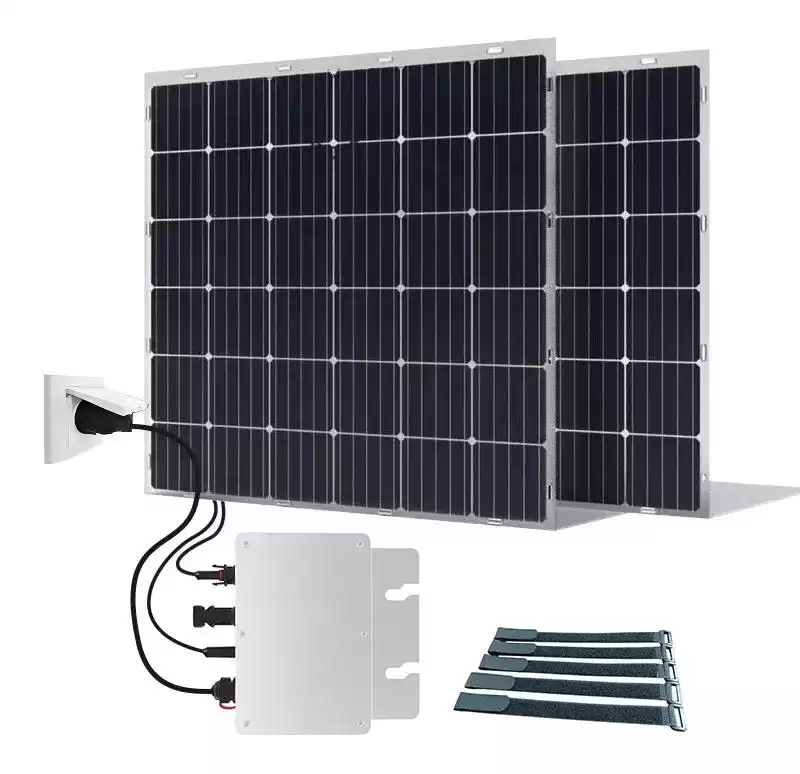

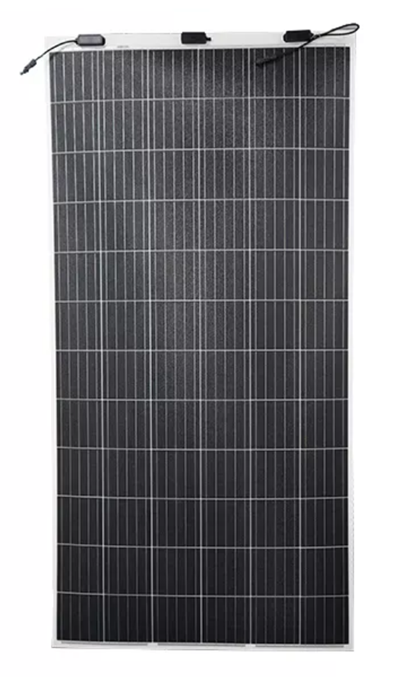

Flexible Solar Panel(customizable)
Solar Panel Type: Monocrystalline Silicon
Cells: mono--crystalline silicon
Mounting Type: Balcony
Output Frequency: 50HZ, 60HZ
Maximum Power (Pmax): 375WP
Current at Pmax (Imp): 20.0A
Short Circuit Current (Isc): 9.86A
Output Voltage (V): 220V
Voltage at Pmax (Vmp): 40.2V
Open-Circuit Voltage (Voc): 48.6V
power Tolerance: 0/+5W
Size: 2002*1000*2mm
Weight: 5.8Kg


Micro inverter


Built-in GPRS/WIFI wireless network module, which can control working status remotely through mobile


The power mode/energy saving mode/battery mode can be set up, Flexible application


Pure sine wave AC output


Automatic protection

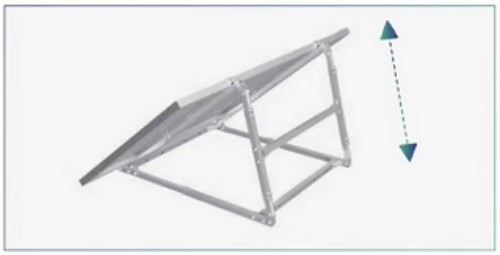

  Angle-adjustable bracket
The angle -adjustable bracket,developed for achieving good combination with solar kit, which can be installed at flat ground or roof,raillings,balcony and garden. Iit’s much flexible with adjustable tilt range between 30°~43°to get more energy.
Structure:Triangle Bracket
Standard or Nonstandard:Standard
Size:115cm*8cm*6cm
Weight:2.2 Kg
Color:White
Application:supporting solar panel
Material:aluminium alloy
PARAMETERS:

MATERIAL:AL6005-T5.SUS304.EPDM

GROSS WEIGHT PERBRACKET(KG:10 )

LENGTH OF SOLAR MODULE(MM):≤1800 WIDTH OF SOLAR MODULE(MM):837≤A≤1337MM
THICKNESS OF SOLAR MODULE(MM):30-50 ADJUSTABLE ANGLE RANGE:30~43°

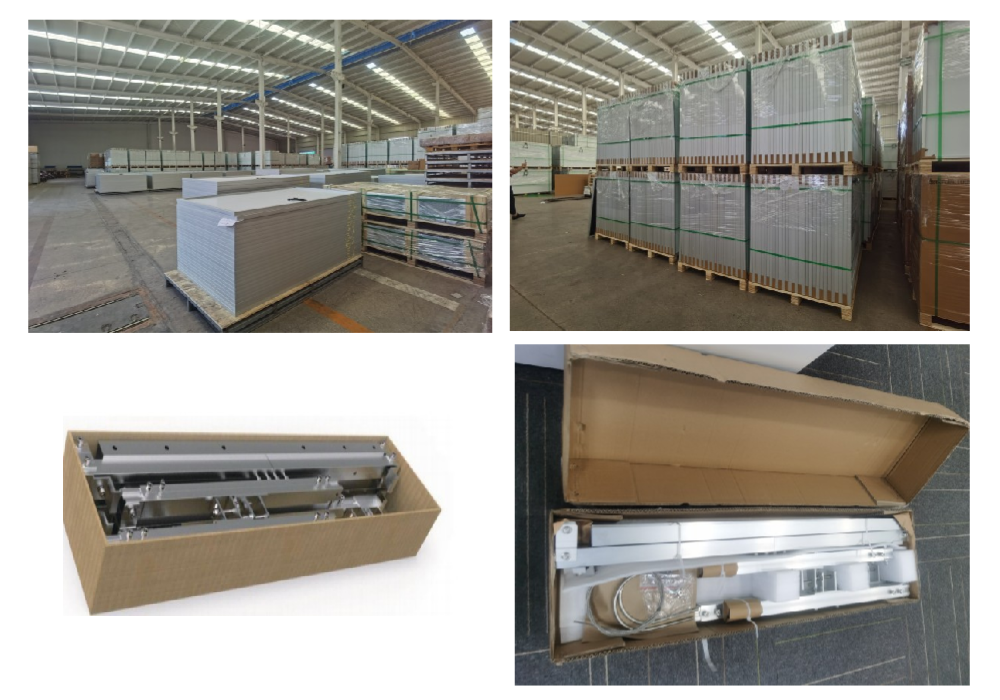

Packing&Delivery

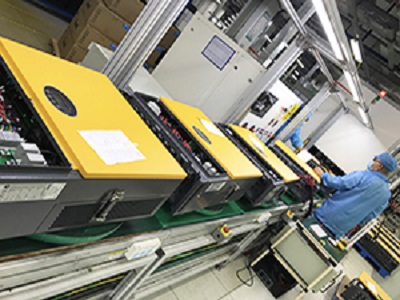

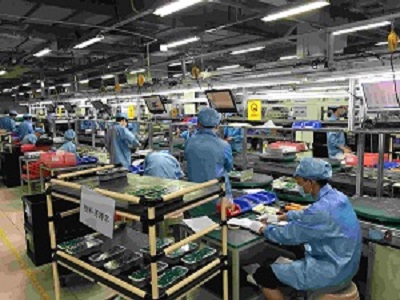

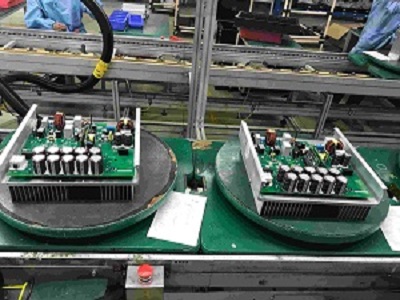

Factory

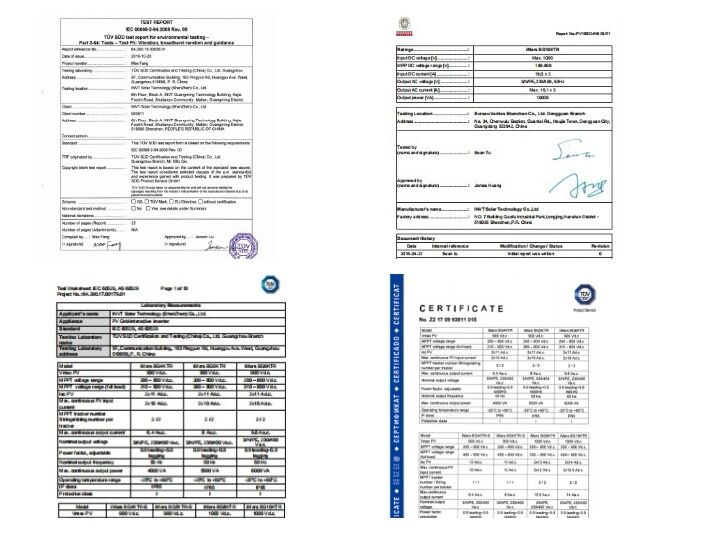

Certicification


FAQ

1. What about the quality of the mounting support?
A: The quality requirements for solar modules and grid-connected inverter support systems: 10 years without rusting, 20 years without degradation of steel, and 25 years still with some structural stability.

2.Can the excess electricity be sold to the state grid in grid-tied solar system?

A:Right.Excess electricity will get additional benefits. When electricity is insufficient, it will also be replenished through the state grid.The state grid is equivalent to a free power transfer station.

3.Are your grid-tied certifications complete?

A:Sure,We have exported on-grid systems to more than 30 countries, covering Europe, America, Asia, Africa and Australia.  The certification is very complete .

4. What if the power generation system shows abnormal power output?

A: 1. whether the module is over-matched 2. whether the module is shaded 3. whether the module is abnormal 4. whether the module orientation and inverter working mode 5. whether the grid connection distance is appropriate.

5.How do your company deal with the problem on quality?

A:Our company has been doing this industry for more than 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
