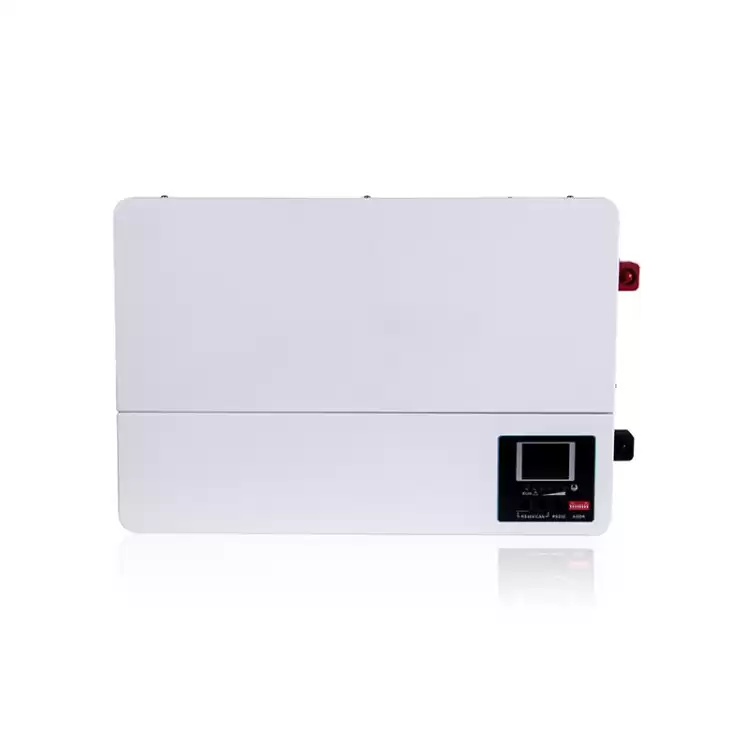

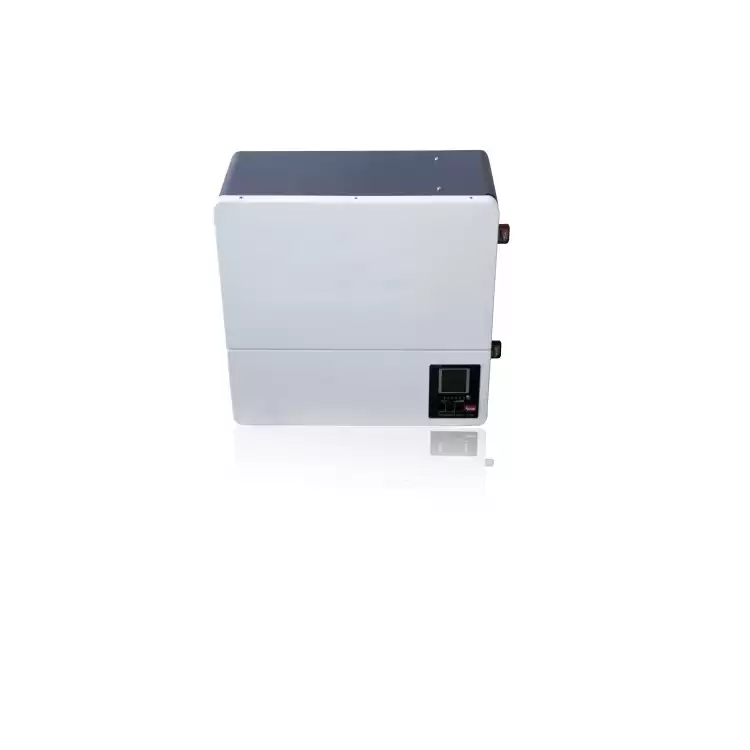

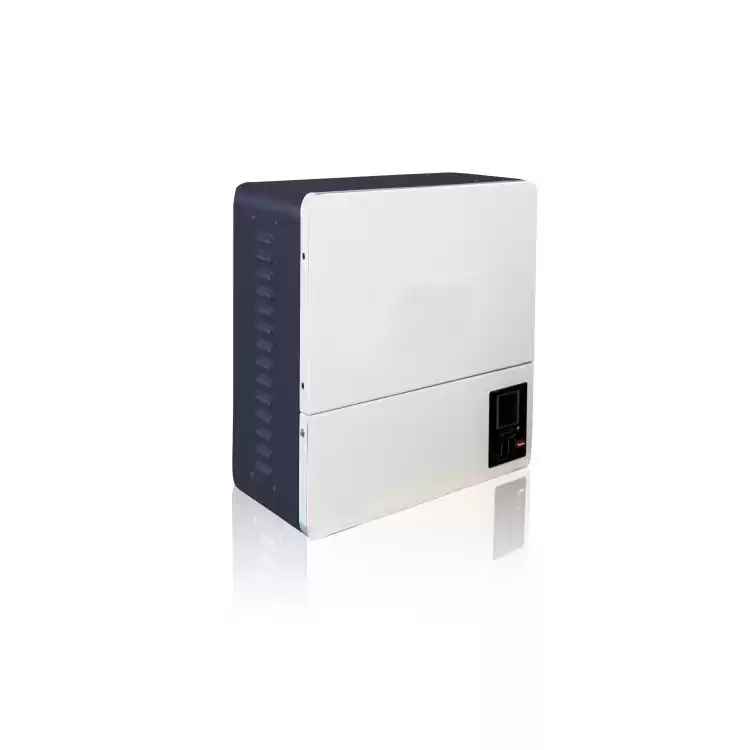

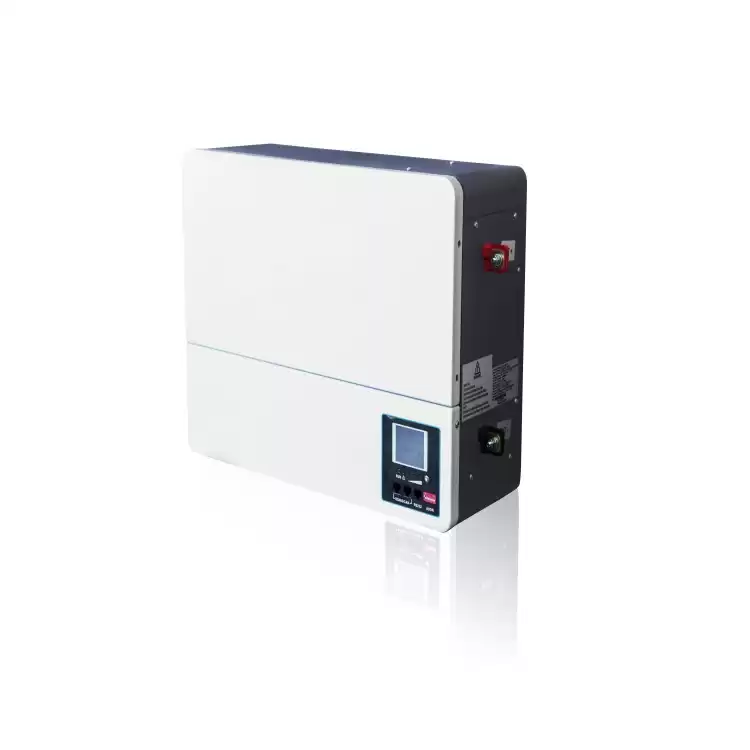

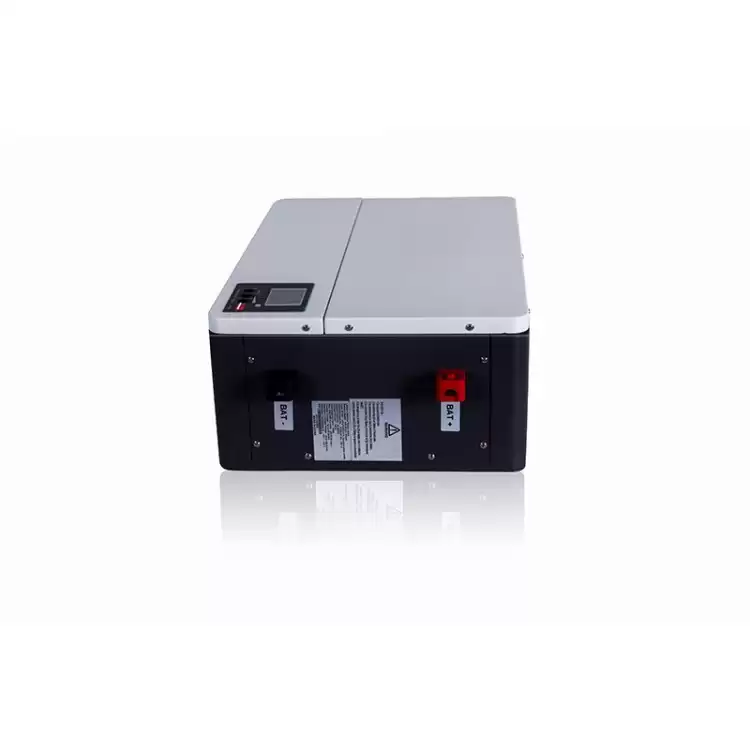

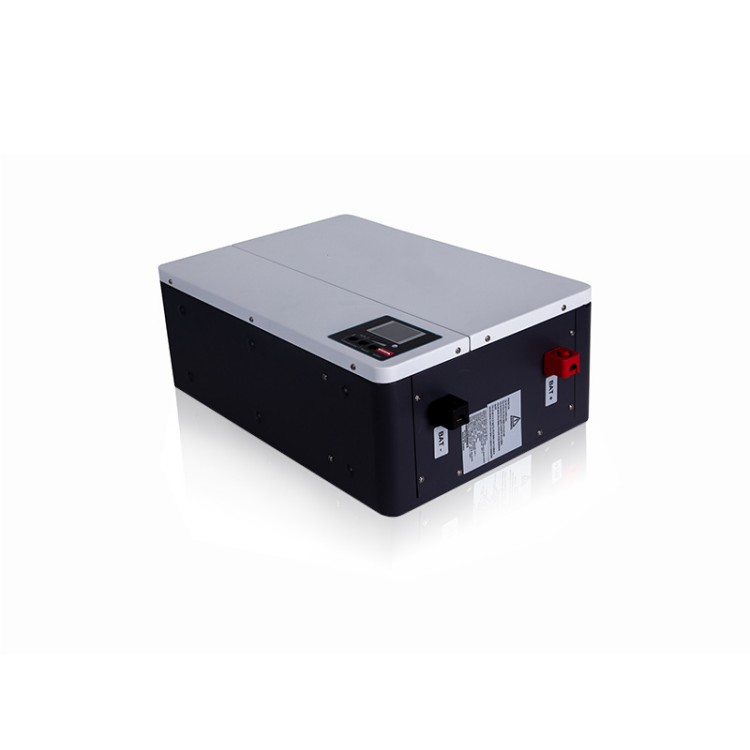

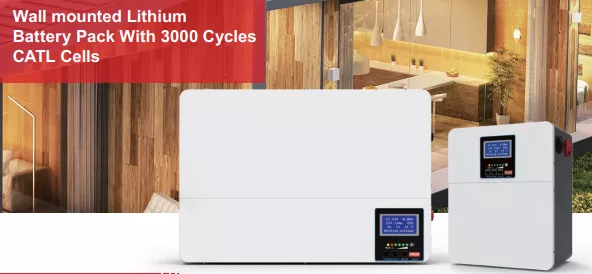

FOTOVO Wall mounted Lithium Battery Pack With 3000 Cycles CATL Cells
Product Advantages
1. Large Capacity
2. LiFePO4 Lithium Battery, no memory
3.Beautiful and industrial design
4.LCD display with communication port(CAN/RS485/RS232) .
5.All around protection
6.Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter
Product Parameters
Wall mounted Lithium Battery Pack With 3000 Cycles CATL Cells
|
|
MODEL
|
SK-25.6V100Ah
|
SK-25.6V200Ah
|
SK-51.2V100Ah
|
SK-51.2V200Ah
|
|
Case design
|
Wall mounted
|
Wall mounted
|
Wall mounted
|
Wall mounted
|
|
Battery Type
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
|
Normal Battery Voltage(Vdc)
|
25.6V
|
25.6V
|
51.2V
|
51.2V
|
|
Normal Capacity (25℃ 0.2C) (Ah)
|
100A
|
200A
|
100A
|
200A
|
|
Normal Capacity (25℃ 0.2C) (WH)
|
2560WH
|
5120WH
|
5120WH
|
10240WH
|
|
Folat Charge Voltage(Vdc)
|
27.6V
|
27.6V
|
55.2V
|
55.2V
|
|
Operation Voltge range (Vdc)
|
22.4 ～ 29.2V
|
22.4 ～ 29.2V
|
44.8 ～ 58.4V
|
44.8 ～ 58.4V
|
|
Max Continuous Discharge Current(A)
|
100A
|
100A
|
100A
|
150A
|
|
Max Pulse Discharge Current(A)
|
200A 30 Sec.
|
200A 30 Sec.
|
200A 30 Sec.
|
200A 30 Sec.
|
|
Max Continuous Charge Current(A)
|
50A
|
100A
|
50A
|
100A
|
|
Cells brand
|
CATL
|
CATL
|
CATL
|
CATL
|
|
Cycle life (25℃, 0.2C, 100% DOD）
|
≧3000 Cycles
|
|
Cell Equalizer Current(A)
|
1~5A Max.
|
|
Terminal
|
M8
|
|
Storage temperature
|
0℃～ 30℃
|
|
IP degree
|
IP 20
|
|
Storage duration
|
6 months at 25℃
|
|
Safety standard
|
UN38.3,IEC62619,CE
|
|
Display (Optional)
|
None or LCD display (Optional
|
|
Communication Port (Optional)
|
None or LCD display (Optional
|
|
PROTECTION
|
|
|
Protection
|
Overcharge protection、Overdischarge protection、Overcurrent protection、
Shortcircuit protection、Overtemperature protection
|
|
AMBIENT
|
|
|
Working Temperature
|
-10℃～ +50℃
|
|
Humidity
|
0~95% ( no condensation)
|
|
Sea Level(m)
|
≤1500
|
|
DIMENSION
|
|
|
L×W×H (products size, mm)
|
414*372*227
|
550*375*227
|
550*375*227
|
606*380*265
|
|
L×W×H (package size, mm)
|
496*469*275
|
612*422*259
|
612*422*259
|
672*452*302
|
|
Weight(NW Kg)
|
33.2Kg
|
57.0Kg
|
57.0Kg
|
76.0Kg
|
|
Weight(GW Kg)
|
35.4Kg
|
59.0Kg
|
59.0Kg
|
83.0Kg
|
|

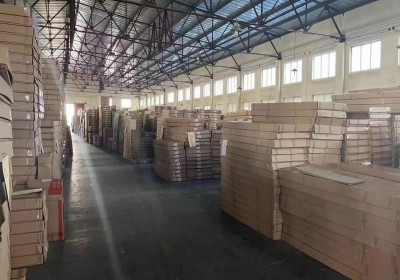

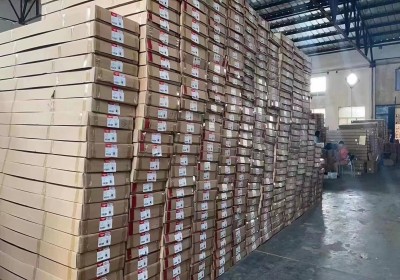

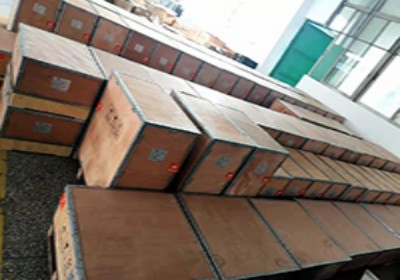

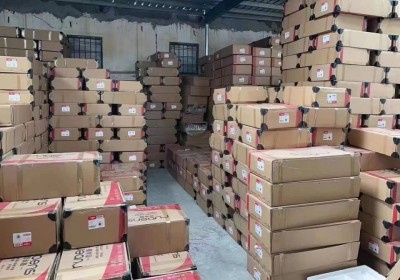

Factory and Packing
FAQ
1 How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity? A:20 pieces
3. Can you introduce your company?
A:l am very honored. l will send you the company's introduction document later to give you a more comprehensive and direct introduction to our company's information.
4. What are the advantages of your company?
A:Adequate inventory and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
