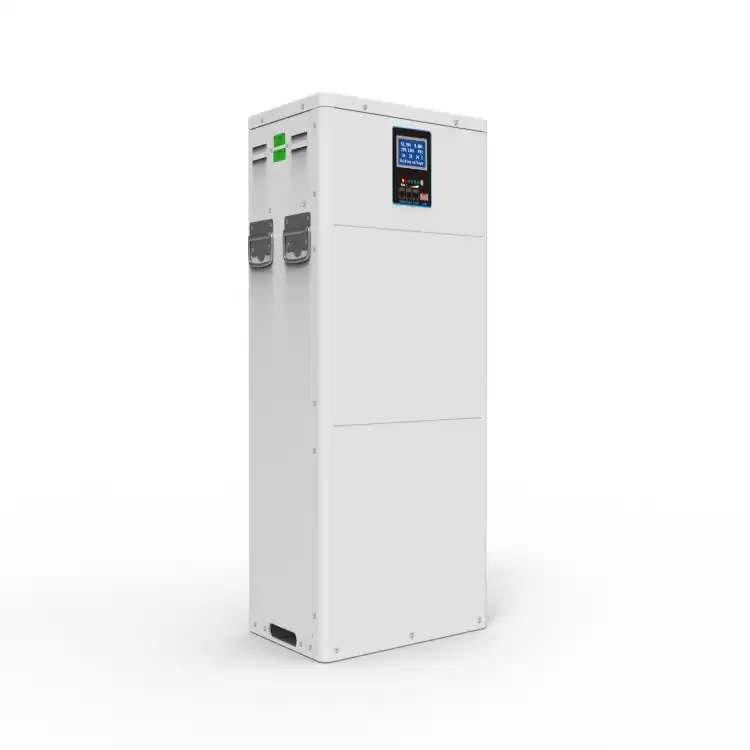

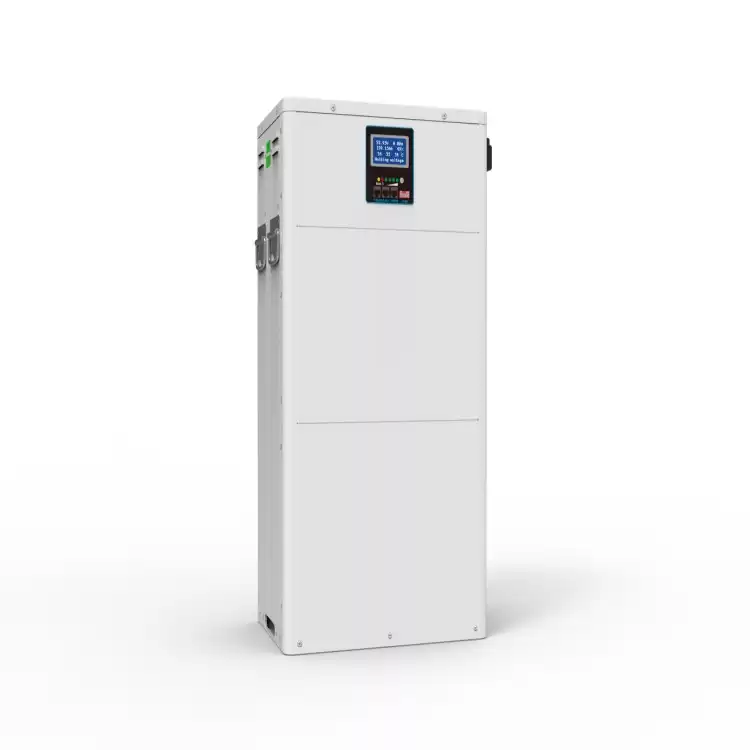

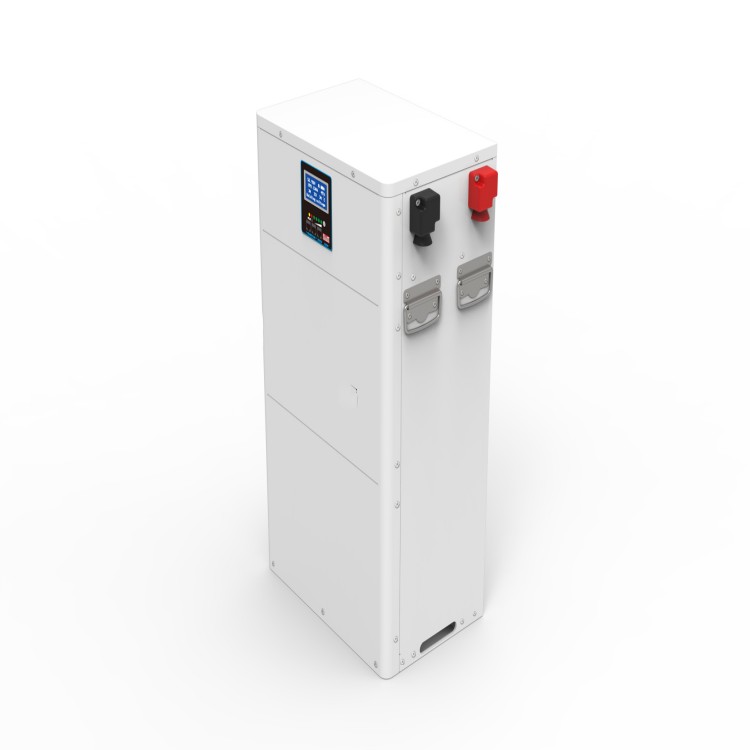

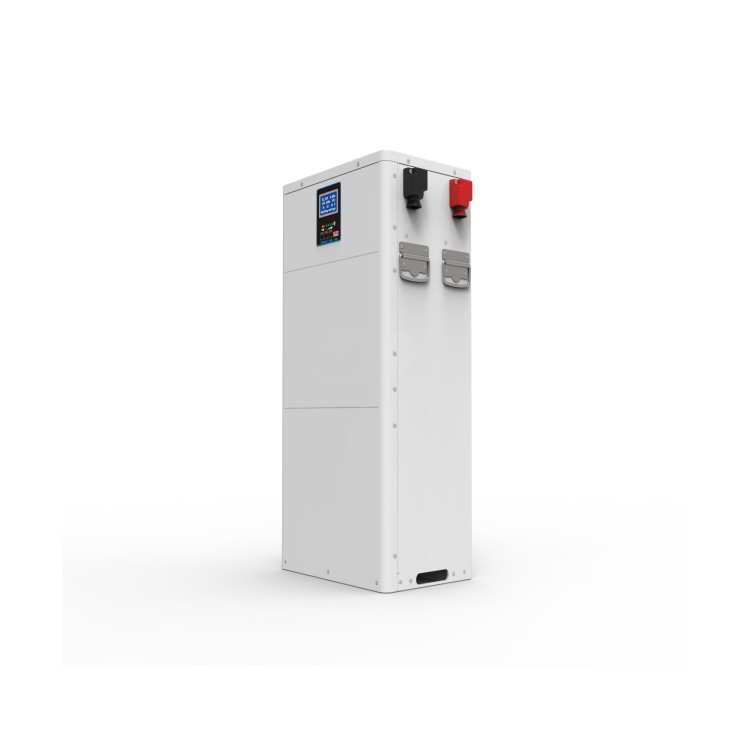

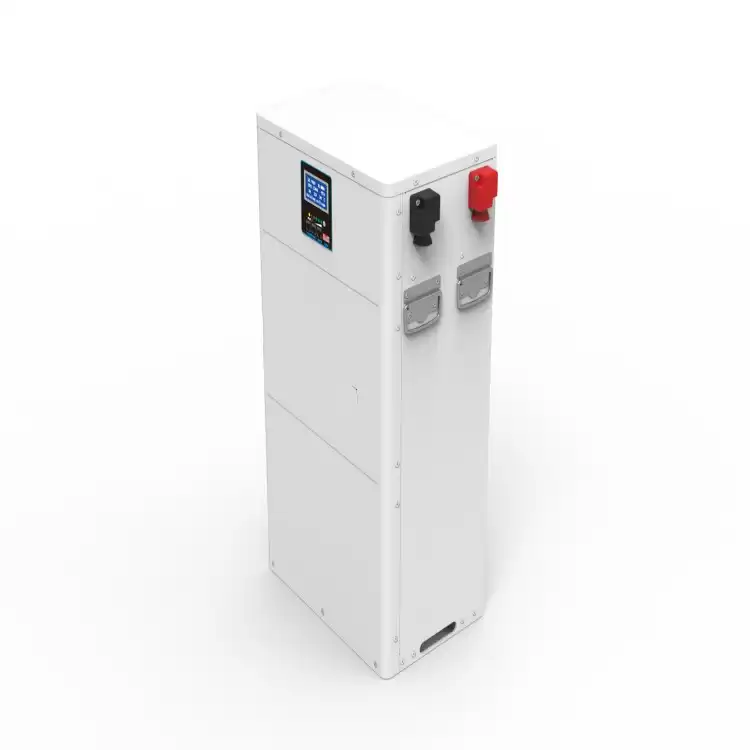

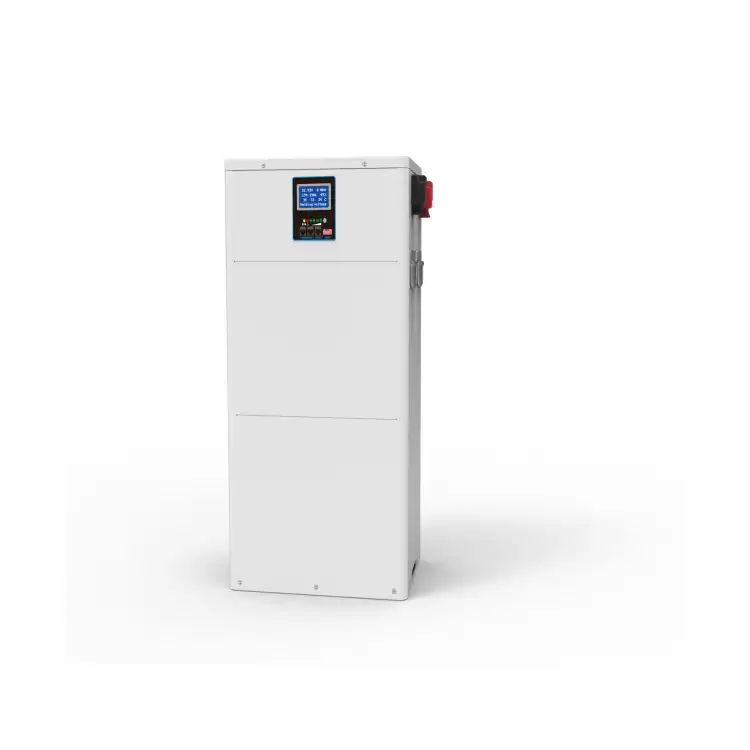

FOTOVO Wall Stand Design Lithium Battery Pack With 3000 Cycles BYD Cells
Product Advantages
1. Large Capacity
2. LiFePO4 Lithium Battery, no memory
3.Beautiful and industrial design
4.LCD display with communication port(CAN/RS485/RS232) .
5.All around protection
6.Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter
Product Parameters
|
MODEL
Casedesign
|
SK-25.6V250Ah
Stand by the wal
|
SK-51.2V250AH
Stand by the wal
|
SK-5L2V300AH
Stand by the wal
|
|
Battery Type
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
|
Normal Battery Model
|
25.6V250AH
|
51.2V250AH
|
51.2V300AH
|
|
Normal Capacity(25C,0.2C)
|
6400Wh
|
12800Wh
|
15360KWh
|
|
Voltage window(Vdc)
|
22.4~29.2V
|
44.8~58.4V
|
44.8~58.4V
|
|
Folat Charge Voltage(Vdc)
|
27.6V
|
55.2V
|
55.2V
|
|
Max.continue discharge current(A)
|
150A
|
150A
|
150A
|
|
Max.putse discharge cumert(A)
|
200A30Sec.
|
200A 30Sec
|
200A30Sec.
|
|
Max.continue charge curent(A)
|
100A
|
100A
|
100A
|
|
Cydel(+25C 0.2C 100%DOD)
|
>6000 Cydes
|
>6000 Cycles
|
>6000 Cycles
|
|
Cells Brand
|
BYD
|
BYD
|
BYD
|
|
Terminal
|
M8
|
|
Storage emperature
|
0C~30C
|
|
Stor age duration
|
month at
|
|
Safety standard
|
UN38.3.MSDS
|
|
IP degree
|
P20
|
|
Communication function
|
CAN/RS485/RS 232,standard BMS with SAKO SUNPOLO 6KW Solar Inverter Communication protocol.
Option al smart BMS can communicate with main Brand of Solar Inverter:Deye,Growatt,
Voltronic,GOODWE,SMA,SOFAR,etc.
|
|
PROTECTION
|
|
|
Prote ction
|
Over charge protection,Overdischarge protection,Overcurrent protection,
Shortcircuit protecion,Overtemp erature pro tection
|
|
AMBIENT
|
|
|
Noise(dB)
|
<40dB(1meter)
|
|
Working Temperature
|
Discharge:-10C~+50C,Charge:OC~+50C
|
|
Humidity
|
0~95%(no condensation)
|
|
Sea Level(m)
|
$1500
|
|
DIMENSION
|
|
|
L*WH(products size)mm
|
453*406*497
|
453"406*746
|
453*406*746
|
|
L*WH(package size)mm
|
508"461*532
|
509*453*895
|
509*453*895
|
|
Weight(NW Kg)
|
79.3kg
|
133.0Kg
|
145.0Kg
|
|
Weight(GW Kg
|
82.0Kg
|
146.2kg
|
158.0kg
|
|

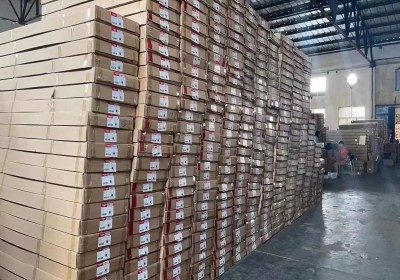

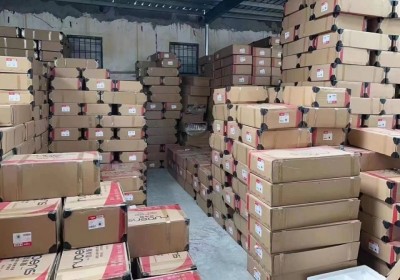

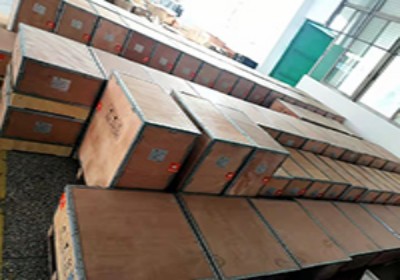

Factory and Packing
FAQ
1 How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity? A:20 pieces
3. Can you introduce your company?
A:l am very honored. l will send you the company's introduction document later to give you a more comprehensive and direct introduction to our company's information.
4. What are the advantages of your company?
A:Adequate inventory and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
