Products details
Technical Specification:
|
Motor Power
|
15HP(11KW)
|
|
Inverter Power
|
15HP(11KW)
|
|
Working Width
|
700mm
|
|
Tool Holder Diameter
|
348mm*4
|
|

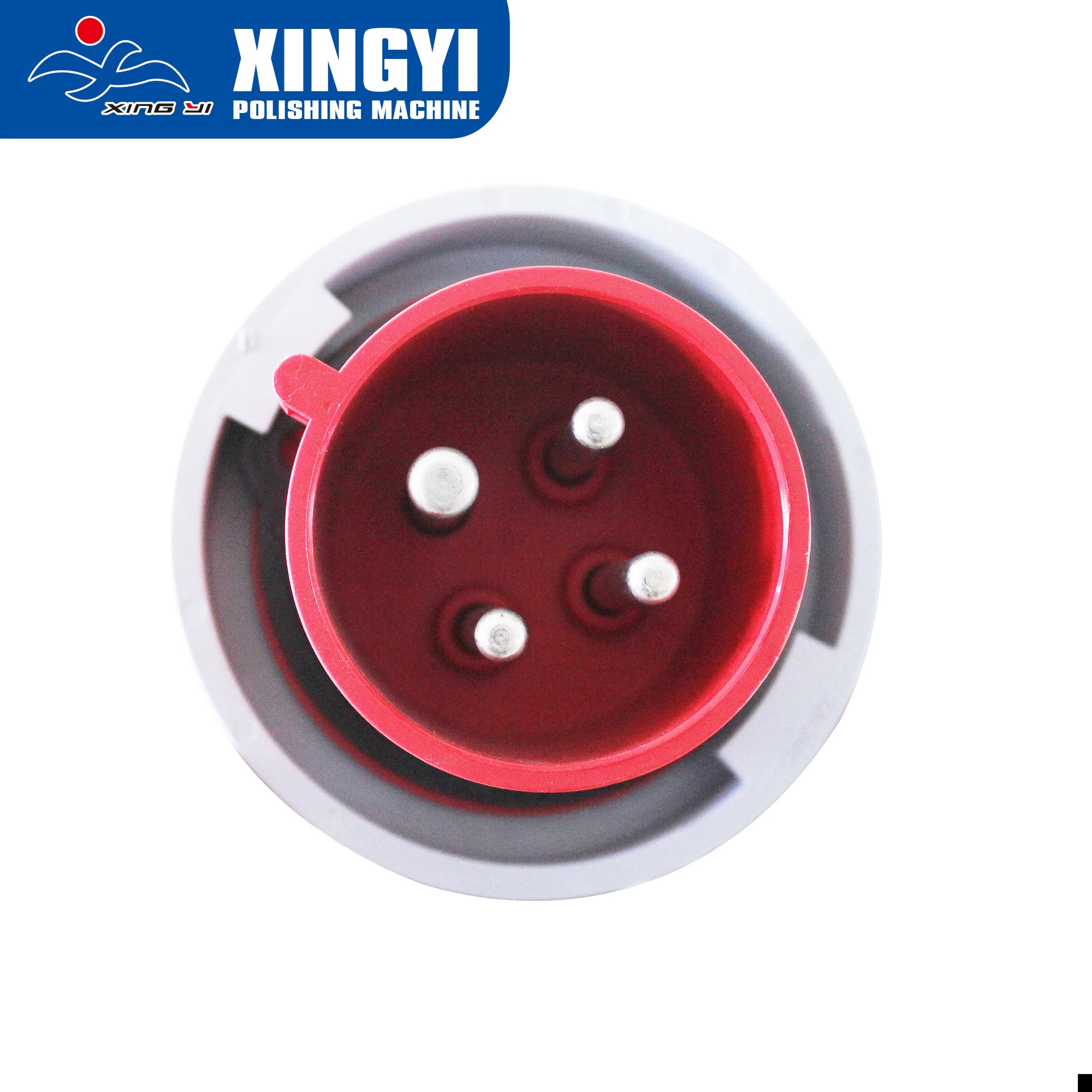

Voltage
|
220-240V/380-440V three phase
|
|
Rotating Speed
|
350-1680rpm
|
|
Weight of Machine
|
370kg
|

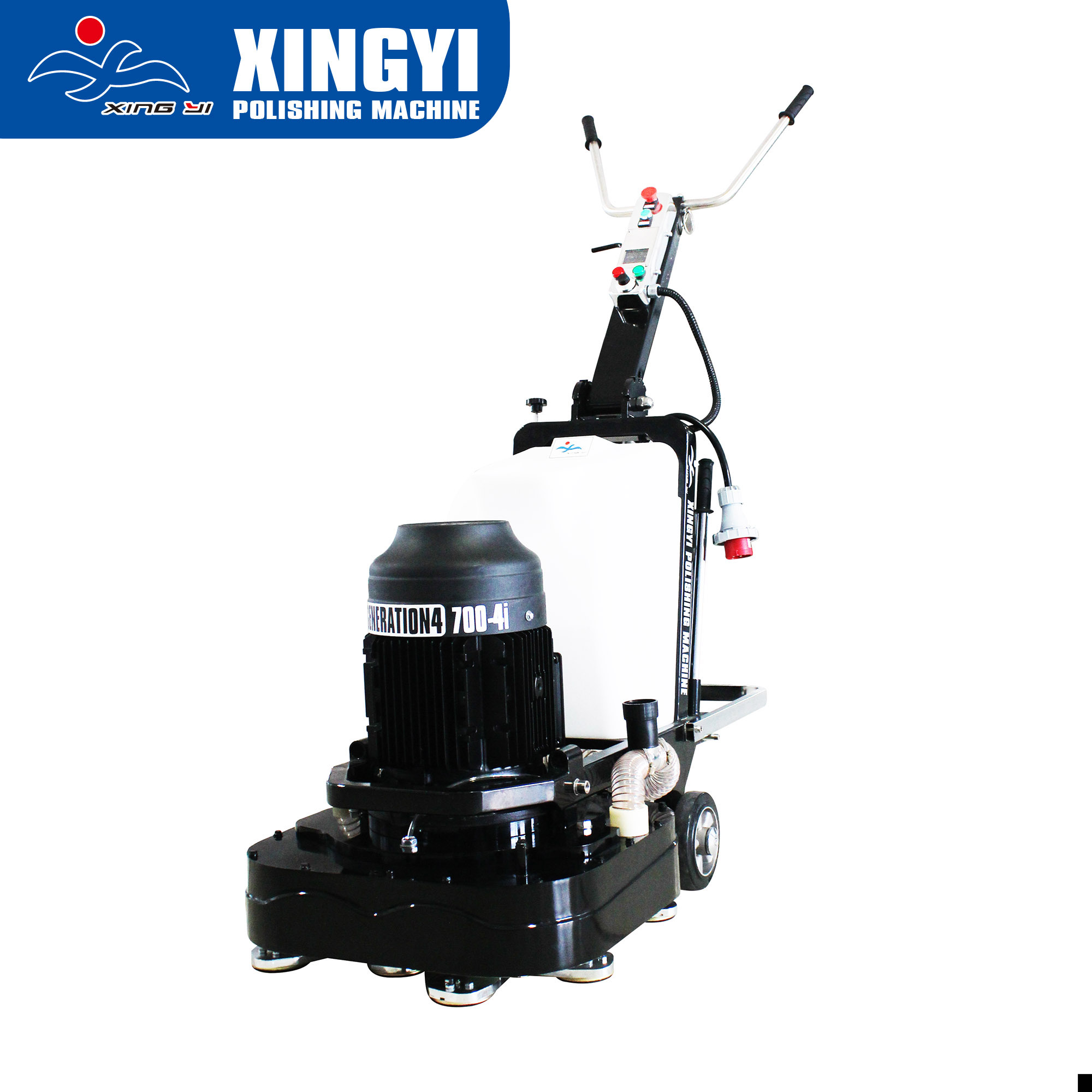

Universal stainless steel concrete floor grinding equipment is suitable for all series floor grinding, for example, hard floor grinding, concrete grinding, epoxy floor grinding, hardening floor grinding, wear-resisting floor grinding, resin floor grinding etc.
concrete floor grinding equipment part
Stable transmission device:in front of the frame installed the gear driven transmission
gearbox, to achieve motor power can 100% output, cooperate with inverter can make the device increase the rotation axis torque force at low speed, can be adapted to different needs of the polishing process and different surfaces so as to improve the grinding, force and higher efficiency;
Heavy Weight with large disc pressure: machine total weight is 370 kg, . Suitable for very hard floor (such as granite, tiles, quartz sand epoxy terrazzo, epoxy floor, cement floor) .
All-in-one gearbox design, increase the weight of the machine, to improve the efficiency of
levelling.Gearbox is made of aluminum alloy castings, well heat dissipation, not easy to
deformation.Do the precision processing in CNC machine processing center, reduced machining errors and extended the lifespan;
The direct connection of motor and gearbox can reduce the vibration of machine so as to
reduce the noise caused by machine, at the same time increase the floor flatness after
polishing;

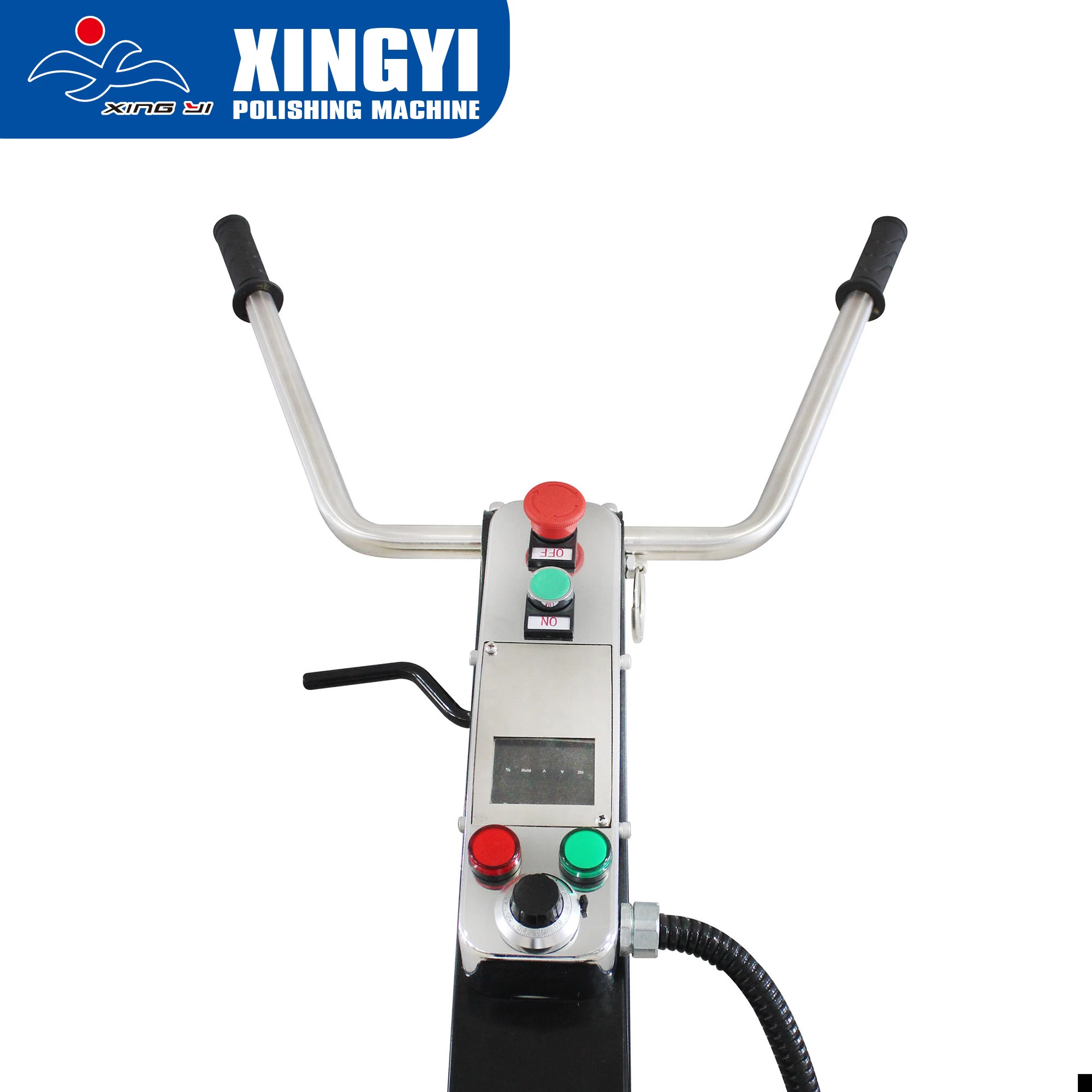

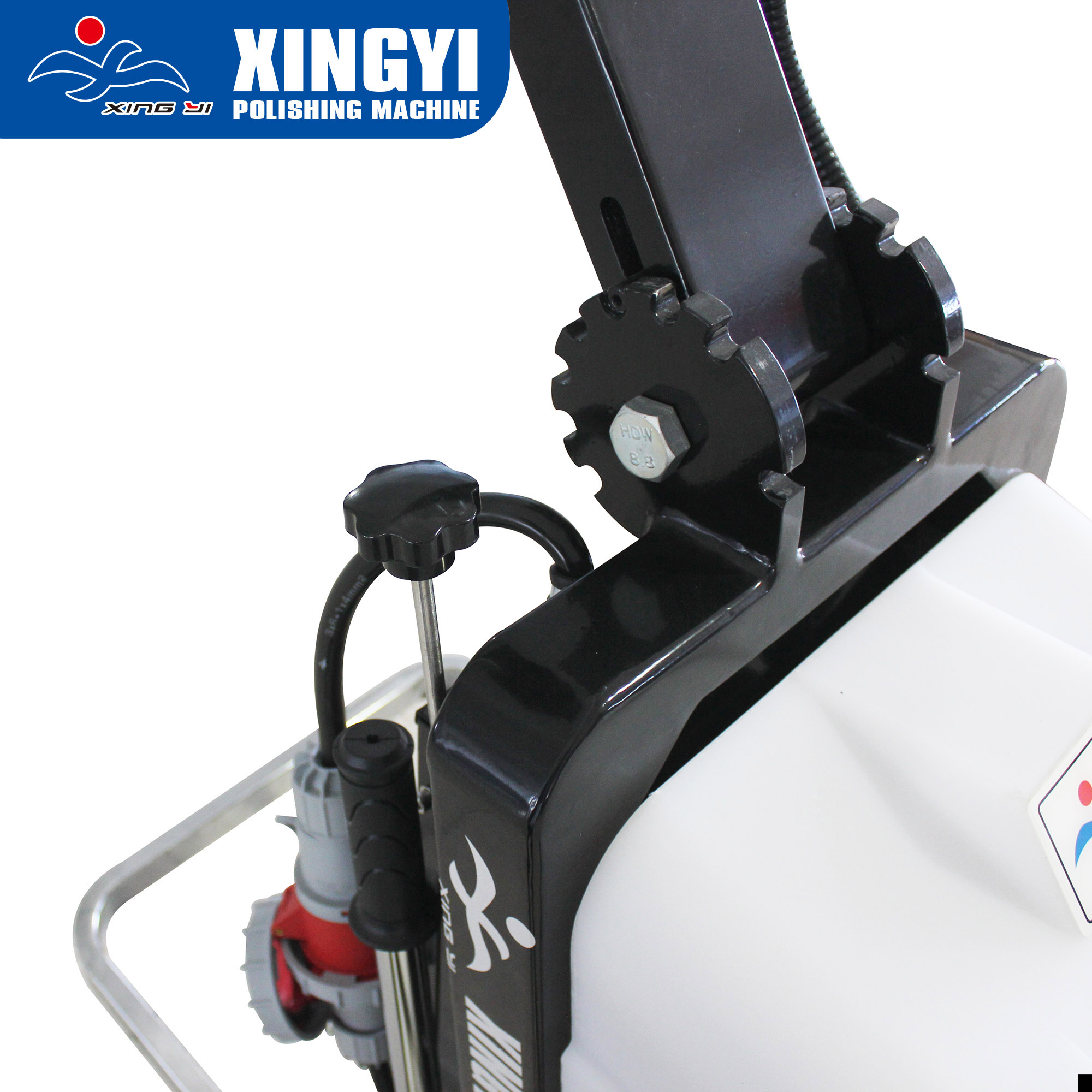

Concrete floor grinding equipment is easy operation, can also operated by women, which could reduce the labor cost. Lengthen handlebar can make a person quickly changed the consurables;
Adjustable rotation speed to satisfied different floor renovation, grinding requirements;
Original imported motor with low vibration, long working hours without heat-up, hard to
damage, the inverter is China's leading inverter manufacturers - Veichi;
Grinding disc highly tied with damping connection which is conducive to improve the grinding force and grinding efficiency;

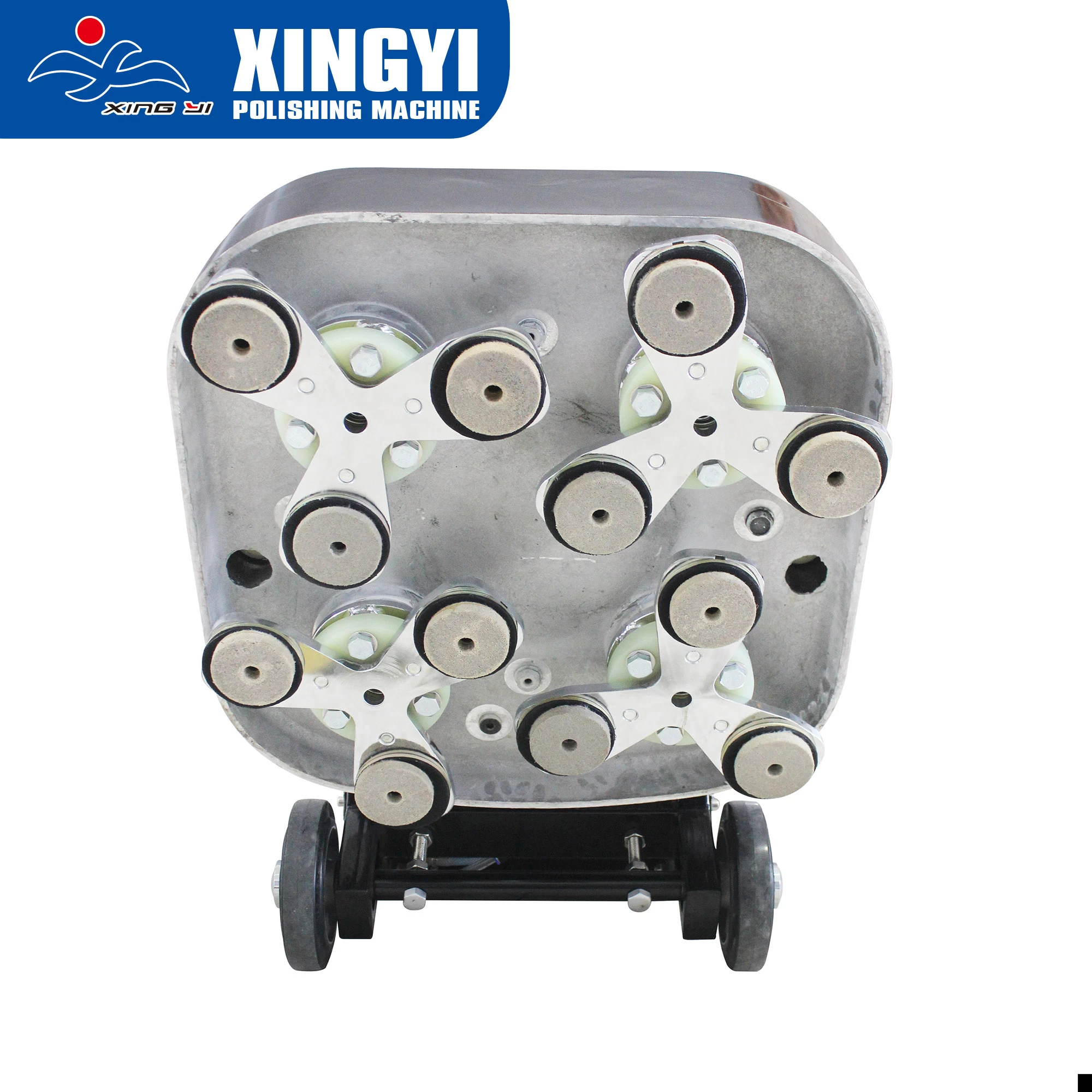

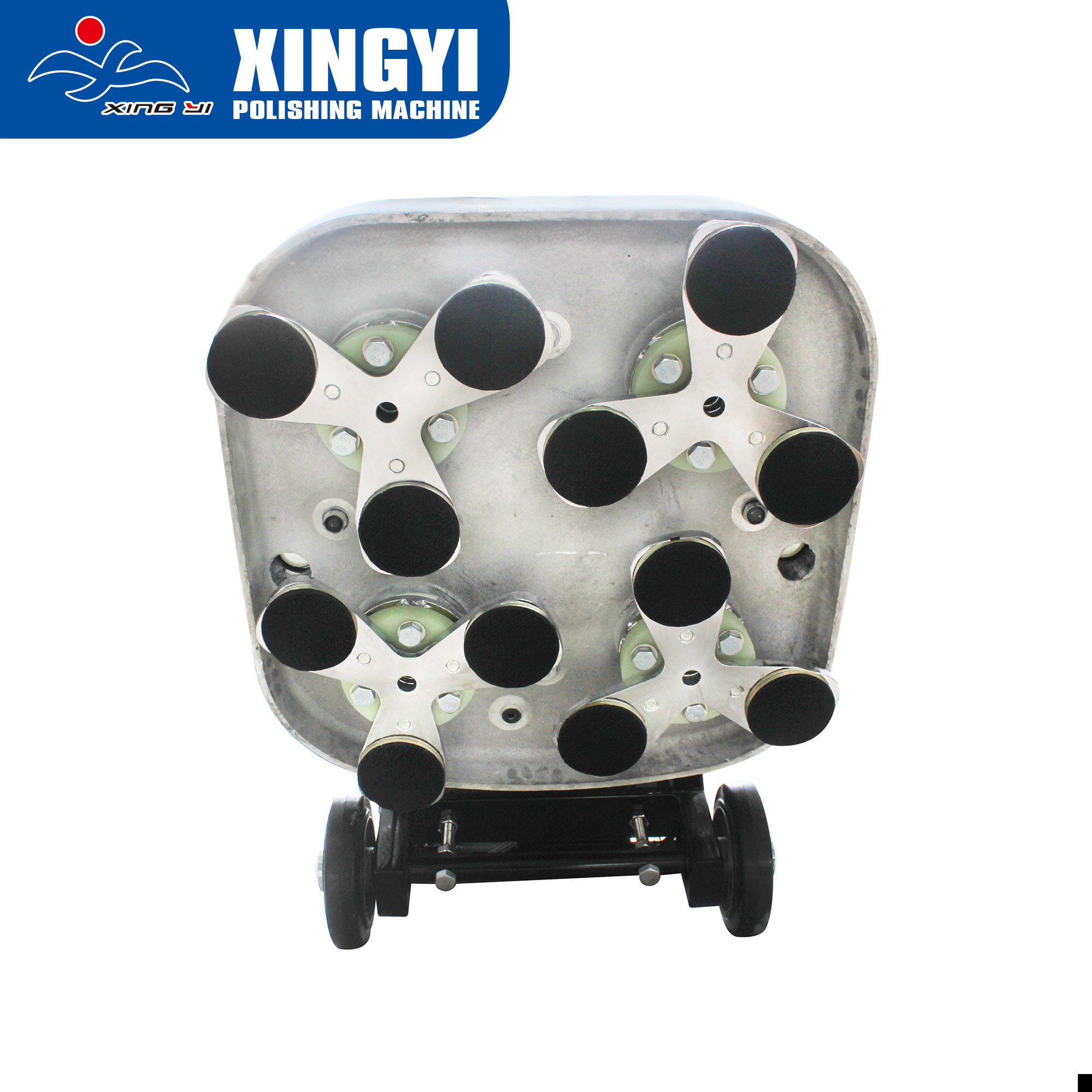

Four cross grinding disc with 12 grinding heads, grinding without leaving any gaps, which
can install various types of pads and reduce the construction costs;
High precise gear, a few more than normal processing, gear grinding teeth increased
hardness, precision (carburizing, straightening, vacuum heat treatment, nitriding, grinding
teeth); finishing mill occlusal degree increased, reducing high-speed operation of the mill
tooth damage and noise (intensive benchmark, finishing tooth).
Xingyi is your one-stop shop for concrete grinding and stone caring products
