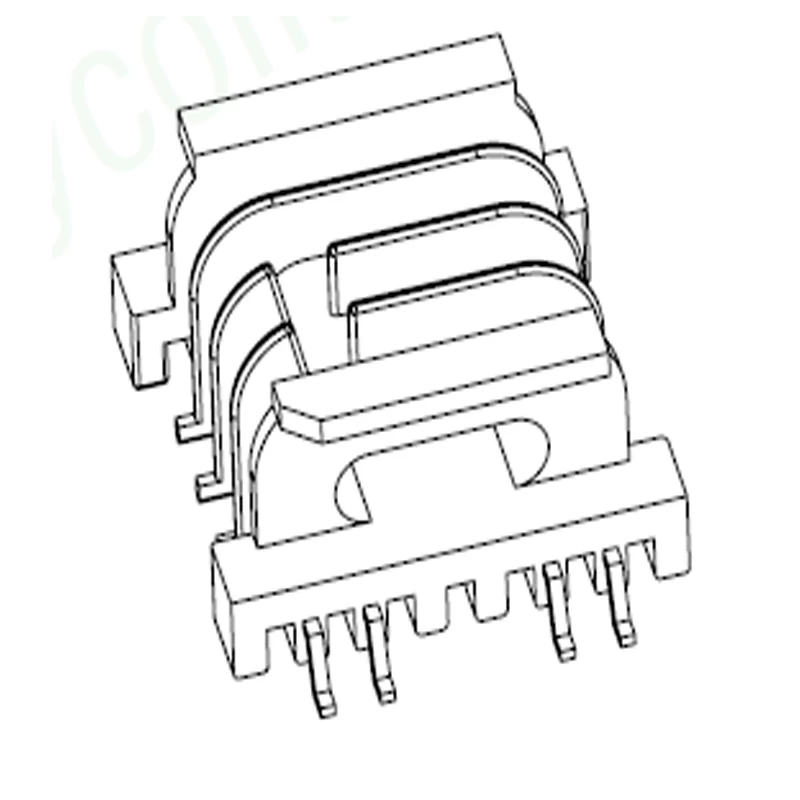

Four Slots EPC19 Transformer Bobbin 4+6 Pin SMD Horizontal Coil Bobbin

4+6 pin SMD Bobbin. Four slots horizontal bobbin. Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=19mm. Bobbin Size=24mmX19mmX9.9mm. Customized designs are accepted.



Factory hot selling SMD epc19 coil former, 4+6 pins multi section bobbin, horizontal type transformer bobbin. Best quality and good after sale service, bobbin design meets the UL certification.


Quick Details

Part No: MCT-SMD-EPC1902(H4+6P4F)

Brand Name: MCT

Material: LCP-E4008

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: Four Slots EPC19 Transformer Bobbin 4+6 Pin SMD Horizontal Coil Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

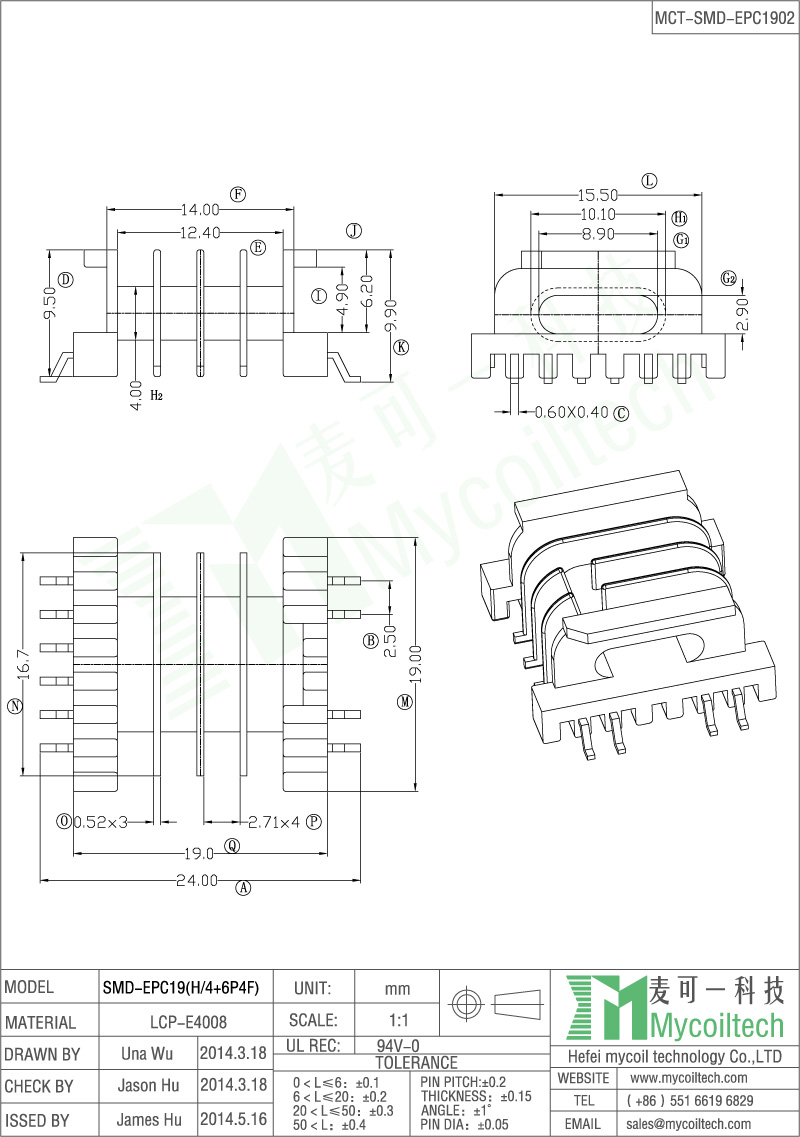

Product Specification

Horizontal EPC19 transformer bobbin 4+6 pins SMD bobbin
