Four Tongue-and-Groove Rockwool+PU Sandwich Panel For Metal Wall Cladding System

Wiskind Color Germ™ four tongue-and-groove sandwich wall panel.

Top-notch building cladding/High-end intergrated fire-proof, energy-saving and decorative wall panels let industrial construction like art.



Four Tongue-and-Groove Rockwool+PU Sandwich Panel For Metal Wall Cladding System


Product Introduction:

Wiskind has changed the traditional tongue-and-groove design, and adopted case-type four tongue-and-groove precessing. After completion, the effect can be on a par with other curtain systems.


Product Parameters:

Product Name

Four Tongue-and-Groove Rockwool+PU Sandwich Panel For Metal Wall Cladding System

Material of surface plates

PPGI, Aluminum, Stainless Steel, Copper and Brass.

Thickness of surface plates

0.4mm-0.8mm.

Thickness of core:

50mm/60mm/75mm/100mm

Density of core:

Rockwool:≥120kg/m³; Glasswool: 64kg/m³; PU: 40-50kg/m³

Width

400-1000mm

Suggested Length

Min. 500mm Max. 2500mm

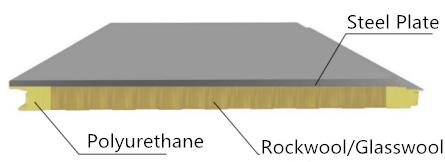

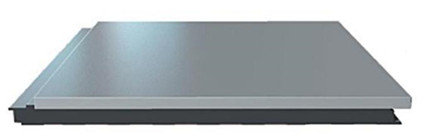

Panel Type:

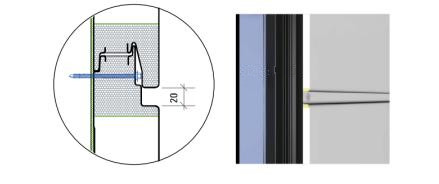

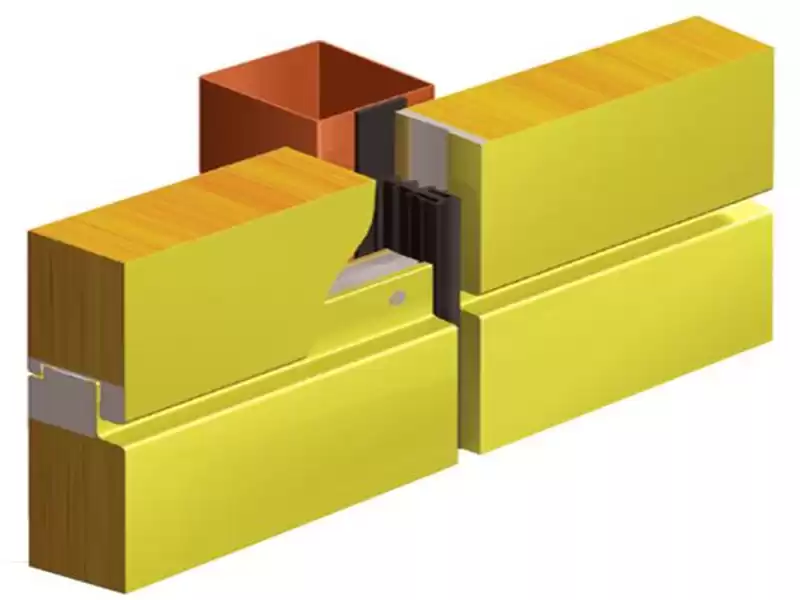

Node Drawings:

Performance Description:

1.The surface is even, smooth and elegant, with an impressive metal texture.

2.Excellent thermal insulation effect.

3.Products of different wodths for choice.

4.Simple construction processes and excellent operability.
