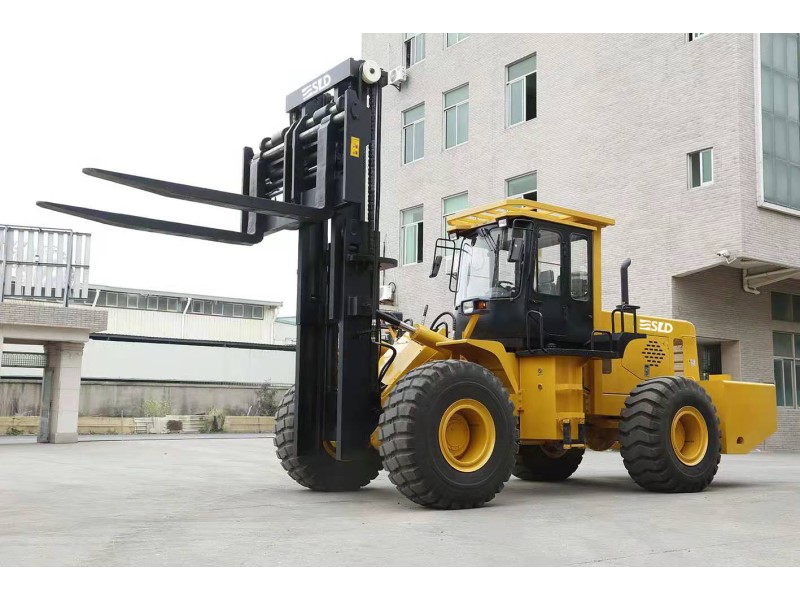

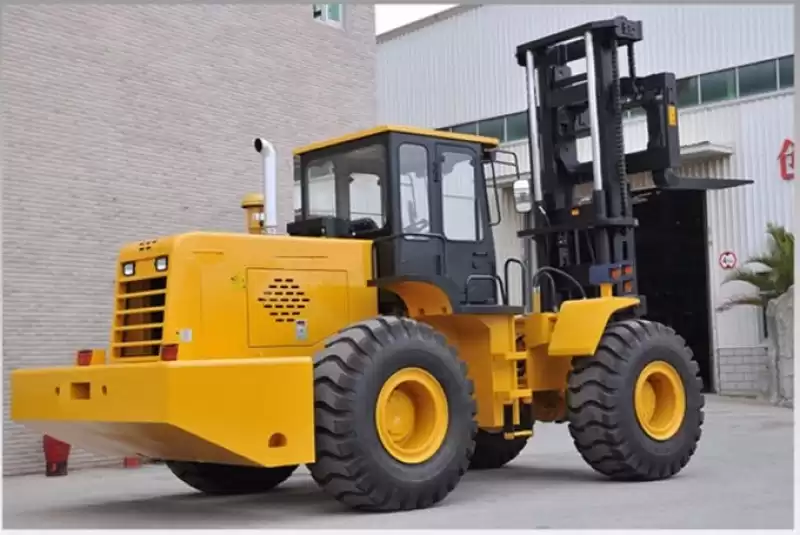

15 ton
off-road forklift,
rough terrain forklifts is super-high value with competitive price than CASE rough terrain forklifts, Manitou rough terrain forklifts and JCB rough terrain forklifts
Main Features of 15 ton Rough terrain Forklift:
1, Engine: Weichai WD10G220E11engine, 162KW, strong power, energy conservation and environmental protection.
2, Transmission& torque converter: brand Sanchi hydraulic Transmission ZL50, 2F/1R. It is special for heavy-duty forklift, imported technology, reliable performance, convenient maintenance, smooth transmission and convenient operation.
3, Driven axle: Self-made reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
4, Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
5, Braking system: caliper disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
6, Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance.
7, Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
8, Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles. The vehicle get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure、bridge、box.
9, Tyre: Resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable.
10, Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
11, Cab: With cooling air-conditioning ,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.
|
Specifications
|
|
General
|
Manufacturer
|
|
SLD
|
|
Model
|
|
FDM8150
|
|
Power type
|
|
Diesel
|
|
Rated loading capacity
|
Kg
|
15000
|
|
Load center
|
mm
|
800
|
|
Dimensions
|
Lift height
|
mm
|
3000
|
|
Free lift height
|
mm
|
195
|
|
Fork size
|
mm
|
1600×180×100
|
|
Fork distance
|
Min./Max.
|
mm
|
400/1480
|
|
Mast tilt anglc
|
Front/After
|
deg
|
8/12
|
|
Front overhang
|
mm
|
950
|
|
Overall
dimensions
|
Overall length
|
mm
|
7500
|
|
Overall width
|
mm
|
2600
|
|
Mast lowered height
|
mm
|
2980
|
|
Mast extended height
|
mm
|
4380
|
|
Overhead guard height
|
mm
|
3200
|
|
Turning radius
|
mm
|
5500
|
|
Min.right angle aisle width
|
mm
|
3500
|
|
Performance
|
No
load/Full load
|
Traveling Speed
|
km/h
|
25/24
|
|
Lifting spead
|
mm/sec
|
320/270
|
|
Max.grade abnlity
|
%
|
25
|
|
Max. Pull force(full load)
|
KN
|
95
|
|
Self weight
|
kg
|
23800
|
|
Chassis
|
Wheel size
|
Front
|
|
26.5-25
|
|
Rear
|
|
26.5-25
|
|
Tread
|
Front
|
mm
|
1500
|
|
Rear
|
mm
|
1550
|
|
Wheelbase
|
mm
|
3900
|
|
Min.Ground clearance (No load/Full
load)
|
Mast
|
mm
|
230/220
|
|
Frame
|
mm
|
245/240
|
|
Drive
unit&control
|
Battery
|
V/AH
|
24/100×2
|
|
Engine
|
Model
|
|
WD10G220E
|
|
Manufacturer
|
|
WEICHAI
|
|
Rated power
|
Kw/rpm
|
162/2300
|
|
Rated torque
|
N.m/rpm
|
1460/2400
|
|
NO.of cylinder
|
|
6
|
|
Bore×Stroke
|
mm
|
126×130
|
|
Displace ment
|
L
|
9.726
|
|
Fule tank capacity
|
L
|
200
|
|
Transmissions
|
Type
|
L
|
Hydraulic
|
|
Forwarder / Rear
|
|
2/1
|
