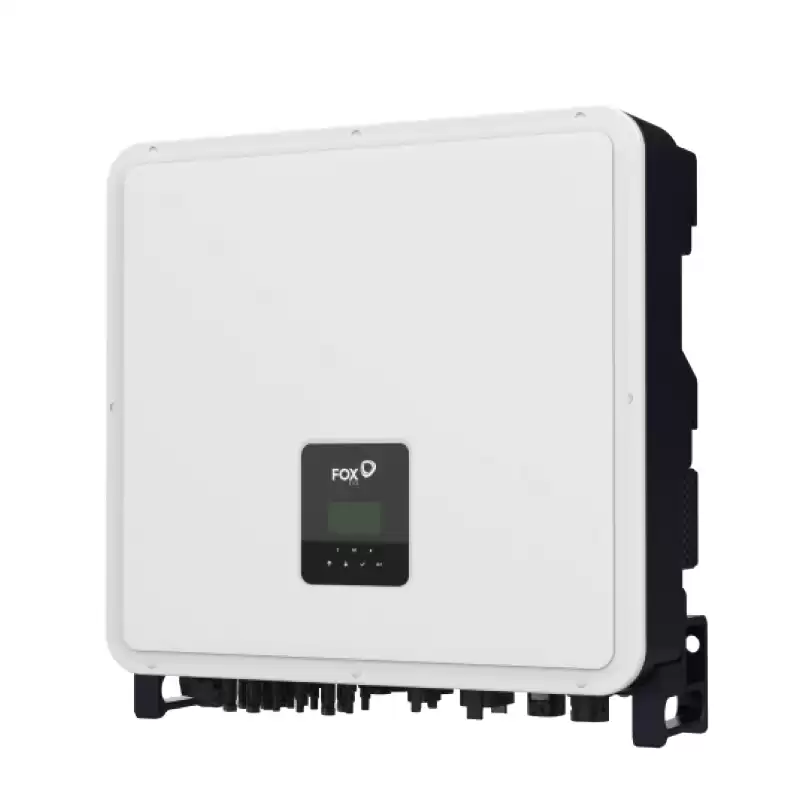

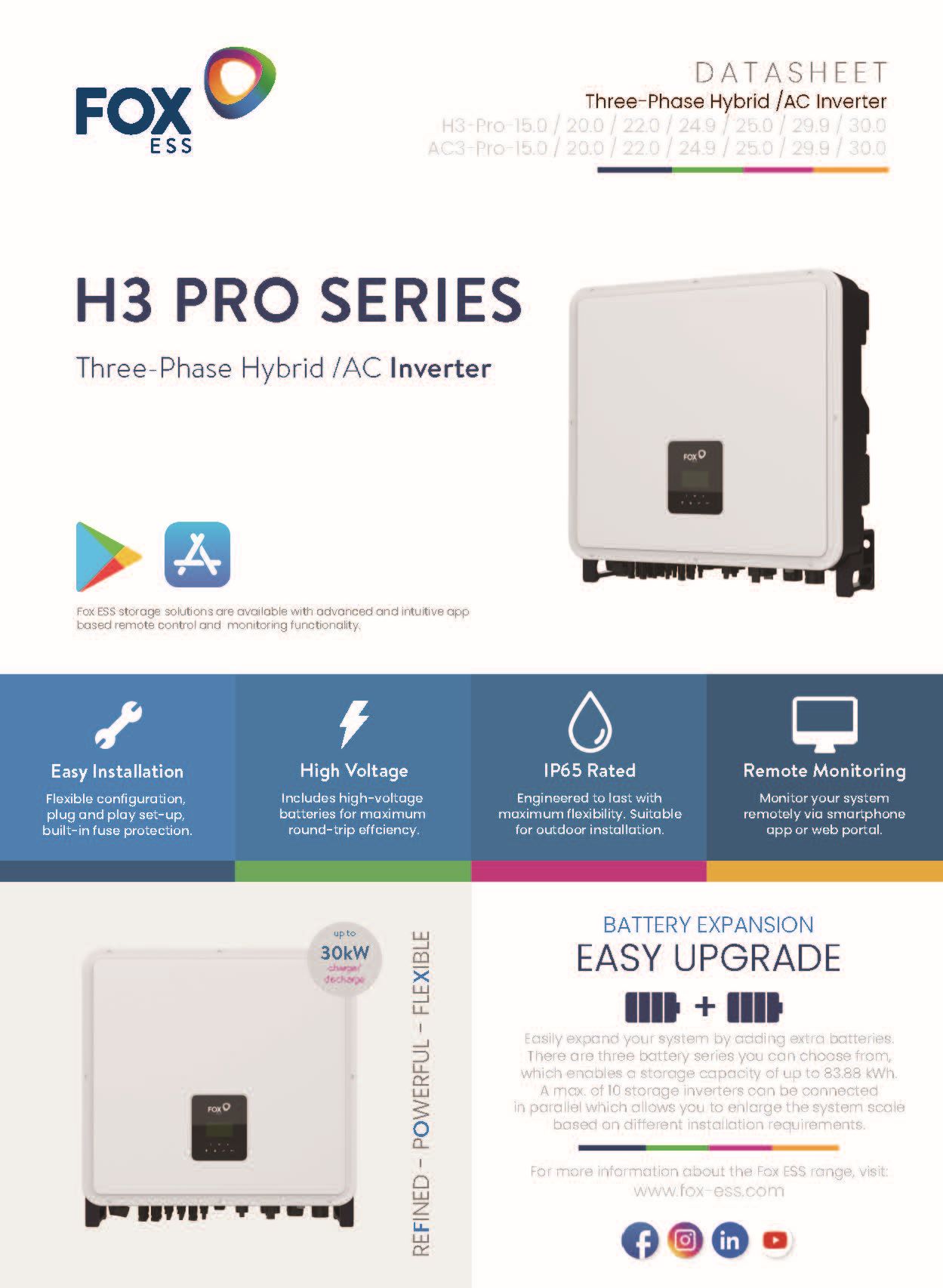

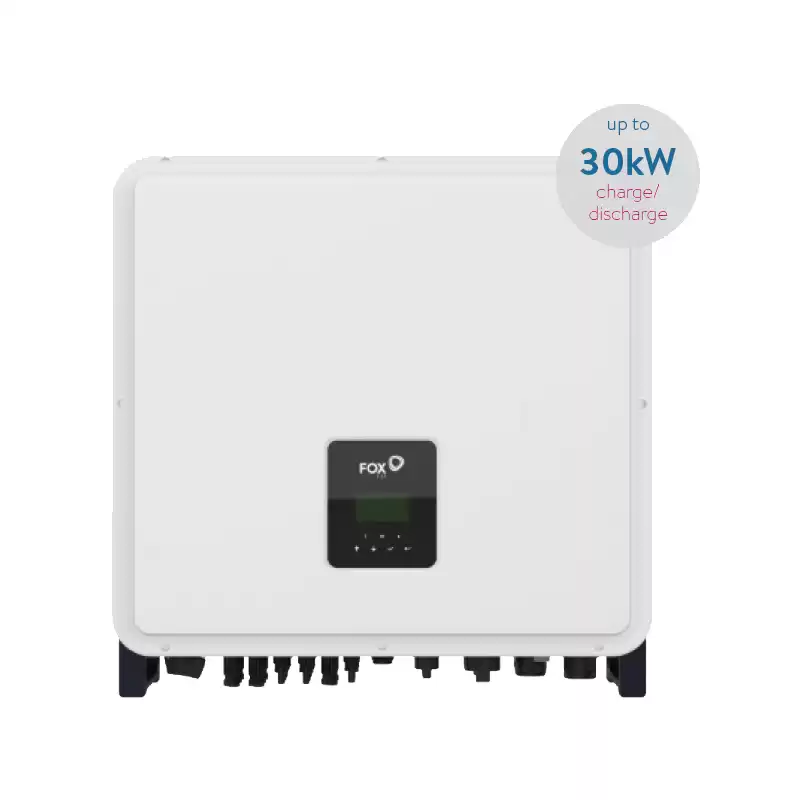

Fox ESS H3-15.0/20.0/25.0/30.0 PRO Three-Phase Solar Hybrid AC Inverter

Easy Installation

Flexible configuration. plug and play set-up, built-in fuse protection.

High Voltage

Includes high-voltage batteries for maximum round-trip efifciency.

IP65 Rated

Engineered to last with maximum flexibility. Suitable for outdoor installation.

Remote Monitoring

Monitor your system remotely via smart phone app or web portal.

Facebook Twitter Pinterest LinkedIn 分享

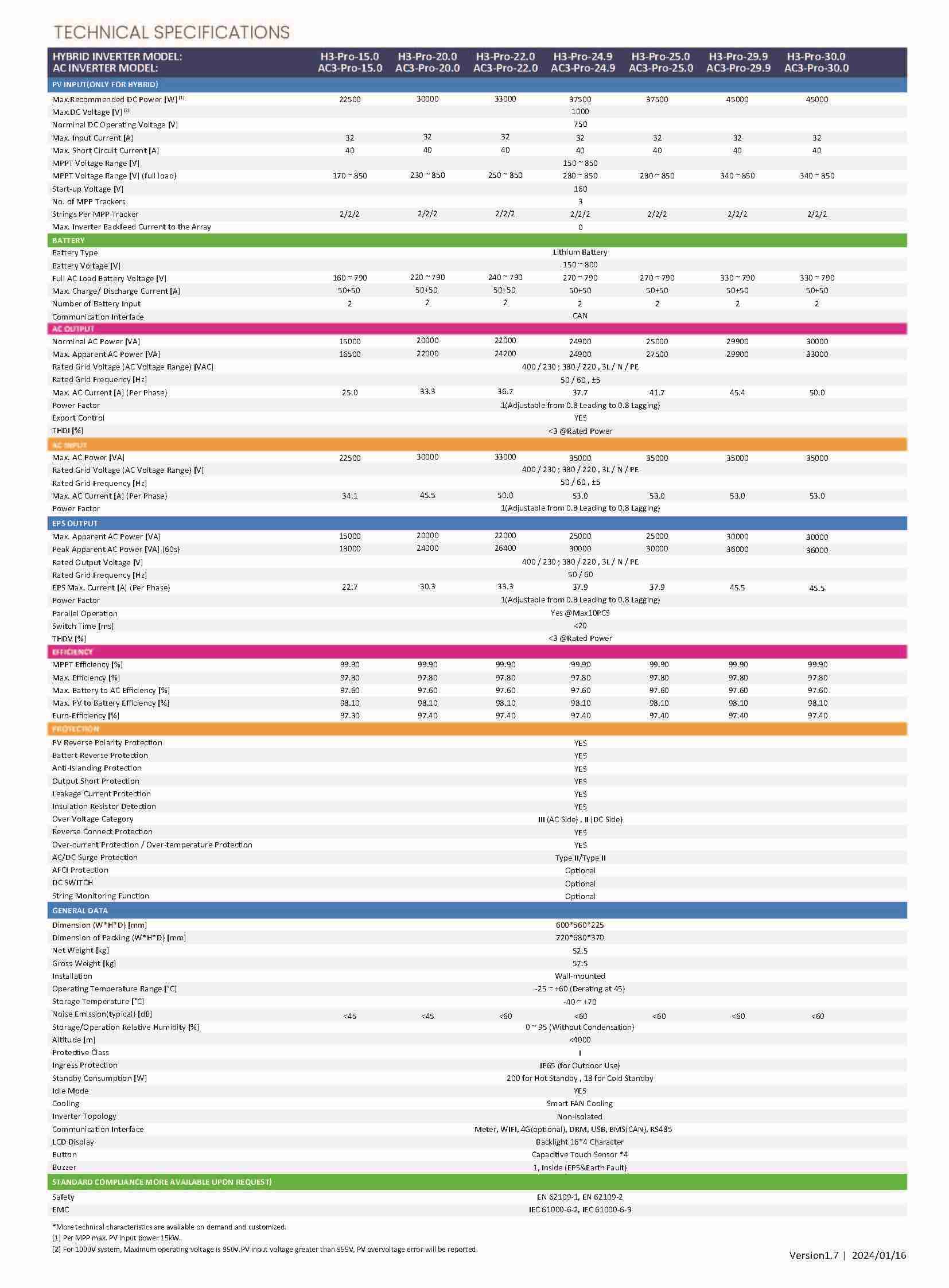

Specification
Model No.
H3-Pro-10.0 / AC3-Pro-10.0 H3-Pro-12.0 / AC3-Pro-12.0 H3-Pro-15.0 / AC3-Pro-15.0 H3-Pro-20.0 / AC3-Pro-20.0 H3-Pro-22.0 / AC3-Pro-22.0 H3-Pro-24.9 / AC3-Pro-24.9 H3-Pro-25.0 / AC3-Pro-25.0 H3-Pro-30 / AC3-Pro-29.9 H3-Pro-30.0 / AC3-Pro-30.0
Input Data(DC)
Max. DC Power
15 kW 18 kW 22.5 kW 30 kW 33 kW 37.5 kW 37.5 kW 45 kW 45 kW
Max. DC Voltage
1000 V 1000 V 1000 V 1000 V 1000 V 1000 V 1000 V 1000 V 1000 V
Nominal DC Voltage
750 V 750 V 750 V 750 V 750 V 750 V 750 V 750 V 750 V
Min. DC Voltage to Start Feed In
160 V 160 V 160 V 160 V 160 V 160 V 160 V 160 V 160 V
Max. DC Current
16 A 16 A 32 A 32 A 32 A 32 A 32 A 32 A 32 A
MPP(T) Voltage Range
150~850 V 150~850 V 150~850 V 150~850 V 150~850 V 150~850 V 150~850 V 150~850 V 150~850 V
No of MPP Trackers
3 3 3 3 3 3 3 3 3
DC Inputs
3 3 6 6 6 6 6 6 6
Output Data (AC)
Max. AC Power
11 kW 13.2 kW 16.5 kW 22 kW 24.2 kW 24.9 kW 27.5 kW 29.9 kW 30 kW
Nominal AC Power
10 kW 12 kW 15 kW 20 kW 22 kW   25 kW
Output AC Voltage Range
220~400 V 220~400 V 220~400 V 220~400 V 220~400 V 220~400 V 220~400 V 220~400 V 220~400 V
Max. AC Current
50.1 A 60 A 75 A 99.9 A 110.1 A 113.1 A 125.1 A 136.2 A 136.5 A
Frequency Range
45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz
Frequency
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
Power Factor (cosθ)
1 1 1 1 1 1 1 1 1
Distortion (THD)
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
No of feed-in phases
3 3 3 3 3 3 3 3 3
Max. Efficiency
97.8 % 97.8 % 97.8 % 97.8 % 97.8 % 97.8 % 97.8 % 97.8 % 97.8 %
Euro Efficiency
97.3 % 97.3 % 97.3 % 97.4 % 97.4 % 97.4 % 97.4 % 97.4 % 97.4 %
General Data
Dimensions (H/W/D)
560x600x225 mm 560x600x225 mm 560x600x225 mm 560x600x225 mm 560x600x225 mm 560x600x225 mm 560x600x225 mm 560x600x225 mm 560x600x225 mm
Weight
52.5 kg 52.5 kg 52.5 kg 52.5 kg 52.5 kg 52.5 kg 52.5 kg 52.5 kg 52.5 kg
Noise Level
< 45 dB(A) < 45 dB(A) < 45 dB(A) < 45 dB(A) < 60 dB(A) < 60 dB(A) < 60 dB(A) < 60 dB(A) < 60 dB(A)
Operating Temperature -25 ~ +60 ℃
Protection Class IP65
Humidity 0-95 %
Cooling Fan
Max. Altitude 4000 m
Interface RS 485, USB, WLAN
Display LCD

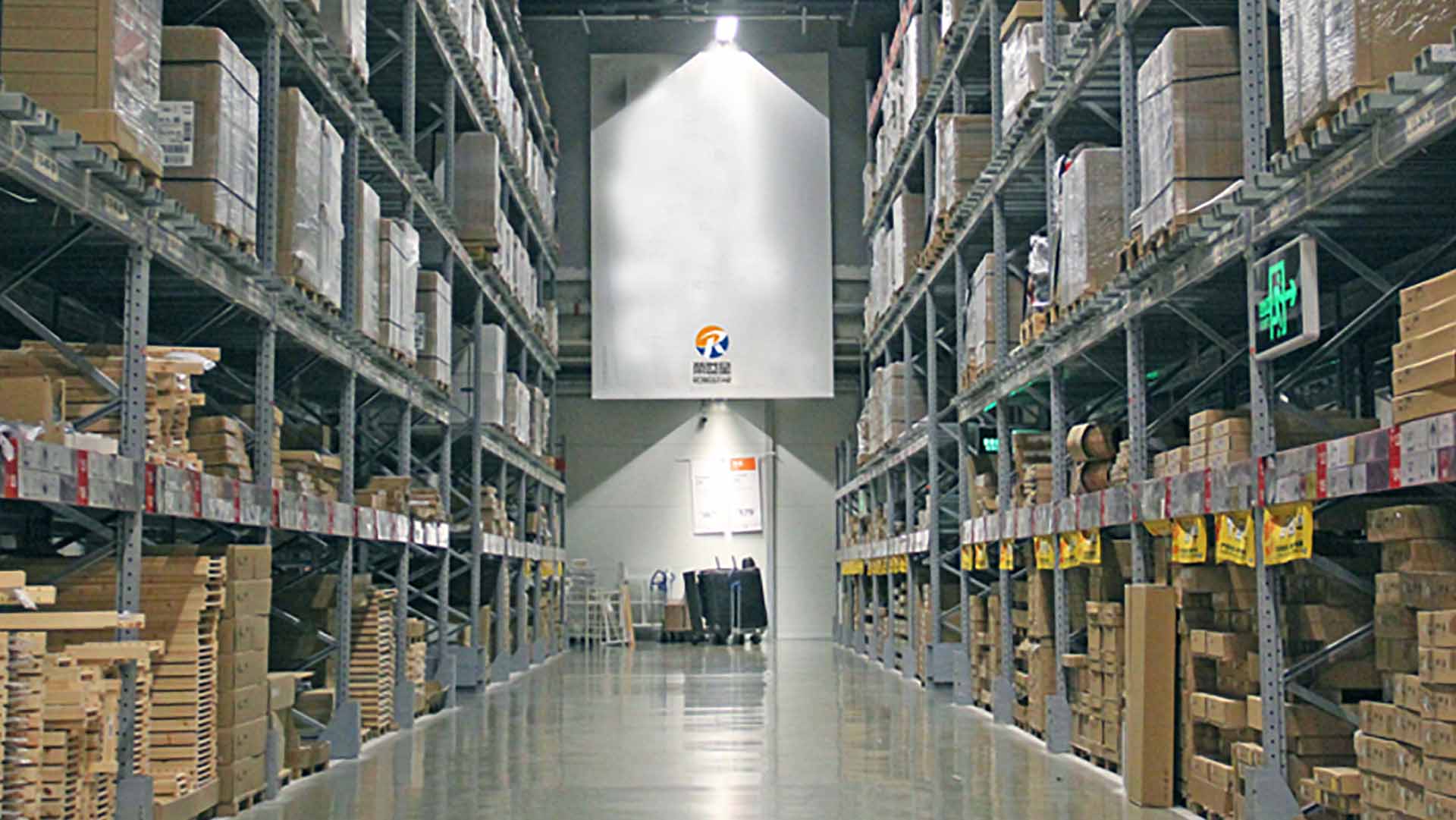

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
