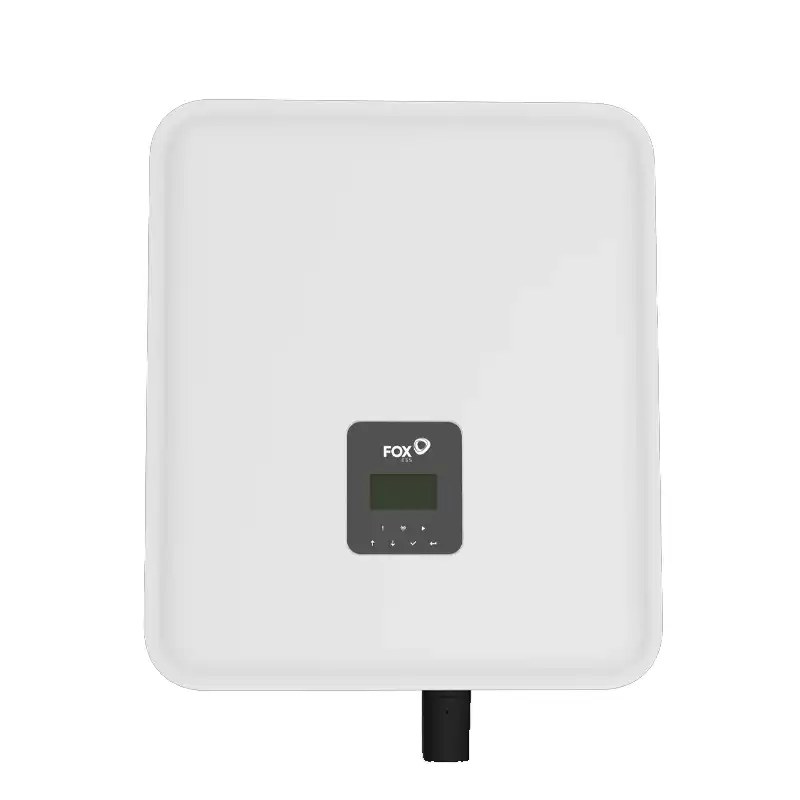

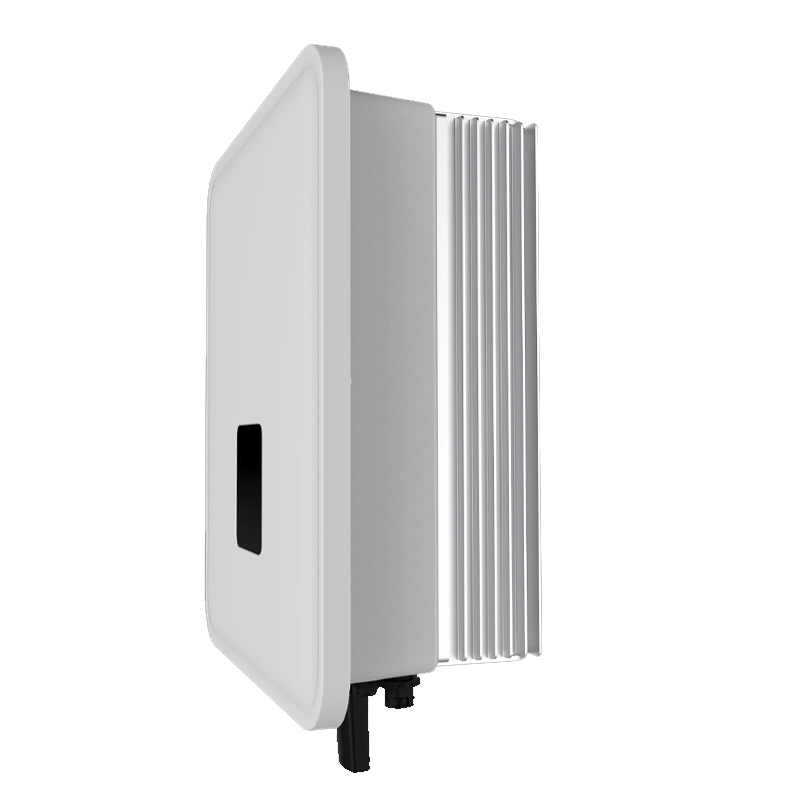

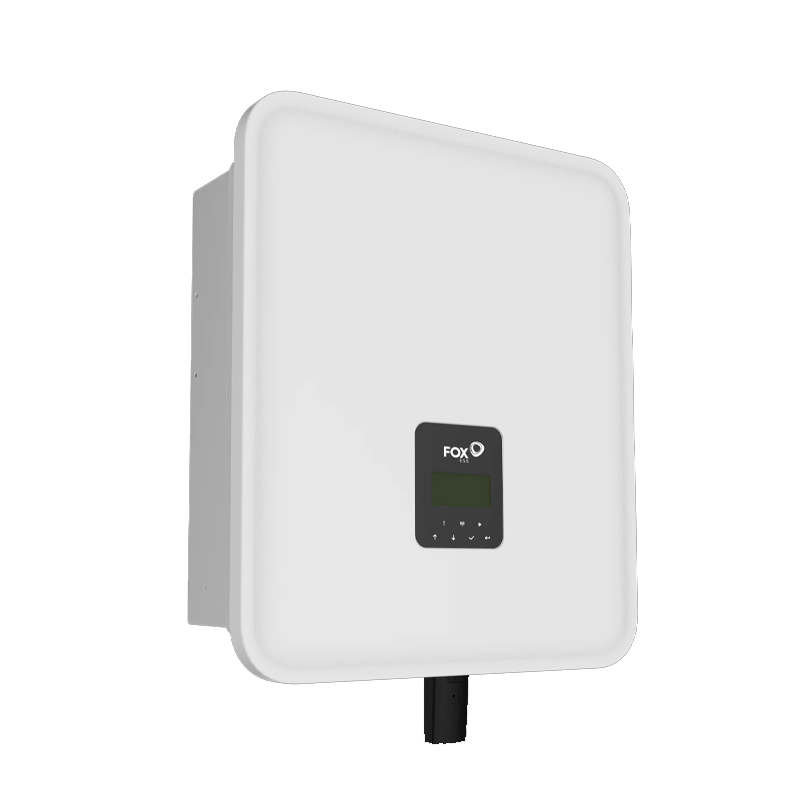

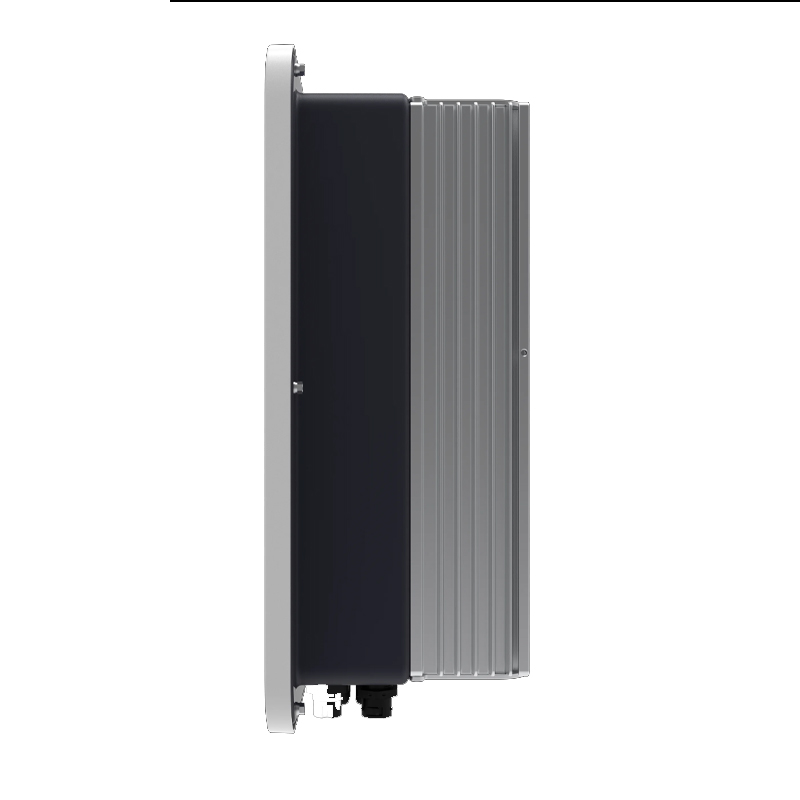

Fox ESS H3-5.0/6.0/8.0/10.0/12.0-E Three-Phase Solar Hybrid Inverter

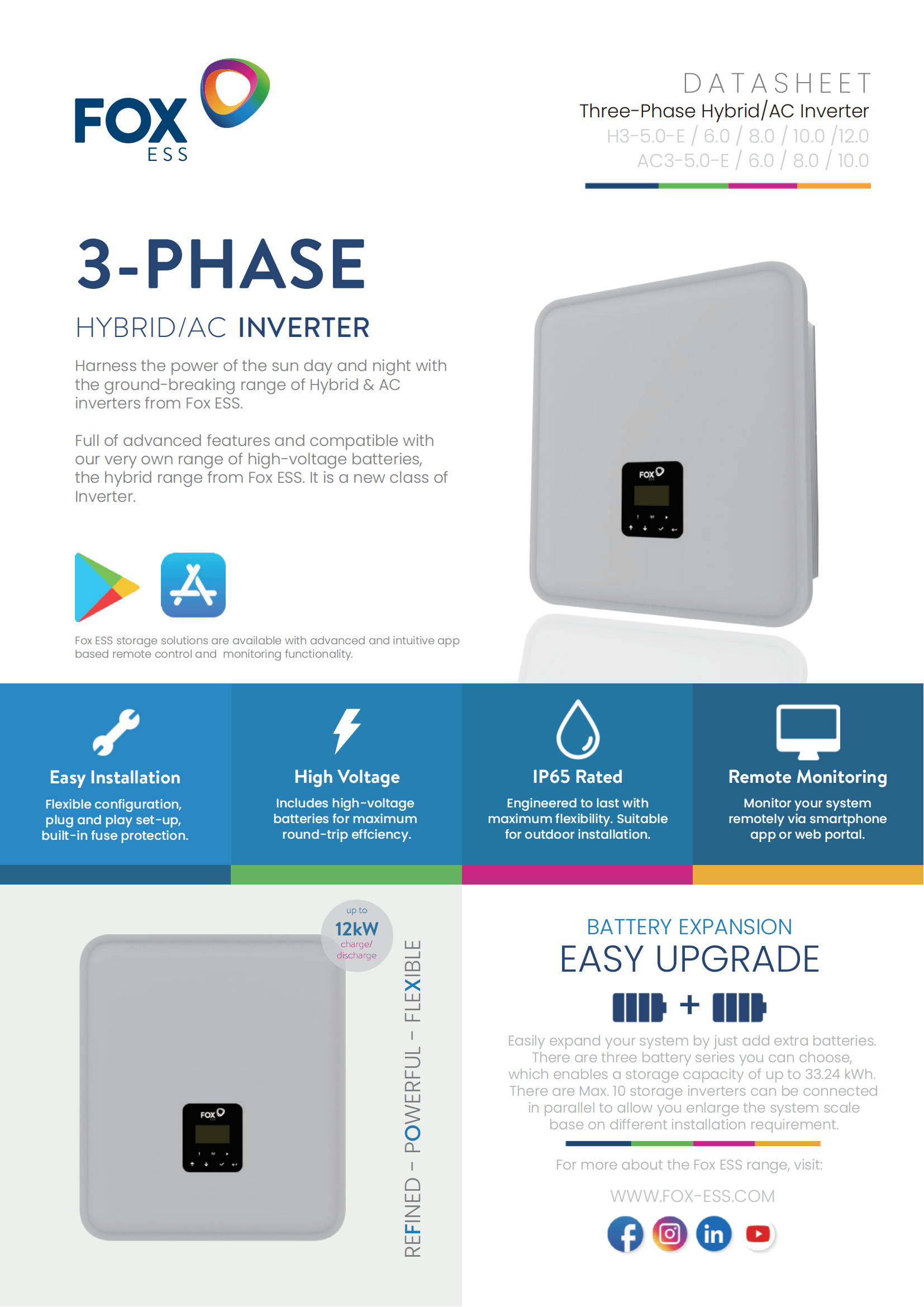

3-PHASE HYBRID/AC INVERTER

Harness the power of the sun day and night with the ground-breaking range of Hybrid & AC inverters from Fox ESS.

Full of advanced features and compatible wit hour very own range of high-voltage batteries, the hybrid range from Fox ESS. It is a new class of Inverter.

Easy Installation

Flexible configuration. plug and play set-up, built-in fuse protection.

High Voltage

Includes high-voltage batteries for maximum round-trip efifciency.

IP65 Rated

Engineered to last with maximum flexibility. Suitable for outdoor installation.

Remote Monitoring

Monitor your system remotely via smart phone app or web portal.

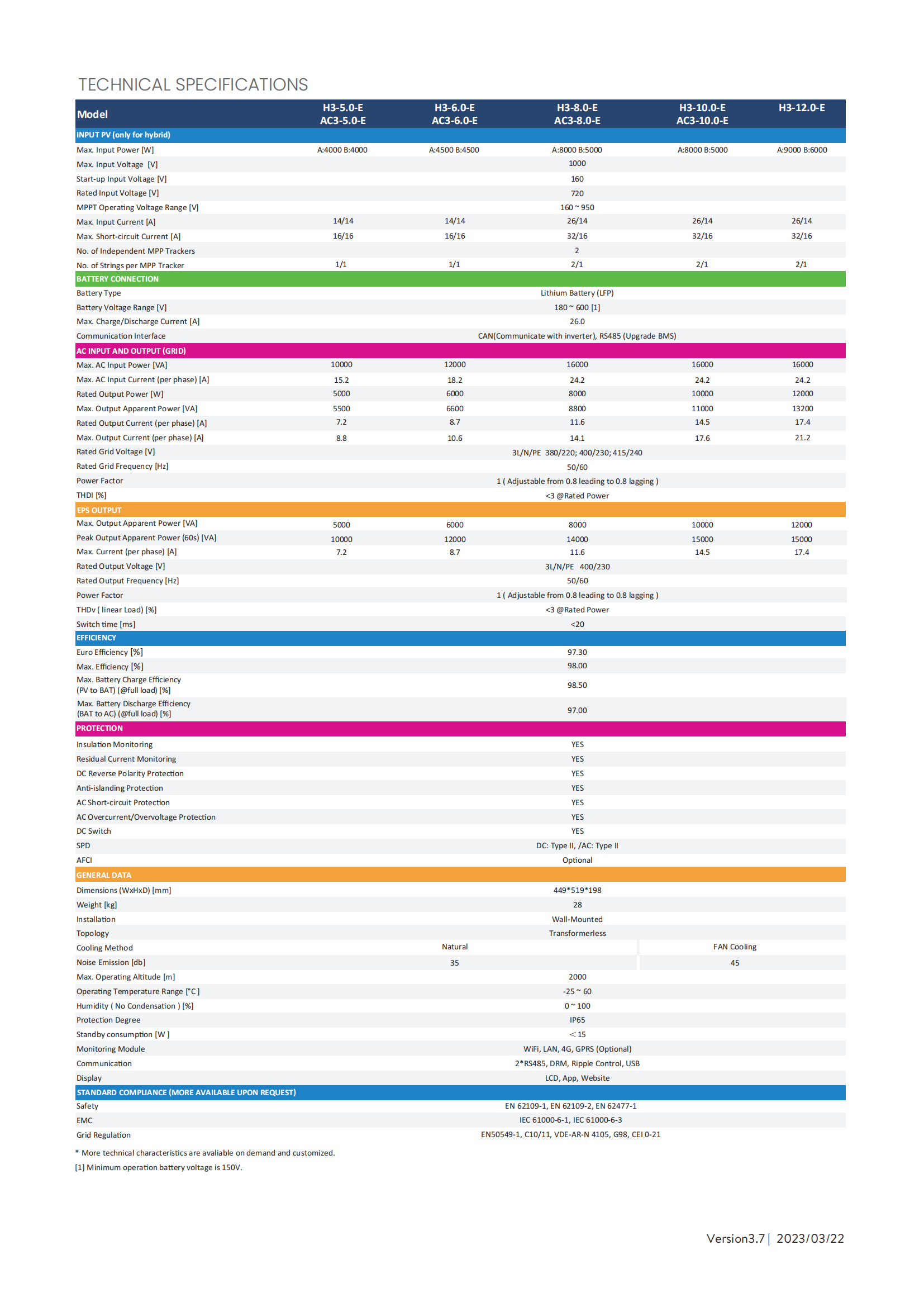

Specification
item
value
Place of Origin
China
Brand Name
Fox ess
Model Number
H3-5.0-E
System Energy
6KW, 5KW, 8KW, 10KW, 12KW
Input Voltage
200VAC/1100VAC
Output Voltage
312 - 528 V
Output Current
55.2 A/66.9 A/83.6 A/26*9A
Output Frequency
50Hz/60Hz
Size
449*519*198MM
Type
DC/AC Inverters
Inverter Efficiency
98.6 % / 98.3 % 98.6% / 98.3% 98.7% / 98.4%
Certificate
CE/TUV/IEC/CQC/MEA/PEA/INMETRO
Warranty
10 Year
Weight
25KG
Application
Solar Power System, Home/Commercial/Factory
Start Voltage
220V/250V
Protection
IP65
Communication
WIFI/GPRS
Inverter type
Three Phrase
size
449*519*198MM

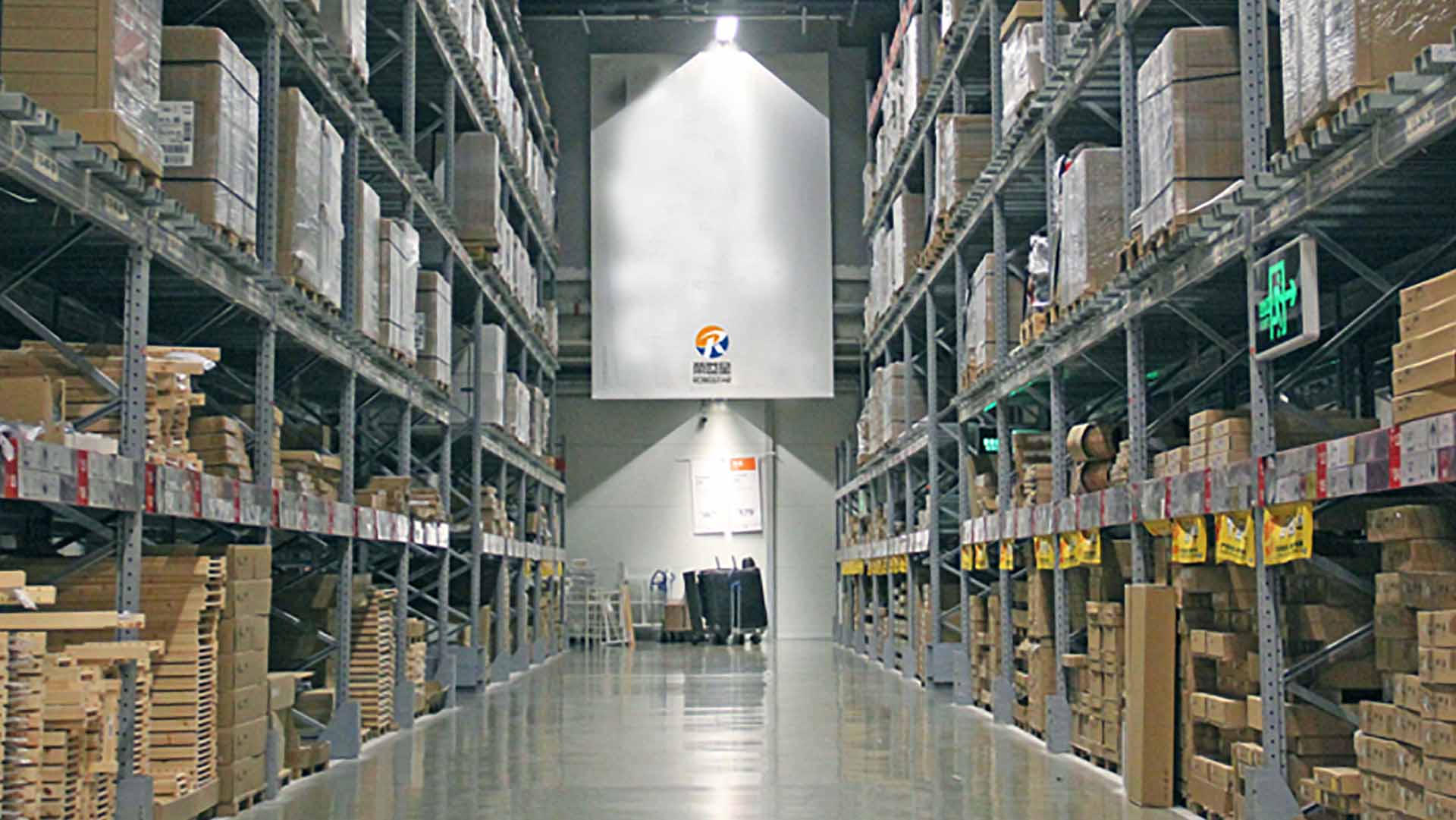

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
