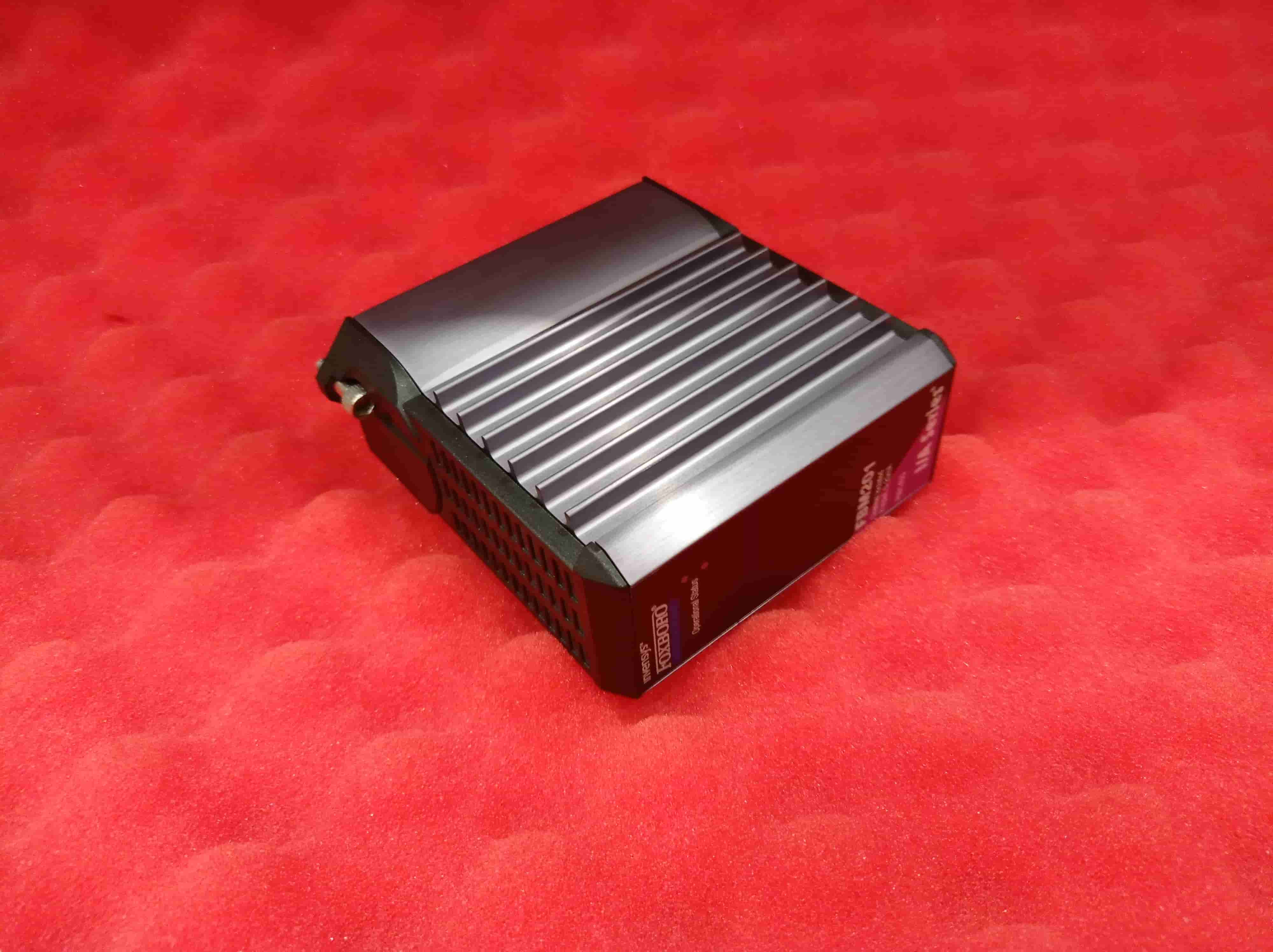

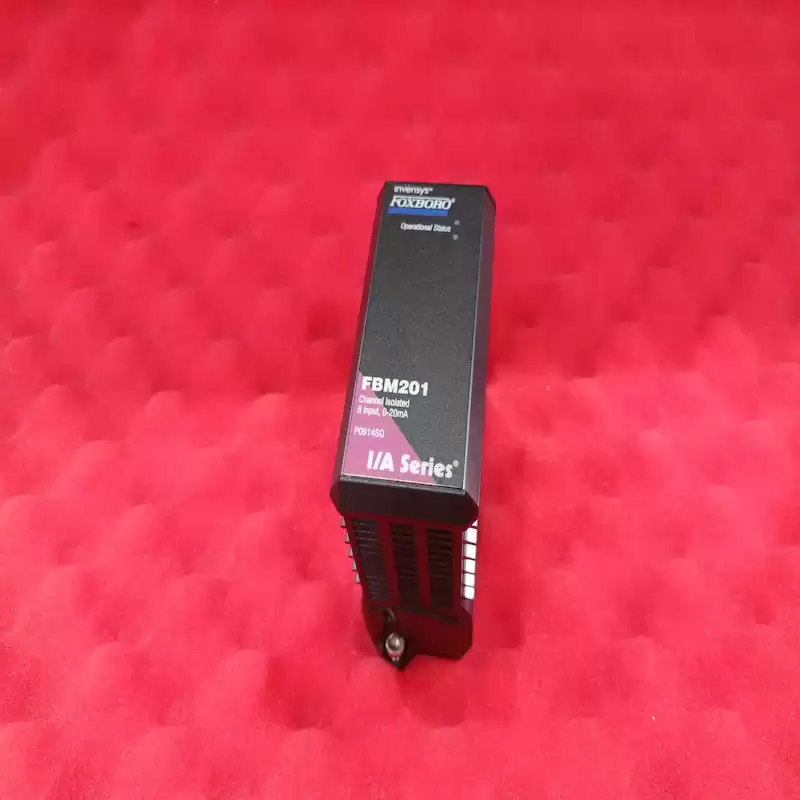

The Foxboro FBM201 is an analog input interface module designed for use with Foxboro distributed control systems. Used to connect analog signals from field equipment such as sensors and transmitters to control systems for monitoring and control purposes.
Here are some key features of the Foxboro FBM201 module:
1. Analog input channels. FBM201 modules typically provide multiple channels of analog input, allowing the connection of multiple field devices. The exact number of channels depends on the module configuration.
2. Types of signals. The module supports various types of analog signals, including voltage and current signals. It processes unipolar and bipolar signals and provides the flexibility to connect a variety of sensors and transmitters.
3. Signal formation. This module performs signal conditioning, including amplification and filtering, to provide accurate and reliable measurements of the input signal. This field helps compensate for any noise or signal distortion.
4. Communication protocol. The FBM201 module uses a digital communication protocol to communicate with the control system. It can be connected to the system via a communication bus such as Fieldbus or Ethernet to ensure seamless integration with other system components.
5. Diagnostics and monitoring. This module contains built-in diagnostic and monitoring functions to detect errors or anomalies in the input signal. It can provide notifications or alerts to monitor the system when problems occur, making preventive maintenance and troubleshooting easier.
Overall, the Foxboro FBM201 Analog Input Interface Module is a key component of the Foxboro distributed control system, capable of collecting and processing analog signals from field equipment to efficiently control industrial processes.
