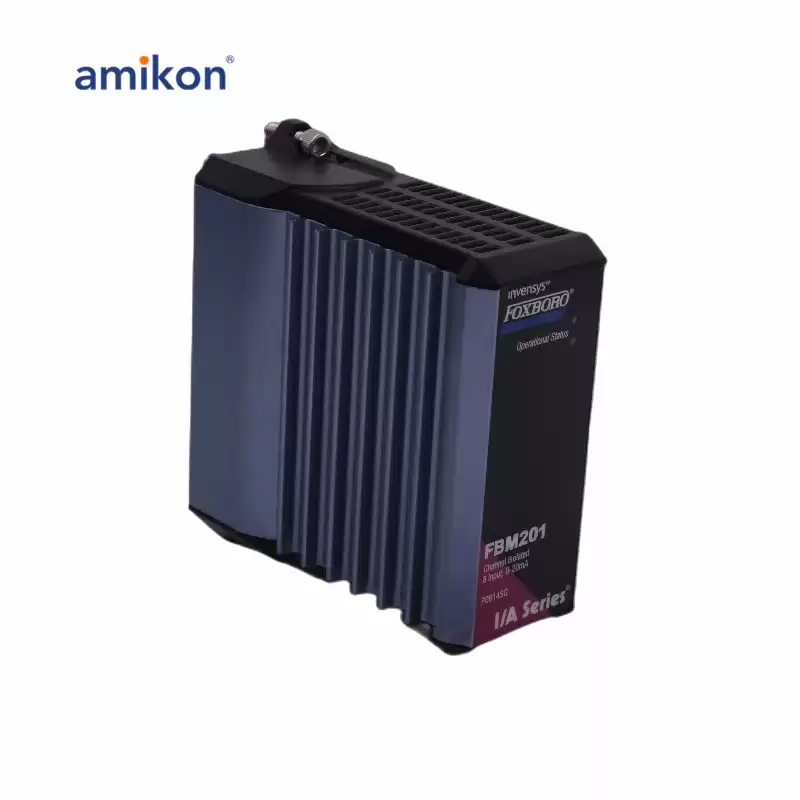

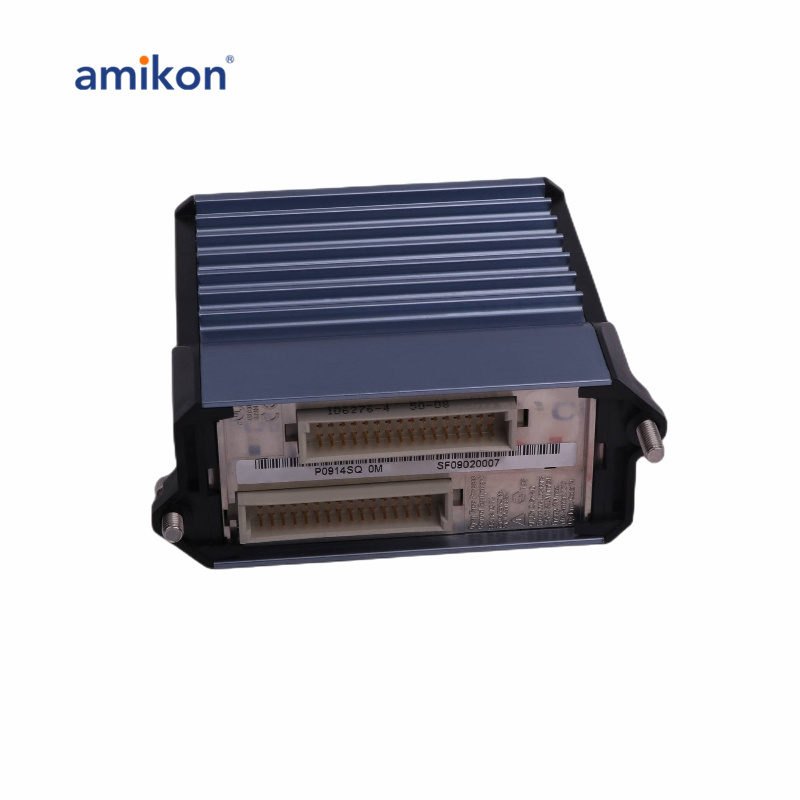

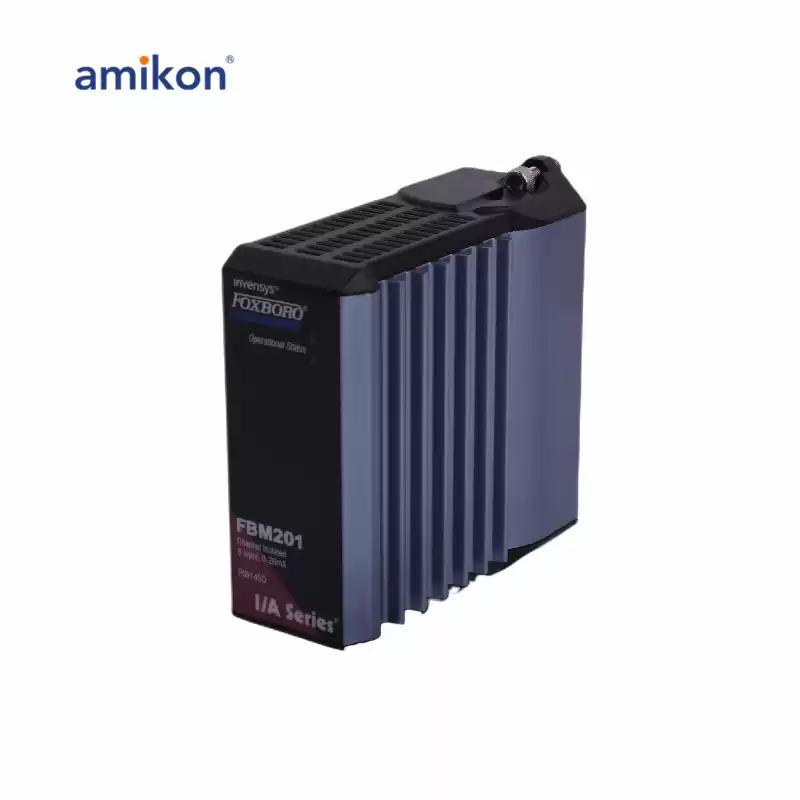

FOXBORO FBM201 RH914SQ Analog Input Interface Module

Contact me to get the best price:

Decription:

The FBM201 module is part of the Compact 200 Series I/O subsystem, providing signal conversion functions to interface electrical input signals from field sensors to the FCP (Field Control Processor). The FBM201 Analog Input Interface Module includes eight analog input channels, with each channel capable of receiving a 2-wire, 0 to 20 mA DC input signal from an analog sensor.

The FBM201 series includes different models, supporting 0 to 20 mA (FBM201), 0 to 100 mV (FBM201b), 0 to 5 V (FBM201c), and 0 to 10 V (FBM201d) DC input signals. Each analog input channel is isolated from other channels and ground. The module is designed to be compact and durable, suitable for use in G3-class (harsh) environments. Additionally, the FBM201 series modules execute an analog input application program, offering configurable options for conversion time, integration time, and rate-of-change limits. High accuracy is achieved through sigma-delta data conversion for each channel.

FAQ:
Q1: What is the FBM201 Analog Input Interface Module?
A1: The FBM201 is part of the Compact 200 Series I/O subsystem, designed for signal conversion to interface with field sensors and transmit data to the Field Control Processor (FCP). It includes eight analog input channels, each capable of receiving a 2-wire, 0 to 20 mA DC input signal from an analog sensor.

Q2: What signal ranges does the FBM201 series support?
A2: The FBM201 series offers different models for various input signal ranges:

FBM201: 0 to 20 mA DC
FBM201b: 0 to 100 mV DC
FBM201c: 0 to 5 V DC
FBM201d: 0 to 10 V DC
Q3: Is each input channel isolated?
A3: Yes, each analog input channel is galvanically isolated from other channels and from ground, ensuring minimal interference and high reliability
