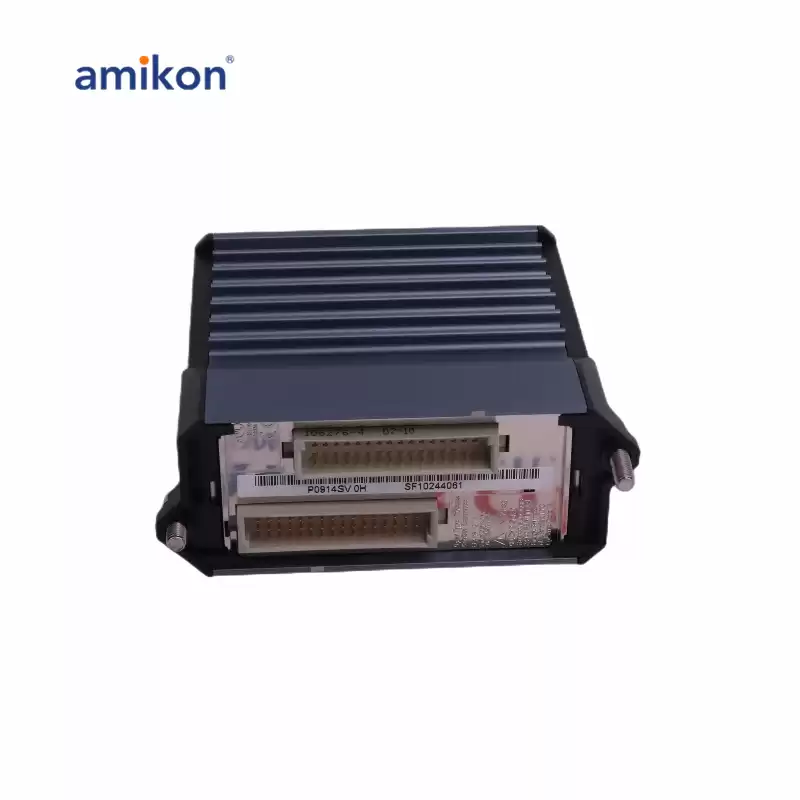

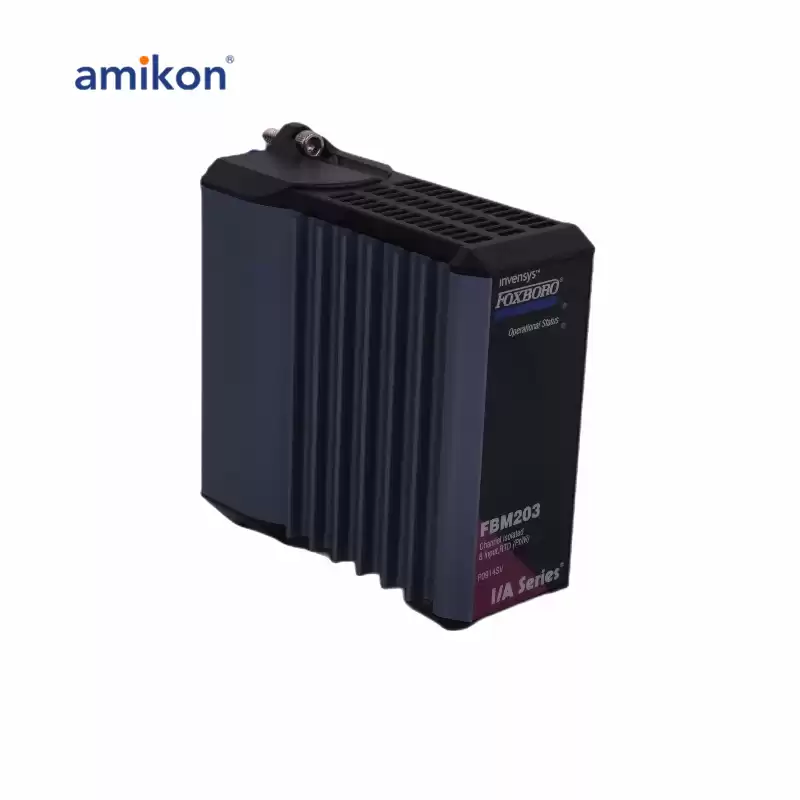

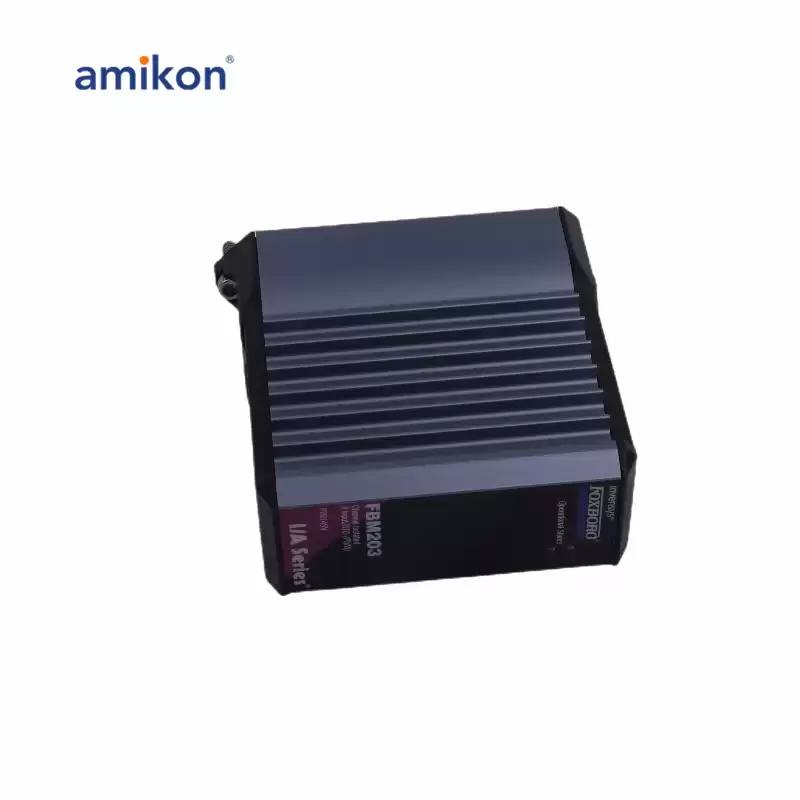

FOXBORO FBM203 P0914SV Channel Isolated 8 Input RTD

Contact me to get the best price:

Decription:

The Compact FBM203/c/d Platinum/Nickel/Copper RTD Input Interface Modules are designed to handle up to eight resistance temperature detector (RTD) input channels. The FBM203 and FBM203c modules accept 2- or 3-wire RTD sensors within a resistance range of 0 to 320 ohms (FBM203) or 0 to 30 ohms (FBM203c), while the FBM203d module accepts a 4-wire RTD sensor input within a 0 to 320 ohm range. Each input channel is galvanically isolated from other channels and ground, ensuring accurate and reliable measurements.

These modules are part of the Compact 200 Series I/O subsystem and support signal conversion to interface the RTD input signals from field sensors to the optionally redundant fieldbus. They execute an analog input application program, offering configurable options such as conversion time and Rate of Change Limits.

Additionally, the modules come with Termination Assemblies (TAs), which support the functionality of the 100 Series FBM33A (for the FBM203c with a 3-wire RTD input) and the 100 Series FBM03B or FBM33B (for the FBM203d with 2-wire or 4-wire RTD inputs). These modules are well-suited for industrial applications requiring precise temperature measurements and robust signal processing.

FAQ:

1. What is the Compact 200 Series I/O subsystem?
The Compact 200 Series I/O subsystem is a set of modular components used to expand and interface the Foxboro DCS system with field devices like sensors. The FBM203/c/d modules are part of this subsystem, providing seamless integration with the fieldbus and other system components.

2. What are the configurable options available in the FBM203/c/d modules?
The modules support conversion time settings and Rate of Change Limits to customize the response times and signal processing for each module. These options help optimize the module’s performance based on the specific needs of the application.

3. Are termination assemblies (TAs) required?
Yes, Termination Assemblies (TAs) are required for certain models, such as the FBM203c and FBM203d. These TAs support the functionality of the 100 Series FBM33A and FBM33B when used with RTD sensors and provide additional features such as proper wiring and protection.
