Foxboro FBM203 RTD Input Module

FBM203/b/c/d Platinum/Nickel/Copper RTD Input Modules

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  Invensys Foxboro
 Model  FBM203
 Product ID  P0914SV
 Catalog  PSS 41H-2S203
 Description  Foxboro FBM203 Input Module
 Origin  USA
 Dimension  130mm*150mm*25mm
 Weight  185g

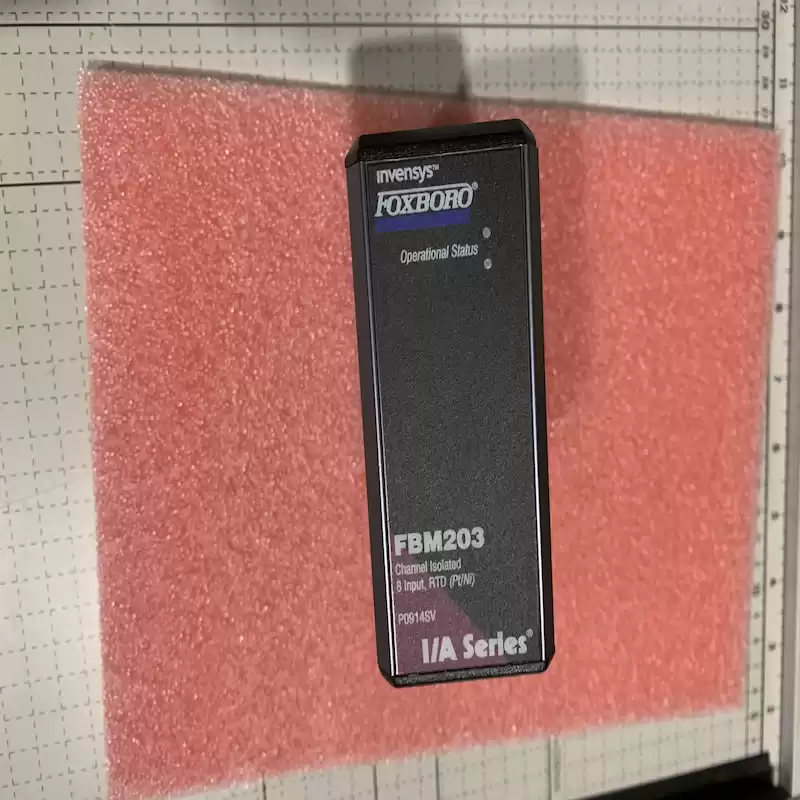

Foxboro FBM203 Input Module

The FBM203/b/c/d Platinum/Nickel/Copper RTD Input Modules contain eight resistance temperature detector (RTD) input channels.
Each input channel of the FBM203/b/c modules accepts a 2- or 3-wire RTD sensor input, within a 0 to 320 ohm (FBM203), 0 to 640 ohm (FBM203b), or 0 to 30 ohm (FBM203c) resistance range. Each input channel of the FBM203d accepts a 4-wire RTD sensor input, within a 0 to 320 ohm resistance range. Each analog input is galvanically isolated from other channels and ground.
The modules perform the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant fieldbus.The FBM203/b/c/d modules execute an analog input application program, whichprovides conversion time (on a per module basis) and configurable options for Rate ofChange Limits.



 » Datasheet Link

Foxboro FBM203 Input Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
