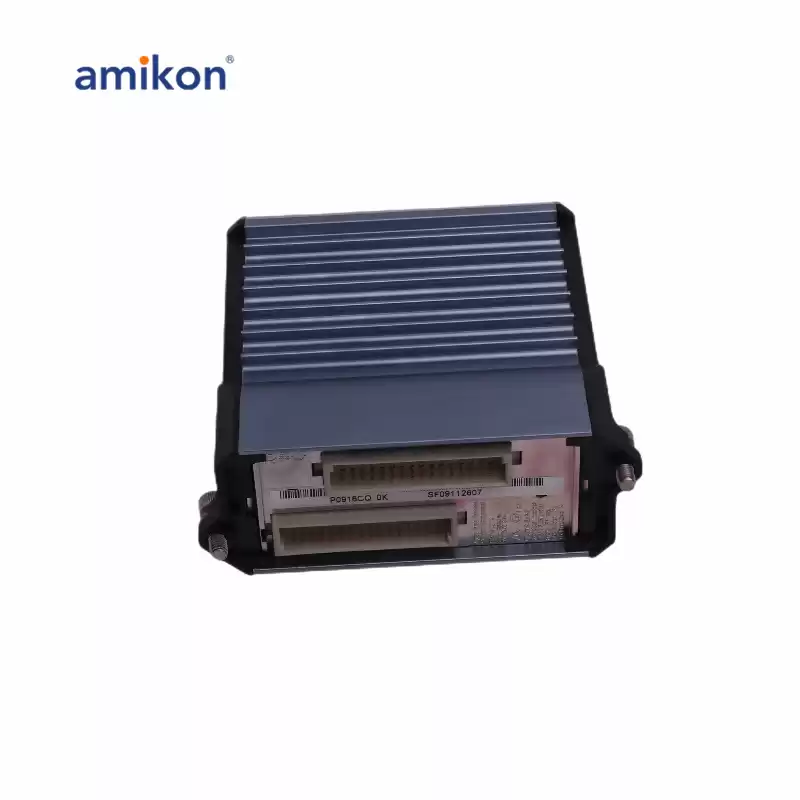

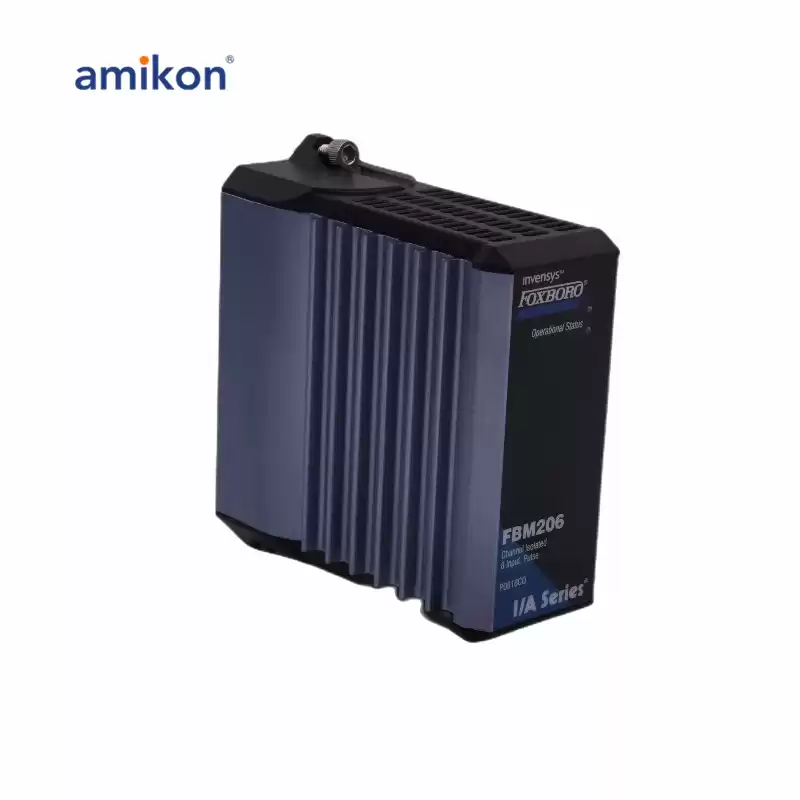

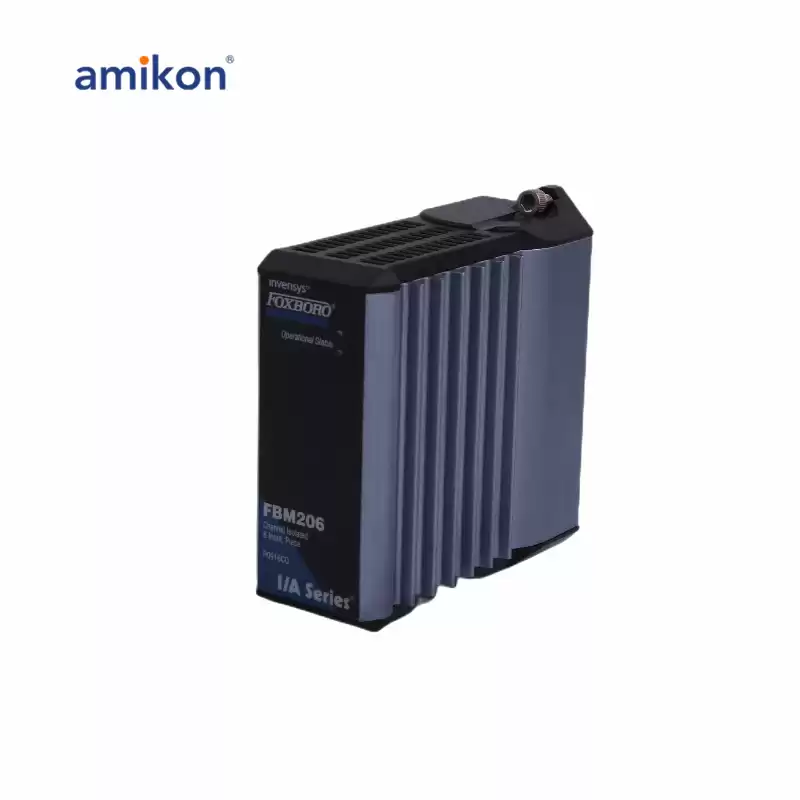

FOXBORO FBM206 P0916CQ Channel Isolated 8 Input

Contact me to get the best price:

Decription:

The FBM206 and FBM206b modules are designed for pulse and analog signal input and output functions. The FBM206 contains eight pulse input channels that can accept 2-wire pulse input signals from various sensors, such as vortex meters, turbine meters, and solid-state or electromechanical contacts. These pulse signals, which can be transmitted at speeds of up to 25kHz, are used to measure machine rotational speed and are interfaced with the Foxboro DCS for data processing.

The FBM206b, on the other hand, provides four pulse input channels along with four 0 to 20 mA analog output channels, enabling it to handle pulse inputs and also supply corresponding analog outputs for control applications. Both modules perform the necessary signal conversion to interface the field sensor signals with the redundant fieldbus system, ensuring reliable and accurate data transmission for process control and monitoring.

FAQ:
1. What is the maximum pulse frequency supported by the FBM206?
The FBM206 supports pulse frequencies of up to 25 kHz. This is suitable for high-speed pulse input applications such as measuring rotational speed.

2. How many pulse input channels does the FBM206 support?
The FBM206 module has eight pulse input channels.

3. What kind of sensors can be connected to the FBM206 modules?
The FBM206 modules can accept pulse input signals from various sensors, including vortex meters, turbine meters, and solid-state or electromechanical contacts.
