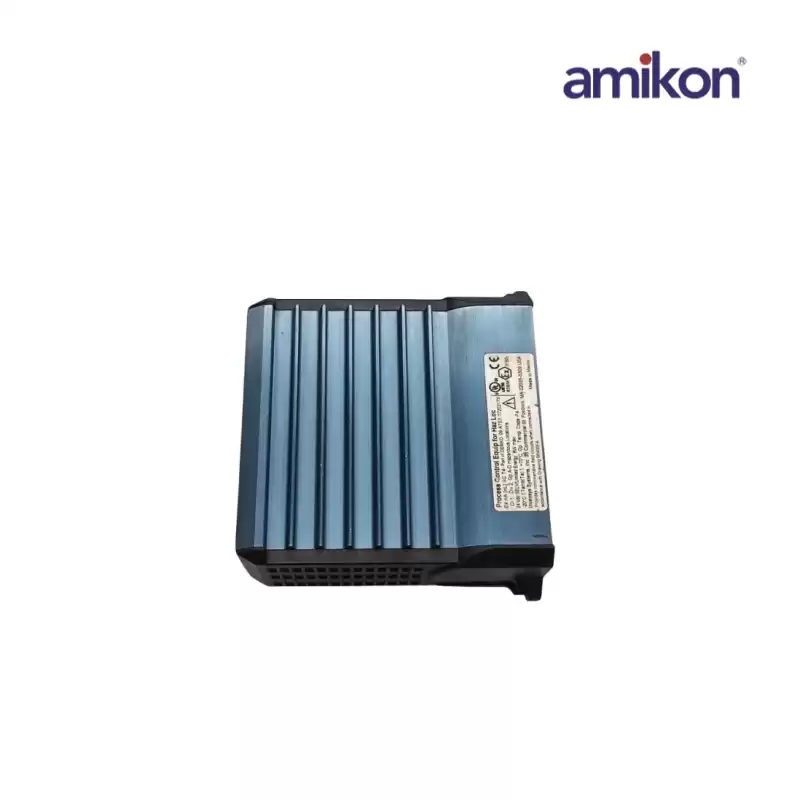

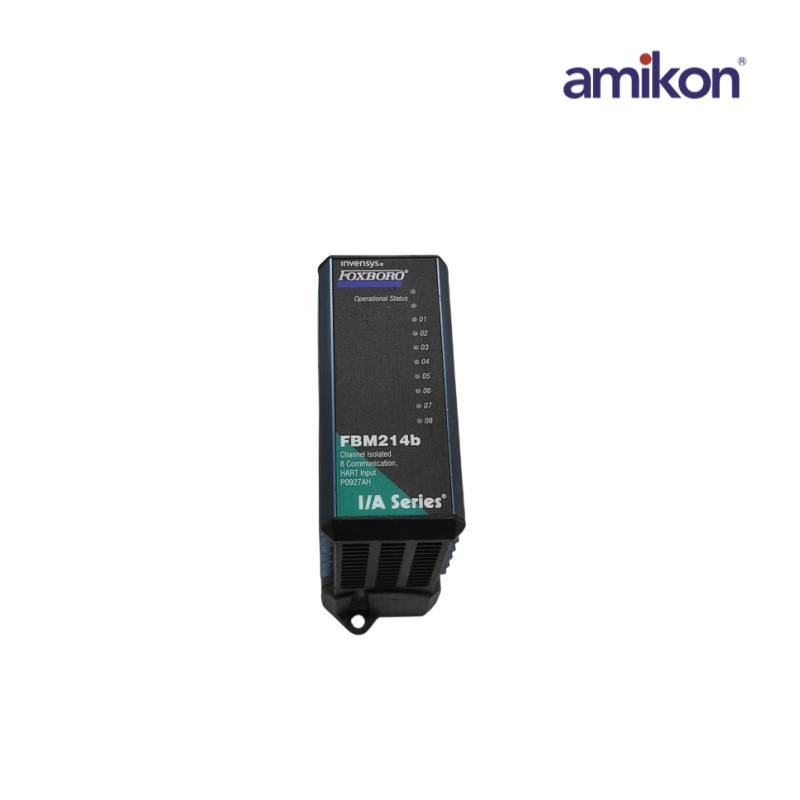

FOXBORO FBM214B P0927AH Communication Input Interface Module

Manufacturer：

FOXBORO

Product Package：

Original Package

Part Number：

FBM214B P0927AH

Shipping Term：

TNT DHL FEDEX EMS UPS

Product Description：

Communication Input Interface Module

Dimensions:

4.5x11x11.5cm

The Compact FBM214B P0927AH HART Communication Input Interface Module contains eight individually isolated 4 to 20 mA analog input channels. It supports any mix of standard 4 to 20 mA devices and HART devices (the signals are electrically compatible), and is

part of the Compact 200 Series I/O subsystem. The Compact FBM214b can serve as a HART communications field device host,

enabling Foxboro™ DCS to request and receive two digital messages per second from the field device. The message pass-through capability can be used to support HART universal, common practice, and device-specific commands, but it cannot

support the burst communication mode. These commands are implemented using the Foxboro DCS Field Device Expert for HART. For details, see Field Device Expert for HART Devices Control and I/O (PSS 41S-10FDMHRT).

The FBM214b provides individually isolated power supplies to power field devices on each of the eight channels.
