Decription:

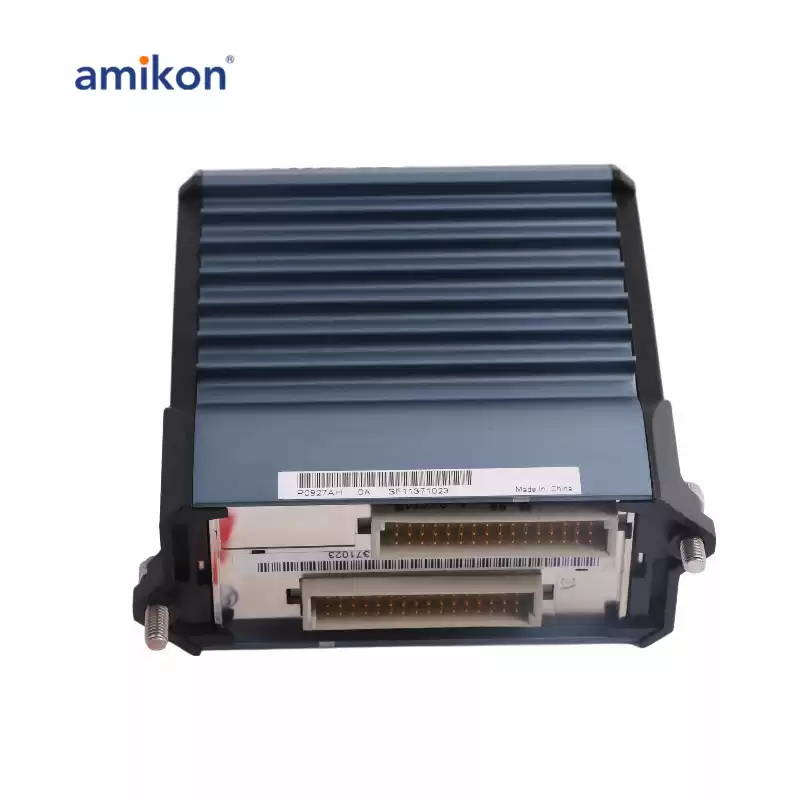

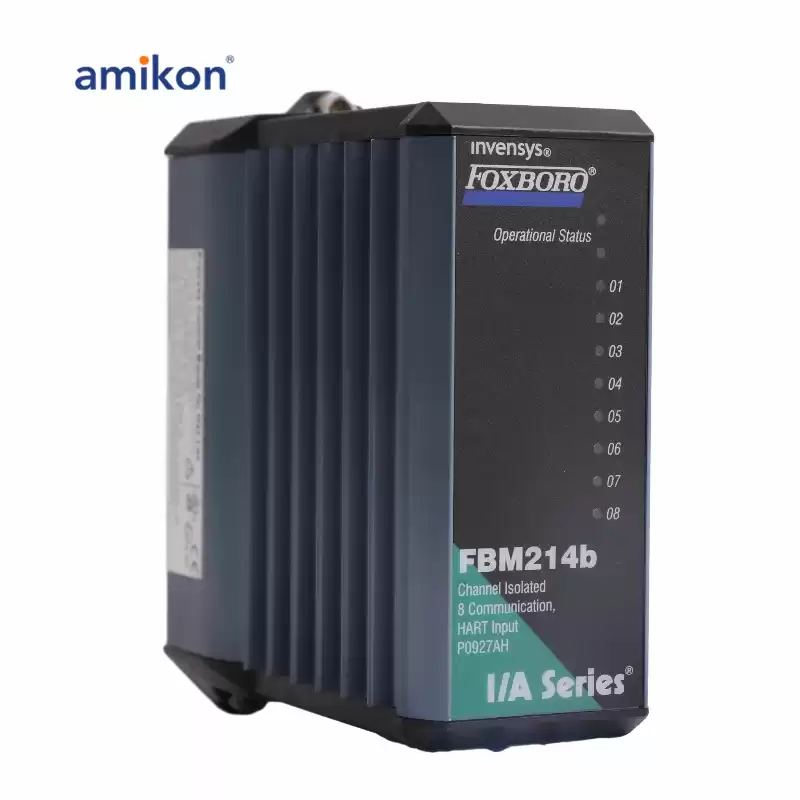

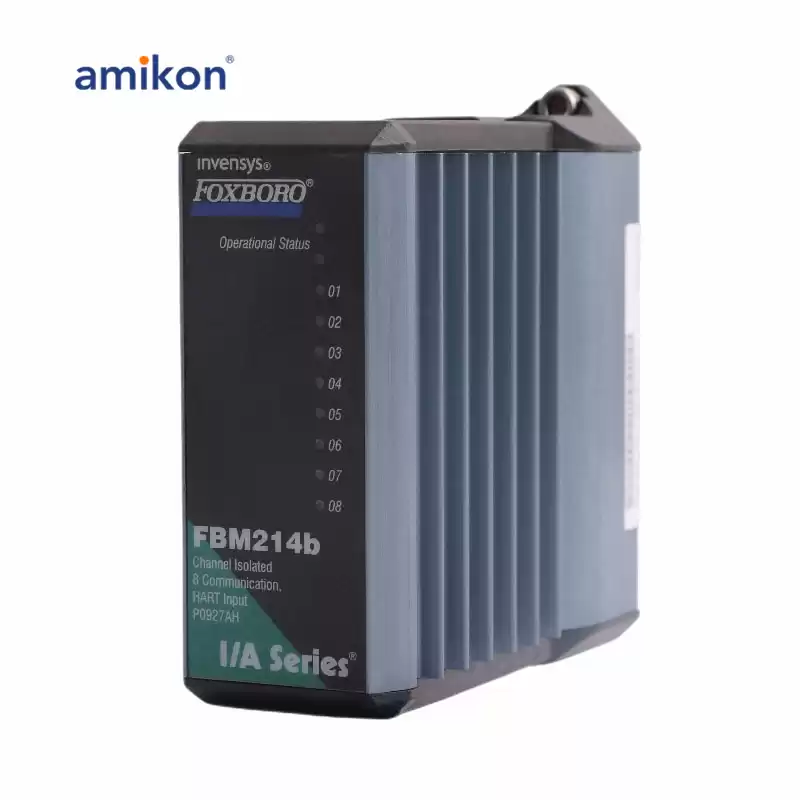

The FBM214B module can serve as a HART communications field device host, enabling the Foxboro DCS to request and receive two digital messages per second from connected field devices. This message pass-through capability supports both HART universal common practice and device-specific commands; however, it does not support burst communication mode. These commands are managed using the Foxboro DCS Field Device Expert for HART.
The module provides individually isolated power supplies for each of the eight channels, allowing for independent operation. If an external power supply is used to power the input channels, a Cable Balun module is required when a common external power supply is used for two or more channels to prevent HART communication channel crosstalk.
FEATURES:
HIGH ACCURACY
For high accuracy, the module incorporates a SigmaDelta converter which can provide new analog input
values for each channel every 100 milliseconds.
VISUAL INDICATORS
Light-emitting diodes (LEDs) incorporated into the
front of the module provide visual indication of the
module’s operational status, and communication
activity on the channels.
EASY REMOVAL/REPLACEMENT
The module can be removed/replaced without
removing field device termination cabling, power, or
communications cabling.
Packing & Delivery:
|
1)100% full New! - Original Factory Seal !
|
|
2)Warranty: 1 year!
|
|
3)Package: Original packing with cartons.
|
|
4)Delivery time: Shipped in 3 days after payment
|
|
5) All the goods will be tested before shipment.
|
