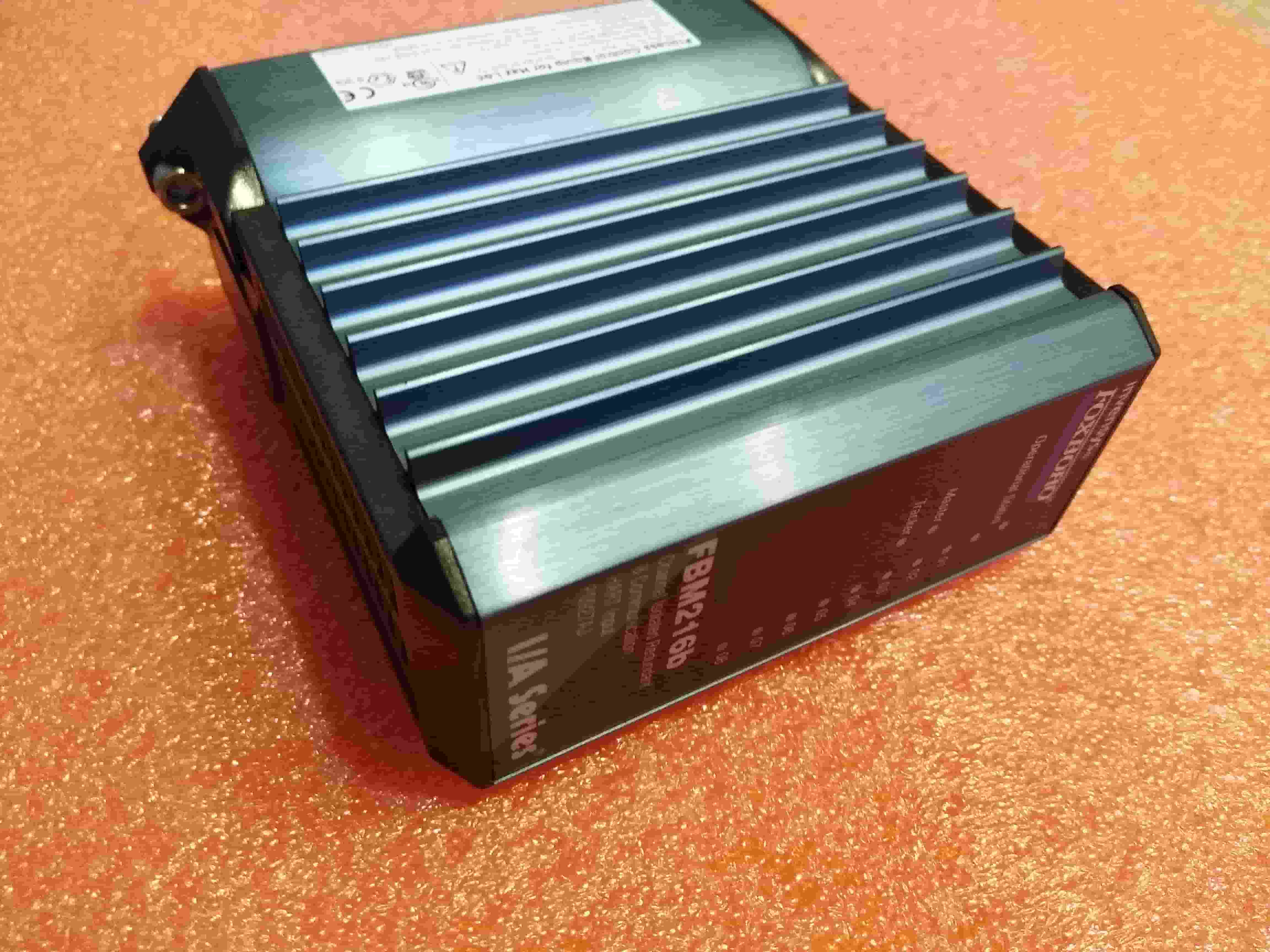

Foxboro FBM216B Communication Input Interface Module

Compact FBM216b, HART® Communication Redundant Input Interface Module

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  Invensys Foxboro
 Model  FBM216B
 Product ID  P0927AJ
 Catalog  PSS 41H-2C216
 Description  FBM216B Communication Input Interface Module
  Origin  USA
 Dimension  130mm*150mm*25mm
 Weight  185g



FBM216B P0927AJ

The Compact FBM216b HART Communication Redundant Input Interface Module contains eight individually isolated input channels. It supports any mix of standard 4 to 20 mA devices and HART devices (the signals are electrically compatible). A pair of modules combines to provide redundancy at the Fieldbus Module (FBM) level, with field inputs wired to one common termination assembly (see Figure 1). In this configuration, one Compact FBM216b is the Master, and the other is the Tracker.
The Compact FBM216b can serve as a HARTcommunications field device host, enabling Foxboro™ DCS to request and receive two digital messages per second from the field device. The message pass-through capability can be used to support HART universal, common practice, and device-specific commands, but it cannot support the burst communication mode. These commands are implemented using the Foxboro DCS Field Device Expert for HART. For details, see Field Device Expert for HART Devices Control and I/O (PSS 41S-10FDMHRT).
The Compact FBM216b provides individually isolated power supplies to power each of the eight channels. Optionally, the channels for this module can be powered by an external power supply.
However, when a common external power supply is used with two or more channels, a Cable Balun module is required to help prevent HARTcommunication channel crosstalk.


 » Datasheet Link

Foxboro FBM216B Communication Input Interface Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
