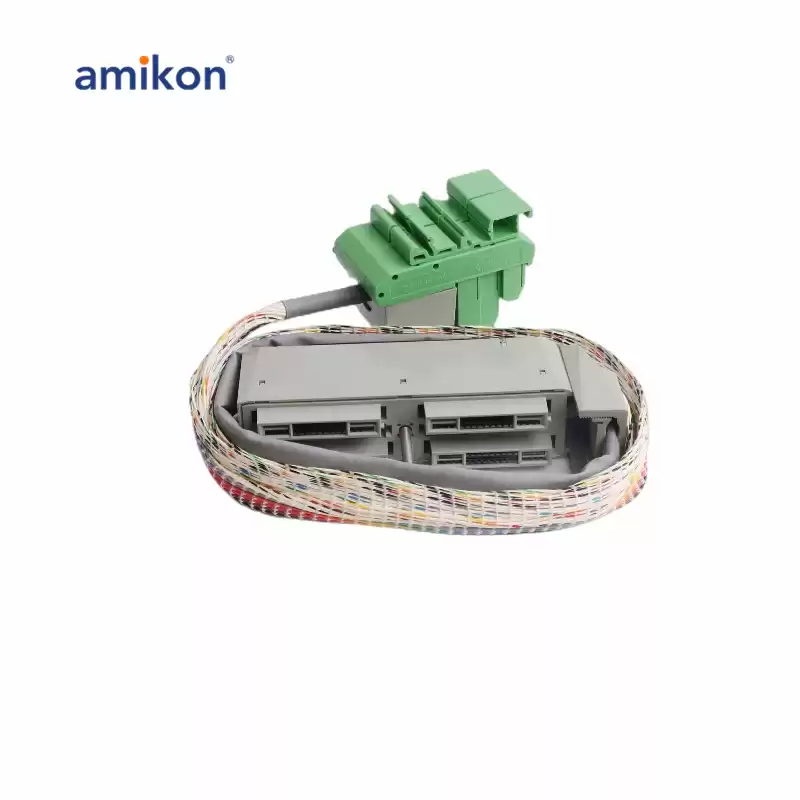

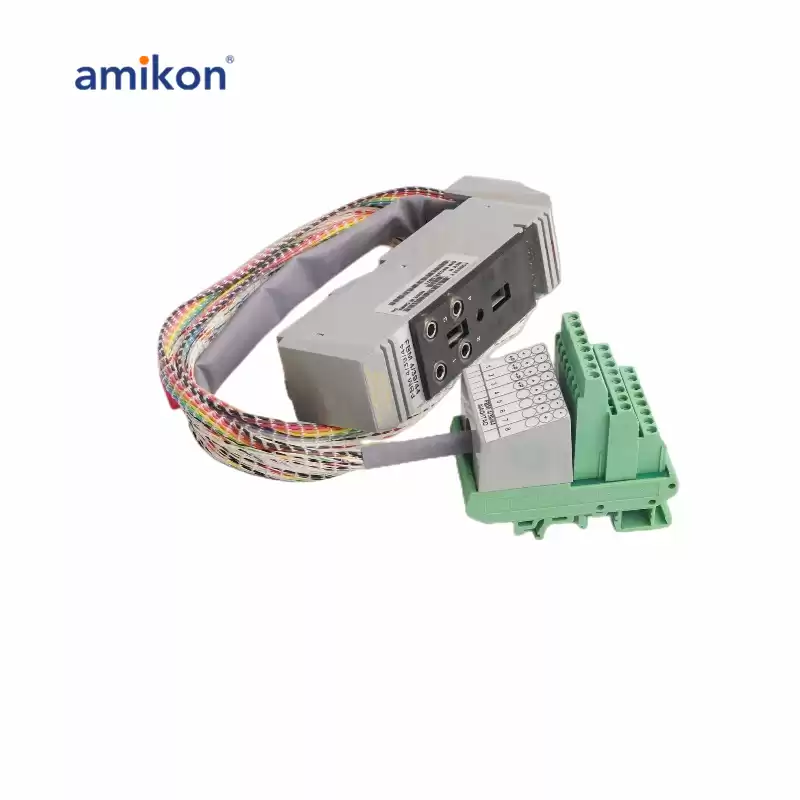

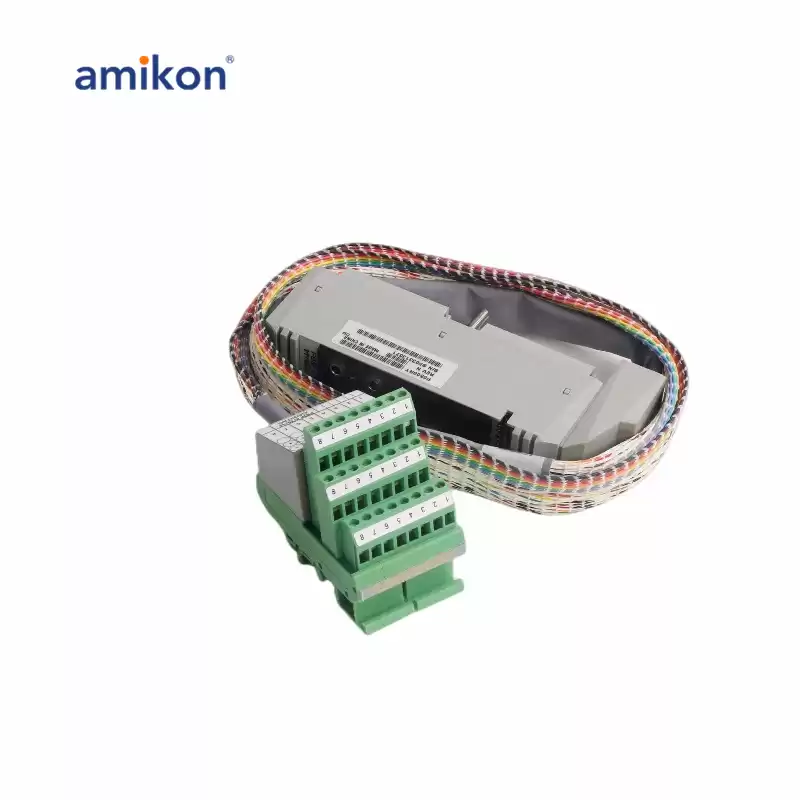

FOXBORO FBM4/39/44 P0500RY Termination Cable

The FBM4/39/44 P0500RY is a Termination Cable Assembly. A removable termination cable connects the DIN rail mounted TA to the FBM via a field connector on the baseplate in which the FBM is installed.

Termination cables are available in a variety of lengths, up to 30 meters (98 feet), allowing the Termination Assembly to be mounted in either the enclosure or in an adjacent enclosure.

FBM4/39/44 P0500RY  Data sheet

Strip back outer jacket and foil shield as shown. Cut outer shield lead flush with edge of jacket. (This shield should end in the transmitter housing without making electrical contact.)

Strip back inner jacket and foil shield as shown. Do not cut inner shield lead.

Strip insulation from white and black leads to be used with the special lugs (Part No. K0123CP) supplied with the flowtube.
