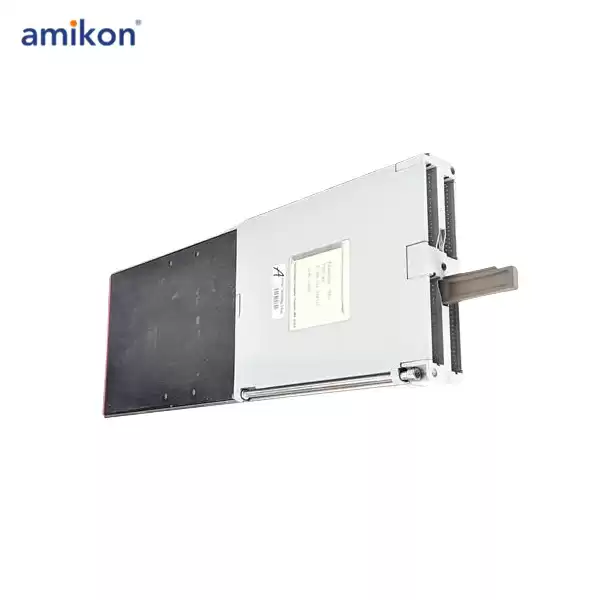

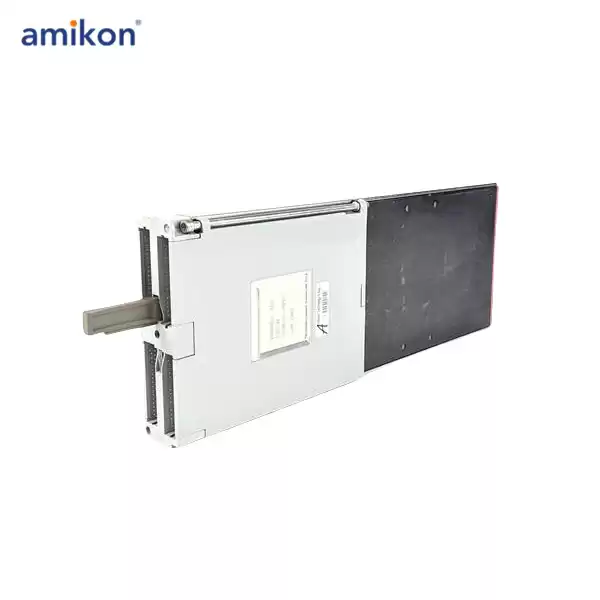

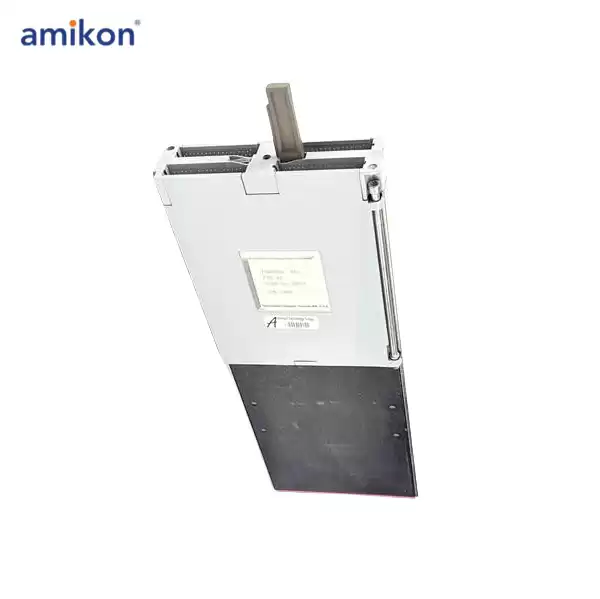

Foxboro Input Interface Module FBM01
|
|
The Foxboro Input Interface Module FBM01 is a crucial component designed for industrial automation systems, providing reliable data acquisition from various field devices. This module supports multiple input types, allowing it to interface seamlessly with a wide range of sensors and transducers. Its robust design ensures accurate signal processing and high performance, making it ideal for applications that require precise monitoring and control in demanding environments. The FBM01 enhances system reliability and efficiency, contributing to optimal operational performance.
|
Description:
The 0 to 20 mA Input Interface contains eight 20 mA dc analog input channels. Each channel accepts a 2-wire, analog sensor input such as a 4 to 20 mA transmitter or a self-powered 20 mA source. The module performs the signal conversion required to interface the electrical input signals from the field sensors to the redundant Fieldbus. The module is a main type, and independently connects to the redundant Fieldbus.
This module executes the analog Input application program. The configurable options for this program are Analog Input Resolution (on a per module basis), Fieldbus Switching Enable, and Fieldbus Switching Time.
FUNCTIONAL SPECIFICATIONS:
Input: 8 isolated and independent channels
Input Range (each channel): 0 to 20.4 mA dc
Accuracy: ±0.05% of span
Communication: Via a redundant Fieldbus
Power Requirements:
INPUT VOLTAGE RANGE (REDUNDANT)：
26 to 42 V dc
CONSUMPTION：
14 W (maximum)
HEAT DISSIPATION：
12 W (maximum)
ENVIRONMENTAL SPECIFICATIONS(a):
Operating:
TEMPERATURE
0 to 60°C (32 to 140°F)
RELATIVE HUMIDITY:
5 to 95% (Noncondensing)
ALTITUDE:
-300 to +3,000 m (-1,000 to +10,000 ft)
Storage:
TEMPERATURE
-40 to +70°C (-40 to +158°F)
RELATIVE HUMIDITY:
5 to 95% (Noncondensing)
ALTITUDE:
-300 to +12,000 m (-1,000 to +40,000 ft)
