About product:
|

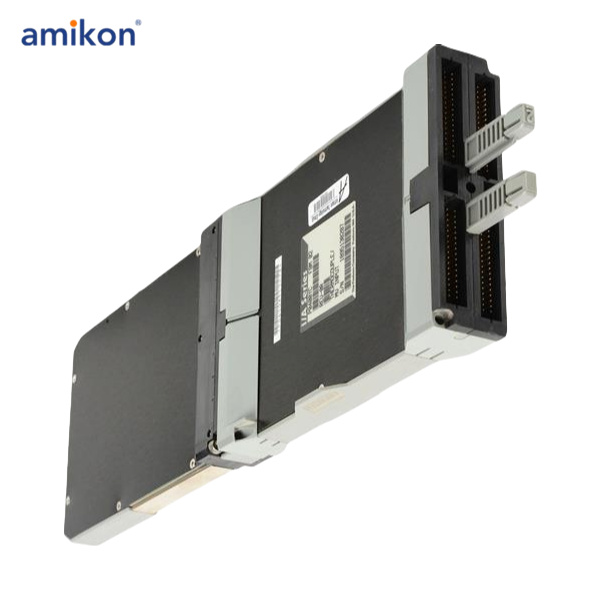

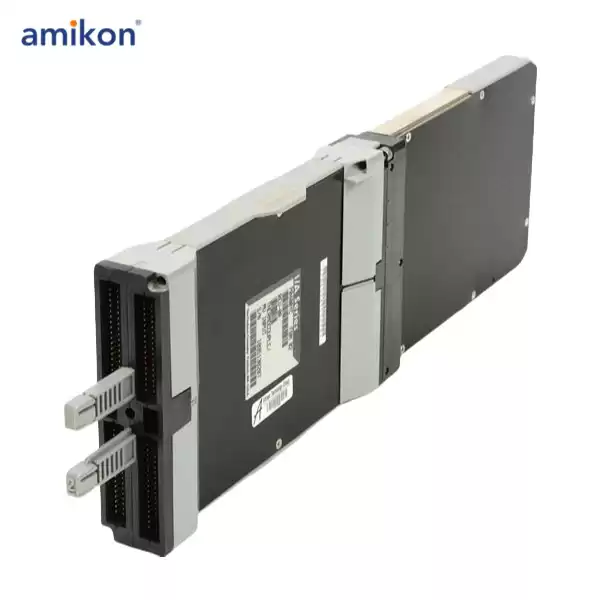

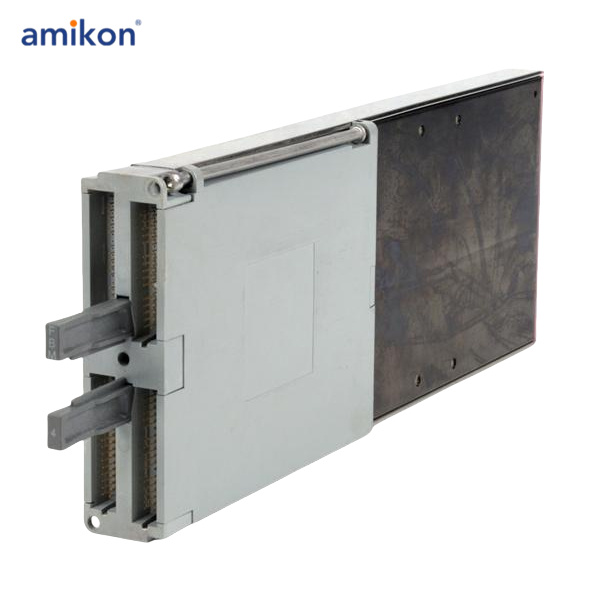

Foxboro Input/Output Interface Module FBM04
|
|
The Foxboro Output Module FBM237 is a versatile component designed for industrial automation systems, providing reliable control of output signals to various field devices. This module supports a wide range of output types, including analog and digital signals, ensuring compatibility with diverse applications. With its robust design and high performance, the FBM237 enables precise control and monitoring of processes, making it ideal for environments that demand accuracy and reliability in output operations.
|
Description:
The Compact FBM237, 0 to 20 mA Output Interface Module contains eight channel isolated 0 to 20 mA dc analog output channels. The outputs are galvanically isolated from other channels and ground. The module can be used as a single unit, or as a redundant pair. It is part of the Compact 200 Series I/O subsystem described in Compact 200 Series I/O Subsystem Overview (PSS 31H-2COV).The 0 to 20 mA Input/Output Interface Module contains four 20 mA dc analog input channels and four 20 mA dc analog output channels. Each input channel accepts an analog sensor input such as a 4 to 20 mA transmitter or a self-powered 20 mA source. Each output channel drives an external load and produces a 0 to 20 mA output. The module performs the signal conversion required to interface the electrical input/output signals from/to the field sensors and actuators to/from the redundant Fieldbus. The module is a main type, and independently connects to
the redundant Fieldbus.
FUNCTIONAL SPECIFICATIONS:
Common Characteristics:
POWER REQUIREMENTS:
Input Voltage Range (Redundant)
26 to 42 V dc
Consumption:14 W (maximum)
Heat Dissipation:12 W (maximum)
Isolation:
The module withstands, without damage, a potential of 600 V ac applied for one minute between any channel and earth (ground), or between a given channel and any other channel.
PHYSICAL SPECIFICATIONS:
Mounting:
WITH Y-ADAPTER:Installable in the 1x8 Mounting Structure, I/A Series Industrial Enclosures and Field
WITHOUT Y-ADAPTER:Installable in I/A Series Field Enclosure 4 and the 1x8 FBM Mounting Structure
I/O words/network：500 I/500 O distributed
