Products Detail:
|
Brand
|
Foxboro
|
|
Part Number/Catalog No. 05701-A-0361
|

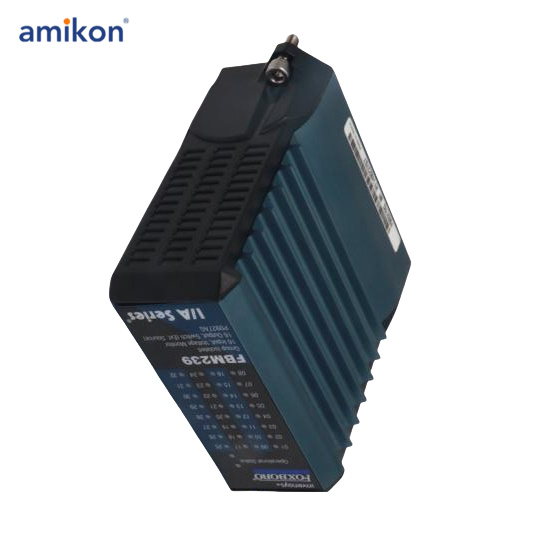

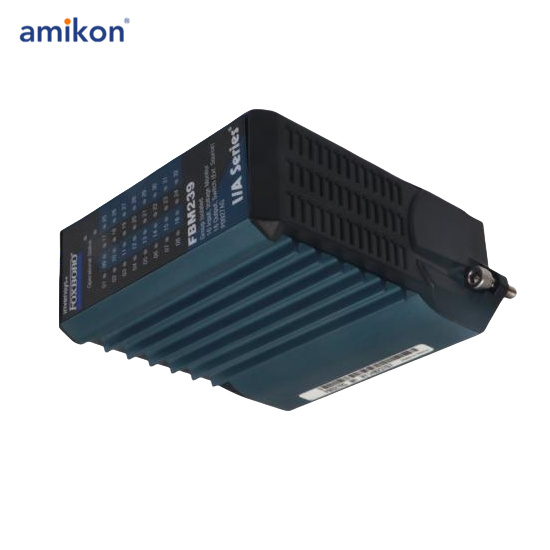

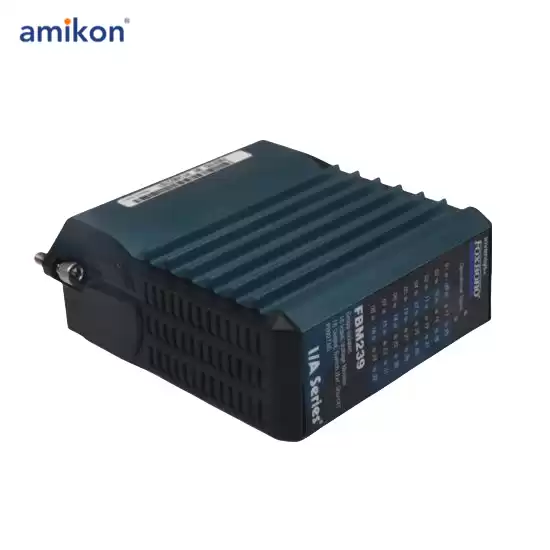

FBM239 P0927AG
|
|
Product Type
|
Process Control Voltage Monitor
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
Description:
The FBM239 Discrete 16DI/16DO Interface Moduleprovides sixteen digital inputs with sixteen digital output channels. Associated Termination Assemblies(TAs) and Termination Assembly Adapters (TAAs) provide for discrete nominal inputs of 30 V dc,60 V dc, 120 V ac/125 V dc or 240 V ac and nominal outputs of 60 V dc, 120 V ac/125 V dc or 240 V ac.The module performs signal conversion required to interface the electrical input signals from the field sensors to the Module Fieldbus.
Depending on the type of I/O signal required, the TAs or TAAs support current limiting devices, high voltage attenuation circuits, optical isolation and external power source connections.
Key features of the FBM239 are:
--Sixteen digital input channels, used for either contact sensing, or dc voltage monitoring
--Sixteen digital output channels, used for either dc output switching with an external source (e.g. to control powering of various external loads), or dc output switching with an internal source only (e.g. to power external solid state relays or other
similar devices)
--Compact, rugged design suitable for enclosure in Class G3 (harsh) environments
--Supports discrete input signals at voltages of:
• 30 V dc/60 V dc
• 120 V ac/125 V dc
• 240 V ac
--Supports output switching at voltages of:
• 60 V dc
• 120 V ac/125 V dc
• 240 V ac
--Executes the programs for Digital I/O (ECB5), and Ladder Logic (ECB8)
