Products Detail:
Brand
|
Foxboro
|
Part Number
|
FBM02
|
Product Type
|
Thermocouple/mV Input Interface Module
|
Payment
|
T/T,100% advance payment
|
Shipping Port
|
Xiamen,China
|
Lead Time
|
In stock
|

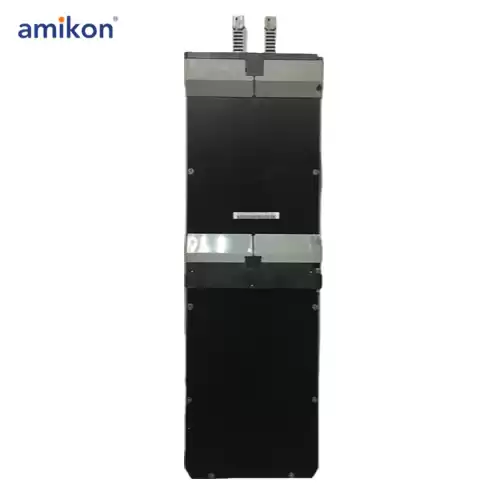

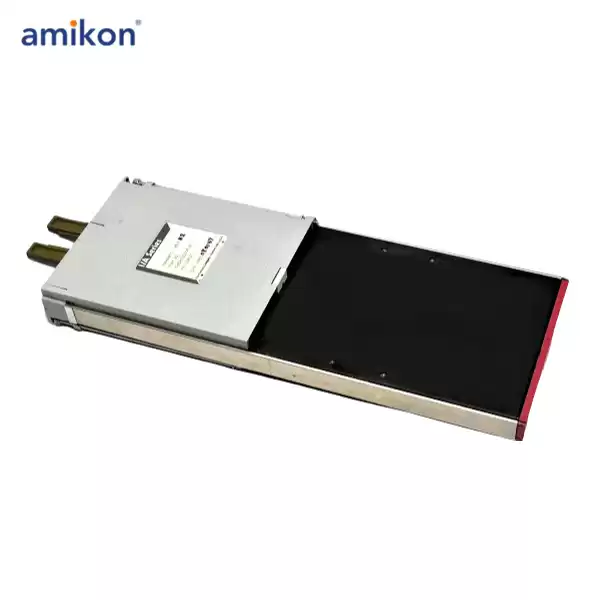

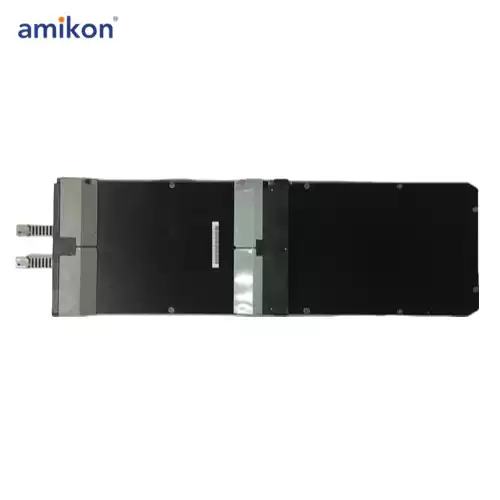

The Thermocouple/mV Input Interface Module (FBM02) contains eight isolated thermocouple input channels, and one isolated RTD reference junction compensation channel (for terminal temperature
sensing). Each thermocouple/mV channel has a full scale indication on burnout feature and accepts standard thermocouples for various temperature ranges. The module performs the signal conversion required to interface the electrical input signals from the thermocouples to the redundant Fieldbus. The module is a main type, and independently connects to the redundant Fieldbus.
This module executes the analog input application program. The configurable options for this program are Analog Input Resolution (on a per module basis), Fieldbus Switching Enable, and Fieldbus Switching Time.
FUNCTIONAL SPECIFICATIONS:
Input:
Eight isolated and independent thermocouple/mV
input channels. One isolated reference junction
compensation channel.
Input Range:
-10.5 to 71.41875 mV dc(a)
Reference Junction:
FOR DISCRETE AND DIRECT TERMINAL
CONNECTIONS
100 Ω platinum RTD is internally provided at the termination cable assembly.
FOR A PLUG TERMINATION CONNECTION:
ENVIRONMENTAL SPECIFICATIONS(a):
Operating:
TEMPERATURE:0 to 60°C (32 to 140°F)
RELATIVE HUMIDITY:5 to 95% (Noncondensing)
ALTITUDE:-300 to +3,000 m (-1,000 to +10,000 ft)
Storage:
TEMPERATURE:-40 to +70°C (-40 to +158°F)
RELATIVE HUMIDITY:5 to 95% (Noncondensing)
ALTITUDE:-300 to +12,000 m (-1,000 to +40,000 ft)
