FPC DFSTN COG Dot Matrix LCD Display Module LCM China Manufacturer
It is a dot matrix LCD display module consists of LCD glass, backlight, FPC, wire connector, driving IC, etc. A dot matrix LCD is able to display variable digit, grahpic according to the programme changed. It's easy to connect with the main control box.
The dot matrixl LCD display has it's own backlight to light on by giving a certain current. The brightness of the dot matrix LCD display is determined by the numbers of LED chip placed in the backlight. The more LED chips the backlight has, the more brightness the LCD display is able to emit.

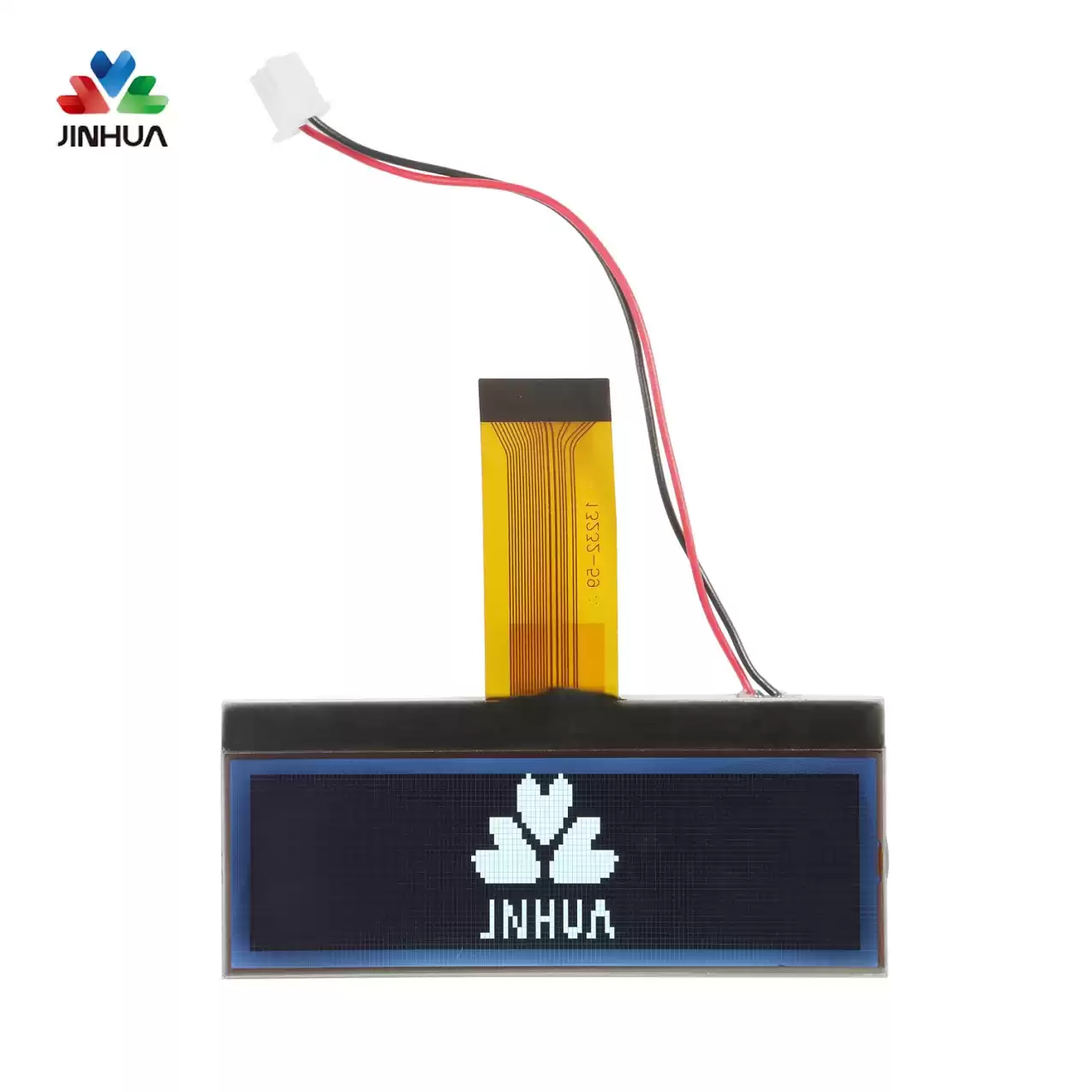

FPC Dot Matrix LCD Display Module
Product Parameters
| LCD Type |
DFSTN |
| Display Type |
Transmissive |
| Display Mode |
Negative |
| View Angle |
6 o'clock |
| Driving Condition |
VOP 5V |
| Duty 1/32 |
| Bias 1/7 |
| Backlight Color |
White LED |
| Control IC |
ST7565R |
| Connector |
FPC |
| Display Technology |
COG |
| Operating Temperature |
-20-70°C, custom |
| Requirements On Environmental Protection |
ROHS HSF |

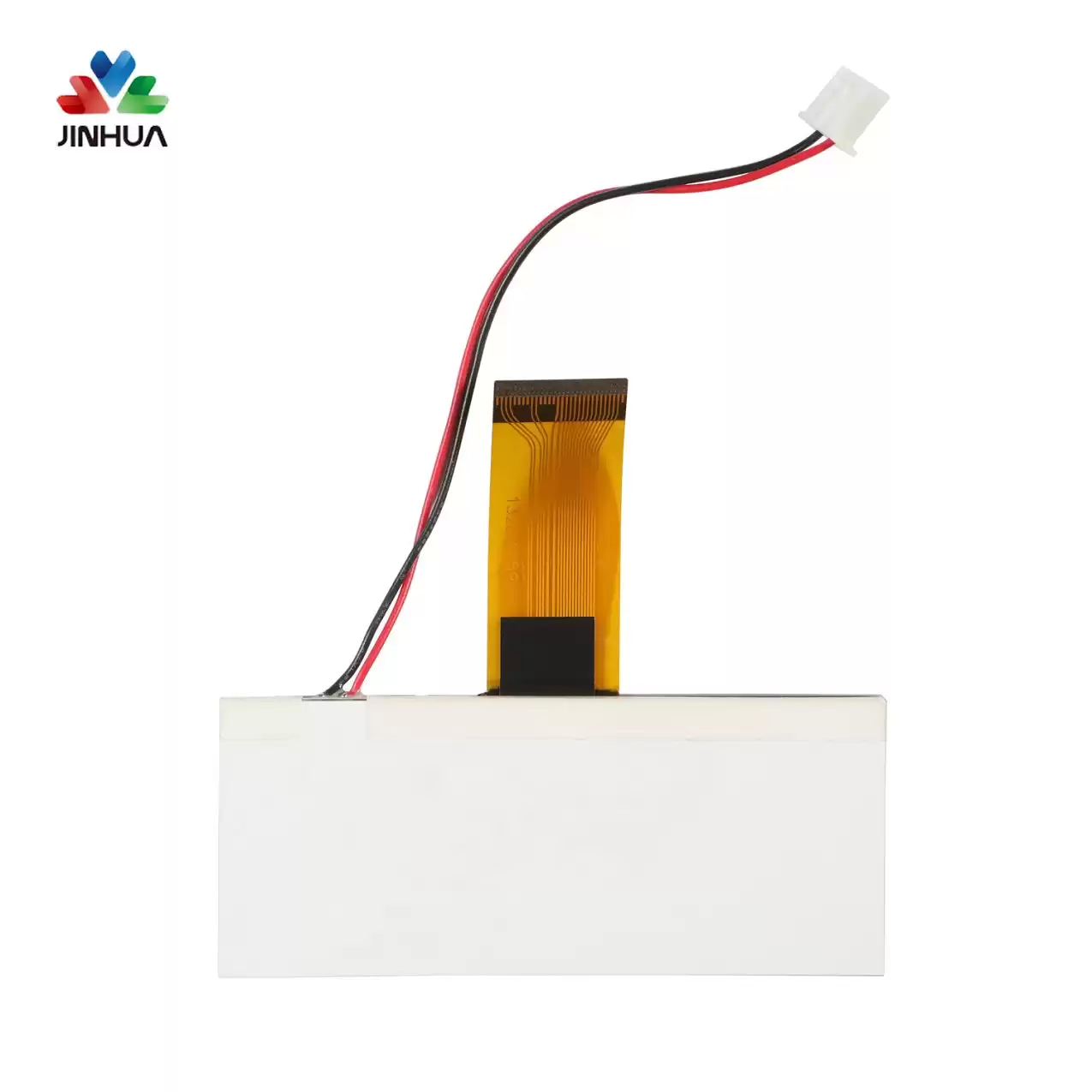

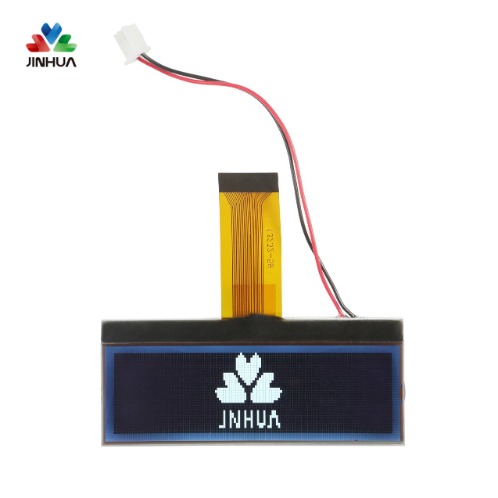

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Dot Matrix LCD Display Module is a kind of display to meet the requirement of showing monochrome numbers and graphic of texts at the fixed place. It comes with custom variable brightness and low power consumption. The display is widely used in all kinds of industries such as automotive products, meter&measuring devices, communication&hand-held devices, industrial equipment, medical equipment, fiscal equipment, instrumentation products, and smart home products, etc.

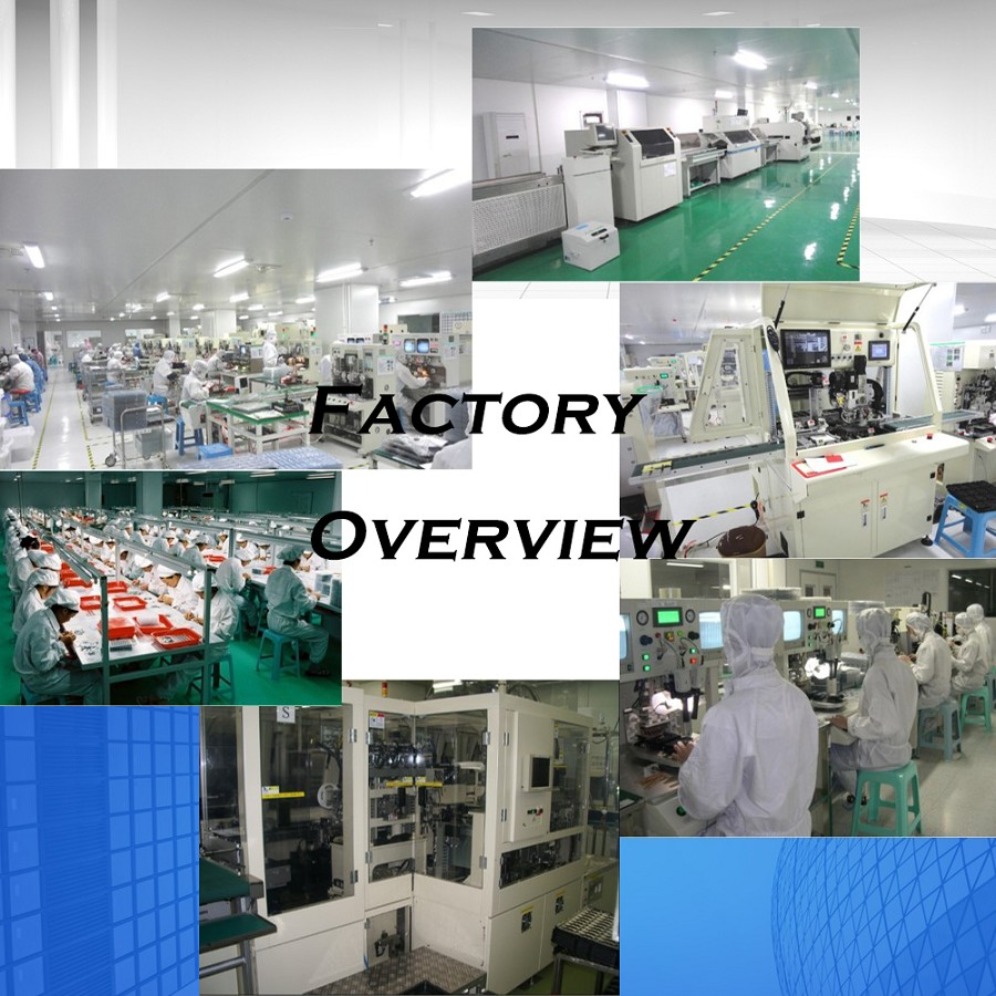

Production Line And Equipment
Company Profile
Why Choose Us
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
