FPC Negative Transmissive FSTN COG Dot Matrix LCD Screen with IC
It is a FSTN dot matrix LCD screen product with 128x32 dots, normally to drive a dot matrix LCD it's always need a certain IC. If there is no specific IC required from the client, Jinhua company will choose an appropriate one accordingly. The more the dots are, the stronger the IC will be required.
Dot Matrix LCD Display Module
Product Parameters
| LCD Type |
DFSTN |
| Display Type |
Transmissive |
| Display Mode |
Negative |
| Dot Number |
128x32 |
| View Angle |
12 o'clock |
| AA |
20x70mm |
| Driving Condition |
VDD 3.3V |
| Duty 1/32 |
| Bias 1/6 |
| Connetor |
Pin |
| Display Technology |
COG |
| Control IC |
ST7539 |
| Interface |
SPI |
| Operating Temperature |
-20-70°C, custom |
| Requirements On Environmental Protection |
ROHS HSF |

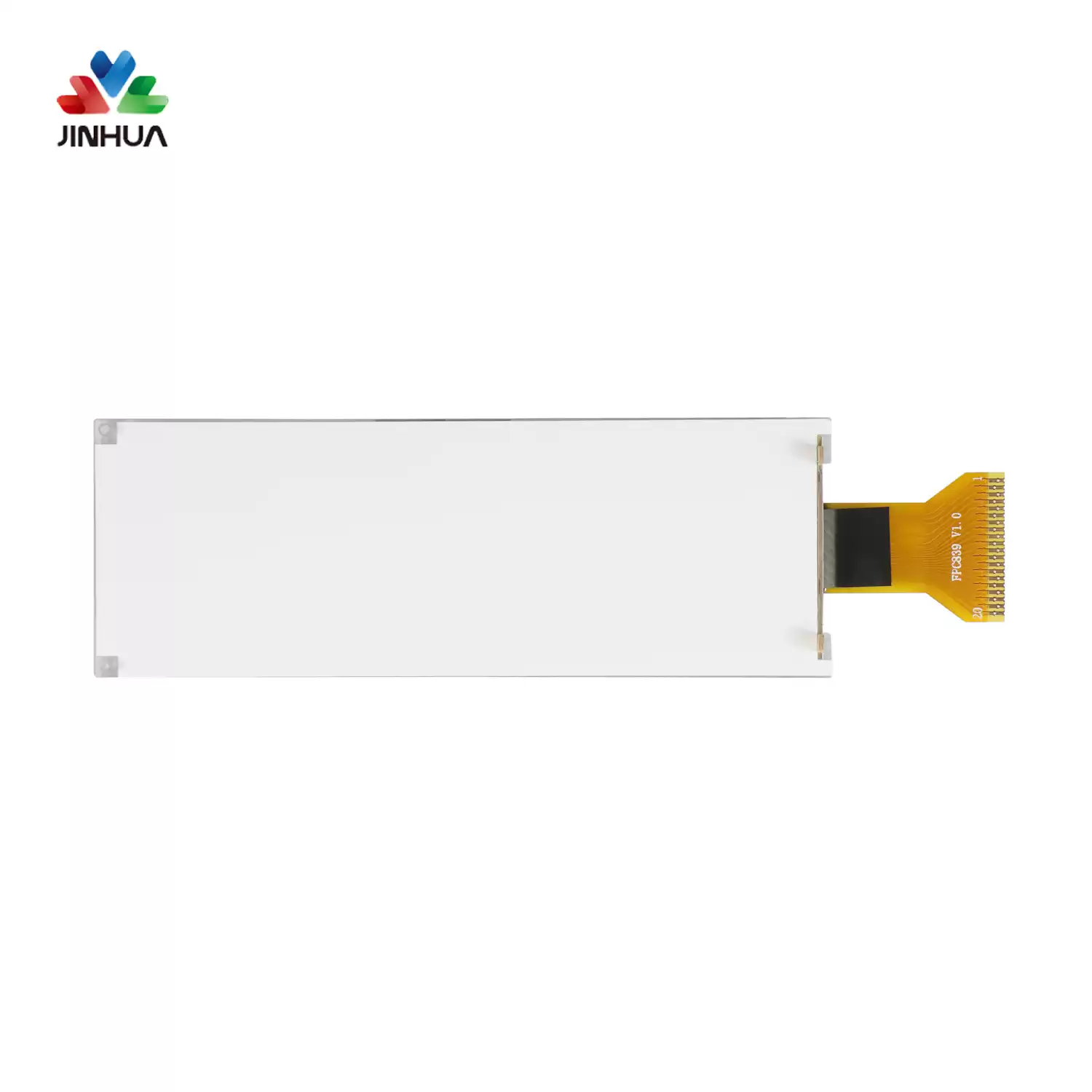

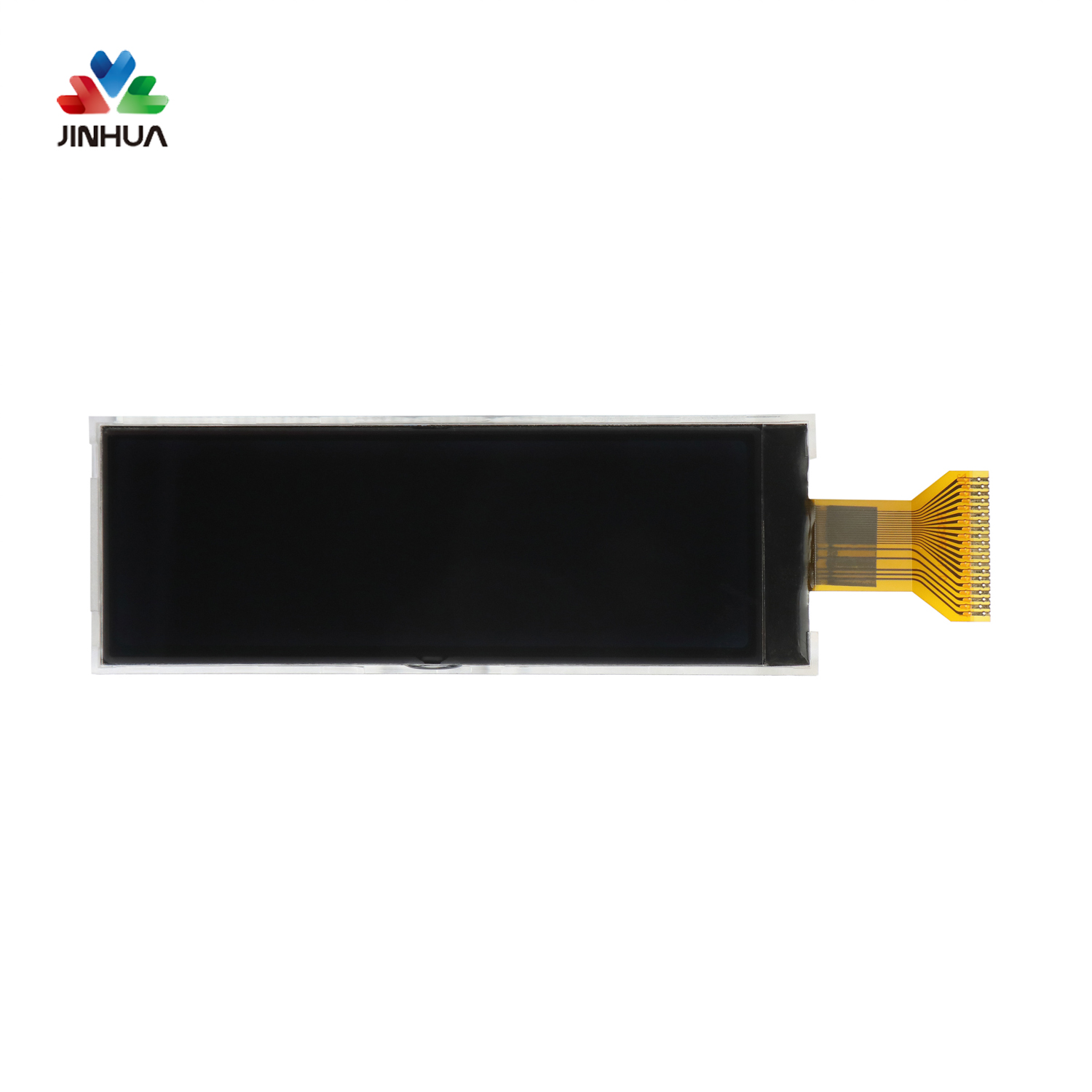

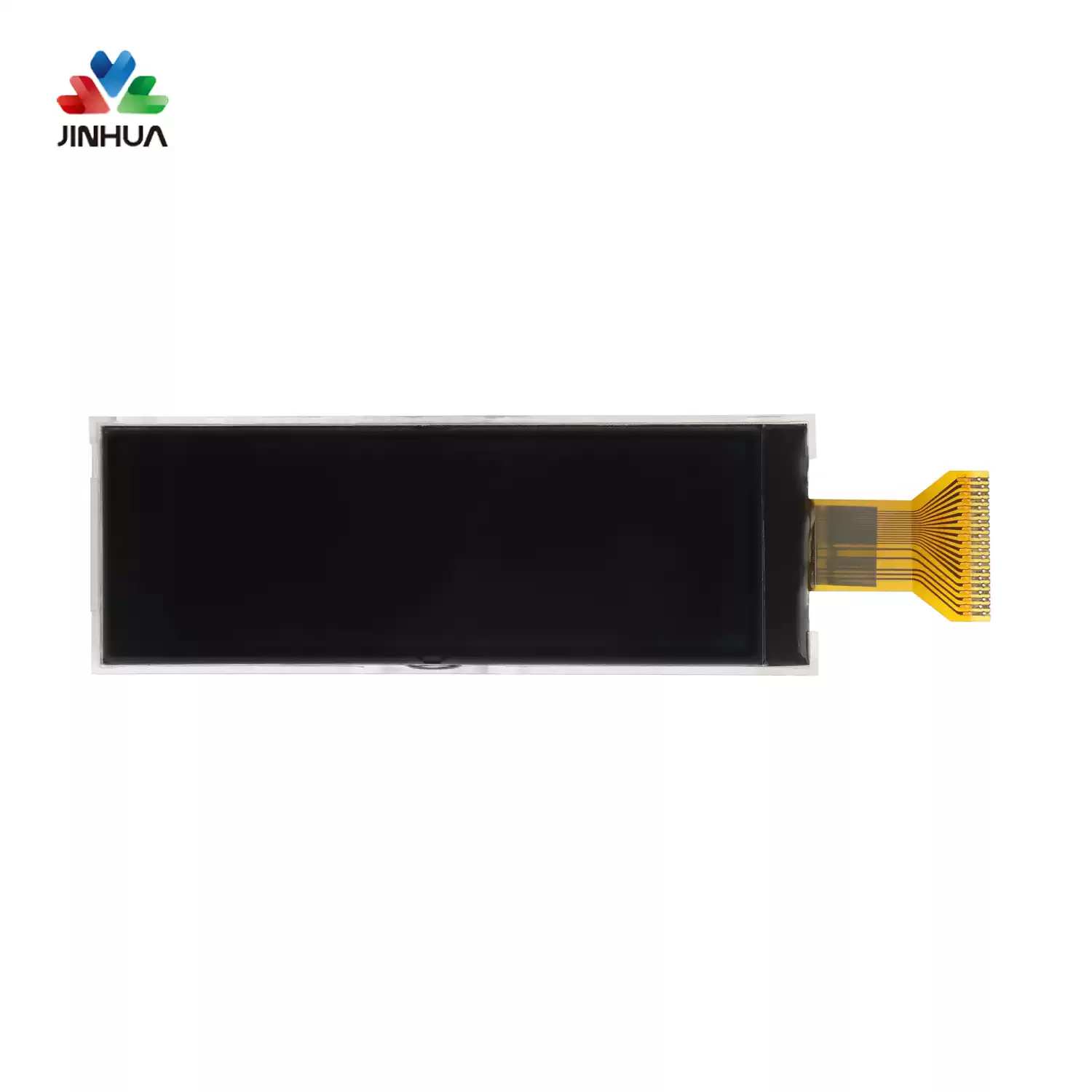

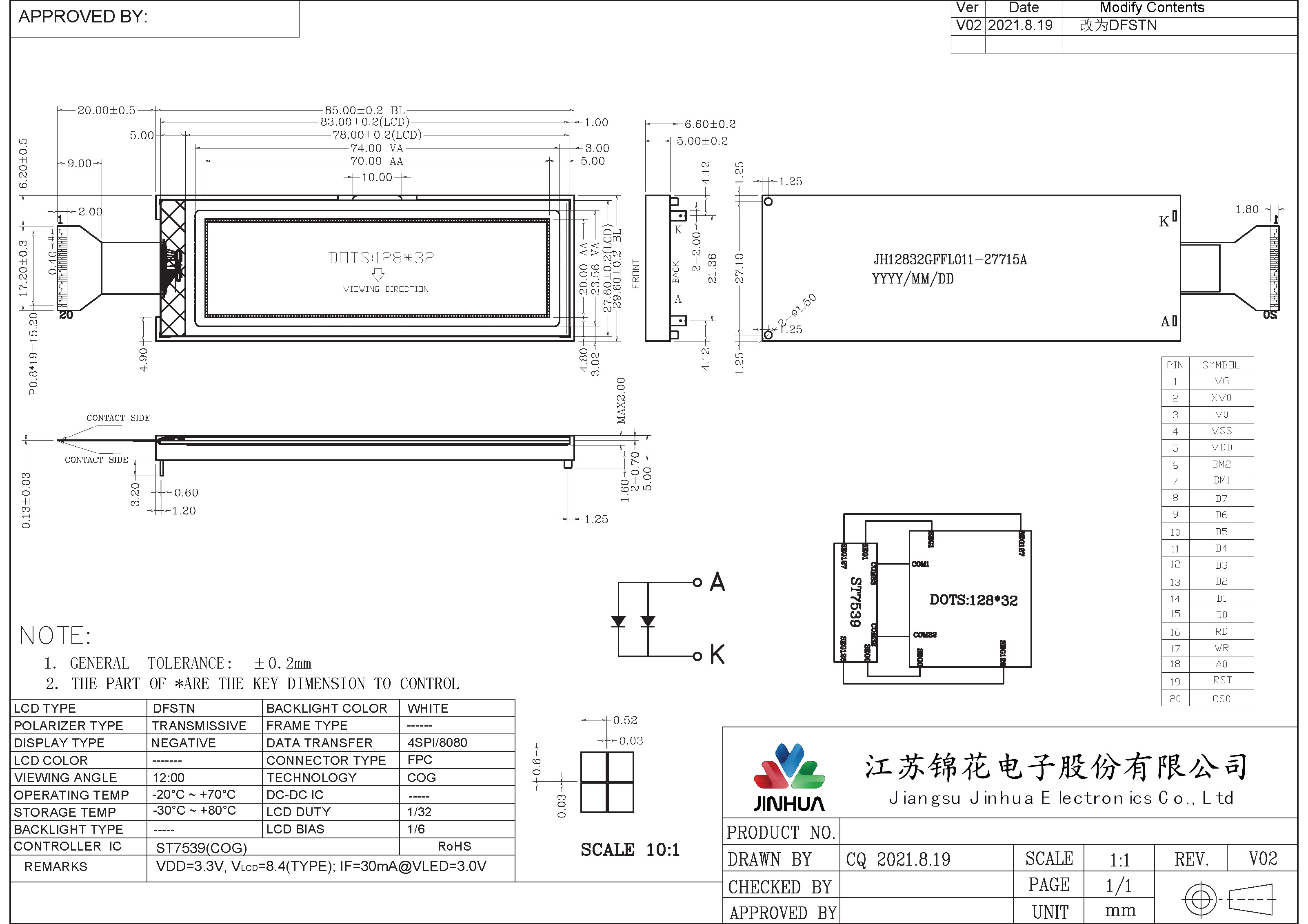

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Dot Matrix LCD Screen is available to be applied to some extremly enviroment such as -30° low temperature and 80° hight temperature. This increase the feasibility of LCD's application. With some specially treatment, the LCD screen is also able to be used in hostile environment such as rainy, snowy or exposure to be sun burnt.

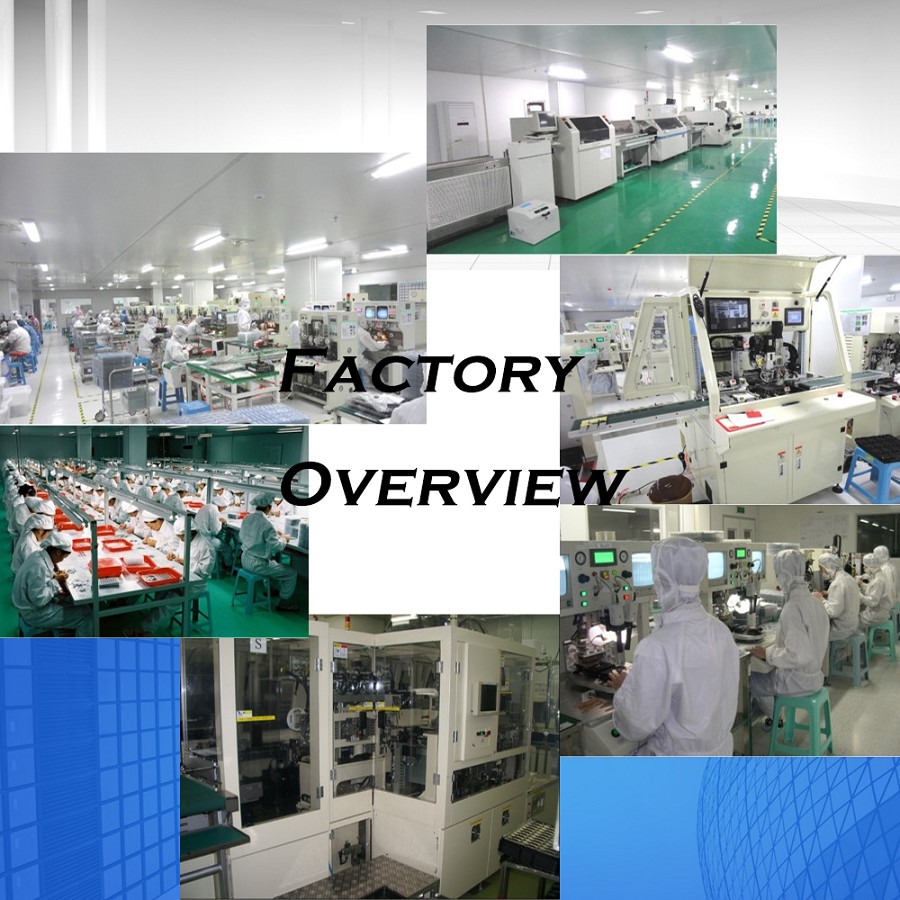

Production Line And Equipment
