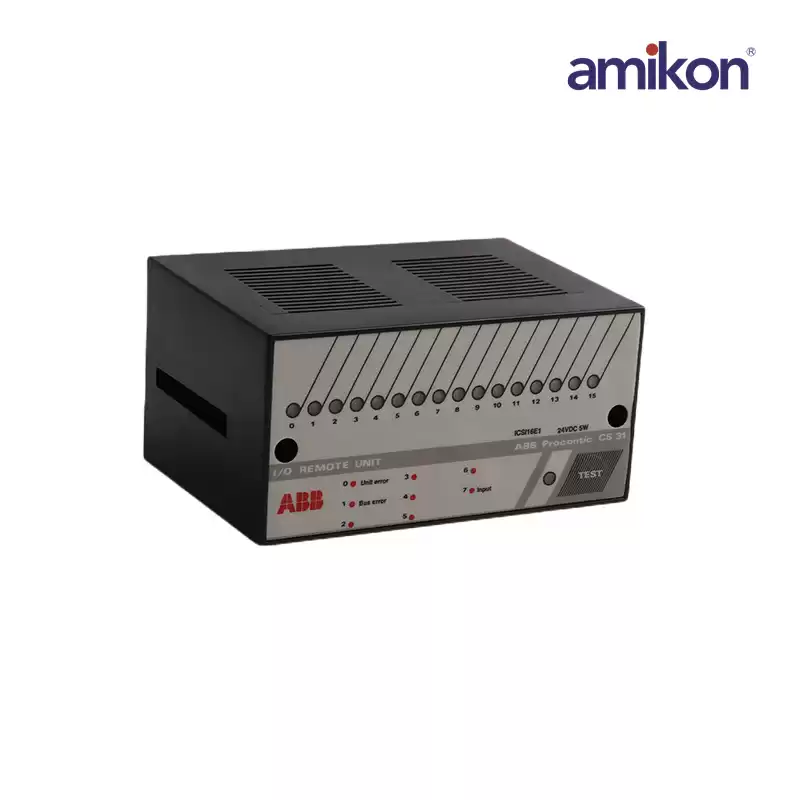

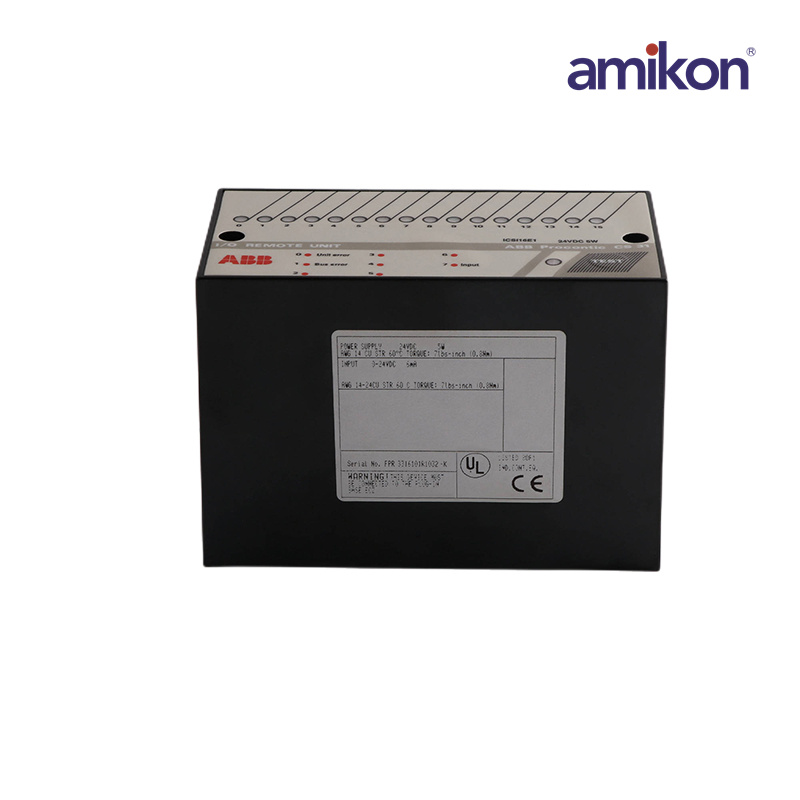

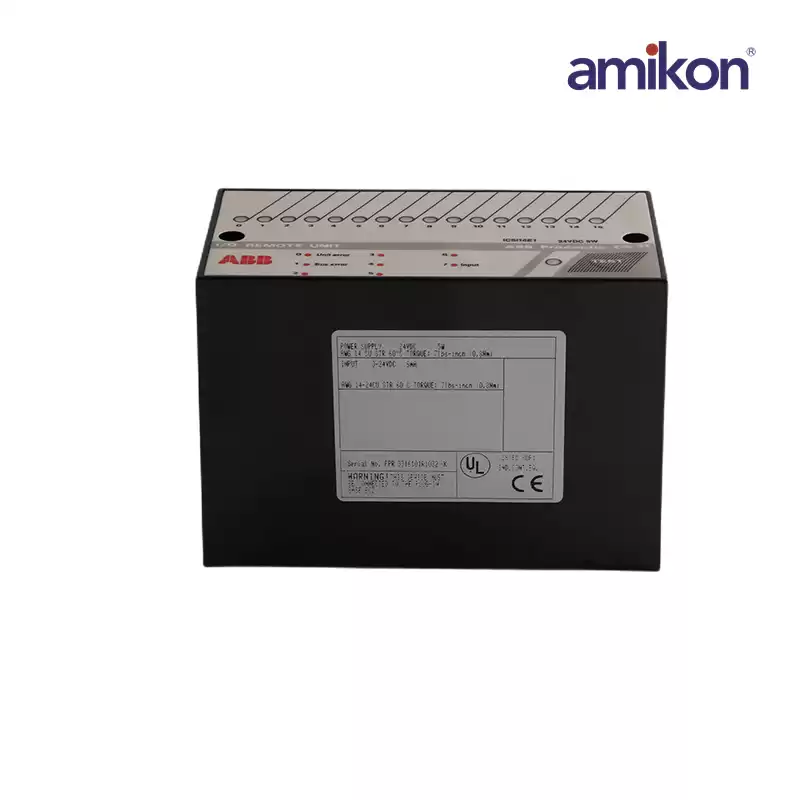

Manufacturer/Brand： ABB
|
Product Package：Original Package
|
|

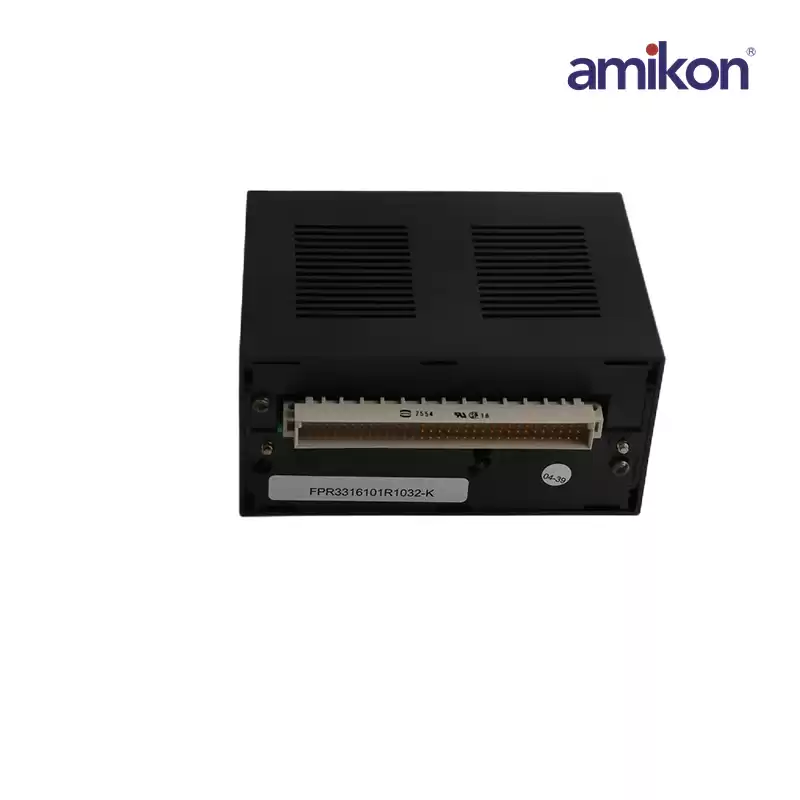

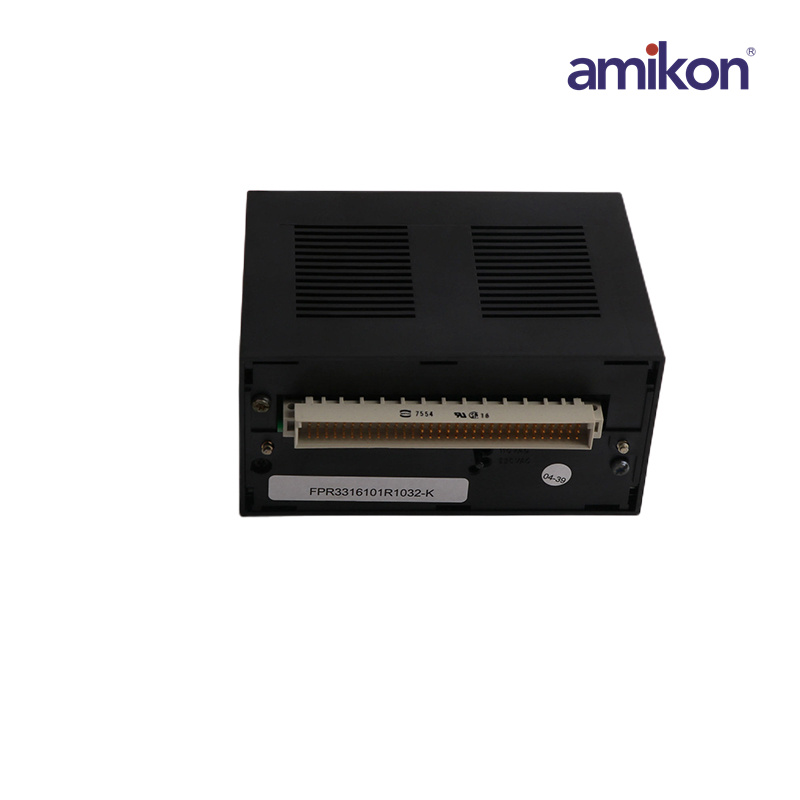

Part Number：FPR3316101R1032 ICSI16E1
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Product Description：Digit Input Output module
|
Weight:：0.26kg
|
|
Product Series： 500 Series
|
Dimensions:12.2 cm x 9.2 cm x 6.3 cm
|
Location for the DIN rail Plate fixture with unit earthing Lock for DIN rail mounting
Location for external dual connector Location for the cabling connectors:
of 24 V d.c. output power for the inputs (available only for the remote units with 120 / 230 V a.c. power)
of the inputs used for configuration of ICMK-CS31 Visualization set for the status of the 8 inputs / 6 outputs
Location of the connector for the connection of input/output extensions
Location of the cabling connectors:
for the power supply
Location of the addressing rotate selectors (see enlargement)
Unit status visualization area:
POWER: power on
RUN: Blinking indicates the valid message received
ERR: On indicates error(s) present and blinking indicates configuration action
