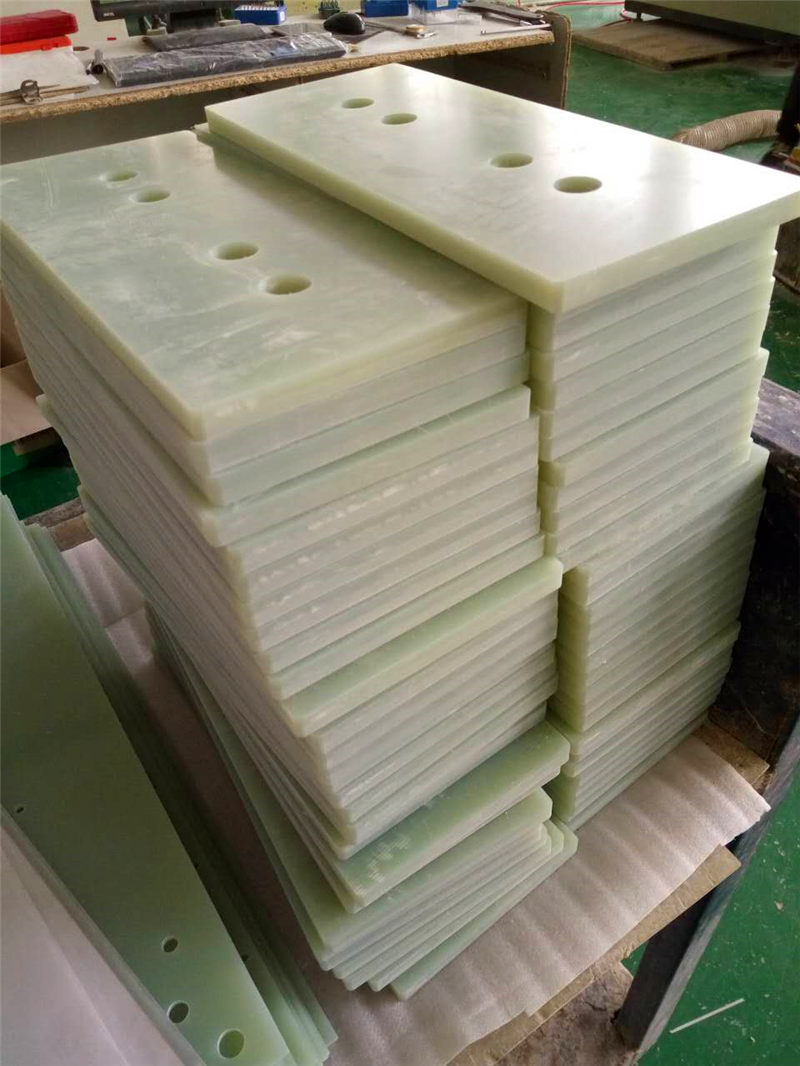

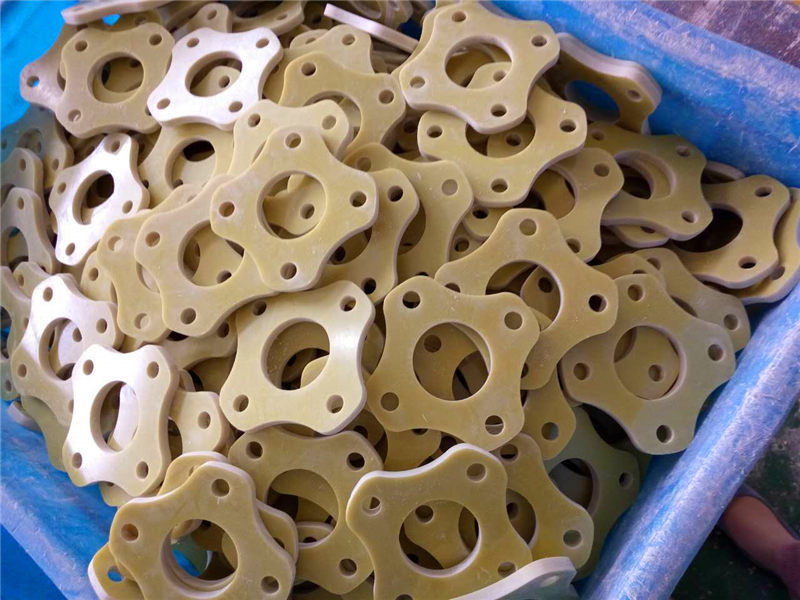

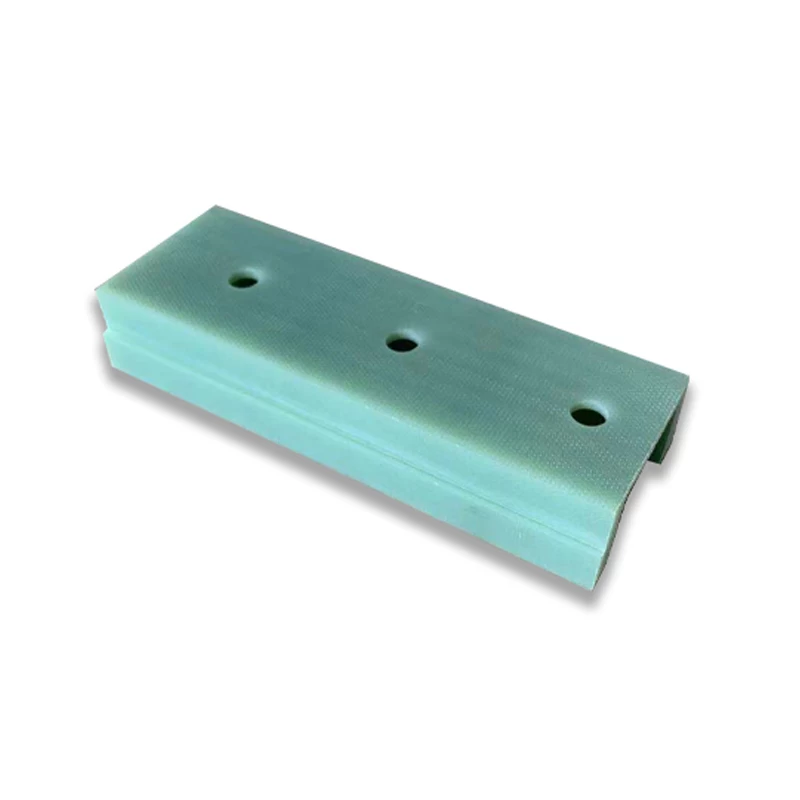

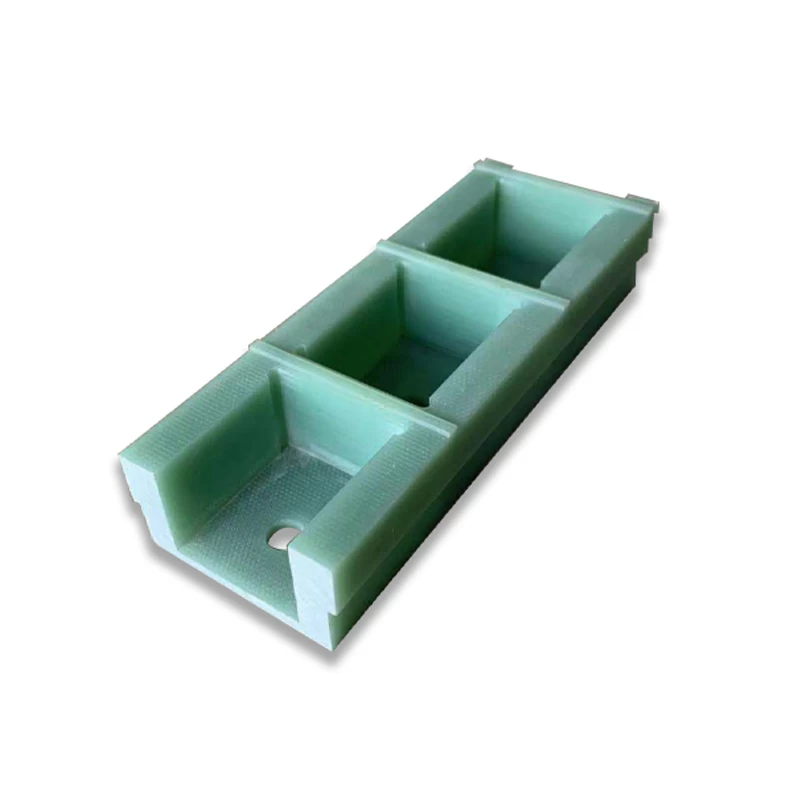

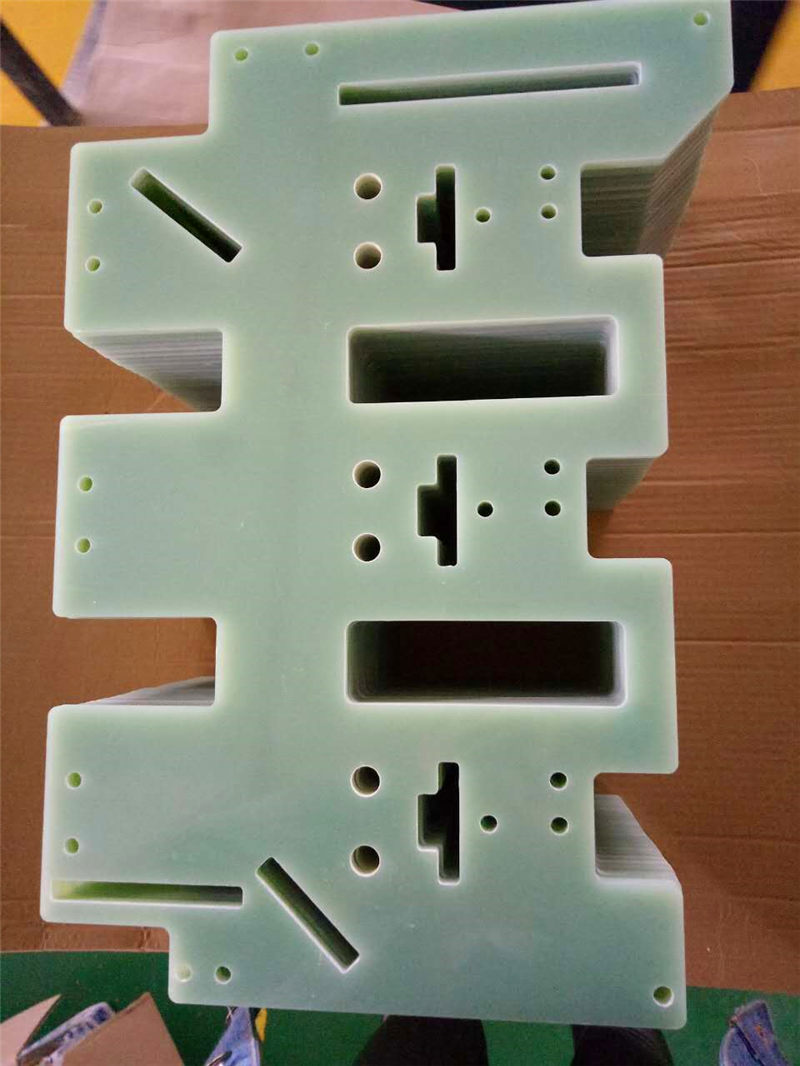

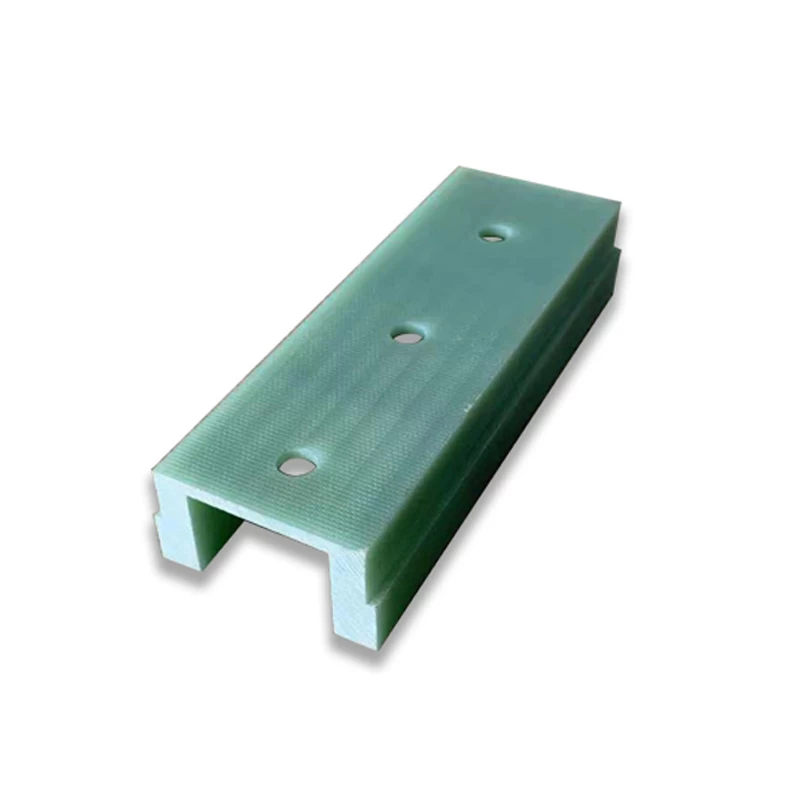

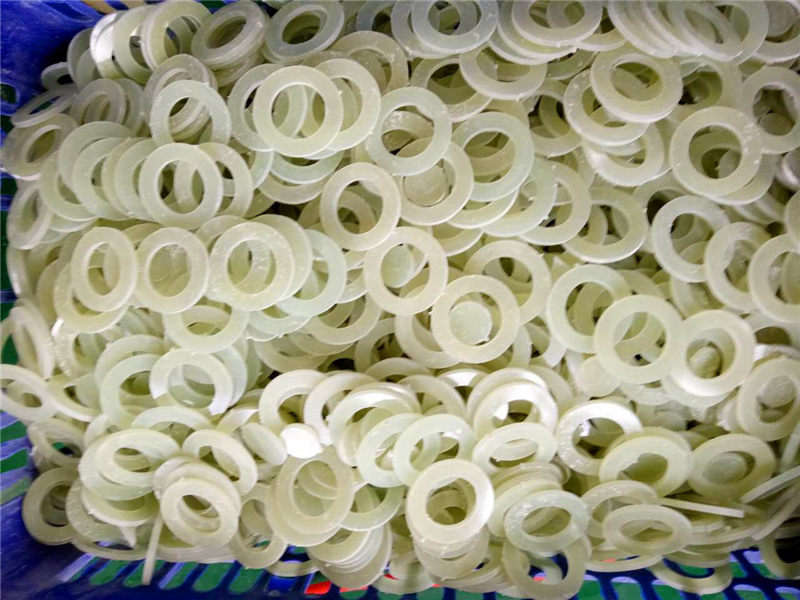

FR4 G10 customized CNC machining parts epoxy fiberglass
Product details:
Model Number:FR4/G10
Type:Insulation Sheet
Material:Epoxy resin and fiberglass cloth
Application:High Temperature
Rated Voltage:35KV
Tensile Strength:340Mpa
Product name:FR4/G10 Epoxy glass fiber laminate sheet
Thickness:0.5-100mm
Size:1020*1220mm,1020*2040mm,1220*2040mm,1220*2440mm
Color:Green, yellow ,black,white
Density:1.9~2.2g/cm3
Flammability:UL94V-0
Certification:SGS
Glass Transition Temperature:127℃
Sample:Available
Usage:Mechanical, electrical and electronic insulation structure parts
Note: More sheet series,sizes, thicknesses, colors could be Customized upon request !
Products Features:
1. The flame retardant grade of FR-4 is UL94 V0
2. F grade Heat resistance and heat resistance (120 min) reaches to 180 ℃
3. High mechanical performances (bending, compression and stretching of transverse strength is above 330Mpa)
4. High dielectric properties of the oil (25 ℃ in the vertical dielectric strength of 16 kv/mm).
5. G10 material has excellent halogen free,low smoke&green products
6. We can press, cut and process the sheet according to customer's requirements and provide insulation accessories directly.
Application:
-
Motors and electrical equipment insulation parts,
-
General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor.
-
Backing boards: PCB drilling machine, Plastic Mould, Injection Mould, Injection molding machine, Table grinding machine, ICT governance
-
Reinforcement sheets: Testing fixture PFC,FPC
-
Less than 3 mm is used for Raw materials of PCB flexible circuit board test processing
-
Needle plate, carrier board and insulating electrical and electronic products

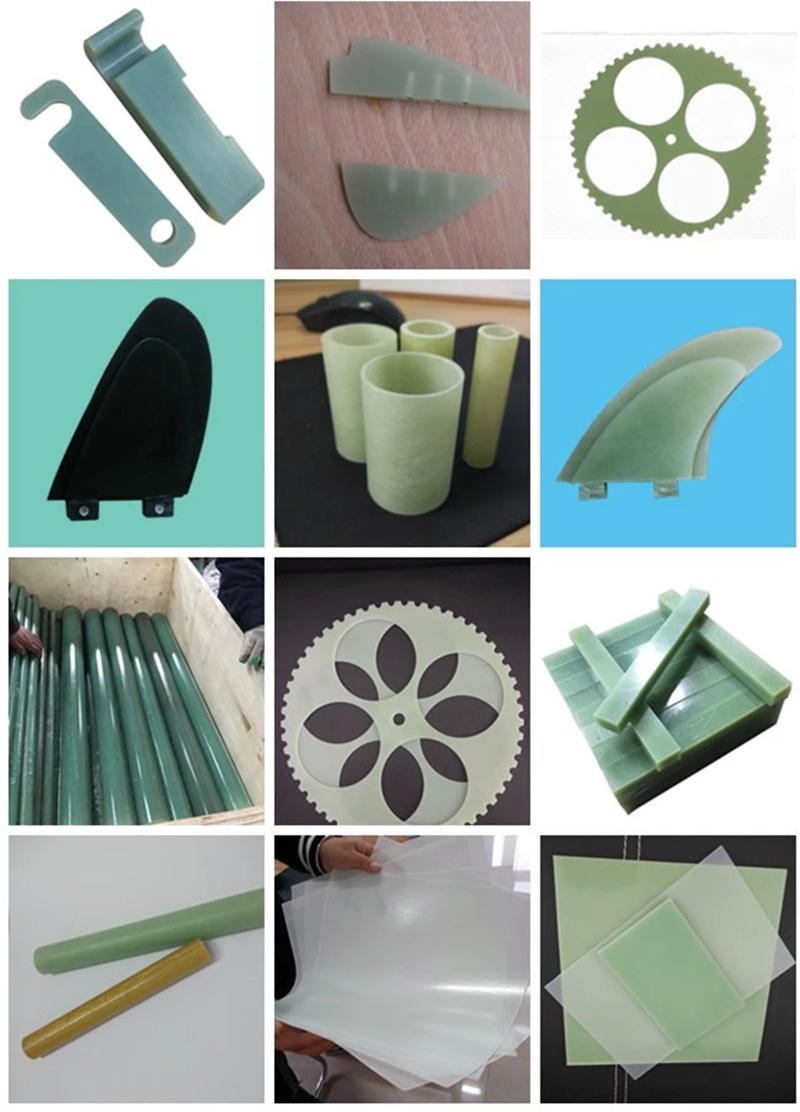

Main Insulation Product Categories:
• Epoxy Glass Fiber cloth laminated sheet(3240/FR-4/G-10/FR-5/G-11)
• Phenolic laminated sheet
• Polyester Laminated sheets(GPO-3/UPGM 205)
• SMC/BMC/DMC Molded Parts
• Insulation Rods&Tubes
• Pultruded Profiles
• Engineering Plastics Parts
Our Servies:
1.Rich Experience
Professional materials background and non-metallic materials processing experiences with more than 10 years,using in industry field like transformer,generator,electric motor,etc.
2.Provide one-stop service
From raw material sheet supply to customized further processing of nonmetal insulating parts.We can develop and produce various high standards and personalized products according to customers' requirement.
3.Pre-sales Service
We have professional sales team to offer comprehensive technical and business consultation services. Designing and fabricating targeted products according to the special requirements of clients.
4.After-sales Service
Highly inspecting equipment in every working procedure, quality comes first.
5.Our Advantage
Competitive price, Flexible payment options, Quick speed.
Always ready for supplying the best solution for your various application.
FAQ:
Q1:What about the package of product?
1. Wooden pallet with carton.
2. Plastic pallet with carton.
3. Wooden wooden pallet with wooden case.
4. According to customer requirements.
Q2. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery.
Q3.Is there any way to check before delivery?
We'll show you the photos of the products and packages before you pay the balance.
Q4. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
Q5. How about your delivery time?
Generally, it will take 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Can you produce according to the samples?
Yes, we can produce according to your samples or technical drawings.Also We can build the molds and fixtures.
Q7. How can I get the sample?
We can supply the free sample if we have stock.
Q8.Do you test all your goods before delivery?
Yes, we do the 100% test.
