With different configuration and treatment tips of fractional co2 laser machine, there are two systems including fractional co2 laser and vaginal tightening co2 laser.
Fractional CO2 Laser System
Using scanning lattice mode to emit laser, to form a burning areas consisted of lattice and interval of laser action in the epidermis, each laser action point is composed of one single or several high-energy laser pulses, it can penetrate to the dermis directly, the wrinkles or scar tissue gasify instantaneously to stimulate the regeneration of collagen, and then start the tissue repairing, collagen rearrangement and a series of skin reactions. Collagen fibers shrink under the action of laser, the skin becomes tightening and lustrous.
Vaginal Tightening CO2 Laser System
Vaginal co2 laser is a proven technology for treatment vaginal health and related conditions such as vaginal atrophy and urinary incontinence.The CO2 wavelength of 10.6μm has a very high affinity with the water of the vaginal mucosa and histological data shows that CO2 vaginal rejuvenation lasers caused a thickening and regeneration of the vaginal mucosa.

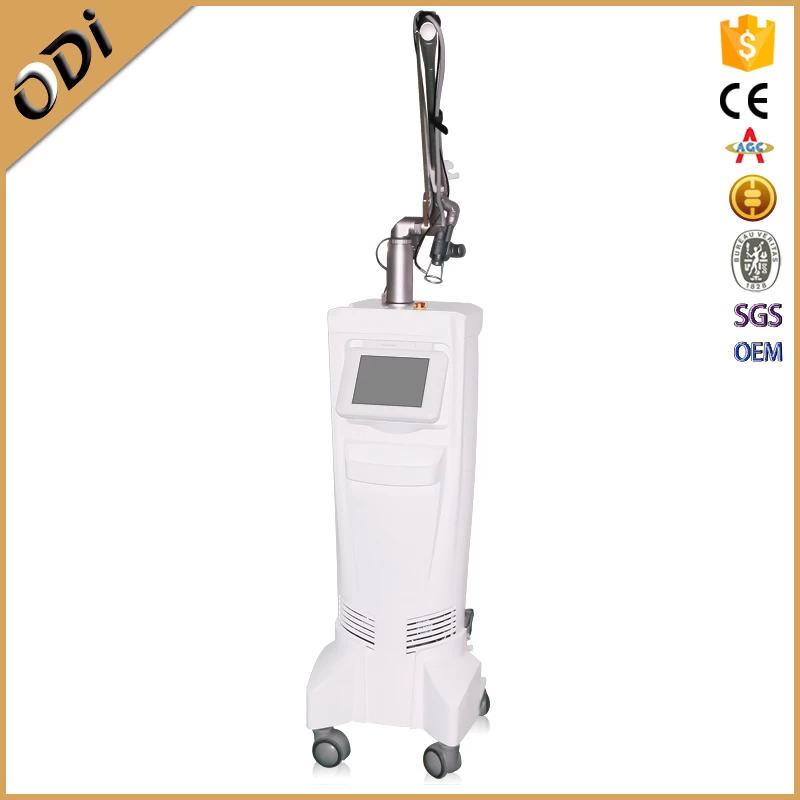

Technical Parameters of Co2 laser machine for vaginal tightening
|
Laser Source
|
Fractional co2 laser
|
Wavelength
|
10.6µ m
|
|
Machine power
|
300w
|
Laser System
|
0~30w
|
Light system
|
Korea imported 7 joint-arm
|
|
Laser tube
|
Glass tube and RF Tube optional
|
|
Modes
|
Fractional scan & ordinary & Gynaecology & virginal
|
|
Scan Graphics
|
6
|
|
Scan mode
|
4
|
|
Dots quantity
|
Max400
|
|
Pulse width
|
0.4~4 ms
|
|
Cooling
|
water+air
|
|
Beam divergence angle
|
0.4 mrad
|
|
Display
|
8 inch LCD color touch screen
|
|
Material
|
ABS
|
|
Dimension
|
54*54*135cm
|
|
Weight
|
50kg
|
Parameter of Korea imported 7 joint-arm
|
Product Name
|
CO2 Torsion spring Arm
|
|
Color
|
Metallic Silver & Rich Gold
|
|
Joint
|
7 Joints, 360 free rotation
|
|
Delivery Length
|
abount 1100mm
|
|
Clear Aperture
|
10.8mm
|
|
Power
|
30W/cm2
|
|
Place of Origin
|
Korea
|
|
Accessories
|
F-50/F-10 Surgical Handpiece, Aiming Set.
|
|
Packing Size
|
905mm x 305mm x 160mm
|
Treatment tips of fractional co2 laser equipment
Advantages of fractional co2 laser equipment
1. The energy is stable, safe and effective with 7-joint arm imported from Korea.
2. Each machine has stable structure inside with our mature technology.
3. 3-5 years long life span for the glass tube, RF tube customized available.
4. Cooling system including copper radiator, water pump and customized fan with shaft
Treatment advantages of fractional co2 laser equipment
1. Minimal invasive, painless procedure
2. Correct wavelength and perfect pulse of maximum precision CO2 laser
3. Deliver the CO2 laser energy fast and efficient to split into micro pixels
4. Improve quality of life with the lasting benefits of skin resurfacing
5. Safe, remarkably effective and no downtime
Application
- Whole body wrinkles removal(brow veins, glabella veins, neck veins, pregnancy veins etc)
- Skin tightening and face lifting
- Treatment for age spots and blemishes, acne and speckle, blain acne, scabby acne, allergic acne, papilla acne etc, improve the appearance of lipoidic skin and acne pit
- Recover skin burning by sun and remove scars caused by acne or surgery
- Remove skin excrescence, such as wart etc
- Vagubak health treatment such as vaginal tightening and rejuvenation, mild vaginitis treatment, improve incontinence etc
Fractional CO2 Laser Treatment Before and After
