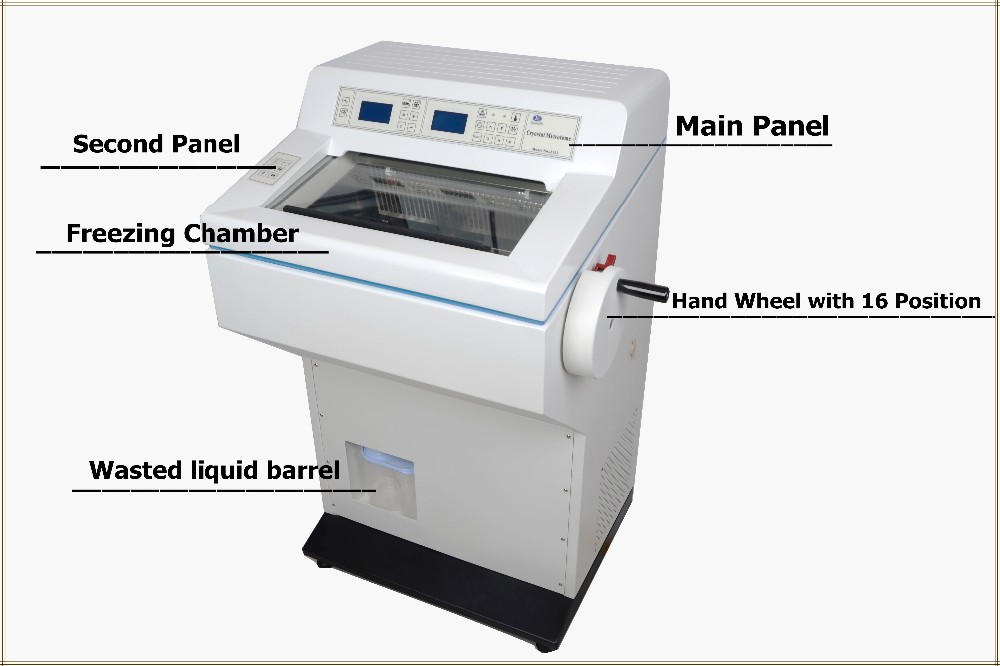

Semi-automatic Cryostat Microtome, national regulated 1st class medical equipment, is a rapid pathological section instrument to human and animal body tissues. It can be widely used for pathological diagnosis, analysis and research in hospitals, medical colleges, legal medical experts and propagation institutes.
Model:OLT-MO-188
|
Voltage
|
AC 108V-240V±22V
|
|
Frequency
|
50Hz±1Hz
|
|
Power
|
600W
|
|
Largest start-up current(5 second)
|
45A
|
|
Refrigerant
|
R404a,300±10g
|
|
Compressor Type
|
Double Danfoss Compressor
|
|
Compressor oil
|
0.6L EMKARATE RL-22S, ICI
|
|
Working noise
|
52dB(A)
|
|
Section thickness range
|
1-100μm Adjustable ,
1-20μm , Increment:1μm;
0-40μm, Increment:2μm;
40-100μm, Increment:5μm;
|
|
Trimming thickness range
|
10-400μm Adjustable,
10-50μm , Increment:5μm;
5-100μm , Increment:10μm;
100-400μm , Increment:50μm;
|
|
Specimen retraction
|
0-80μm Adjustable ,Increment:5μm
|
|
Maximum specimen size
|
45mm×50mm
|
|
Horizontal stroke
|
20mm
|
|
Vertical stroke
|
60mm
|
|
Chamber temperature
|
2.-10℃~-40℃ Adjustable
|
|
Specimen head temperature
|
-10℃~-40℃ Adjustable
|
|
Freezing shelf
|
Minimum Freezing shelf temperature: -45℃
Number of freezing station: 26
|
|
Peltier
|
4.Minimum Peltier shelf temperature: -60℃
Peltier number: 2
Working time to reach -60℃: 15min
|
|
Dimension
|
Size:660mm*640mm*1150mm, 135kgs
|
■Sync sampling, digital signal processor, gets better quality ECG waveform by ECG signals filtering through the power frequency filter, baseline filter and EMG filter.
■Display 3/6/12-lead ECG waveform, and states of print mode, sensitivity, paper speed, filter, etc. in one screen, convenient for contrastively diagnosing.
■Multi-print mode and format: manual and automatic 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1x12+1, auto 1x12, rhythm 4, rhythm 3 and rhythm2, etc. Waveform length can be adjusted and timing print function is available, which meets the need of different applications.
■Built-in high-capacity memorizer can store up to 1000 cases, which is convenient for doctor's review and statistic.
■The interface languages including: Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazak Tili, Russian, Ukrainian, Serbian and Slovenian. Also the reports can be printed in all languages above.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
