Product Name

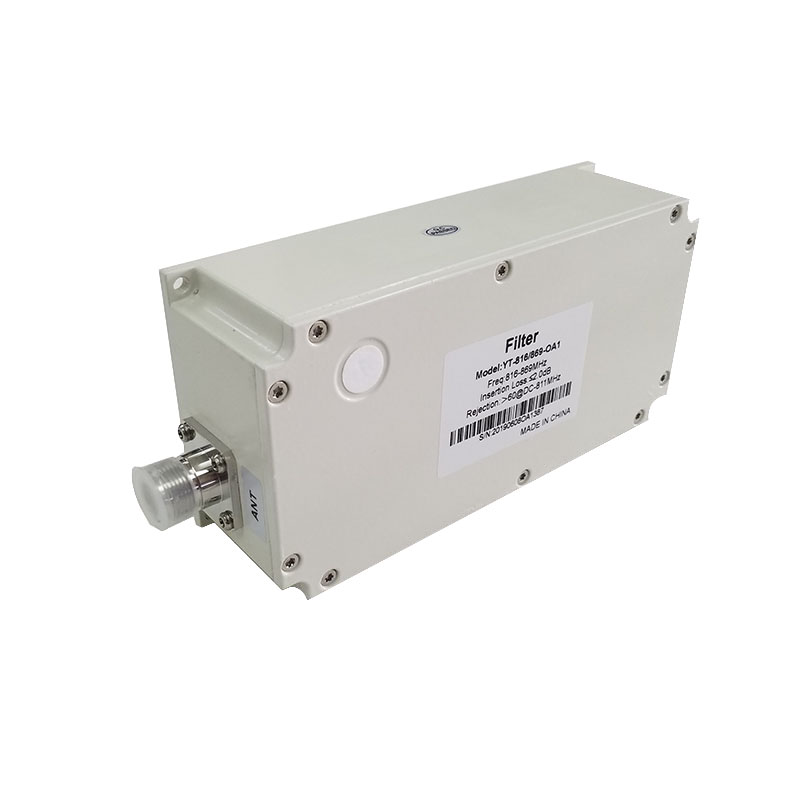

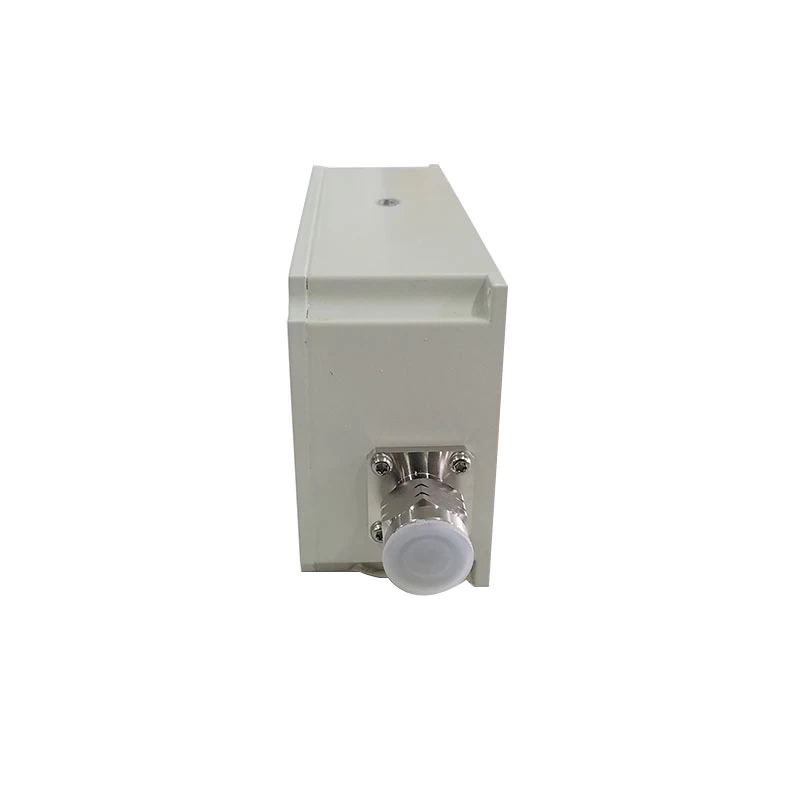

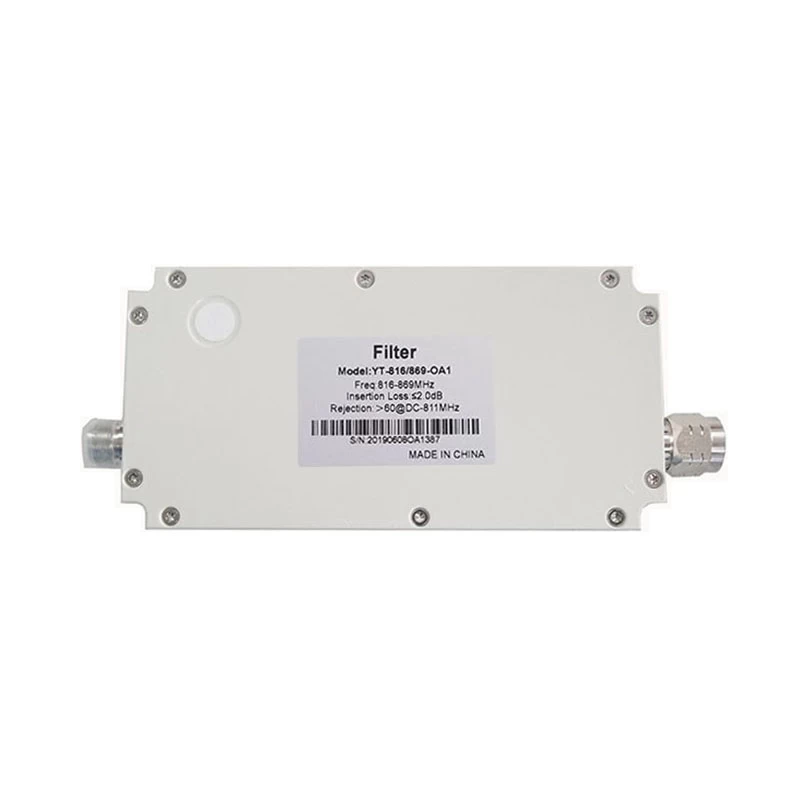

150W RF Cavity filter (816-869MHz, N-Male/N-Female, IP65)
Filter is an electrical circuit part designed to have specific characteristics with respect to the transmission or attenuation of various frequencies that may be applied to it. There are four types of filters: Band Pass Cavity Filter, Band Stop filters, High pass Filter and Low pass Filter.
Product Features
◆Compact,Low weight
◆ 2G/3G/4G/5G/LTE Coverage
◆ High reliability
◆ Simple installation
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MNF-816/869-150W-NM/F
|
|
Frequency (MHz)
|
CH1:816 to 869MHz
|
|
Return Loss
|
≥19
|
|
Insertion Loss(dB)
|
≤2.0dB
|
|
Rejection(dB)
|
＞60dB@DC-811MHz
|
|
Power Handling
|
150W Avg
500W Peak
|
|
Impedance(ohms)
|
50
|
|
Operating Temperature Range
|
-0℃to +60℃
|
|
Storage Temperature Range
|
-40℃to +85℃
|
|
Relative humidity
|
5%-95%
|
|
Barometric pressure
|
55KPa-106KPa
|
|
Application
|
IP65
|
|
Connector Type
|
N-Male/N-Female
|
|
Packing
|
1 Pce in box
|

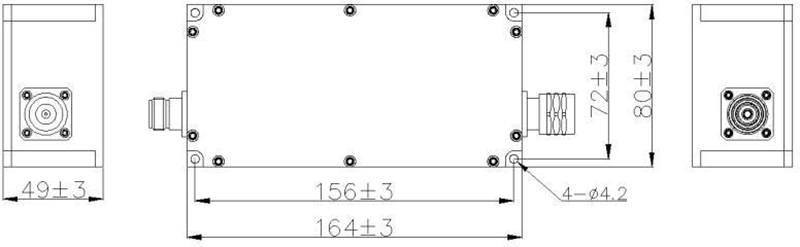

Mechanical Drawing
