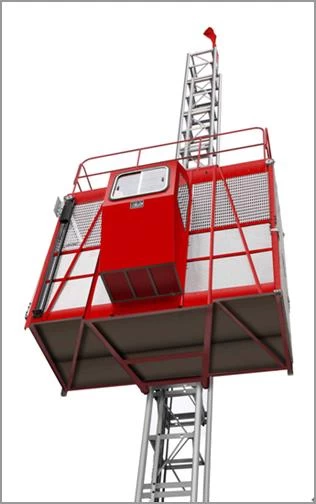

SCD200---Frequency construction lifts SCD200 (with ISO9001 certificate)
1. single cage//rack and pinion type//2t load construction hoist/ construiction lifts/construction elevator
2. Quality Certification of ISO9001-2008
3. leading and advanced in China
4. high quality/high working efficiency/favorable price
Main technical datas of the product:
specifications
|
SCD200Z
|
Cage load capacity
|
2000kg
|
Independent height
|
50m
|
Lifting speed
|
0-63m/min
|
Max. lifting heigh
|
200m
|
Number of passengers
|
24person
|
Cage inner dimensions
|
3*1.3*2.4m ( It can be arranged according to your requIrement)
|
section dimensions
|
0.65*0.65*1.508m
|
Power of Motors
|
2*15 kw
|
Frequency construction building lift has the following features:
1,smooth start without bumps
2,speed can be adjusted by the operator
3,starting current smaller than the rated current
4,with the smooth start ,abrasion can be largely reduced on the rack and gear ,and brake abrasion also can be reduced obviously
5,obvious energy saving
Computer-control automatic leveling system, calling device has thefollowing features
(1): simple structure, controller using SCM, signal input byphotocell
(2): stop using decreased recovery, cage weight overcomes theinertia to make the max deviation smaller than 3mm
(3): with the function prevent the illegal operation
(4): strong anti- interference performance
(5): electric calling devices help the cage stop at the requiredfloor with improved efficiency.
