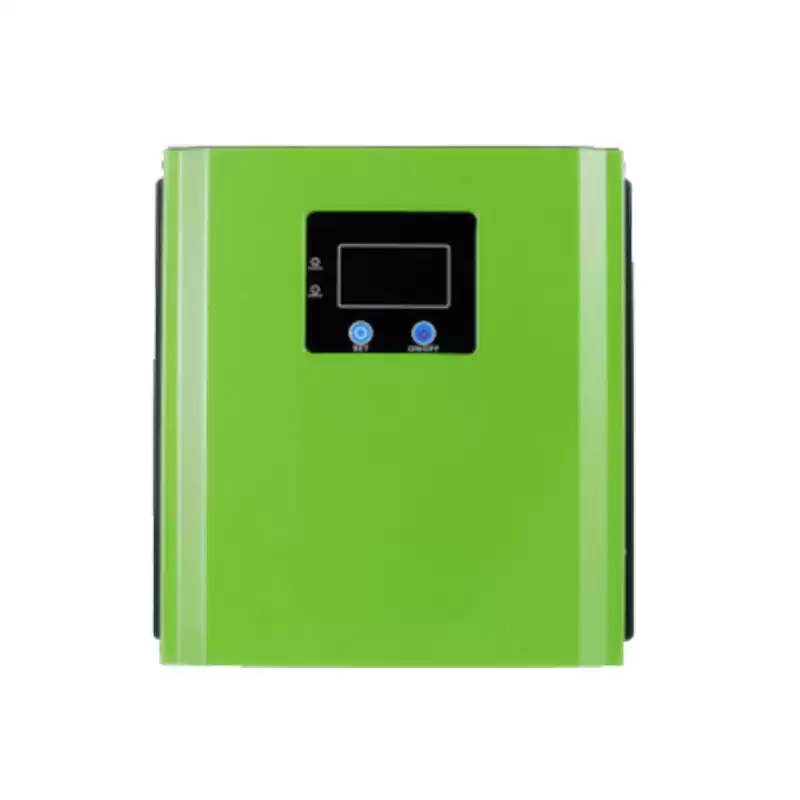

This is an intelligent power frequency solar inverter, with a mains charging function up to 15A, with automatic mains switching function (online UPS), switching time 5-8 milliseconds, to solve the family, pastoral area, communication base station, outdoor advertising projects , Island fishing boats, border posts, special vehicles emergency power supply public places and other places where electricity is lacking, power is difficult, and the power is unstable.
Features:
Pure sine wave output
With UPS automatic switching function, mains charging function, AVR voltage stabilization function (four-level voltage stabilization)
Specific overload, high voltage, low voltage, short circuit and other perfect protection functions
DSP intelligent chip control, excellent performance
Strong inverter capacity, one-time soft start, double output peak power, can carry all inductive loads
Fully personalized LCD display, inverter related information
Mains power priority, energy saving mode, solar power priority can be set freely to meet different occasions
Mains charging current up to 15A
Technical Data Sheet
|
Model
|
300W
|
500W
|
700W
|
1000W
|
1200W
|
1500W
|
|
Battery voltage
|
12VDC/24VDC
|
12VDC/24VDC
|
12VDC/24VDC
|
12VDC/24VDC
|
12VDC/24VDC
|
24VDC
|
|
Inverter output
|
Power
|
300W
|
500W
|
700W
|
1000W
|
1200W
|
1500W
|
|
Peak power
|
600W
|
1000W
|
1400W
|
2000W
|
2400W
|
3000W
|
|
Inductive load
|
100W
|
150W
|
200W
|
300W
|
400W
|
500W
|
|
Wave
|
Pure sine wave
|
|
The output voltage
|
110/120VAC 20/230/240VAC(±10RMS)
|
|
Output frequency
|
50Hzz±0.3Hz
|
|
Inverter efficiency
|
>85%
|
|
Mains efficiency
|
>95%
|
|
Power factor
|
1.0
|
|
Conversion time
|
8ms (Maximum)
|
|
Mains input
|
Mains input
|
110/120VA20/230/240VAC
|
|
Mains input voltage
|
1-275VAC(AC:220)
|
|
Frequency Range
|
50Hz/60Hz (Automatic identification) 40~80Hz
|
Battery
|
Low battery shutdown
|
10VDC±0.3V (12VDC), 20VDC±0.3V (24VDC)
|
|
Battery undervoltage alarm
|
10.5VDC±0.3V (12VDC), 21VDC±0.3V (24VDC)
|
|
Overvoltage alarm
|
15VDC±0.3V (12VDC), 30VDC±0.3V (24VDC)
|
|
Battery overvoltage protection
|
16.5VDC±0.3V (12VDC), 33VDC±0.3V (24VDC)
|
|
Recharge
|
Maximum charging current
|
15A (Maximum)
|
|
Protection
|
Overload protection
|
Above rated power, automatic shutdown
|
|
Temperature protection
|
Built-in temperature sensor real-time sensing, ≥85℃ alarm, ≥90℃ shut down the whole machine
|
|
Short circuit protection
|
Automatic shut-down
|
|
|
Installation method
|
Wall-mounted
|
|
Other
|
Display panel
|
LCD
|
|
Cooling fan
|
Smart fan system cooling
|
|
Noise
|
<60dB
|
|
Communication
|
RS-232, SNMP (optional)
|
|
Operating temperature/humidity range
|
-20~70℃,＜95%
|
|
|
Storage temperature
|
-15° C ~ 60° C
|
|
Product Size
|
Body size mm (length * width * height)
|
290*310*135
|
|
Packing size mm (length * width * height)
|
340*330*185(1PCS)/350*350*405(2PCS)
|
|
Net weight (KG)
|
6
|
6.5
|
7.5
|
9.5
|
10
|
11
|
|
Gross weight (KG)
|
12
|
13
|
15
|
19
|
20
|
22
|
