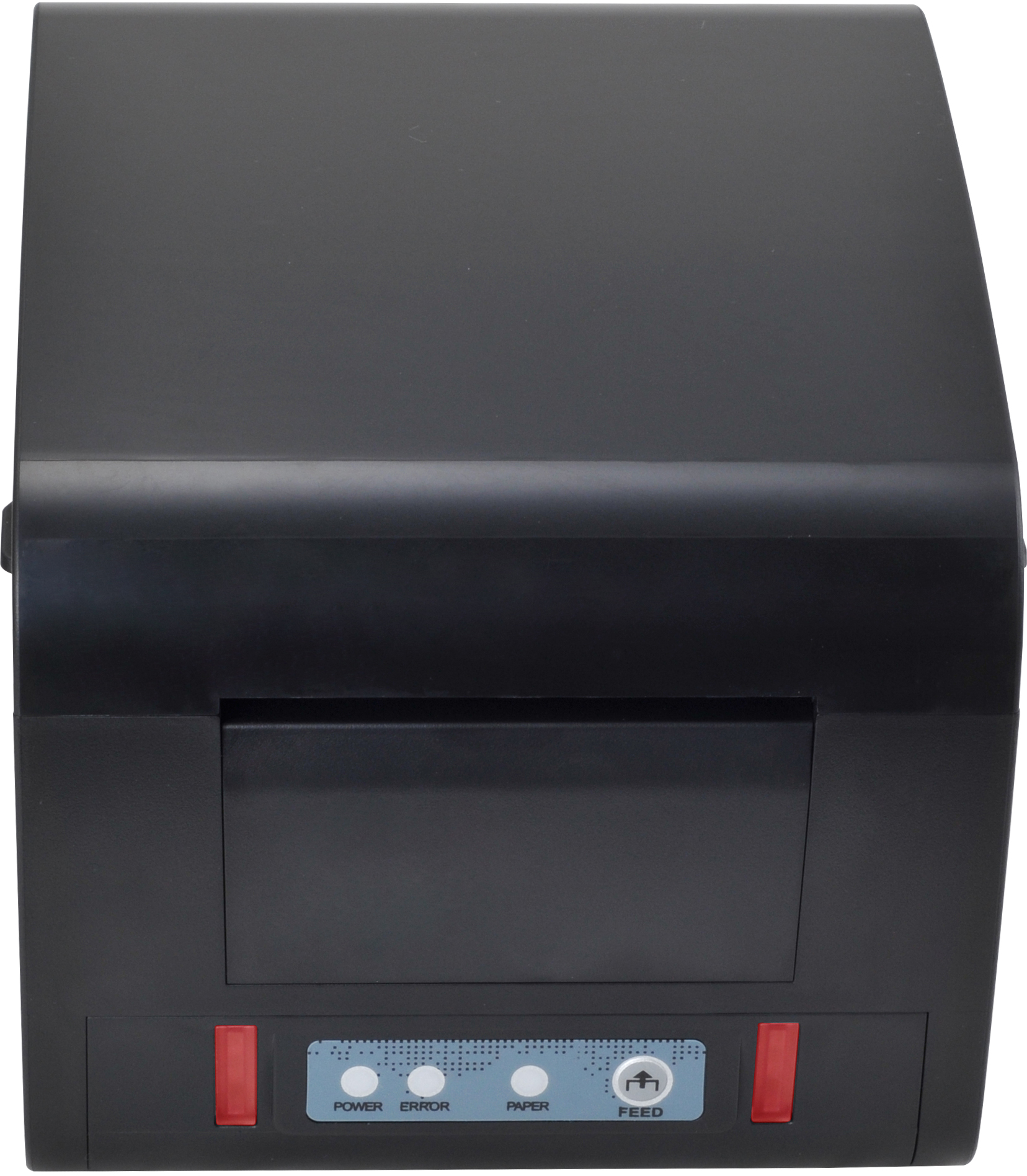

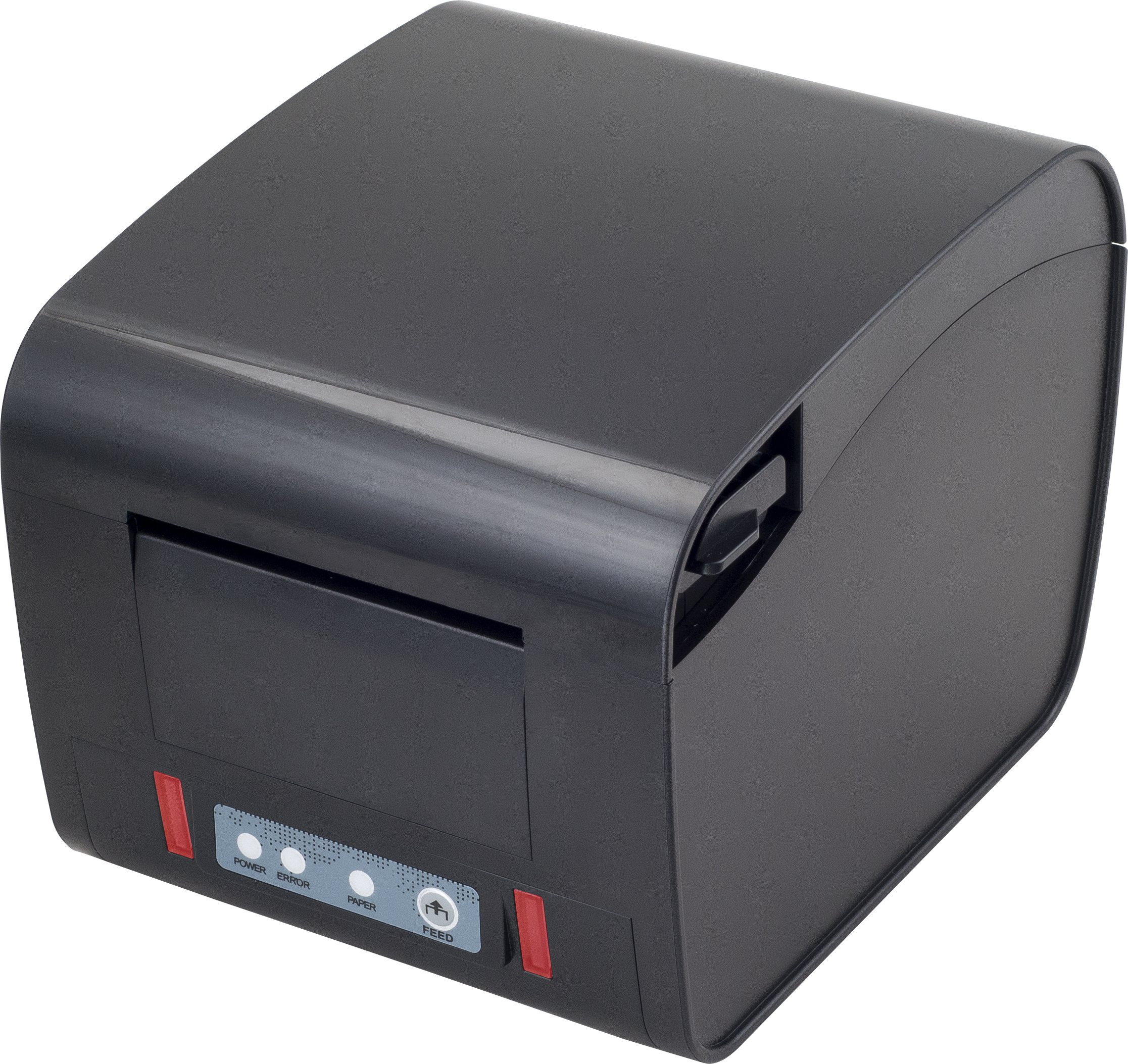

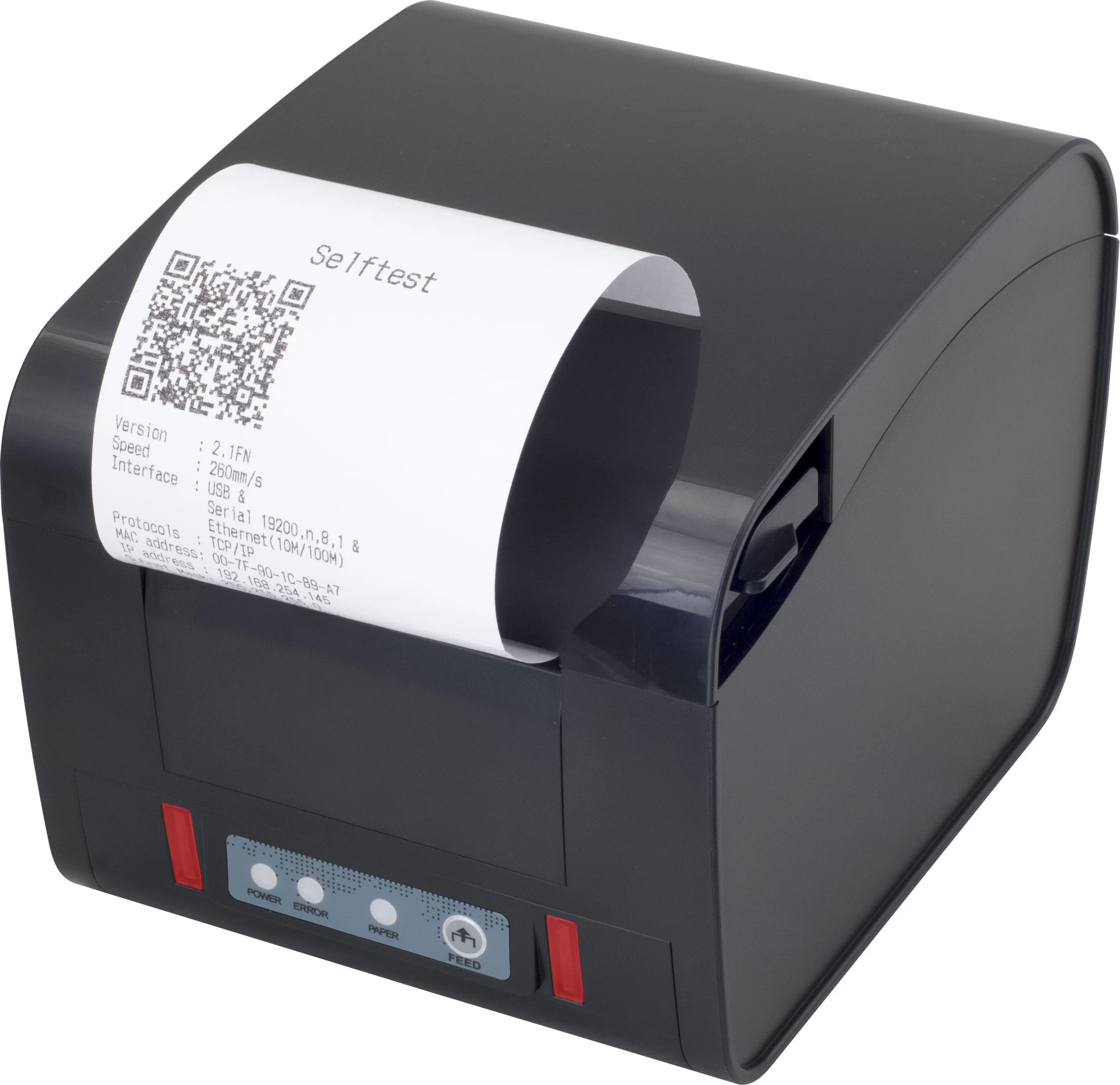

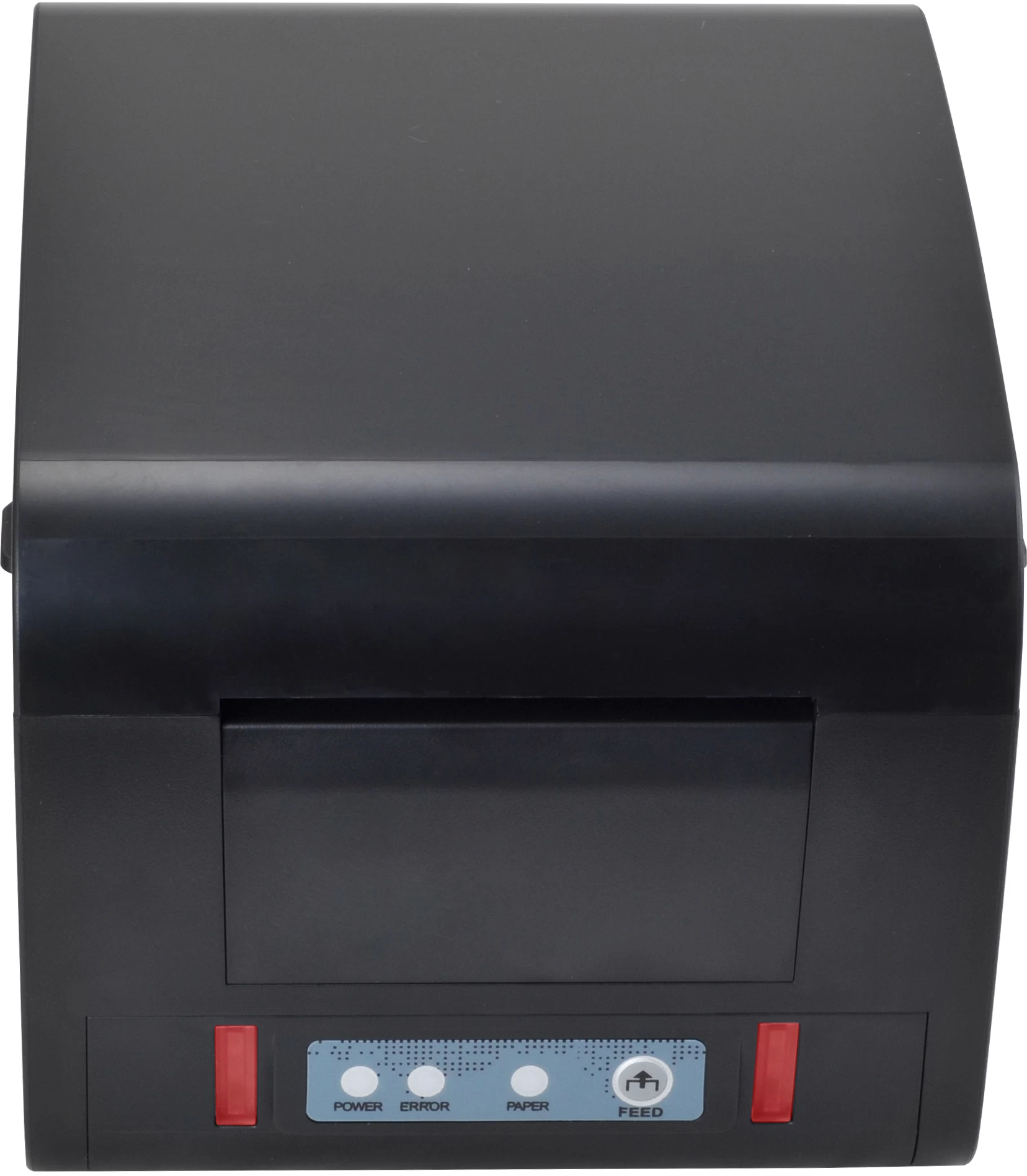

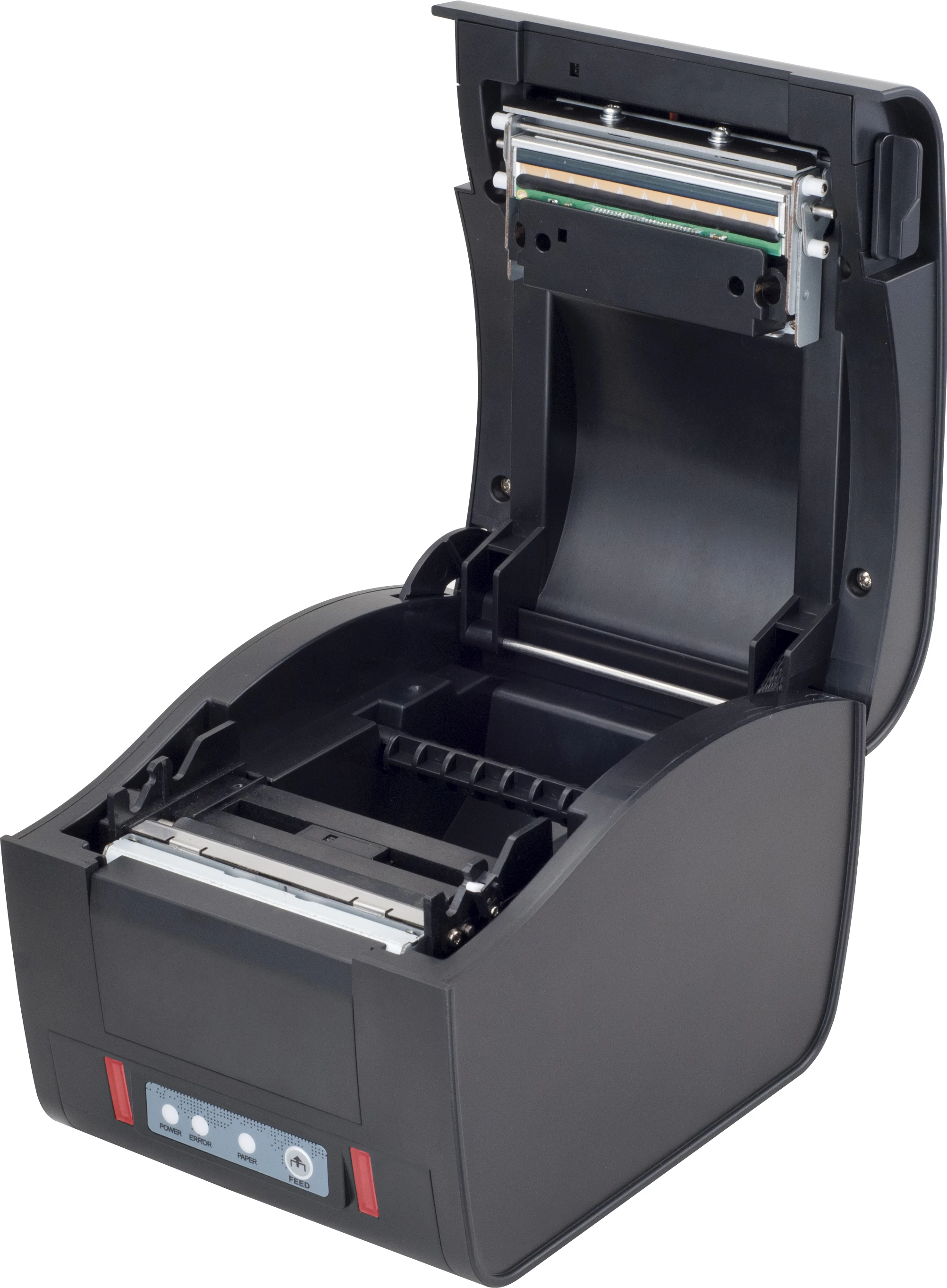

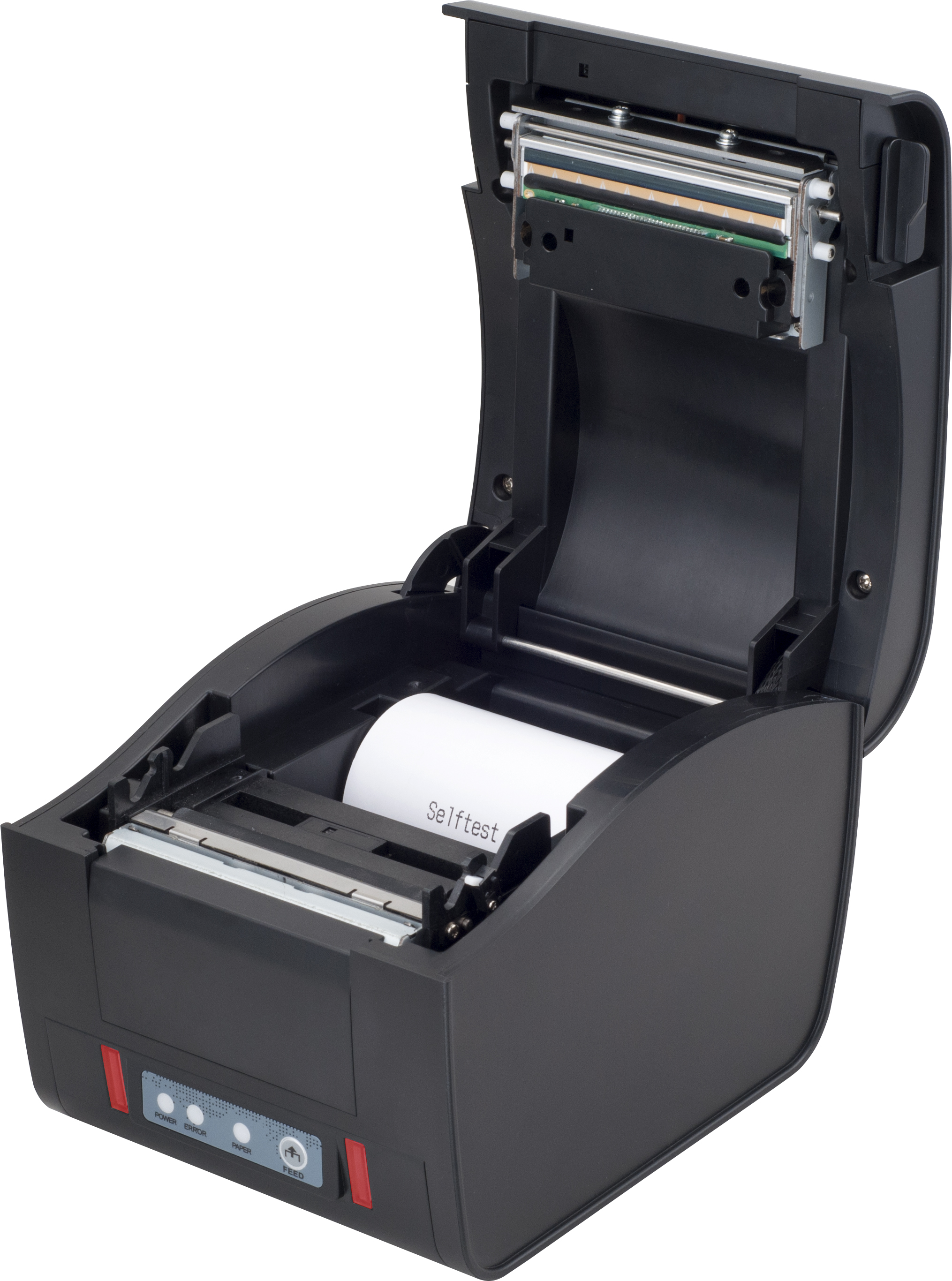

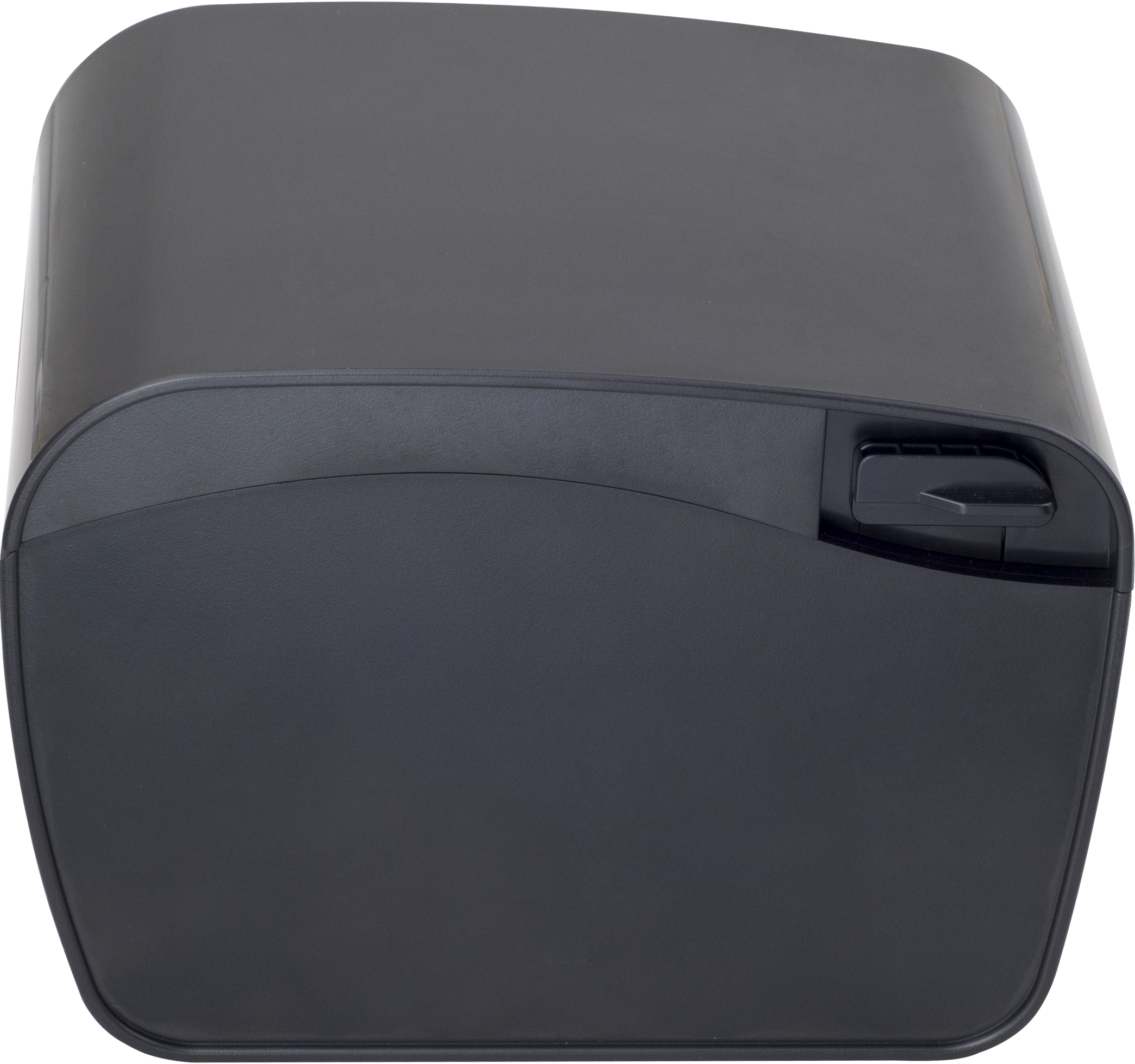

Front Paper Out 80mm Thermal Printer 230mm/s Support 2D Bar Code Printing ITPP048

Printing

Printing method

Direct thermal

Print width

76mm

Column capacity

 576 dots/line 512 dots/line (80mm)

Printing speed

230mm/s

Interface

Ethernet/USB/USB+Bluetooth 4.0(Optional)

Printing paper

79.5±0.5mm

Line spacing

3.75mm (Adjustable by commands)

Column number

80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/

Chinese,traditional Chinese - 21 columns or 24 columns

Character size

ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）

Cutter

Auto cutter

Full or partial ( Optional)

Barcode Character

Extension character sheet

PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）

Barcode types

UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128

2D code

QR Code

Buffer

Input buffer

2048k bytes

NV Flash

256k bytes

Power

Power adaptor

Input：AC 110V/220V, 50～60Hz

Power source

Output：DC 24V/2.5A

Cash drawer output

DC 24V/1A

Physical characteristics

Weight

1.84KG

Dimensions

185×140×134mm ( D×W×H)

Environmental Requirements

Work environment

Temperature (0～45)  humidity(10～80%)

Storage environment

Temperature(-10～60℃) humidity(10～80%)

Reliability

Cutter life

1million cuts

Printer head life

50KM
