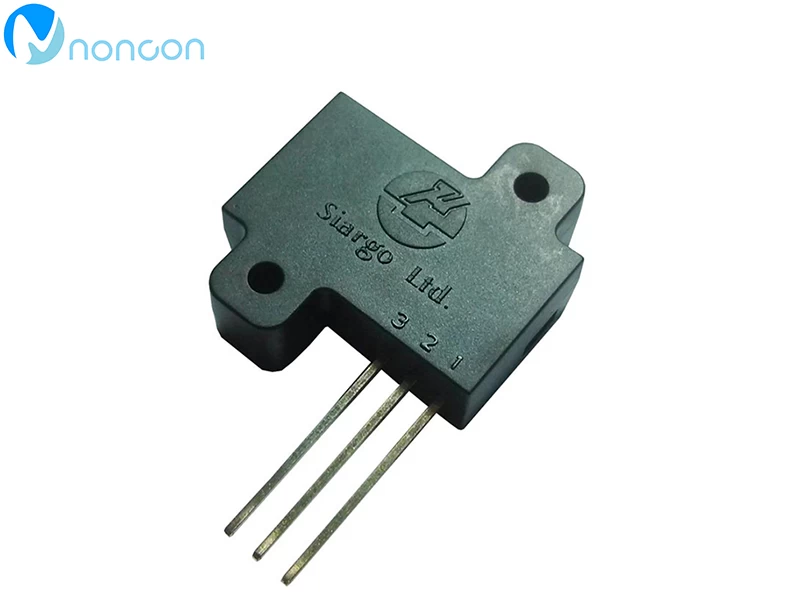

FS7002 Series Gas Mass Flow Sensors

The FS7002 mass flow rate/anti-blockage sensor is made by using the microcomputer electrical system (MEMS) flow sensor chip independently developed by our company, which is suitable for cleaning and drying gases of various general purposes.Unique packaging technology enables it to measure flow in different ranges under the same pipe diameter, mass production to ensure high reliability, high performance and low cost.



Product features

Wide range of measurement

Fast response time

Miniature design, easy to install

High sensitivity

Bidirectional measurement

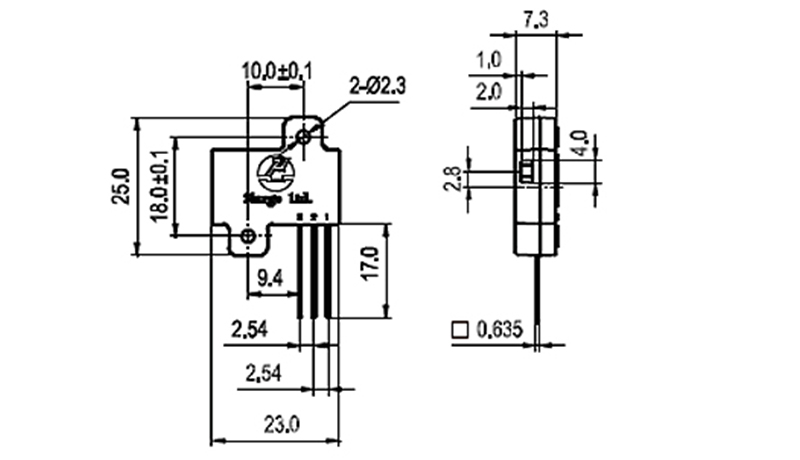

Mechanical dimensions

Gas flow sensor size


Technical parameters

Parameters

FS7002-B

FS7002-C

Unit

Flow range

0~5

0~10

m/sec

Repetitive

±3

±2

%FS

Working power

5±5%

ADC

Output way

Nonlinear analog voltage

Zero voltage

0.2~0.8

ADC

Voltage of full range

2.5~3.3

ADC

The response time

20

msec

Working temperature

-10~+70

Storage temperature

-20~+80

Working humidity

<95%RH(no ice,no frost)

Insulation resistance

Below500ADC,he insulation resistance of enclosure and pin reaches 20MΩ
