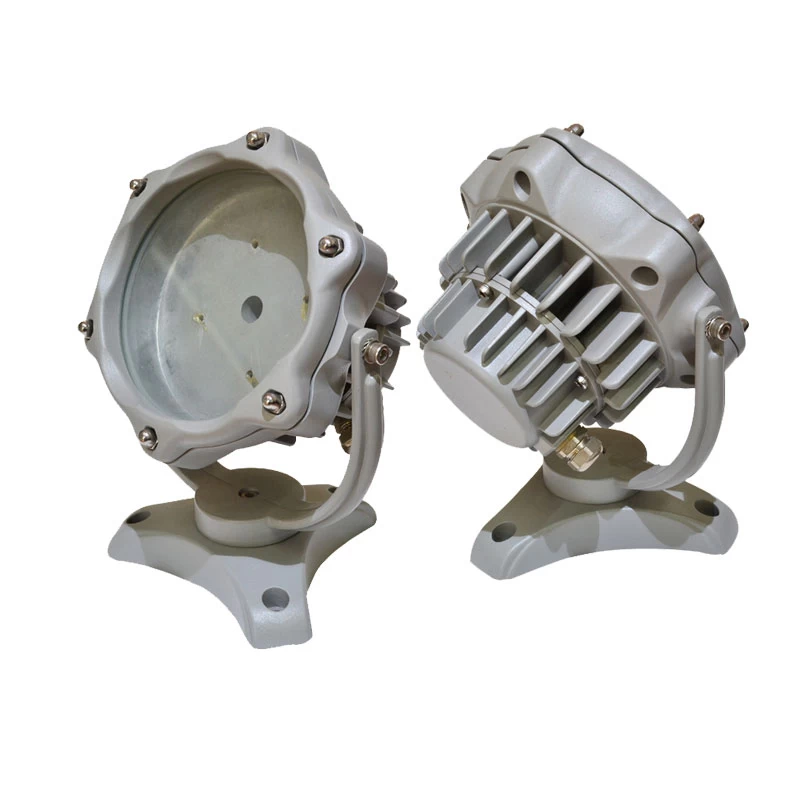

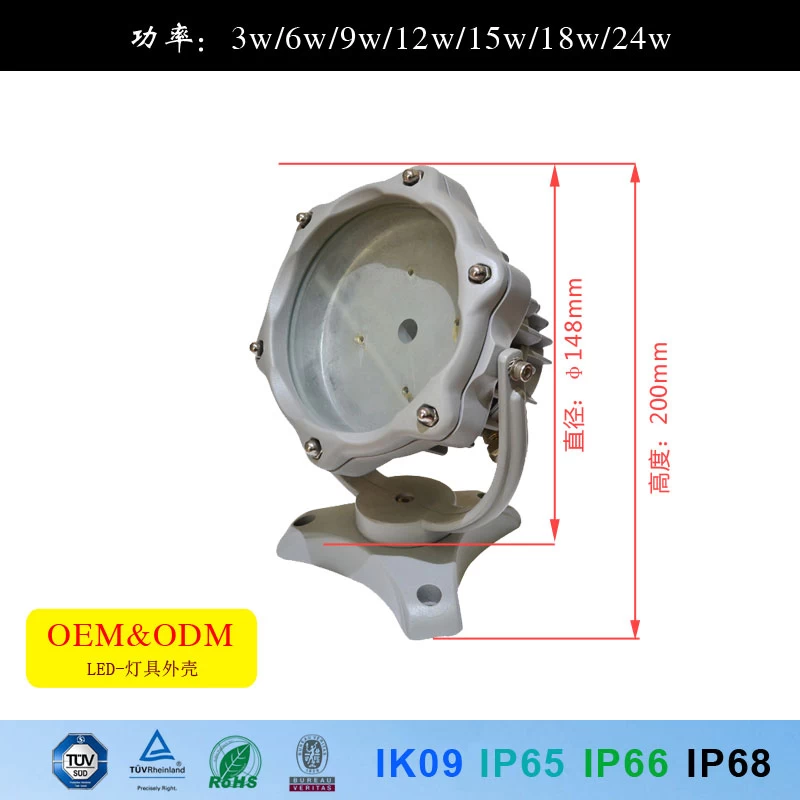

FSSZ 12v 12w Hot Products IP65 Garden Led Flood Light housing

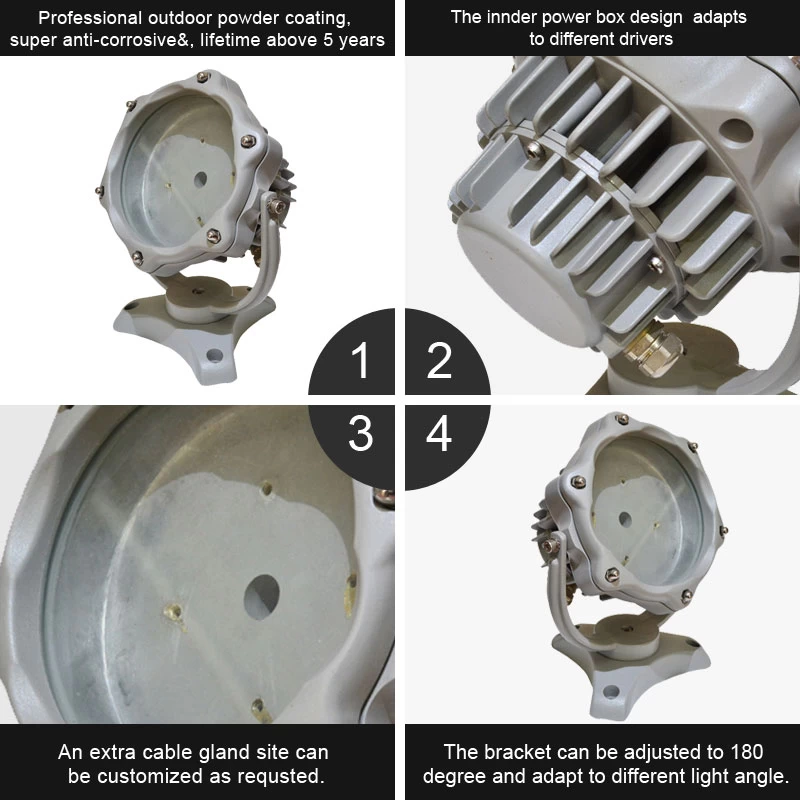

Mini Flood Light Fixture have an additional cable gland that can be customized upon request. This flood light has good heat dissipation effect and customer feedback is also good. Welcome to consult and understand.

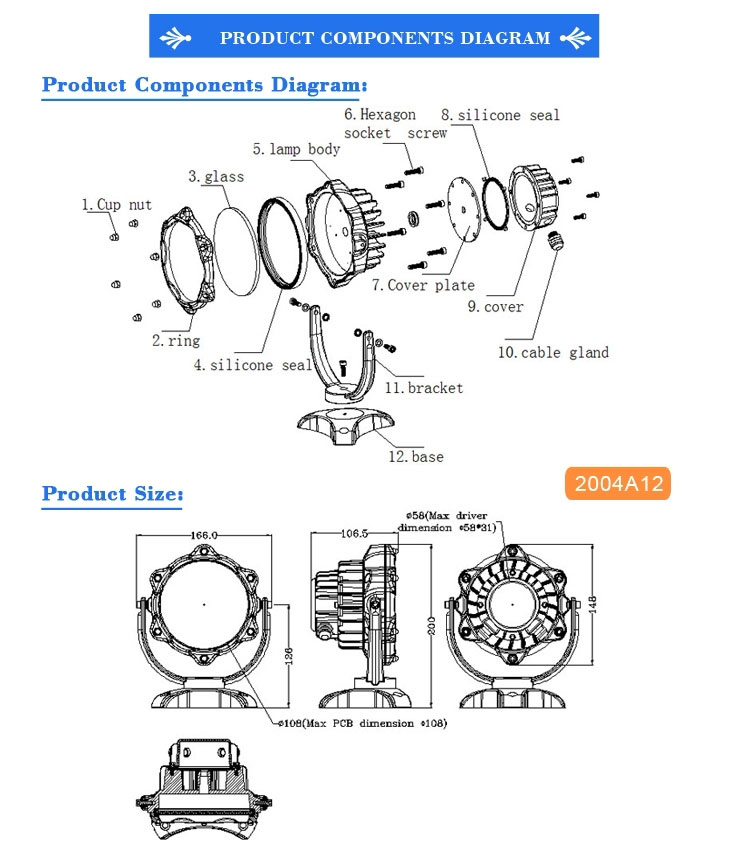

  • ComponentsLED lamp body, lens, pcb, bracket, silicone seal, cable gland, screws
  • CertificationRoHS/IK09/ISO9001/BV
  • Warranty(Year)5 Years
  • IP RatingIP66

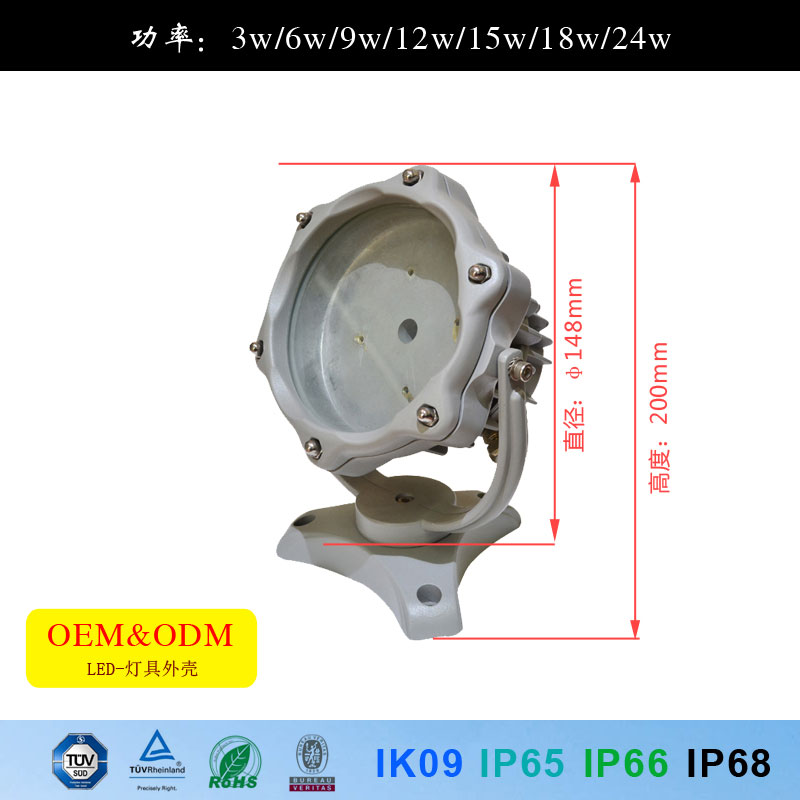

  • Size160*200*104
  • Body MaterialAluminum

Product Item:FSSZ 12v 12w Hot Products IP65 Garden Led Flood Light housing


Product Advantages:

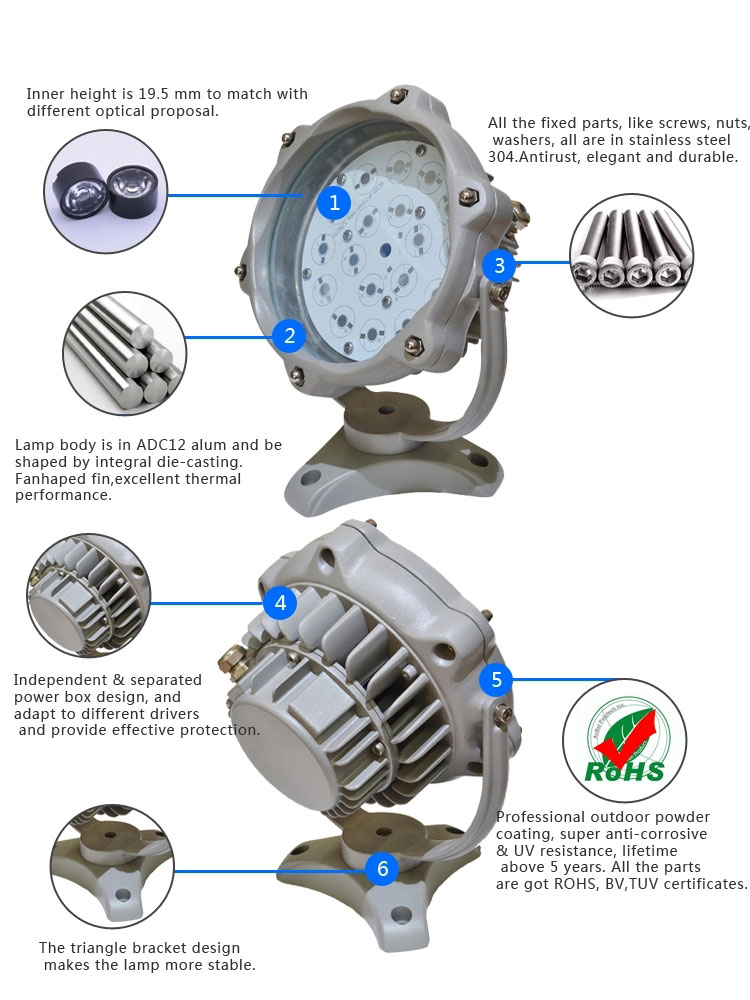

1. The small flood light lamp housing is made of environmental protection national standard ADC12 aluminum die-casting, blade design, excellent heat dissipation performance. What's more important is the use of an independent waterproof power box design, the lamp housing is more reliable and durable, and the power supply can match most international standards.

2. The internal height of the 12w flood light fixtures outdoor is 19.5mm, which can be used for different optical solutions. The triangular bracket design makes the bulb more stable. All fixing parts (eg screws, nuts, washers) are made of 304 stainless steel. Not only does it prevent rust, but also makes the whole lamp housing more beautiful and durable.


Foshan Nanhai Shunzhan Mould Lighting Metal Products Co., Ltd. has a variety of Outside Flood Light Fixtures for customers to choose from and supports customization. We continue to develop and design more LED products that are recognized by customers and different markets.

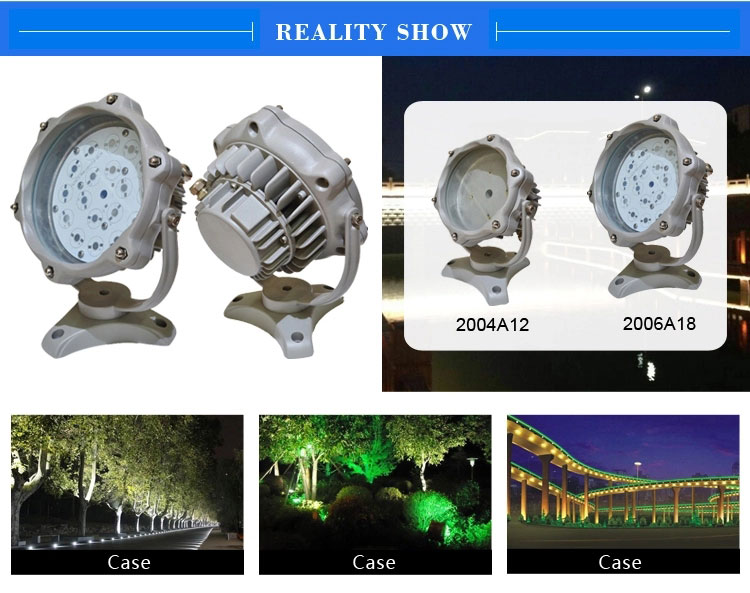

Model:
2004A12
2006A18
2005B12
2007B18
Power:
12w
18w
12w
18w
Size(mm):
160*200*104
188*229*104
150*181*104
180*209*104

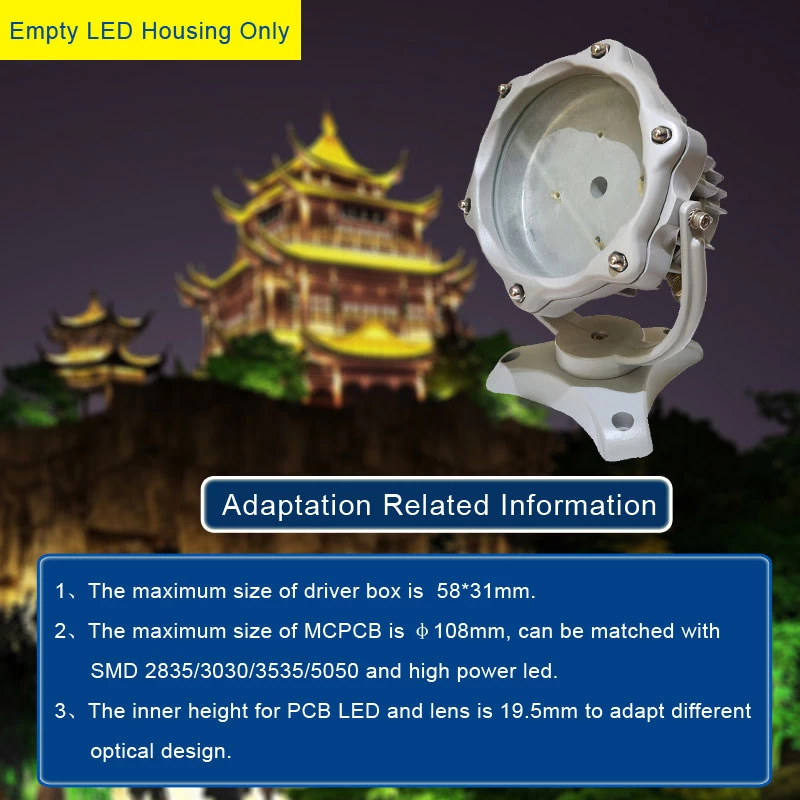

Driver box dimenison(mm):
Φ 58*31
Φ68*32
Φ 58*31
Φ68*32
PCB Area(mm):
Φ108*1.5
Φ128*1.5
Φ108*1.5
Φ128*1.5
Net Weight(kg):
1.35
1.53
1.2
1.5
Color:
Black
Certificate:
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
Warranty:
3years

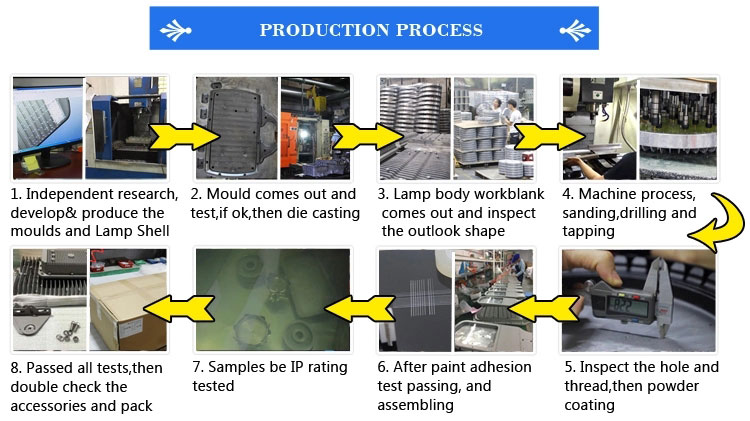

FSSZLed Flood Light FixtureFlood Light HousingWaterproof Flood LightProduct Process
