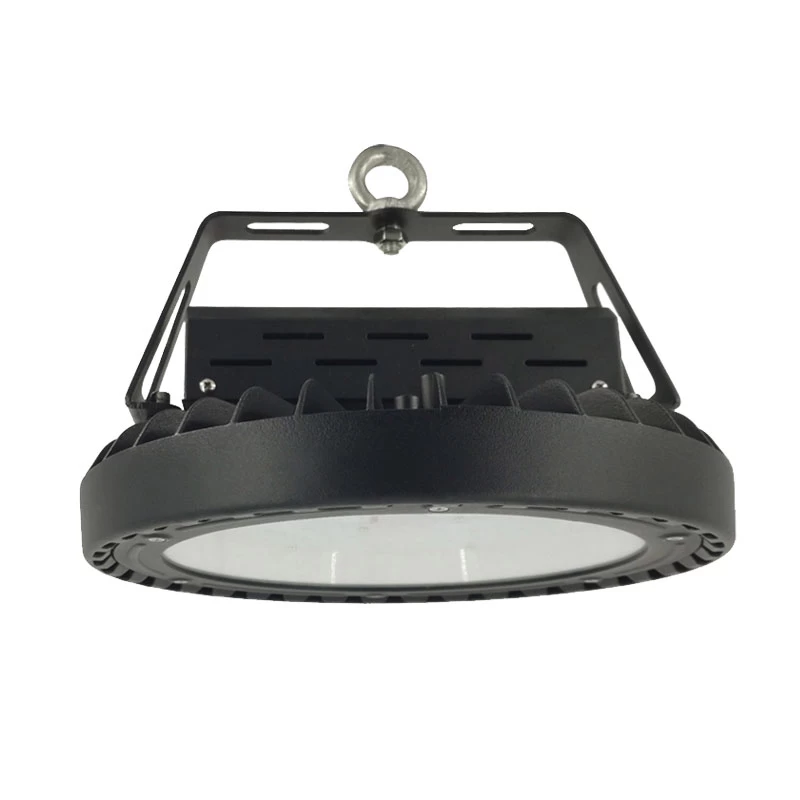

FSSZ 240w Ip65 Die Casting Led High Bay Light Fixture

240w Led High Bay Light Fixture have a waterproof rating of IP66, high-quality die-casting alum ADC12, complete equipment, favorable price, flexible design, safety and environmental protection.

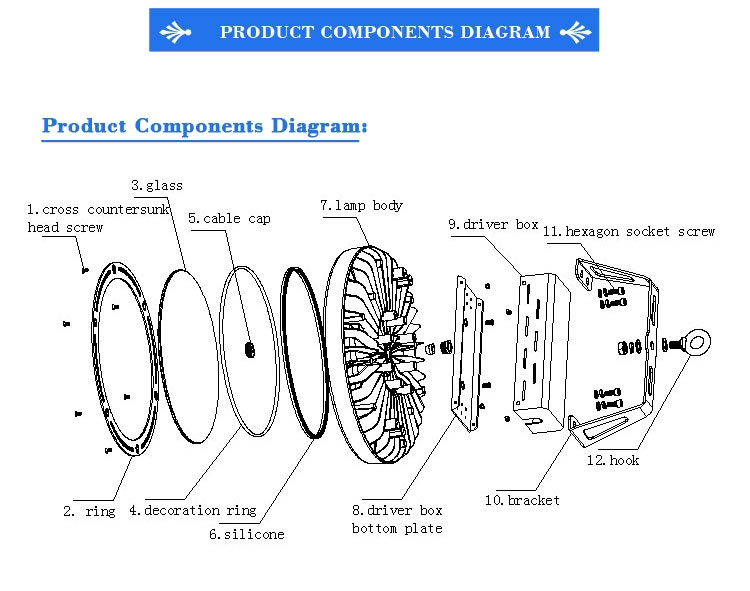

  • ComponentsLED lamp body, lens, pcb, bracket, silicone seal, cable gland, screws
  • CertificationRoHS/IK09/ISO9001/BV
  • Warranty(Year)5 Years
  • IP RatingIP66

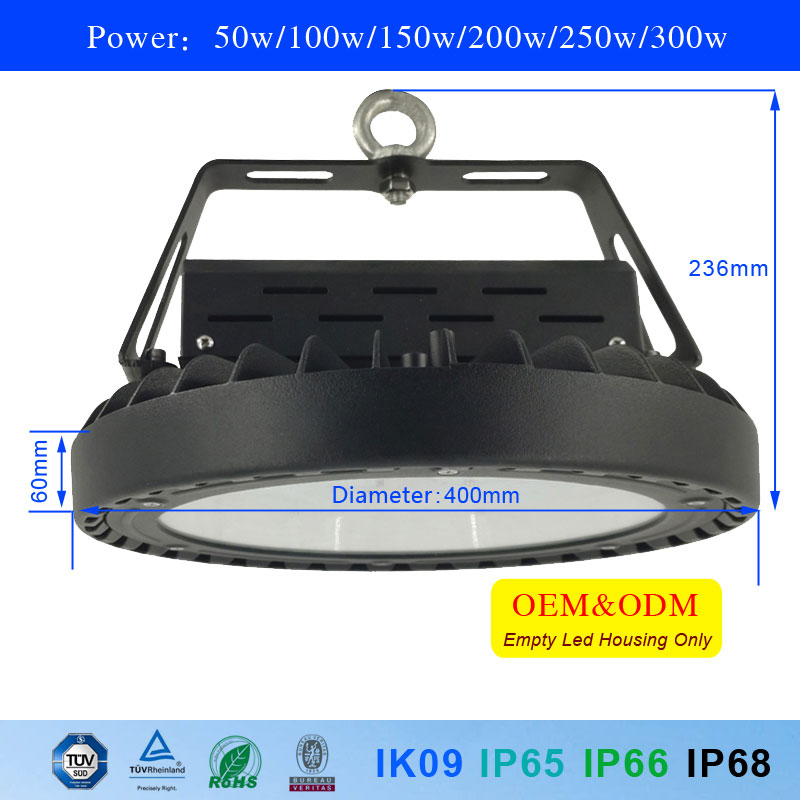

  • SizeΦ400*236
  • Body MaterialAluminum

Product Item:FSSZ 240w Ip65 Die Casting Led High Bay Light Fixture

Product Advantages:

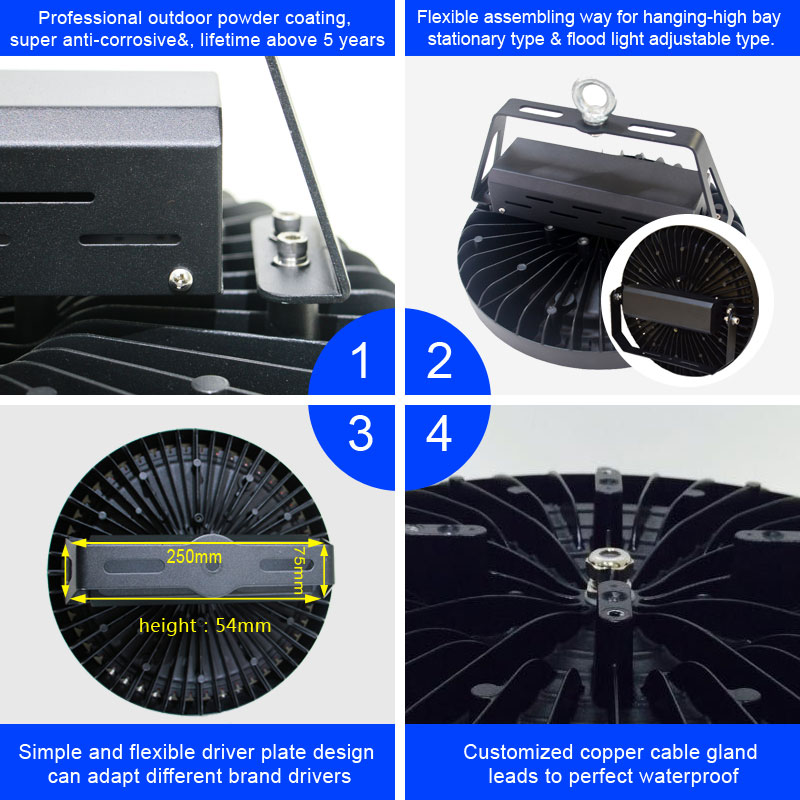

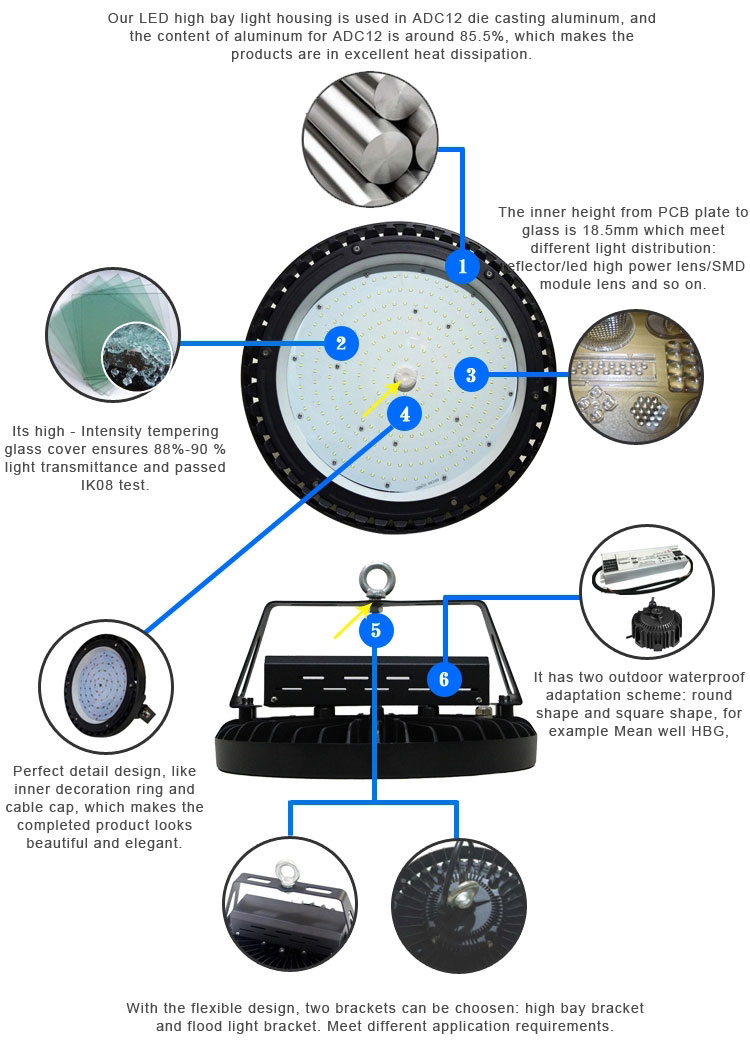

1. Environmentally friendly, no UV, no mercury and other pollutants. Two installations: Bracket and Hooking Hang for options.ADC12 aluminum integrated die-casting, fan-spinned heat dissipation fin structure heatsink design increase more airflow for better heat dissipation. Independent ventilation driver box design, adapt to different driver sources and provide effective protection. Flexible assembling way for hanging-high bay stationary type & flood light adjustable type.




2. High luminous efficacy, great heat dissipation. Longtime maintain service, up to 5 years warranty. High Luminous efficacy, the choice for Replacing best traditional. Hanging led high bay light light-transmitting surface with a diameter of 315mm improves light efficiency and enhances cost performance. The surface treatment adopts special outdoor powder spraying technology, which has strong corrosion resistance and UV resistance.

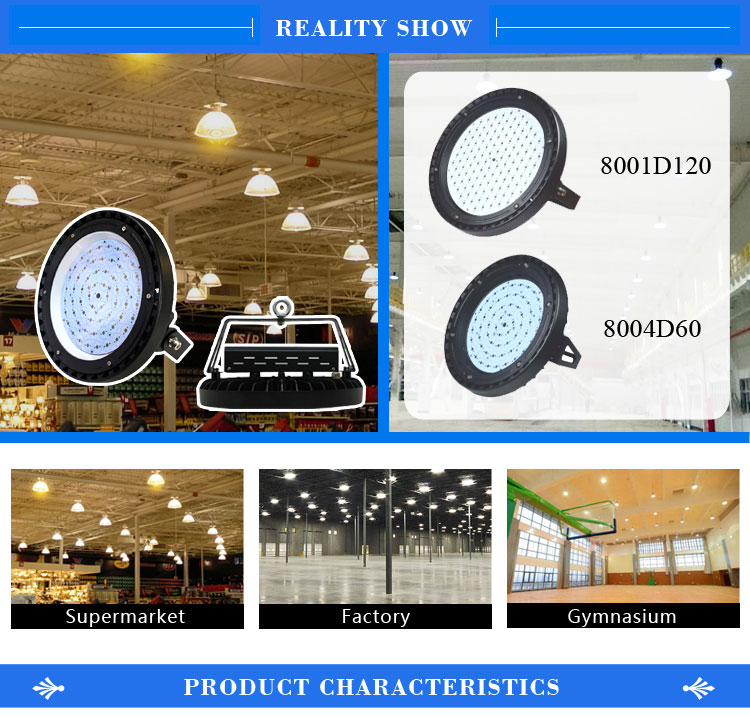

Model: 8001D120 8004D60 8006D240 8010F160-A 8010F160-B 8011F240-A 8011F240-B
Power: 120-300w 60-100w 120-300w 60-160w 60-160w 120-240w 120-240w
Size(mm):
Φ400*236
Φ310*221 430*260*230 Φ310*57.5 Φ310*72.5 Φ360*63 Φ360*74
Driver box dimenison(mm): 250*75*54 205*75*48 250*75*45 205*75*48 205*75*48 250*75*54 250*75*54
PCB Area(mm): Φ300*1.5 Φ210*1.5 323*153*1.5 Φ236*1.5 Φ236*1.5 Φ265*1.5 Φ265*1.5
Net Weight(kg): 5.8 3.29 5.8 1.68 1.68 2.17 2.17
Color: Black
Certificate: IP65,Rohs,IK09,patent,ISO9001,TUV,BV
Warranty: 3years
