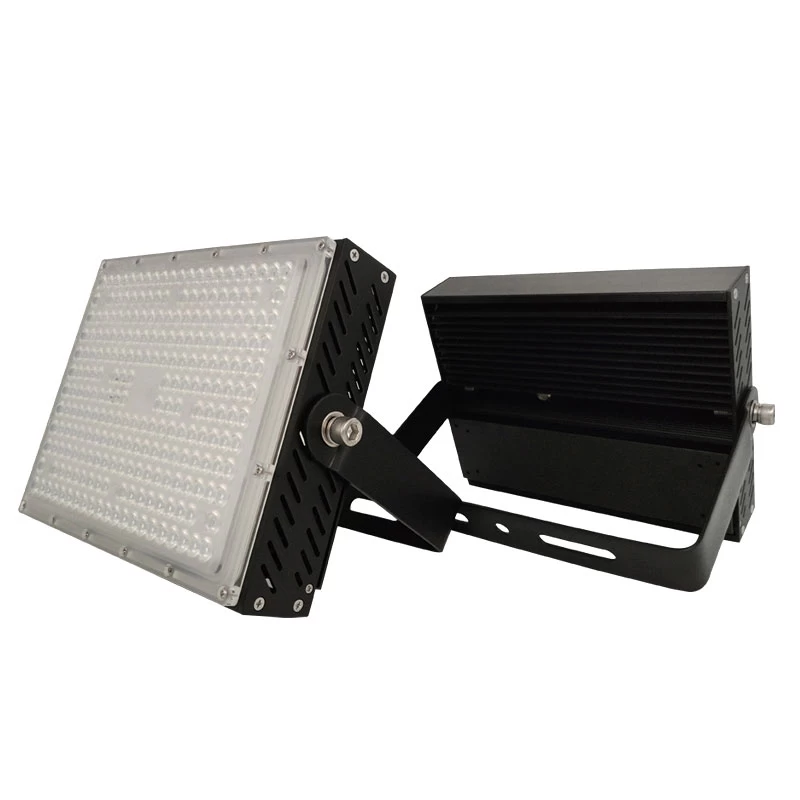

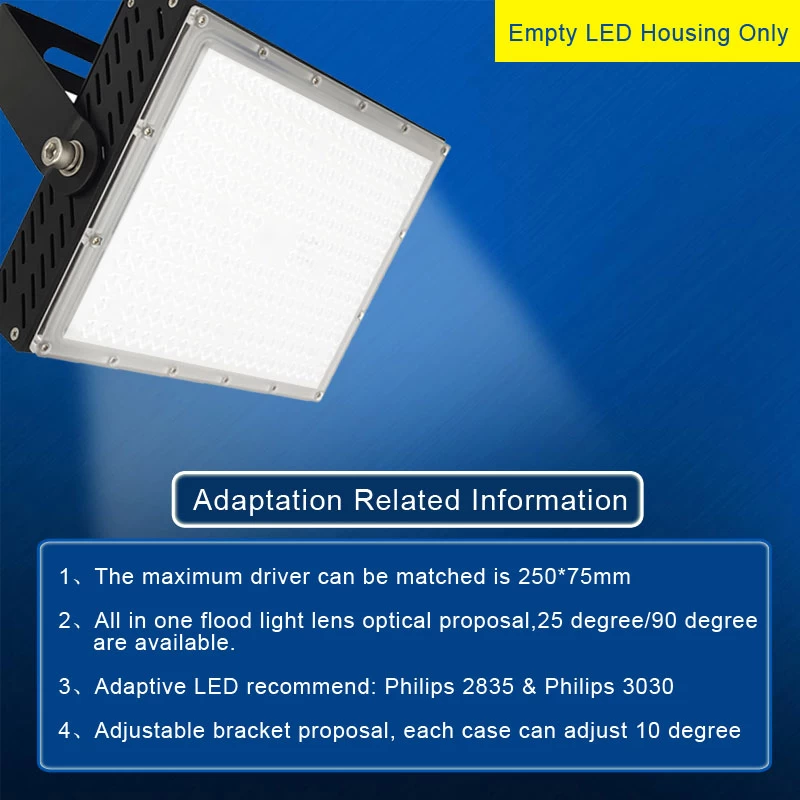

Product Item:FSSZ 300w Ip65 Die Cast Aluminum Led Flood Lamp Housing
Product Advantages:

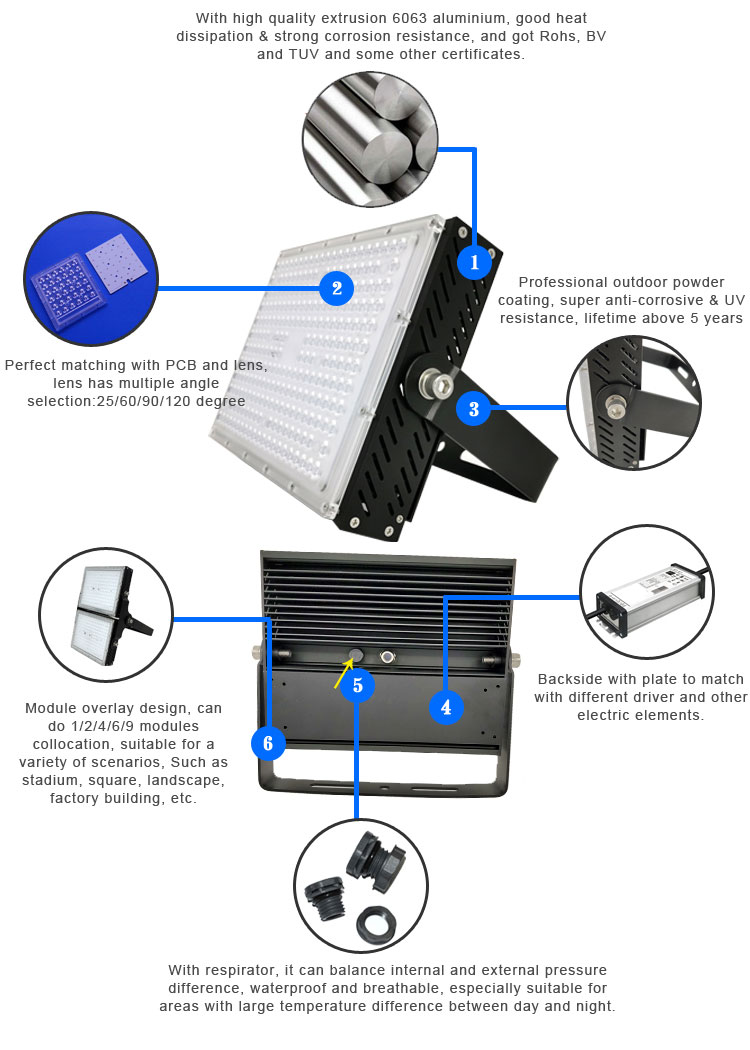

1. Led stadium light housing is
made of high-quality extruded 6063 aluminum, which is resistant to ultraviolet
rays without affecting heat dissipation performance and has strong corrosion

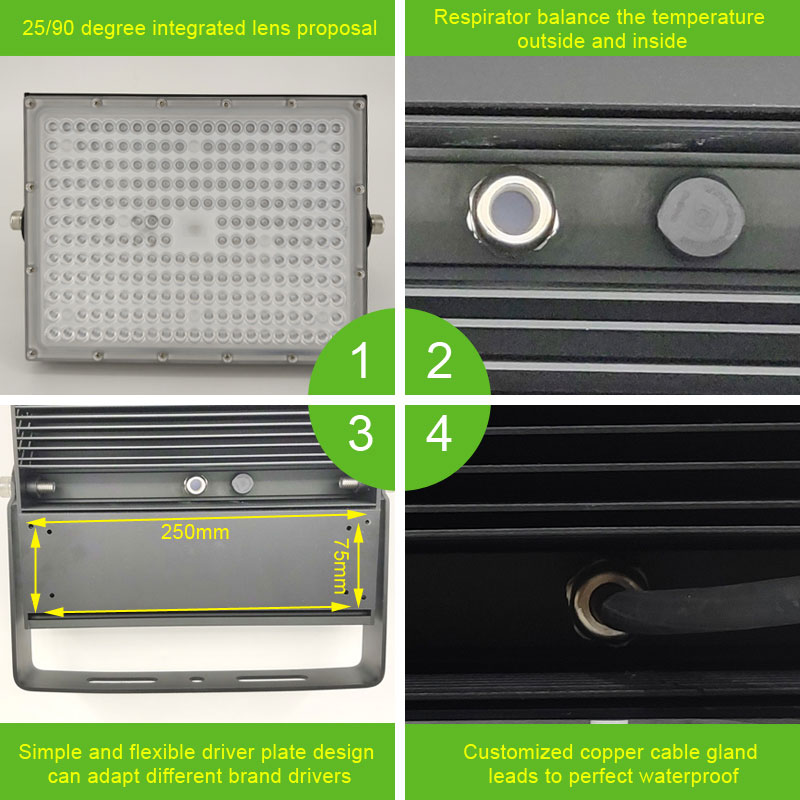

resistance. With respirator, it can balance the internal and external pressure
and temperature difference, especially suitable for areas with large
temperature difference between day and night. Integrated one-piece lens cover
(238pcs)proposal, lens has multiple angle selection:25/90 degree.
2.There are plates on the back to match different drives
and other electrical components. Professional outdoor powder coating, super
anti-corrosion, Ip65 led flood light fixture service life is more than 5 years. The module stack design can

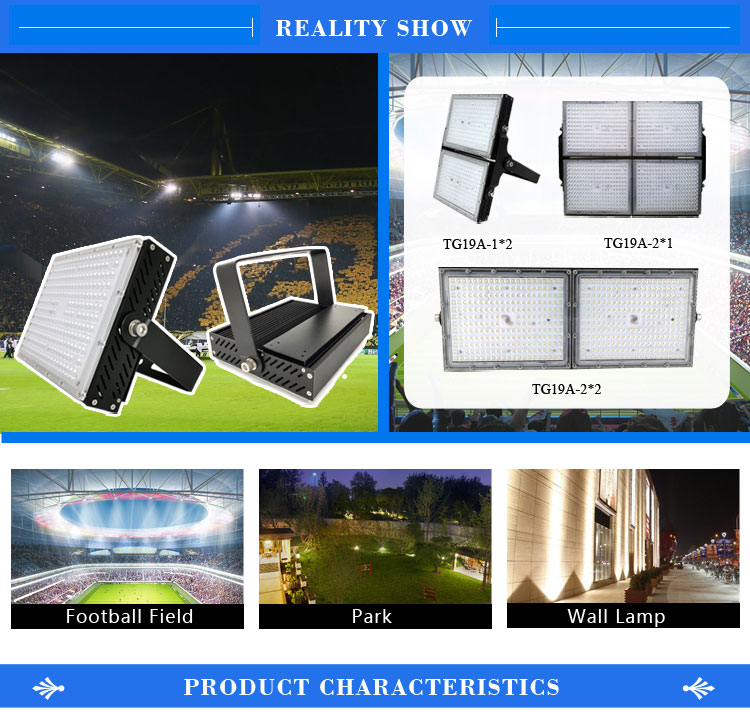

match 1/2/4/6/9 modules, suitable for various scenarios, such as stadiums,
squares, landscapes, factory buildings, etc.
|
del:
|
TG19A-1
|
TG19A-2
|
TG19A-3
|
TG19A-1X2
|
TG19A-2X2
|
TG19A-3X2
|
TG19H-3X3
|
|
Power:
|
200w
|
400w
|
600w
|
400w
|
800w
|
1200w
|
1800w
|
|

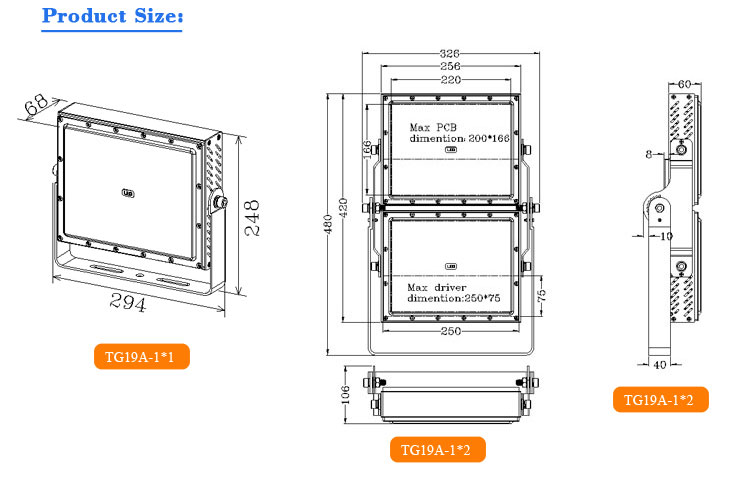

Size(mm):
|

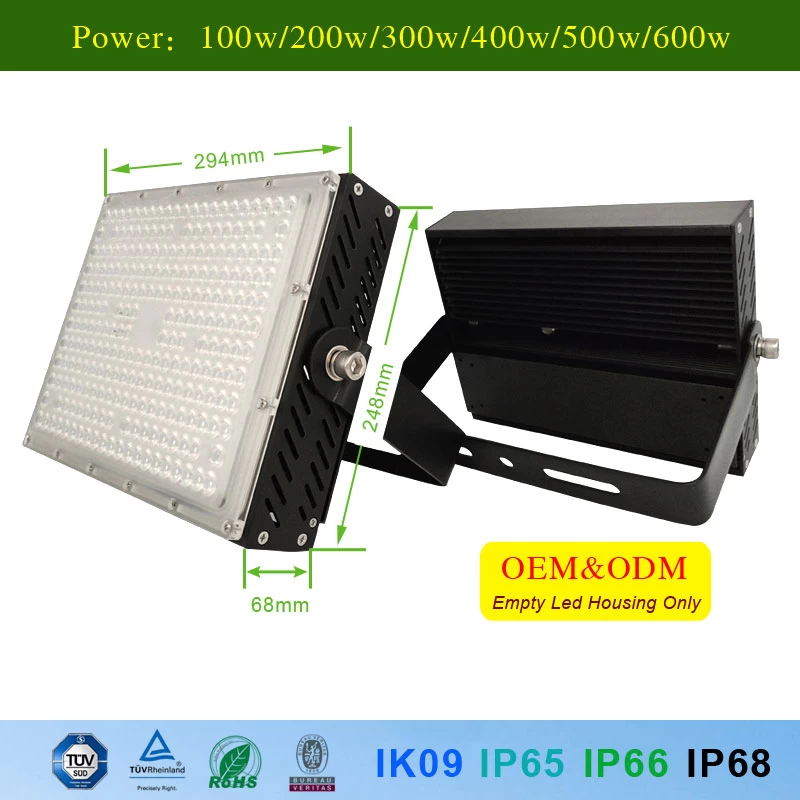

294*248*68
|
549*248*68
|
800*248*106
|
326*480*106
|
579*480*106
|
828*480*106
|
810*707*121
|
|
Driver box dimenison(mm):
|
250*75
|
|
PCB Area(mm):
|
220*166*1.5
|
|
Net Weight(kg):
|
3.6
|
7.2
|
10.8
|
14.4
|
18
|
21.6
|
25.2
|
|
Color:
|
Black
|
|
Certificate:
|
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
|
|
Warranty:
|
5years
|
