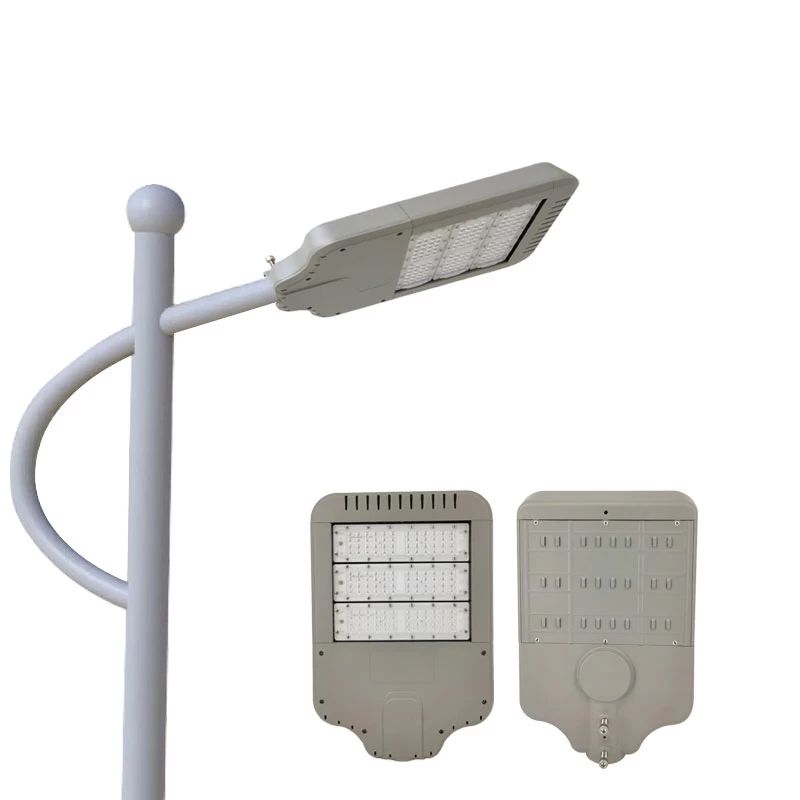

Product Item:FSSZ 60-240w Led Street Lighting Alumimum Body
Product Advantages:
Led street light company is radiator and lamp shell integrated design, LED and shell are closely linked directly through the shell heat sink and air convection cooling, fully guaranteed the life of LED lights 50,000 hours.
Led street light housing manufacturers all-aluminum modular cooling technology, and protection class IP65, high cost-effective. 50W / 100W / 150W / 200W /250w/300/350Wavailable options.
|
Model:
|
LF18-1
|
LF18-2
|
LF18-3
|
LF18-4
|
LF18-5
|
LF18-6
|
|
Power:
|
30-50w
|
60-100w
|
90-150w
|
120-200w
|
150-250w
|
180-300w
|
|

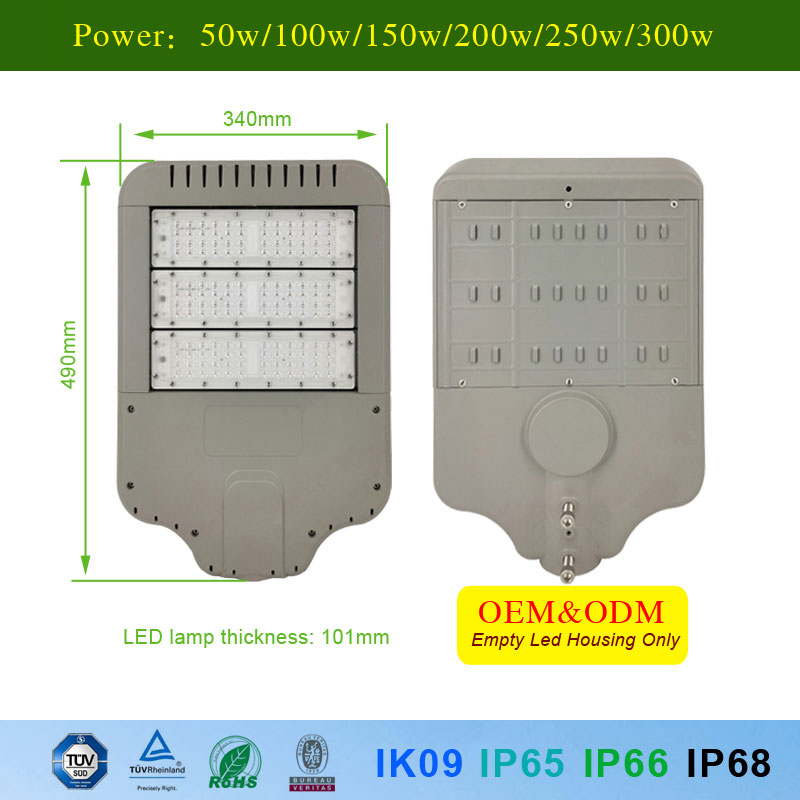

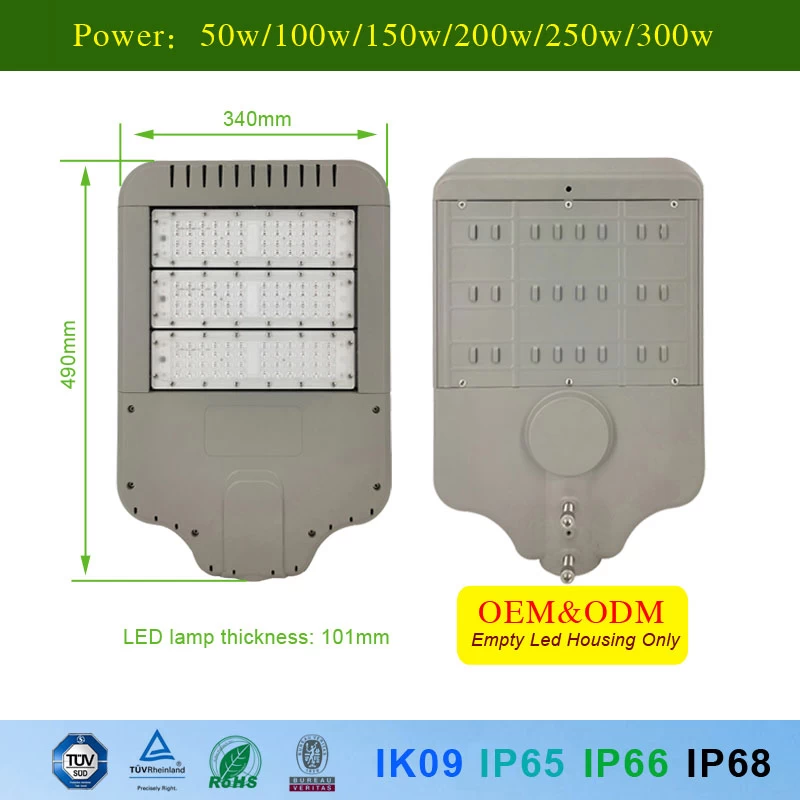

Size(mm):
|
369*340*101
|
426*340*101
|
499*340*101
|
572*340*101
|
645*340*101
|
718*340*101
|
|
Driver box dimenison(mm):
|
290*102*53
|
|
PCB Area(mm):
|
300*70*40
|
300*70*40
|
300*70*40
|
300*70*40
|
300*70*40
|
300*70*40
|
|
Net Weight(kg):
|
3.0
|
3.66
|
4.1
|
4.6
|
5.0
|
5.46
|
|
Color:
|
White,Grey
|
|
Certificate:
|
IP67,Rohs,IK09,patent,ISO9001,TUV,BV
|
|
Warranty:
|
5years
|
