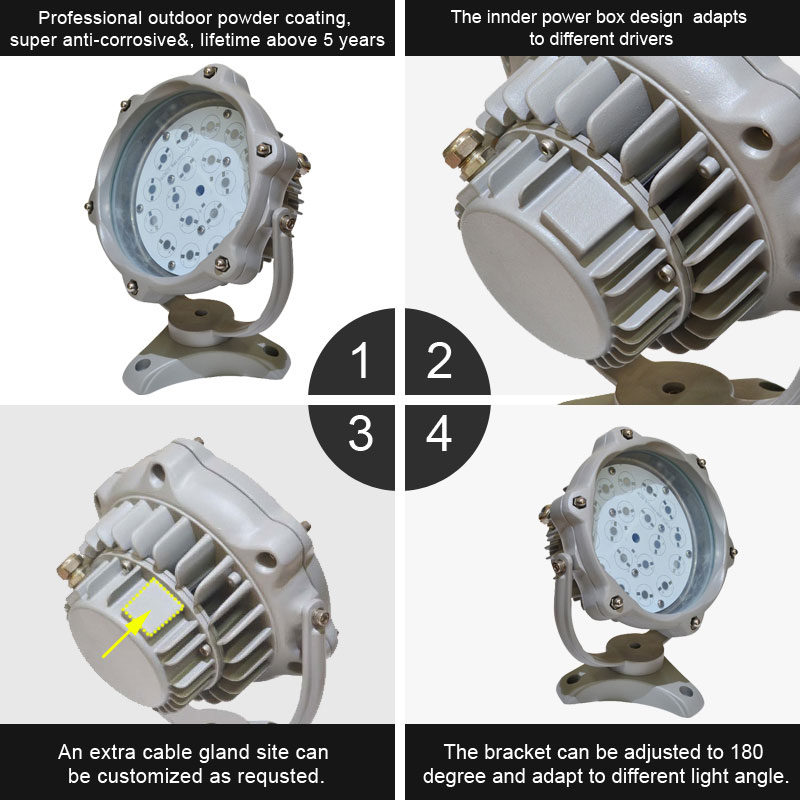

FSSZ Customizable Outdoor Ip66 3w Led Flood Light Housing
3w led flood light fixture is a new style green energy saving led lighting, we offer 5 years warranties

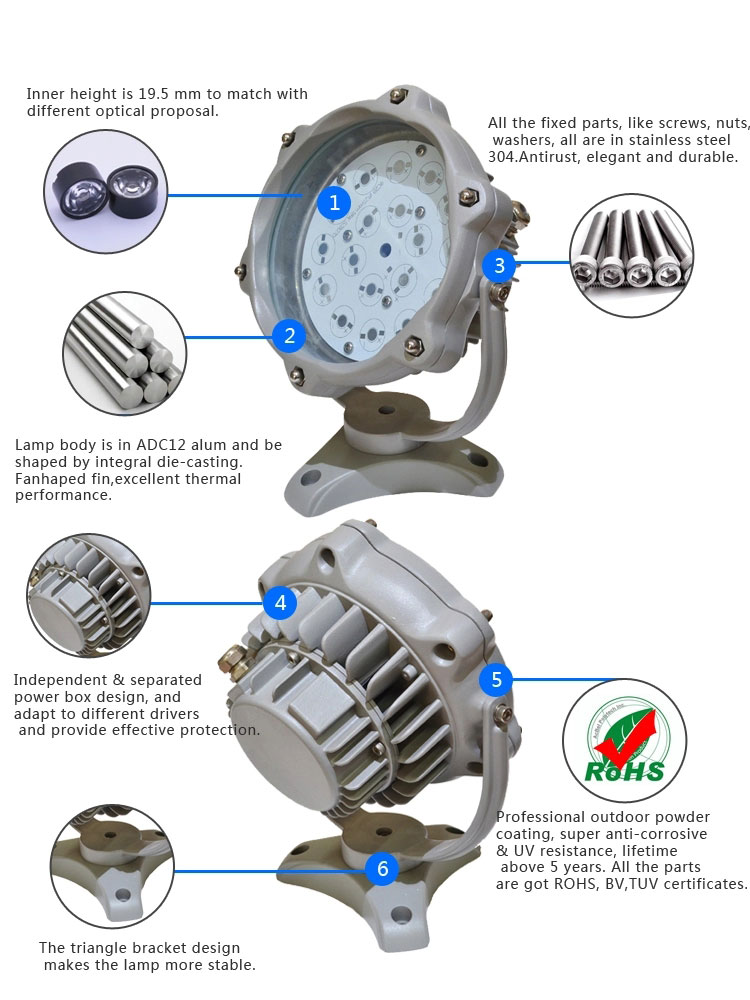

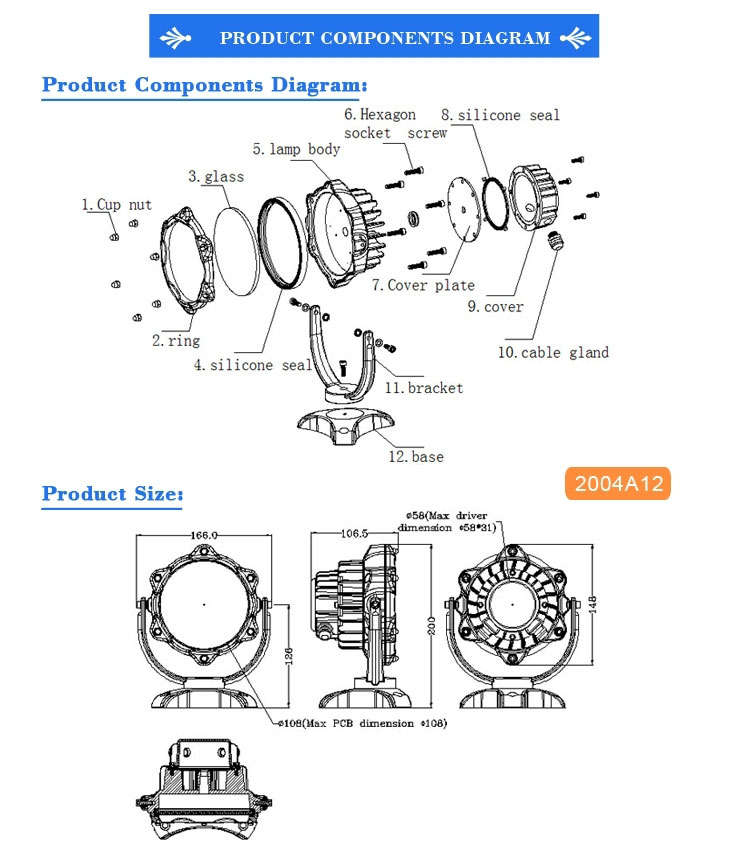

- ComponentsLED lamp body, lens, pcb, bracket, silicone seal, cable gland, screws
- CertificationRoHS/IK09/ISO9001/BV
- Warranty(Year)5 Years
- IP RatingIP66

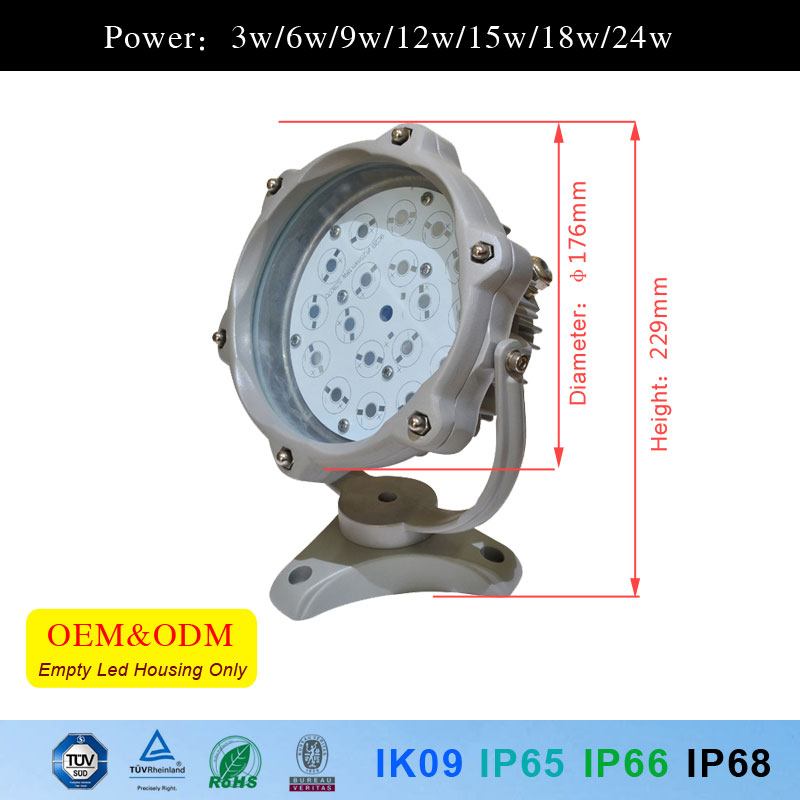

- Size188*229*104
- Body MaterialAluminum
Product Item:FSSZ Customizable Outdoor Ip66 3w Led Flood Light Housing
Product Advantages:
3w led flood light integrate led lighting source and the cover of the light, the advantages are no needing extra cover, the volume is small and the weight of the body is light. Which make the led light perfect.
3w led flood light use high heat conduction aluminum alloy as material of 3w flood light fixtures outdoor body, high heat conducting efficiency;using high efficiency thermal conductivity silicon, it’s assured the heat sink of the light, the temperature of the junction is not pass 65 ℃, which is effective controlled the light degradation, the lifespan for the led light is over 50000 hours.
Foshan Nanhai Shunzhan Mould Lighting Metal Products Co., Ltd. has a variety of Outside Flood Light Fixtures for customers to choose from and supports customization. We continue to develop and design more LED products that are recognized by customers and different markets.

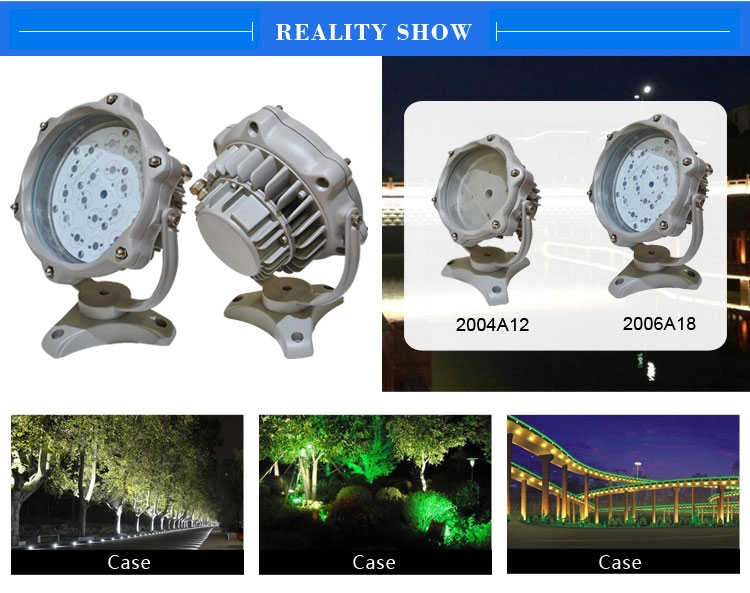

Model:
|
2004A12
|
2006A18
|
2005B12
|
2007B18
|
Power:
|
12w
|
18w
|
12w
|
18w
|
Size(mm):
|
160*200*104
|
188*229*104
|
150*181*104
|
180*209*104
|

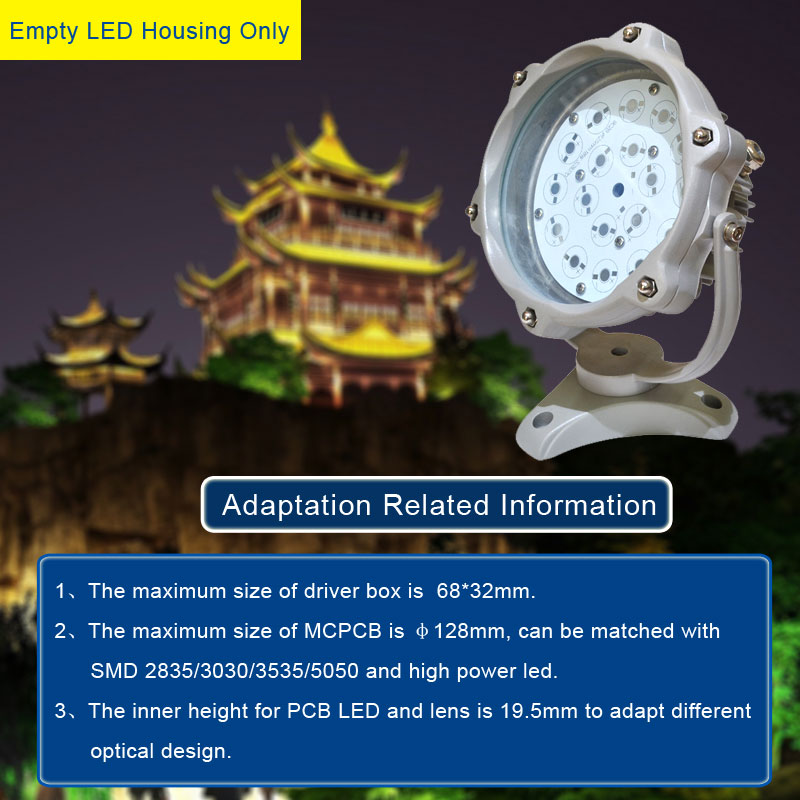

Driver box dimenison(mm):
|
Φ 58*31
|
Φ68*32
|
Φ 58*31
|
Φ68*32
|
PCB Area(mm):
|
Φ108*1.5
|
Φ128*1.5
|
Φ108*1.5
|
Φ128*1.5
|
Net Weight(kg):
|
1.35
|
1.53
|
1.2
|
1.5
|
Color:
|
Black
|
|||
Certificate:
|
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
|
|||
Warranty:
|
3years
|
