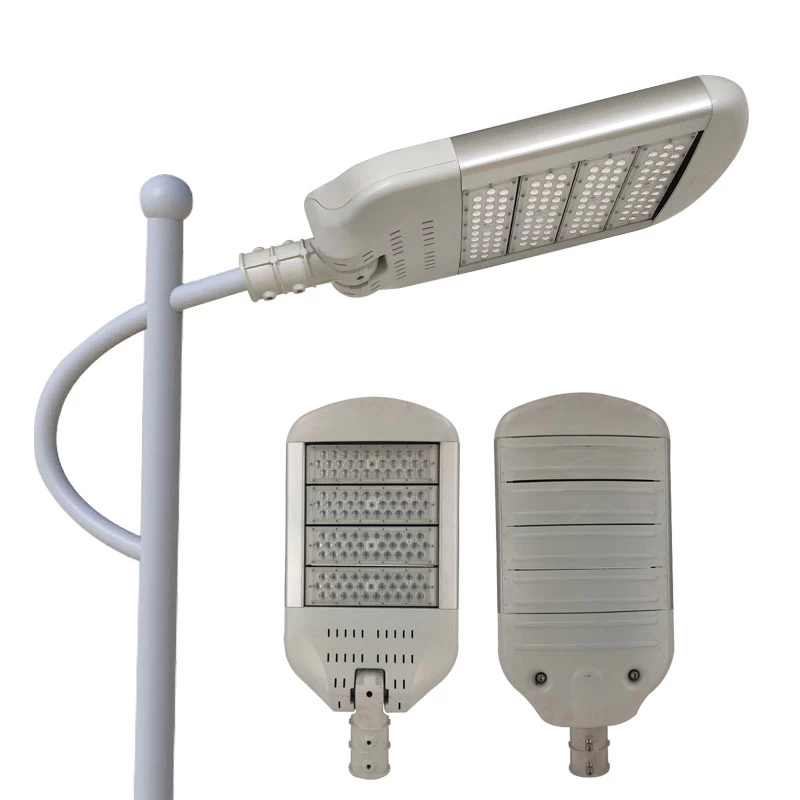

FSSZ Ip65 200w Modular Design Led Street Light Housing

Die Casting Led Street Lights Housing high finish appearance, smooth surface roughness is Ra1.6 after machining.

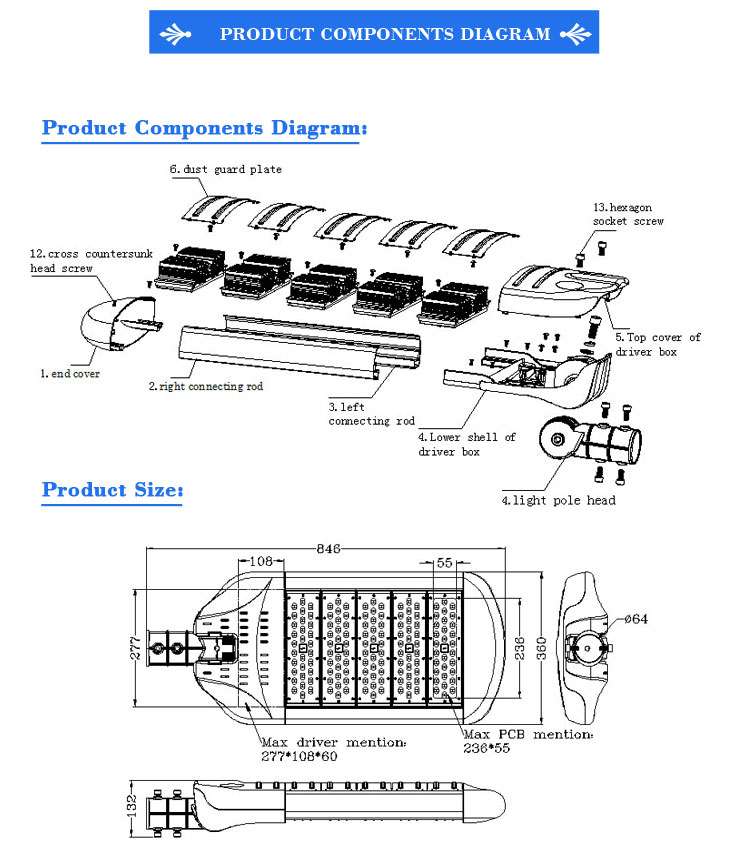

  • ComponentsLED lamp body, lens, pcb, bracket, silicone seal, cable gland, screws
  • CertificationRoHS/IK09/ISO9001/BV
  • Warranty(Year)5 Years
  • IP RatingIP66
  • Size762*360*132
  • Body MaterialAluminum

Product Item: FSSZ Ip65 200w Modular Design Led Street Light Housing

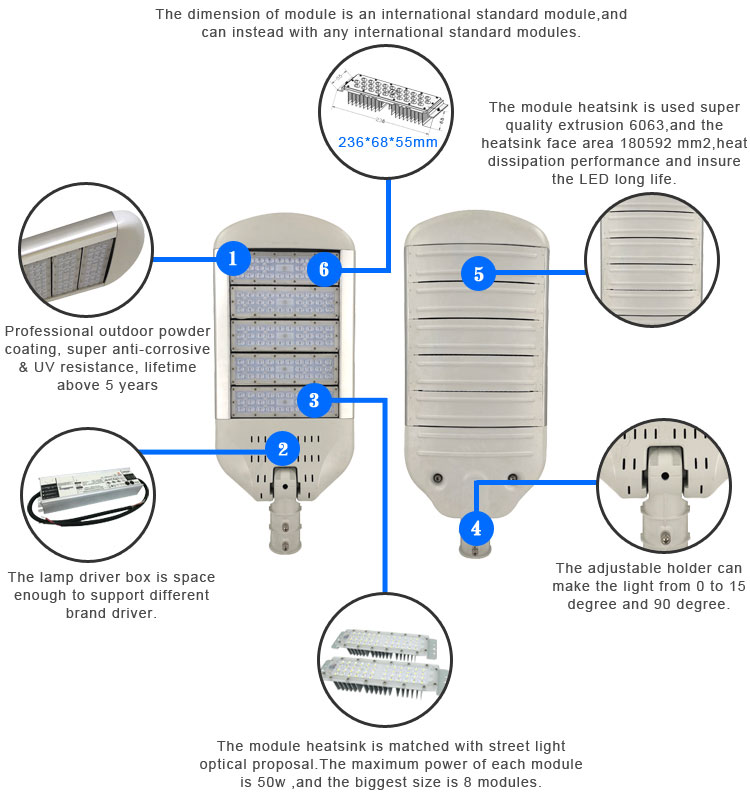

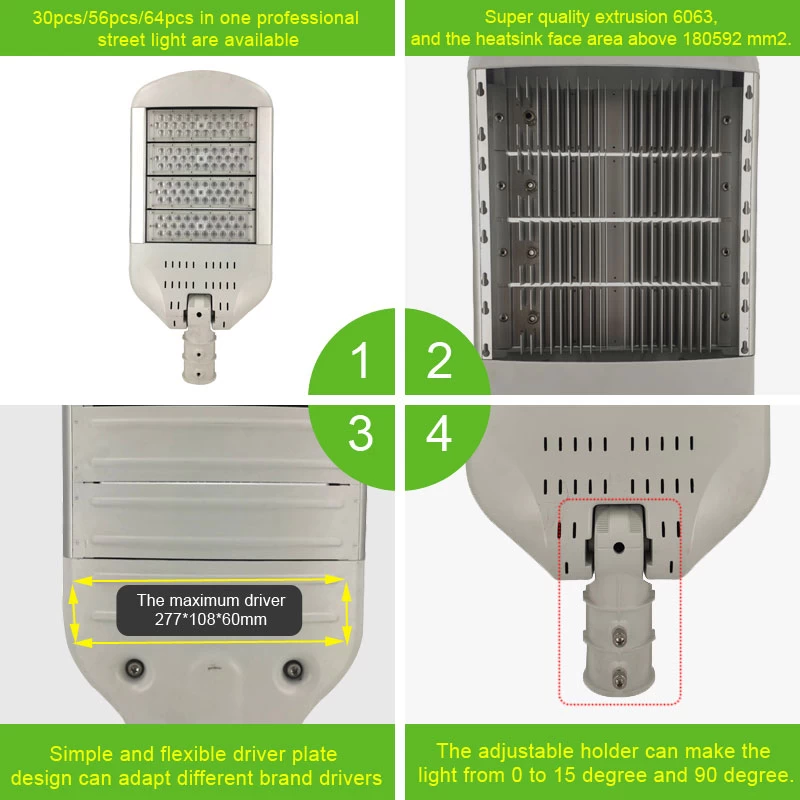

Modular design led street light housing is made of rugged die-cast aluminum with internal led driver compartment and high-performance heat sink.

200 watt led street light housing uses powder coating technology, has excellent corrosion resistance, uv resistance and wear resistance. The standard is gray, black and white.




Model:
LE17-2
LE17-3
LE17-4
LE17-5
LE17-6
Power:
60w-100W
90w-150W
120w-200W
150w-250W
180w-300W

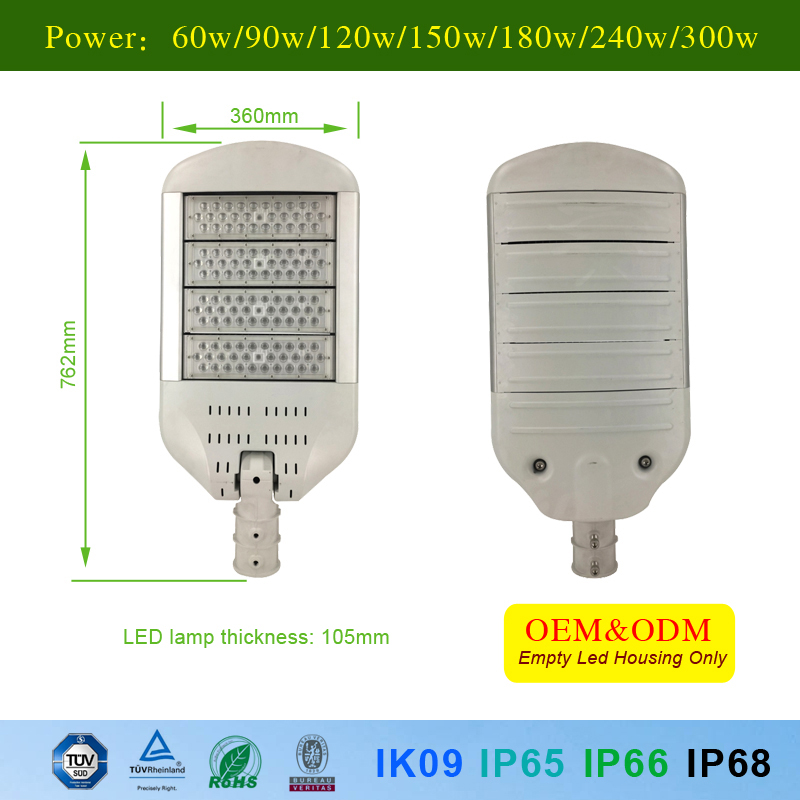

Size(mm):
595*360*132
679*360*132
762*360*132
846*360*132
931*360*132
Driver box dimenison(mm):
270 *108*60
PCB Area(mm):
236*55*1.5
Net Weight(kg):
5.05
5.99
7.1
8.6
9.7
Color:
Black,Gray
Certificate:
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
Warranty:
3years


IP65 Outdoor LED Street Light Rohs Led Street Lamp

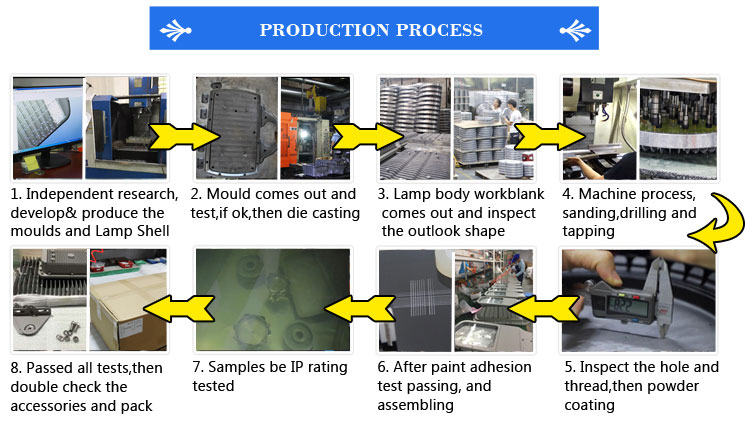

UV Resistant Lighting HousingProduct Process
