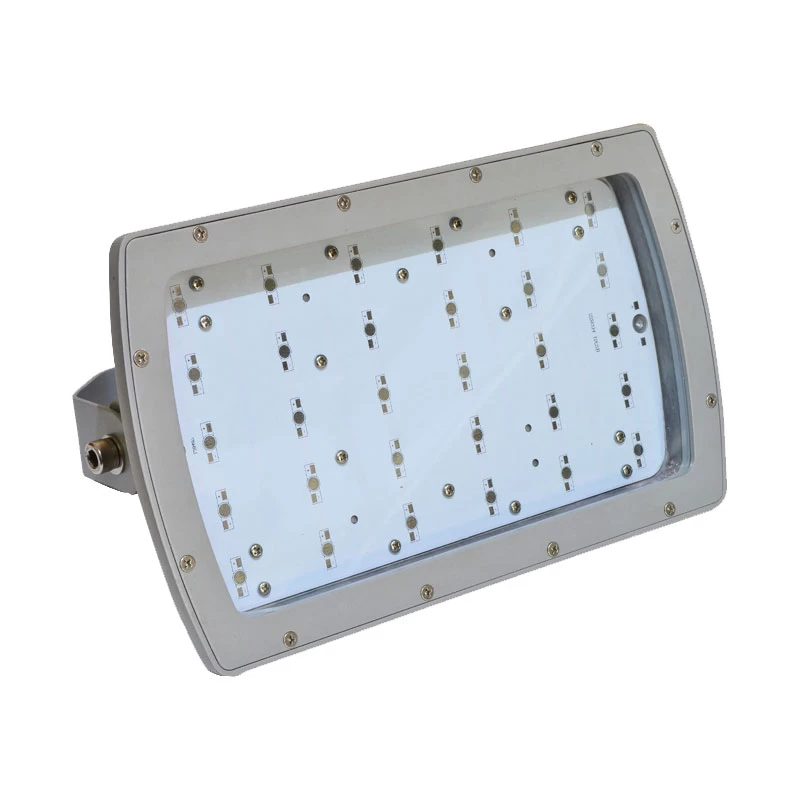

Product Item:FSSZ Ip66 30w Grey Die Casting Aluminum Empty Led Tunnel Light Fixtures
Product Advantages:

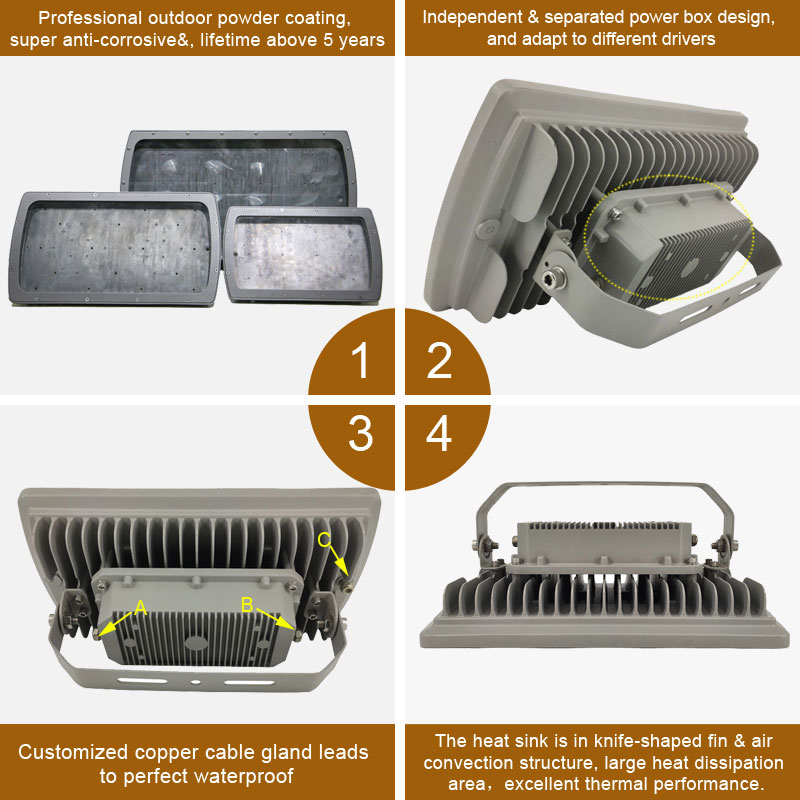

1.The black led tunnel light housing body adopts environmental
protection national standard ADC12 aluminum integrated die-casting molding,
blade type convection heat dissipation design, excellent heat dissipation
performance. Independent separate waterproof power box design, reliable and
durable, power supply matching. The led tunnel light housing 30w porous bracket is used for easy installation and simple and practical adjustment.
2.With large transmitting area to
improve the light efficiency, and inner height is 18.5mm to match with
different optical proposal.All fixing parts, such as screws, nuts, washers,are
made of 304 stainless steel. Rust-proof, beautiful and durable. The surface
treatment adopts special outdoor powder spraying technology, which has strong
corrosion resistance and UV resistance. 30w led tunnel light housing warranty up to 5 years.
|
Model:
|
3001G30
|
3002G60
|
3003G100
|
|
Power:
|
30w
|
60w
|
100w
|
|

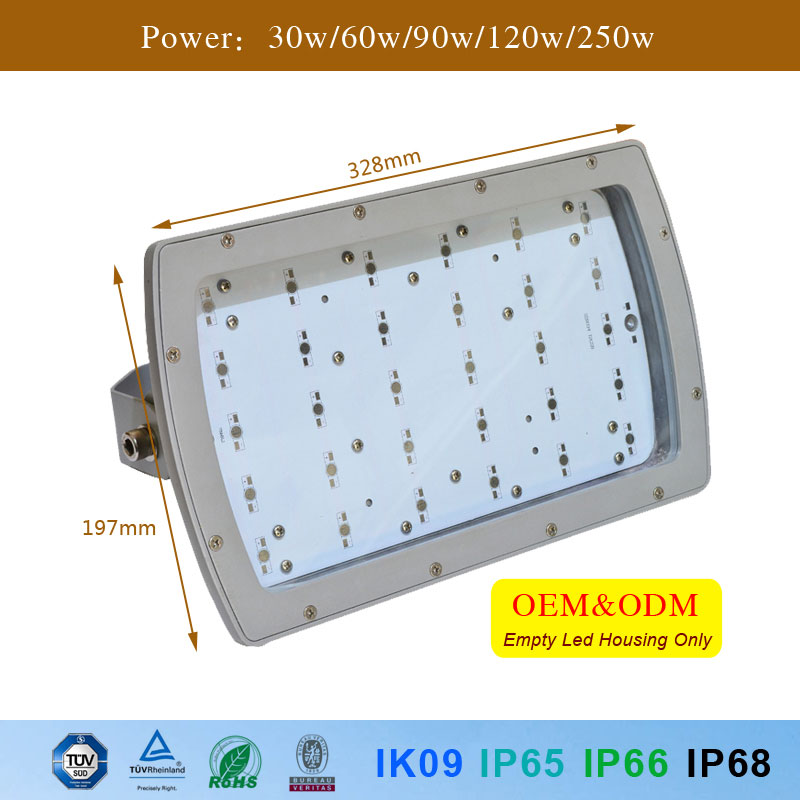

Size(mm):
|
328*198*178
|
437*237*200
|
561*329*236
|
|

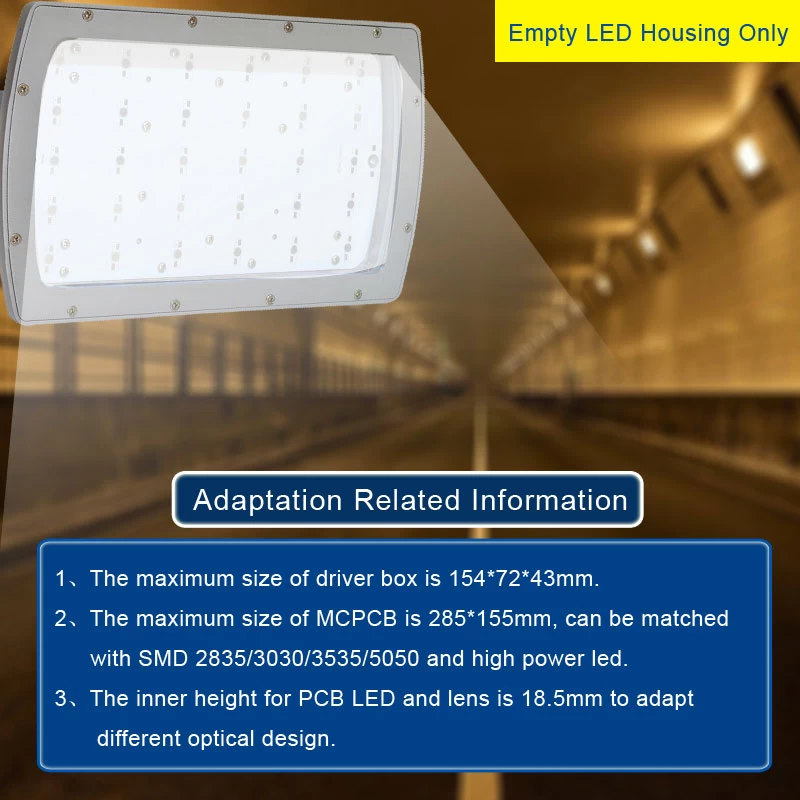

Driver box dimenison(mm):
|
154*72*43
|
217*97*44.5
|
240*130*45.5
|
|
PCB Area(mm):
|
285*155*1.5
|
395*195*1.5
|
517*285*1.5
|
|
Net Weight(kg):
|
3.2
|
4.95
|
9.5
|
|
Color:
|
Black
|
|
Certificate:
|
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
|
|
Warranty:
|
3years
|
