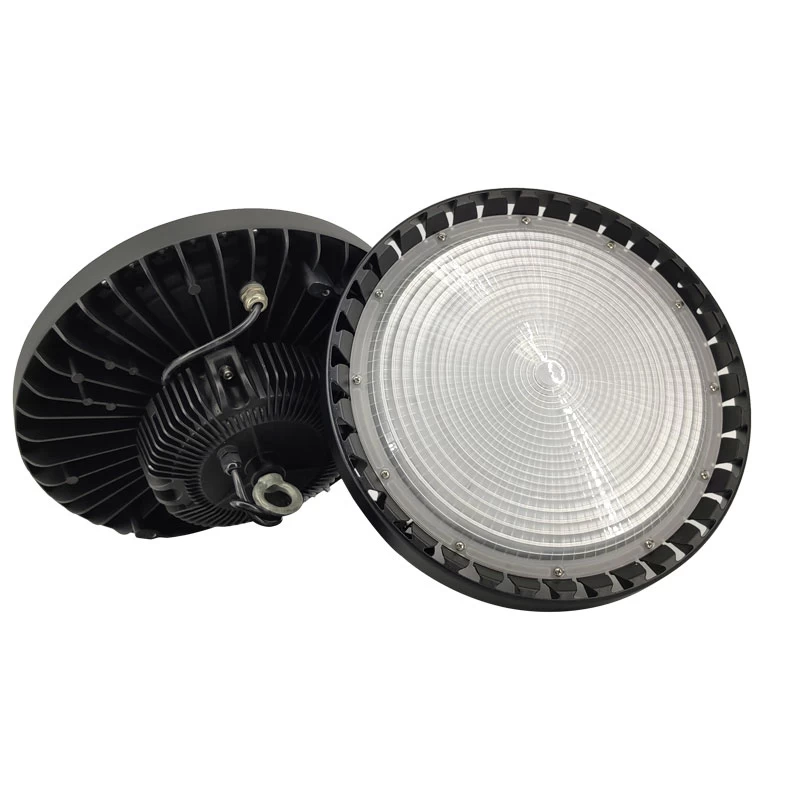

Product Item:FSSZ IP66 Aluminium Led High Bay Lamp Empty Housing

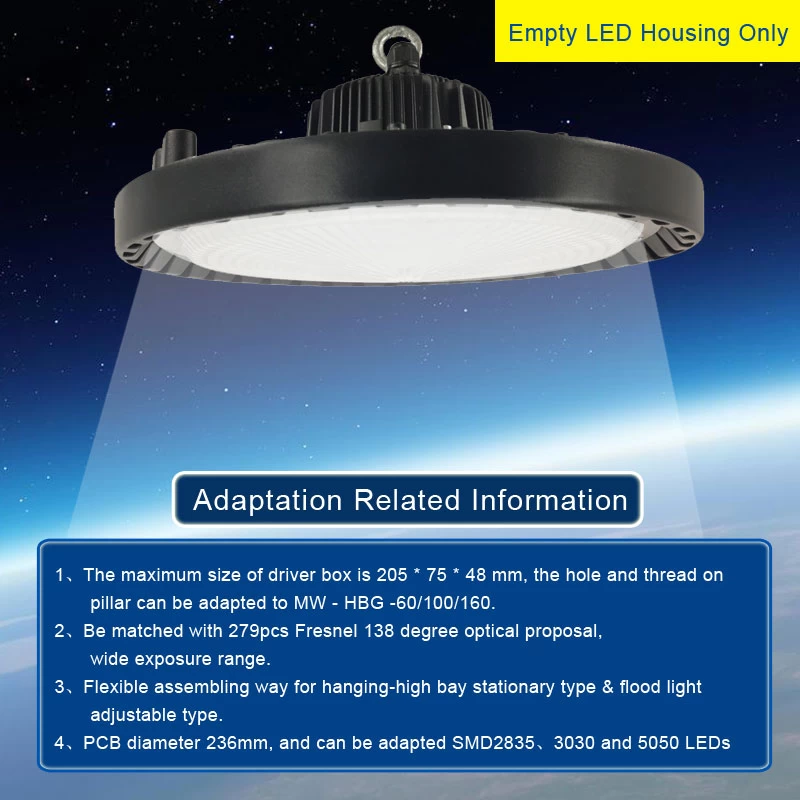

Led High Bay Lamp Empty Housing Adaptation details:

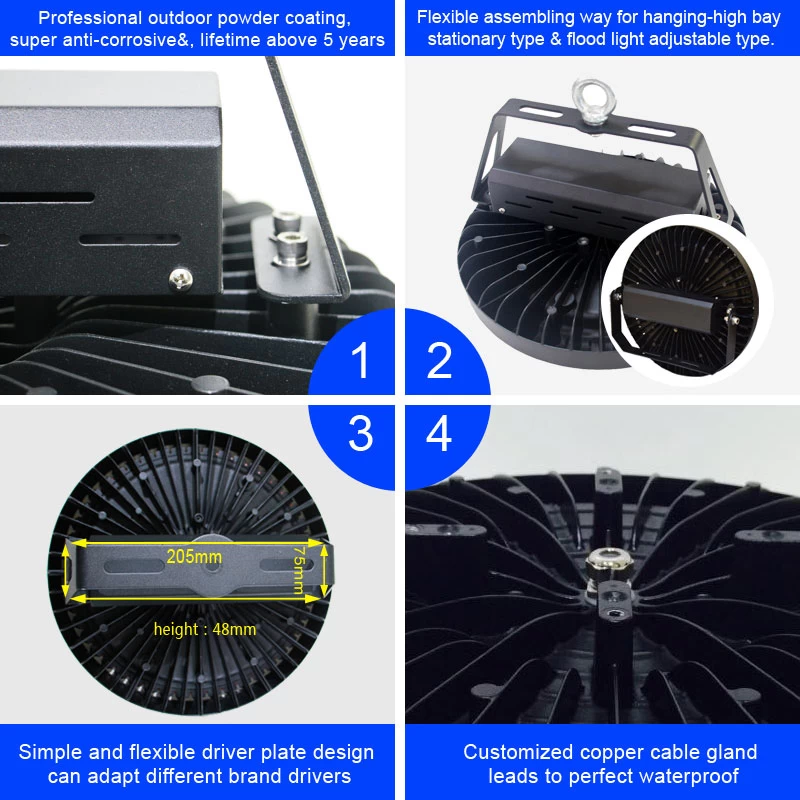

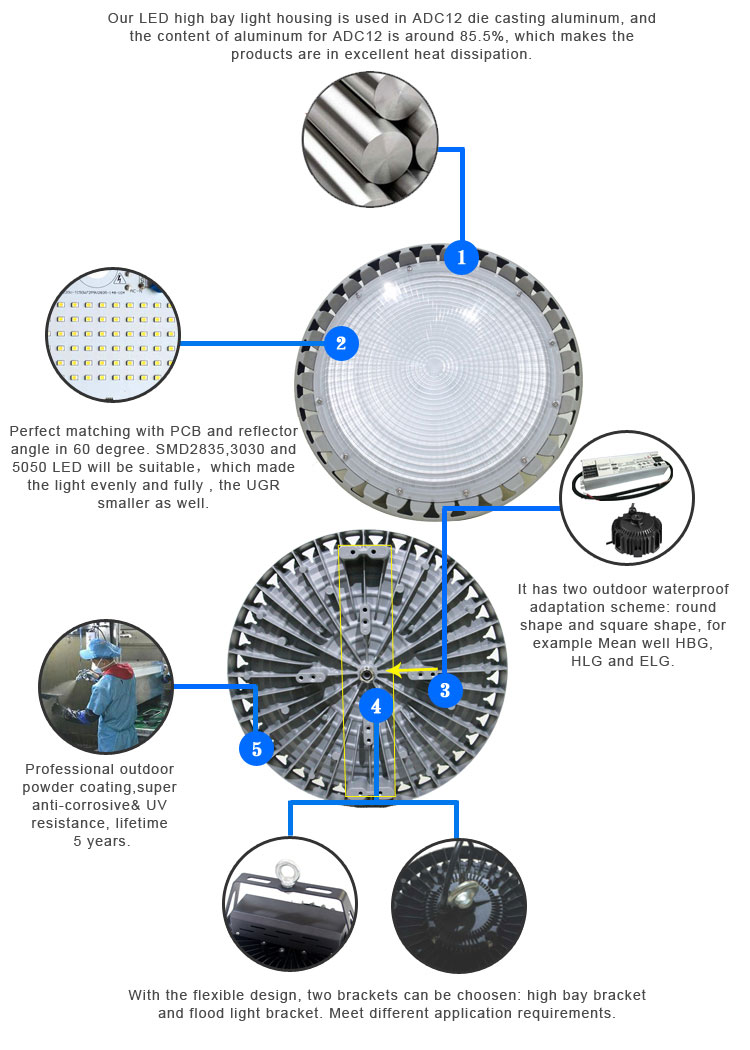

1.Design heat sink. With the help of long and short fins, heat dissipation to various direction.This heat sink is aluminum alloy,not easy deformed, high dissipation.Independent ventilation driver box design, adapt to different driver sources and provide effective protection. Flexible assembling way for hanging-high bay stationary type & flood light adjustable type.
2. Be matched with 60 degree reflector optical proposal, in high reflection PC material and 255pcs for leds. Preferably PC material mask,high impact strength,high light transmittance,uniform and soft light effect.With evenly and full light will reduce glare rate. The surface treatment adopts special outdoor powder spraying technology, which has strong corrosion resistance and UV resistance. Warranty up to 5 years.And ufo led high bay ligh all parts of the light housing have got ROHS,BV,TUV certificates.
Foshan Nanhai Shunzhan Mould Lighting Metal Products Co., Ltd. has a variety of hanging led high bay light for customers to choose from and supports customization. We continue to develop and design more LED products that are recognized by customers and different markets.
|
Model:
|
8010F-B
|
8011F-B
|
|
Power:
|
60w-160w
|
120w-240w
|
|
Size(mm):
|

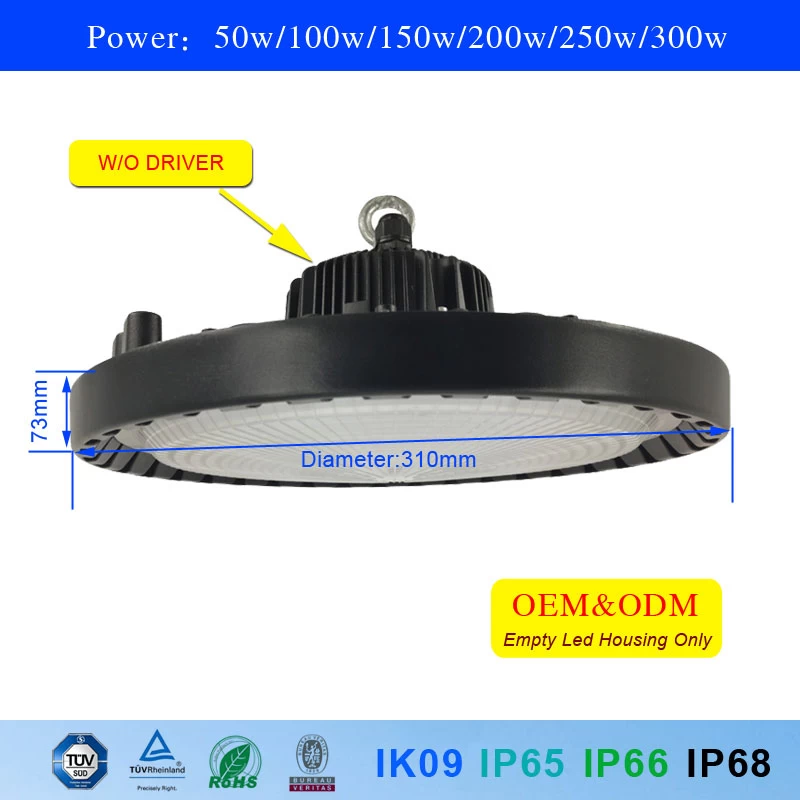

Φ310*72.5
|
Φ360*74
|
|
Driver box dimenison(mm):
|
205*75*48
|
|
PCB Area(mm):
|
236*1.5
|
|
Net Weight(kg):
|
1.68
|
2.17
|
|
Color:
|
Black
|
|
Certificate:
|
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
|
|
Warranty:
|
3years
|
