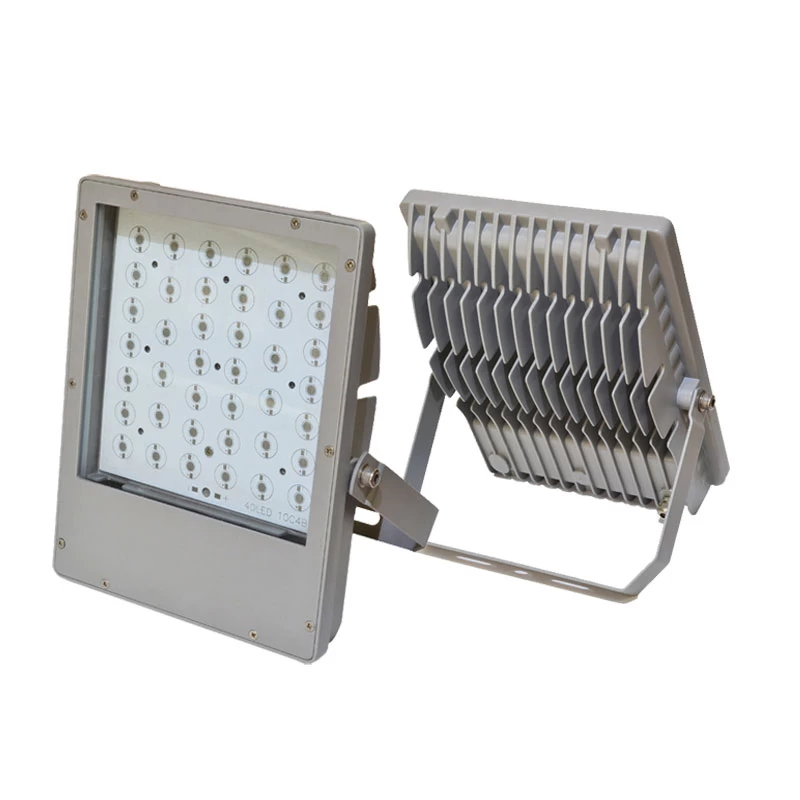

FSSZ Ip66 Outdoor Park 18w Led Flood Light Housing
AC Led Flood Light Housing the inner driver box design makes the outlook artistic.Waterproof of the inner driver space is reliable and can be matched with different drivers.

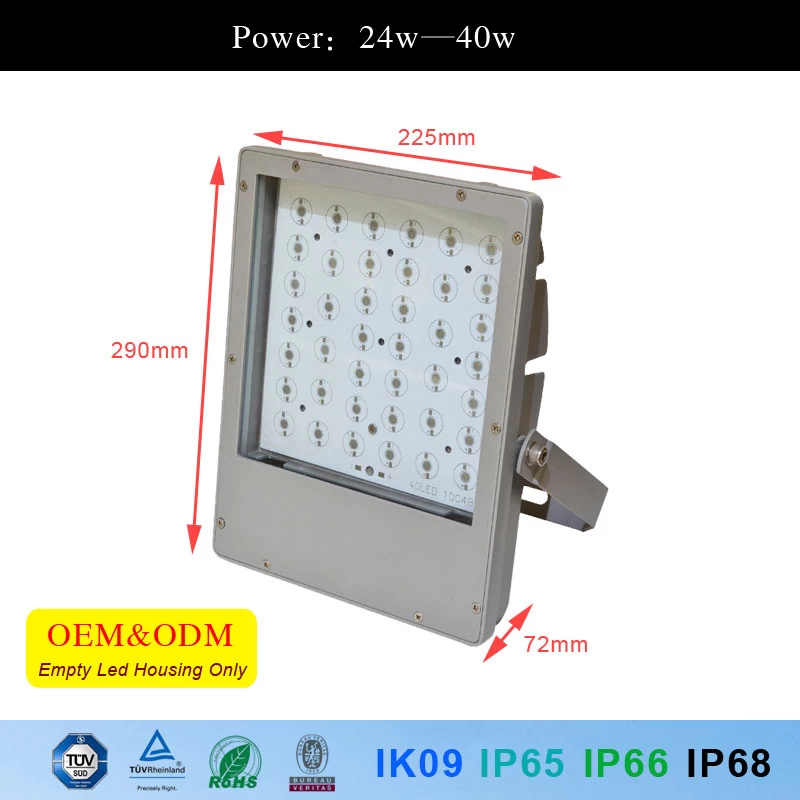

- Size290*225*72
- Body MaterialAluminum
- IP RatingIP66
- Warranty(Year)5 Years
- CertificationRoHS/IK09/ISO9001/BV
- ComponentsLED lamp body, lens, pcb, bracket, silicone seal, cable gland, screws

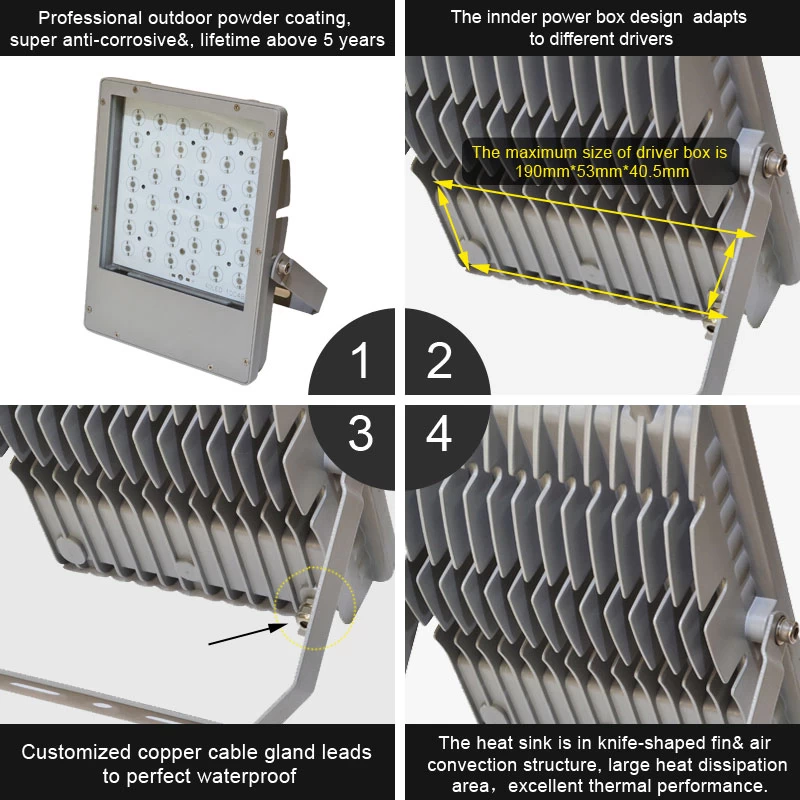

1.The led flood light fixtures adopts environmental
protection national standard ADC12 aluminum integrated die-casting molding, blade
type convection heat dissipation design, excellent heat dissipation
performance. The inner driver box design makes the outlook artistic.Waterproof
of the inner driver space is reliable and can be matched with different
drivers.
2.With large transmitting area to improve the light efficiency, and inner height is 19.5mm to match with different optical proposal.All fixing parts, such as screws, nuts, washers,are made of 304 stainless steel. Rust-proof, beautiful and durable. High quality led flood light fixture the surface treatment adopts special outdoor powder spraying technology, which has strong corrosion resistance and UV resistance.
Model:
|
2014N24
|
2016A6
|
Power:
|
24-40W
|
6w
|
Size(mm):
|
290*225*72
|
195*80*105
|
Driver box dimenison(mm):
|
190*53*40.5
|
126*35*26
|
PCB Area(mm):
|
195*190*1.5
|
158*42*1.5
|
Net Weight(kg):
|
3.3
|
0.8
|
Color:
|
Black
|
|
Certificate:
|
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
|
|
Warranty:
|
3years
|
