FSSZ Rohs Die Casting Aluminum Led Flood Lights Housing

Empty Aluminium Housing For Led Flood Lights is ip66 standard, excellent waterproof, dustproof and anti-corrosion design, can be used in rainy or cold areas for a long time. Widely used in highways, main roads, roads, branch roads, parks, garden roads, pedestrian streets, parking lots, streets, communities, factories, schools, every residential area, gardens and roads, etc.

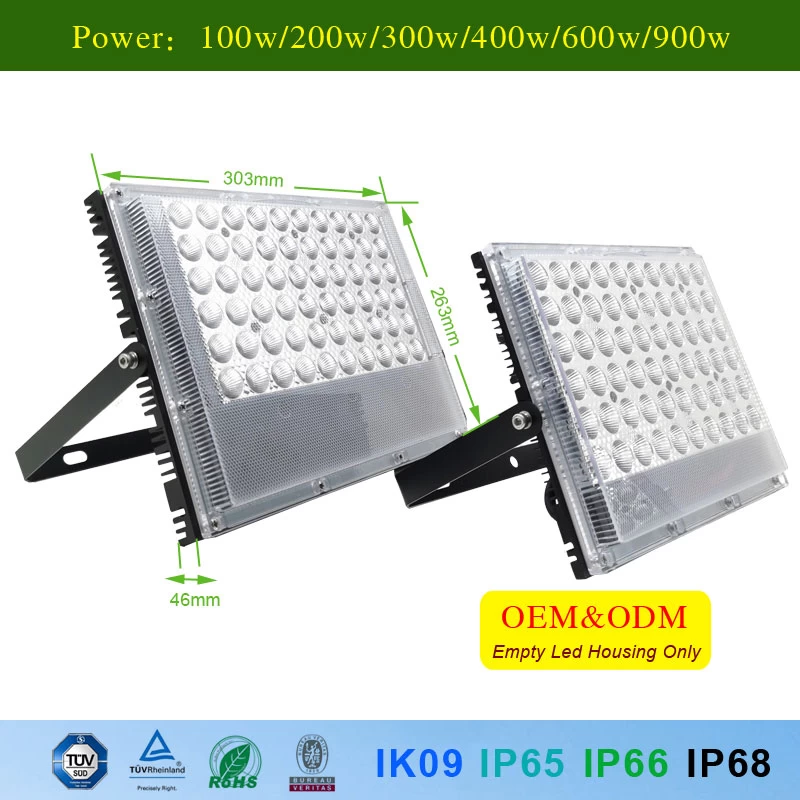

  • Size303*263*46
  • Body MaterialAluminum
  • IP RatingIP66
  • Warranty(Year)5 Years
  • CertificationRoHS/IK09/ISO9001/BV

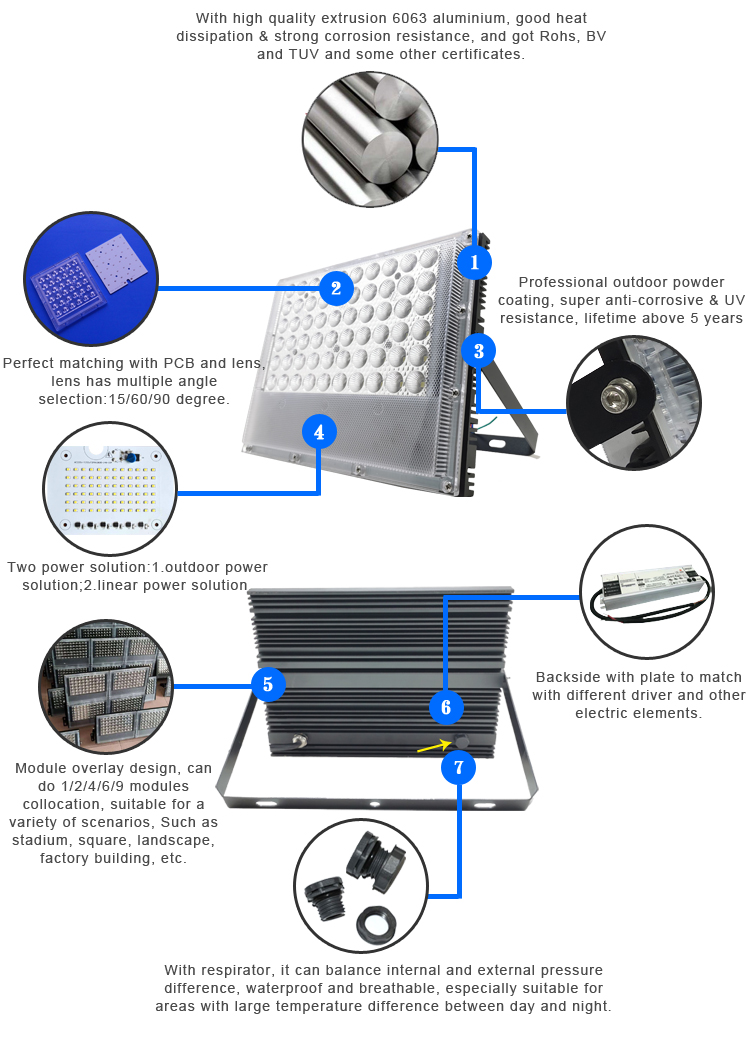

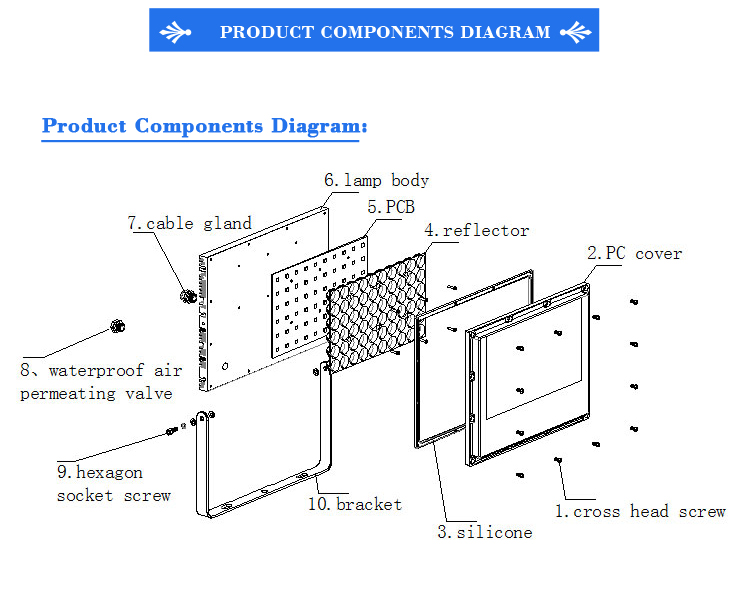

  • ComponentsLED lamp body, lens, pcb, bracket, silicone seal, cable gland, screws

Product Item:FSSZ Rohs Die Casting Aluminum Led Flood Lights Housing


· Waterproof Ip66

Rhos flood lamp housing by using waterproof connector and silicon rubber sealing, up to ip66, meeting the requirements for harsh, tough environment.

· High Grade Glass Panel
200w led flood lights 3-5 mm tempered glass panel, safely protect the lighting source, and the light transmittance rate is up to 98%.

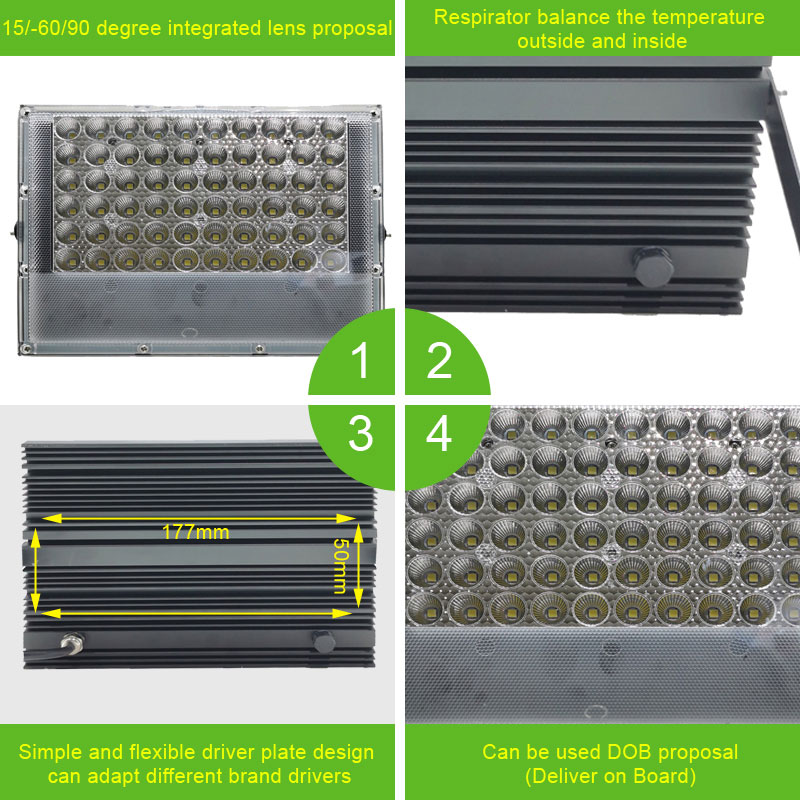

· Perfect Shaper Design

Fin assembly and cooling plate tightly mated to minimize thermal resistance without plating, aesthetics and environmental protection.


Model: TG19J-1 TG19J-2 TG19J-3 TG19J-1X2 TG19J-1X3 TG19J-2X2 TG19J-2X3 TG19J-3X2 TG19J-3X3
Power: 100w 200w 300w 200w 300w 400w 600w 600w 900w

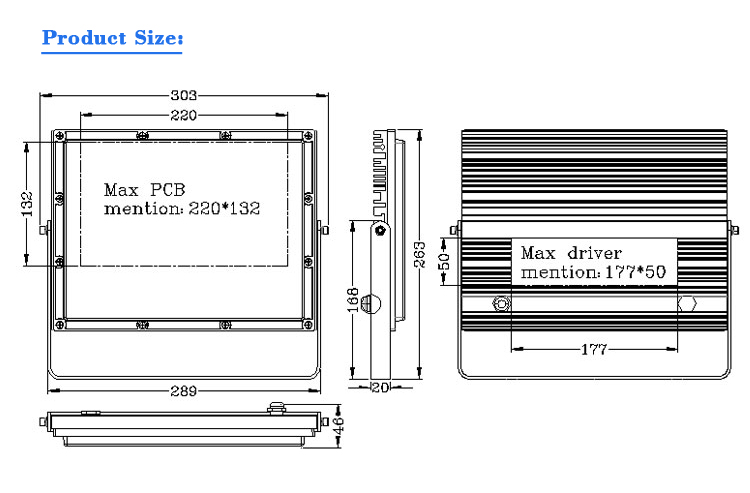

Size(mm): 303*263*46 607*227*72 886*227*72 348*455*82
348*672*82
627*455*82 627*672*82 906*455*82 906*672*82
Driver box dimenison(mm): 177*50
PCB Area(mm): 220*132*1.5
Net Weight(kg): - - - - - - - - -
Color: Black
Certificate: IP65,Rohs,IK09,patent,ISO9001,TUV,BV
Warranty: 3years


Grey Die Cast Lighting Housing

Empty Housing For Led Flood Lights

200w Led Flood Lights

Rhos Flood Lamp Housing


Product Process
