FSSZ Tool Free Installation Outdoor Ip65 Waterproof Led Street Light Fixture

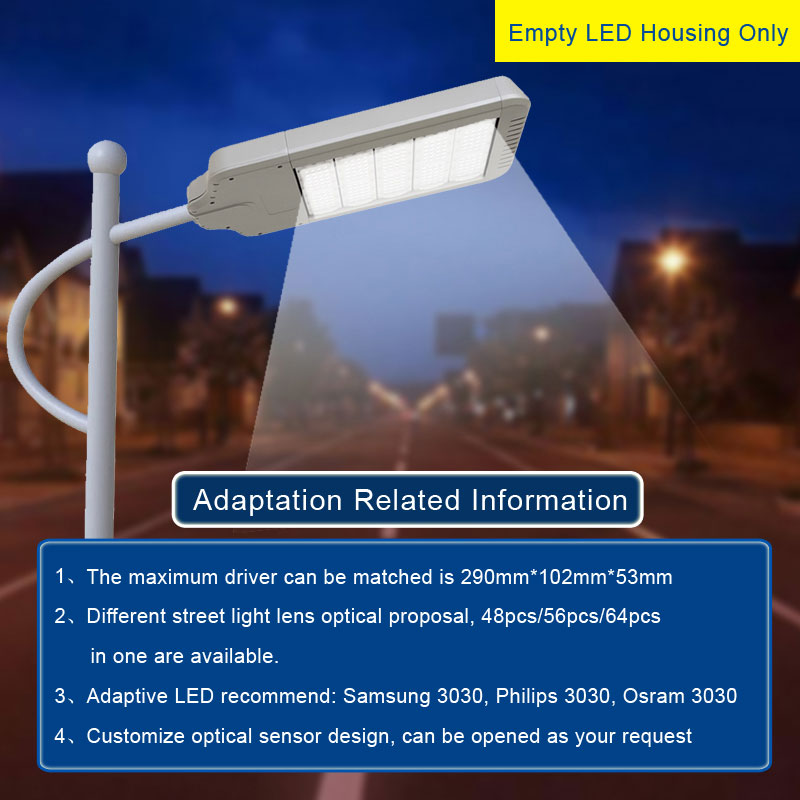

IP67 Led Street Light Housing adapt to a maximum size of 290 * 102 * 53mm,Multiple street light lens light distribution schemes, 48 in 1/56 in 1/64 in one are available.

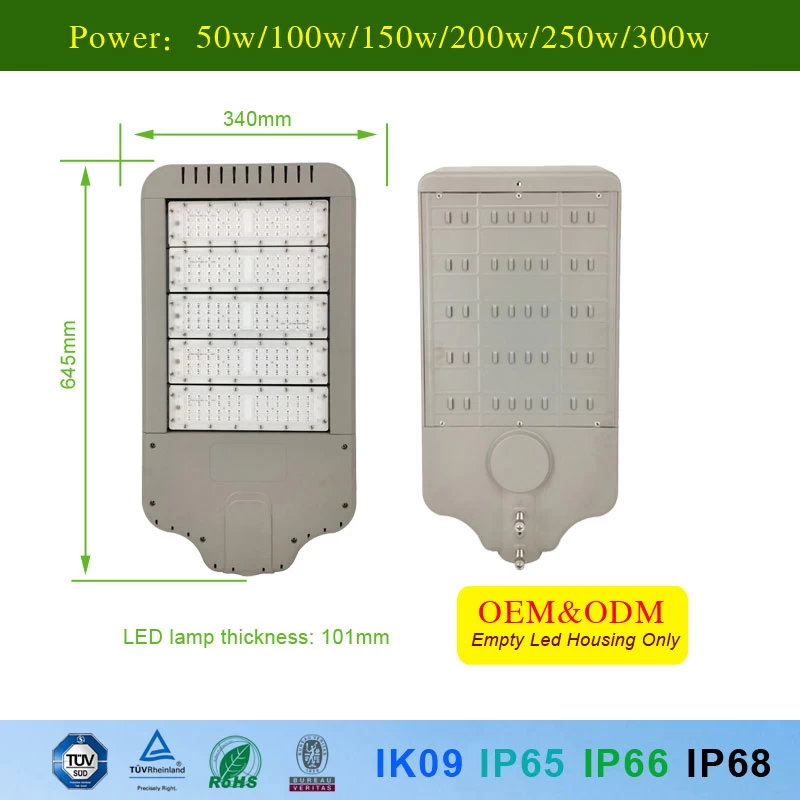

  • Size645*340*101
  • Body MaterialAluminum
  • IP RatingIP66
  • Warranty(Year)5 Years
  • CertificationRoHS/IK09/ISO9001/BV
  • ComponentsLED lamp body, lens, pcb, bracket, silicone seal, cable gland, screws

Product Item:FSSZ Cheap Outdoor Ip65 Waterproof Led Street Light Fixture

Product Advantages:

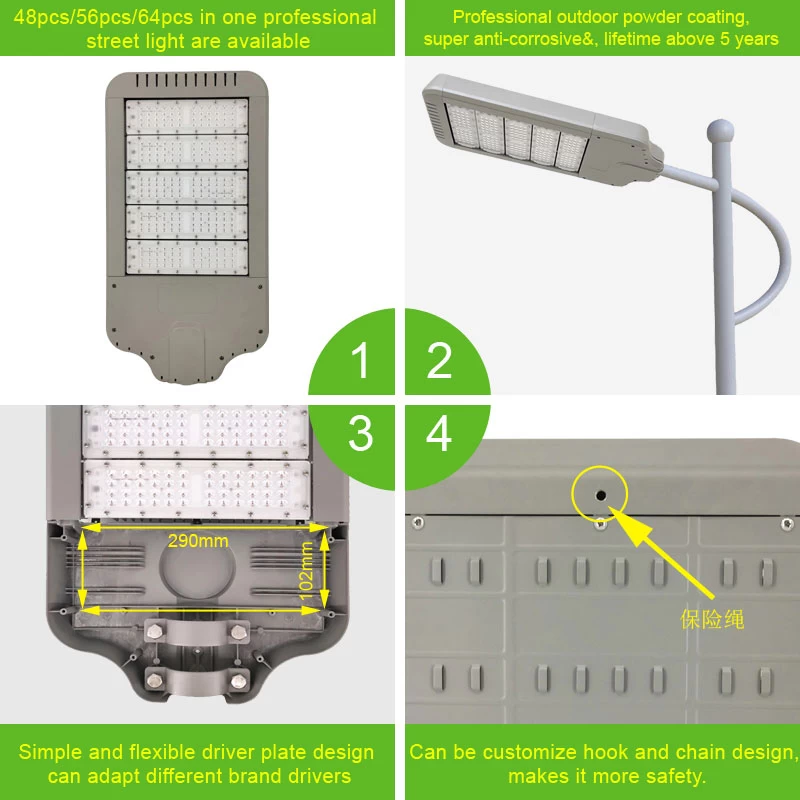

1. Ip67 led street light housing the surface treatment adopts special outdoor powder spraying technology, which has strong corrosion resistance and UV resistance. Warranty up to 5 years. There is ample space for the driver of the light, which can be adapted to different brands of driver at the same time. All parts of the housing have got ROHS,BV,TUV certificates.


2. Standard modular radiator, can also be used with 48-in-1, 56-in-1, 64-in-1 sstreet light optical proposal. Light effect can be matched freely. Die casting led light fixture with different usages. Hook and chain design. We suggest use this function when the light is above 4 modules so that to more safety




Model: LF18-1 LF18-2 LF18-3 LF18-4 LF18-5 LF18-6
Power: 30-50w 60-100w 90-150w 120-200w 150-250w 180-300w
Size(mm): 369*340*101 426*340*101 499*340*101 572*340*101 645*340*101 718*340*101
Driver box dimenison(mm): 290*102*53
PCB Area(mm): 300*70*40 300*70*40 300*70*40 300*70*40 300*70*40 300*70*40
Net Weight(kg): 3.0 3.66 4.1 4.6 5.0 5.46
Color: White,Grey
Certificate: IP67,Rohs,IK09,patent,ISO9001,TUV,BV
Warranty: 5years
