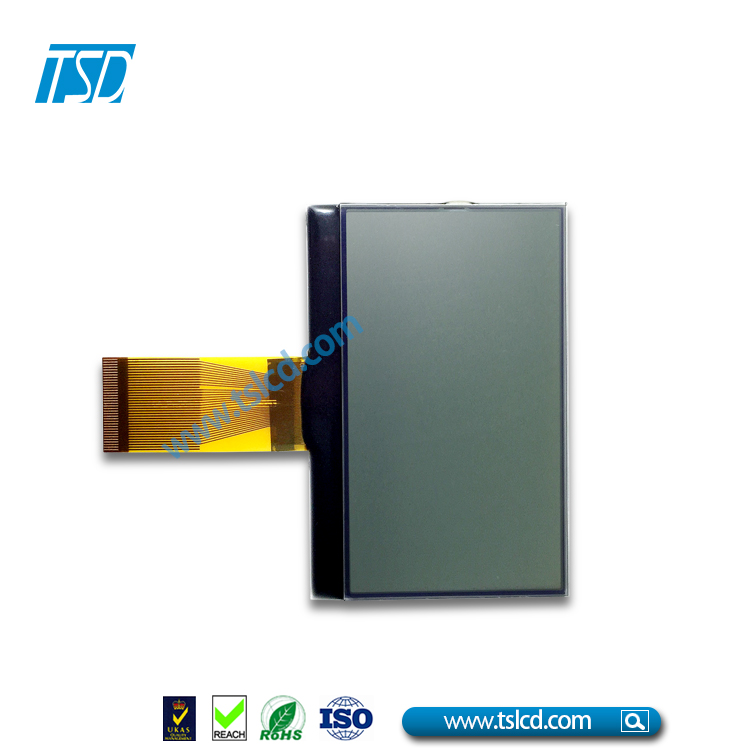

FSTN 128x64 cog lcd

128x64 dots cog lcd

STN /FSTN lcd type

with /without backlight

SPI interface

Facebook Twitter Pinterest LinkedIn 分享

Item Spec.
Display type FSTN/DFSTN, Positive/negative, Transflective
Operating voltage 3.0v, Vlcd=9v
Outline 89.8x54.6x7.0mm
View Area 70.7x38.8 mm
Active Area 66.52x33.24mm
Controller IC NT7534
Viewing direction 6H
Operating temperature -20°C-70°C
Storage temperature -30°C-80°C
Drive Mode 1/65 DUTY, 1/9 BIAS
Backlight White LED/ RGB LEDs backlight
Polarizer Type Transflective
Structure cog lcd, RGB backlight available
