Technical features
|
|
|
|
|
|
|
|
|
|
Anti-high temperature performance
|
|
Unique performance
|
|
Higher power saving
|
Reinforced anti-high temperature ABS container and cover to endure the global increasing high temperature situation
|
|
Special positive additive to Improve battery performance & 3 Nano-Carbon enhanced for Improved durability
|
|
25% electricity power saving & up to 100% of cost saving of air conditioner
|
|
|
|
|
|
|
|
|
|
|
Wide operating temperature range
|
|
High reliability
|
|
Long service life
|
-40°C to +80°C
|
|
UL recognized components & heavy duty insert copper terminals increased safety
|
|
12-15 years service life at 35°C, sustainable at average global temperature
|
|
|
|
|
|
|
|
|
|
|
Long warranty
|
|
Assured quality
|
|
Reduced operational cost
|
5years replacement warranty even at temperature up to + 60°C
|
|

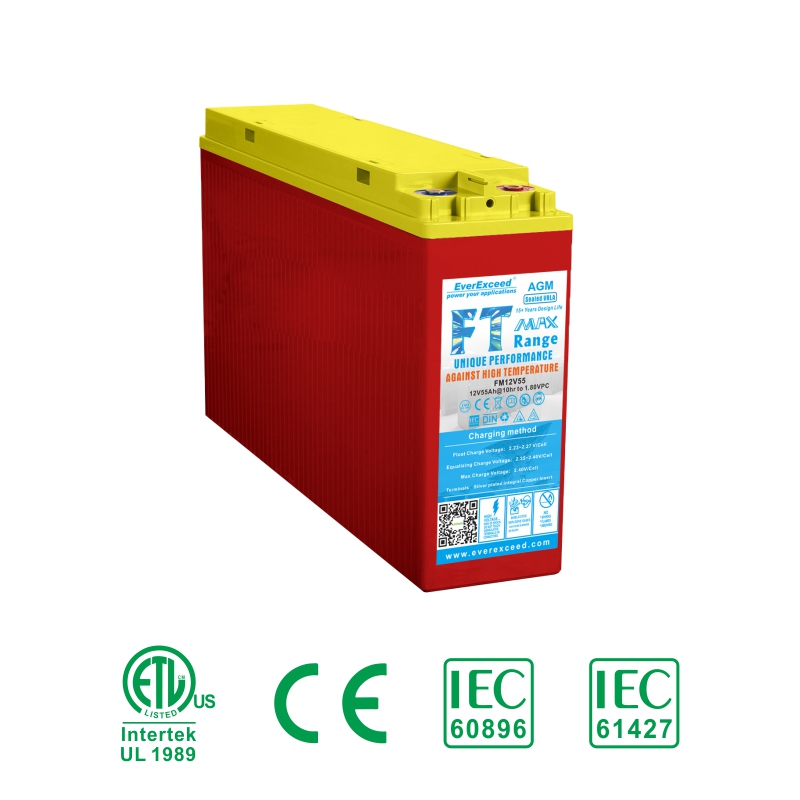

UL 1989, CE certificates as well as IEC60896, IEC61427 test report approval
|
|
Less Capex & Opex with HTB batteries than conventional batteries
|
|
|
|
|
|

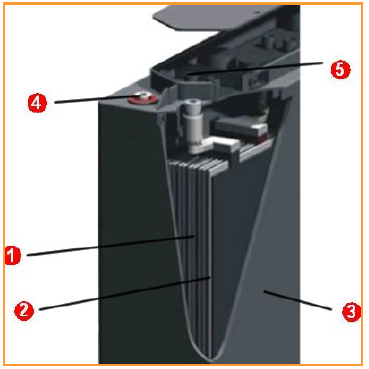

Internal structure
|
1) Plates: High Tin Pb alloy, optimized for high corrosion resistance.
2) Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance, for maximum absorption of the electrolyte and for electrical separation of the positive and negative plates.
3) Standard Housing: Reinforced special high temperature resistant ABS container and cover adopted.
4) Terminals: Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.
5) Valves: Release gas in case of excess pressure and protects the cell against atmosphere.
|
Applications
● Telecom; ● Switchgear; ● Uninterruptible power supply (UPS); ● Standby power supply; ● Emergency lighting; ● Microwave; ● Photovoltaic/Solar;
