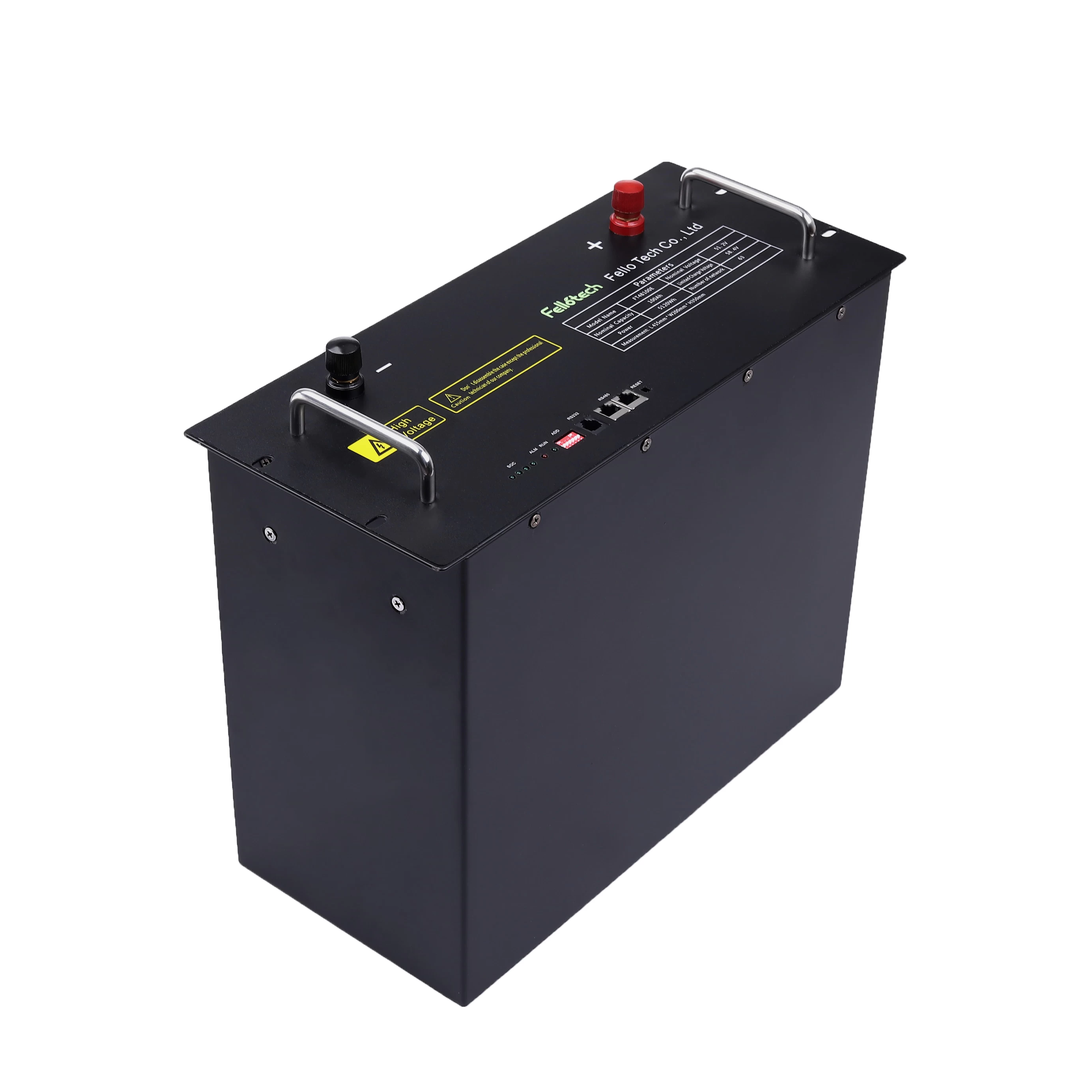

FT48100E 48V 100Ah LiFePO4 battery pack for solar storage system
|
S/N
|
Details
|
Parameters
|
Remarks
|
|
|
1 |
Nominal voltage |
51.2V |
Mean Operation Voltage |
|
|
2 |
Rated capacity |
Typical |
100Ah |
Standard discharge（0.2C） after standard charge |
|
Minimum |
97Ah |
|||
|
3 |
Charge |
Charge voltage |
58.4±0.2V |
|
|
Charge Moe |
0.2C to 58.4V, then 58.4V to 0.02C (CC/CV) |
|||
|
Standard Charge current |
20A |
|||
|
Max charge current |
50A |
|||
|
Charge cut-off voltage |
58.4±0.2V |
|||
|
Recommended float charge voltage ( for standby use) |
55.2±0.1V |
|||
|
4 |
Discharge |
Standard discharge current |
20A |
|
|
Max continuous discharge current |
80A |
|||
|
Max. Pulse current |
100A (＜30S) |
|||
|
Discharge Cut-off voltage |
32V |
|||
|
5 |
Cycle life |
≥ 2000 cycles |
0.2C 100% DOD |
|
|
6 |
Operation Temperature Range |
Charge：0~45℃ |
60±25%R.H. Bare Cell |
|
|
Discharge：-20~60℃ |
||||
|
7 |
Storage Temperature Range |
0~35℃ |
60±25%R.H. at the shipment state |
|
|
8 |
Weight |
Approx: 50.1kg |
|
|
|
9 |
Size |
243 X 258 X 721mm |
|
|
|
10 |
Plastic Case |
Metal |
|
|
